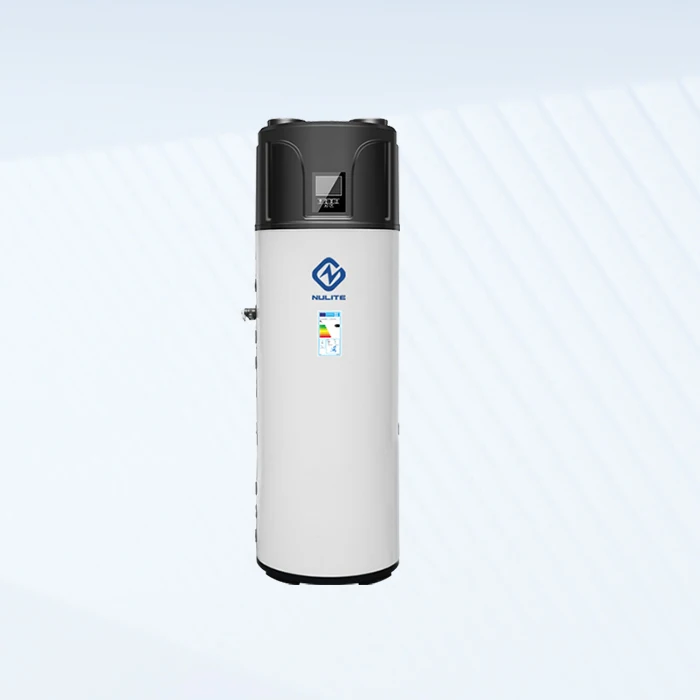

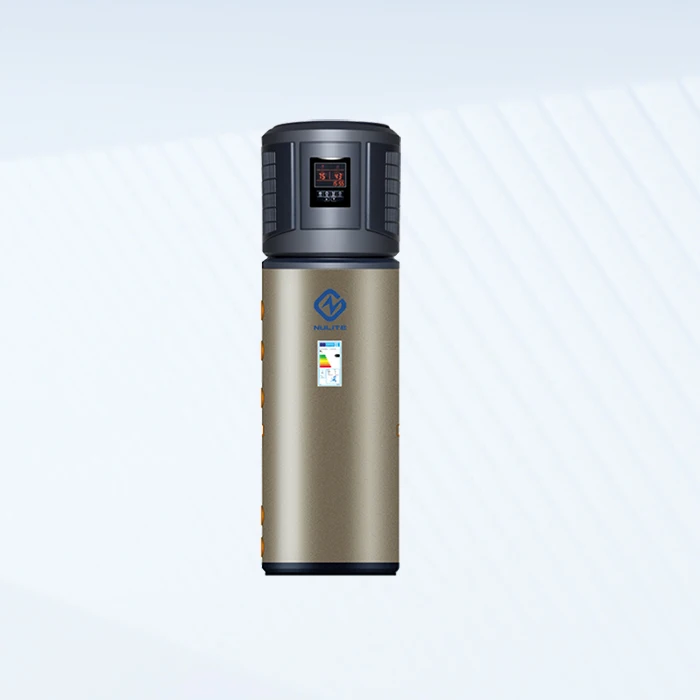

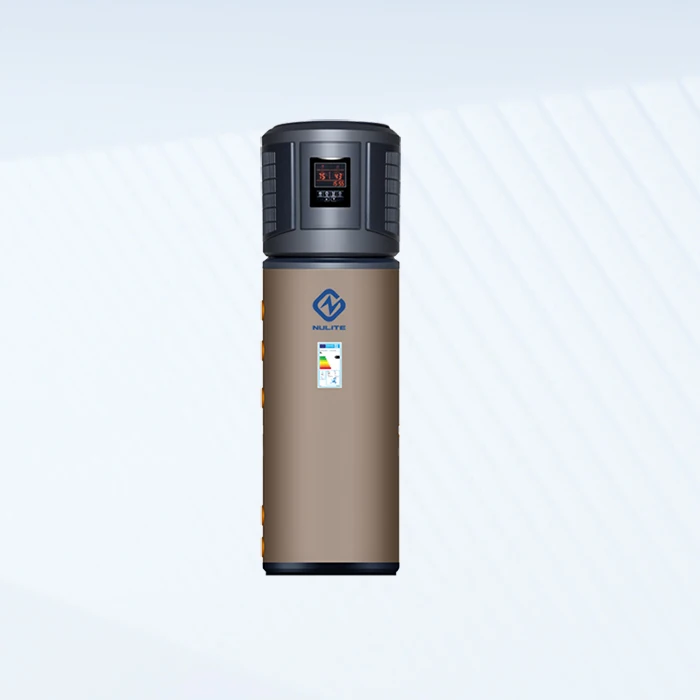

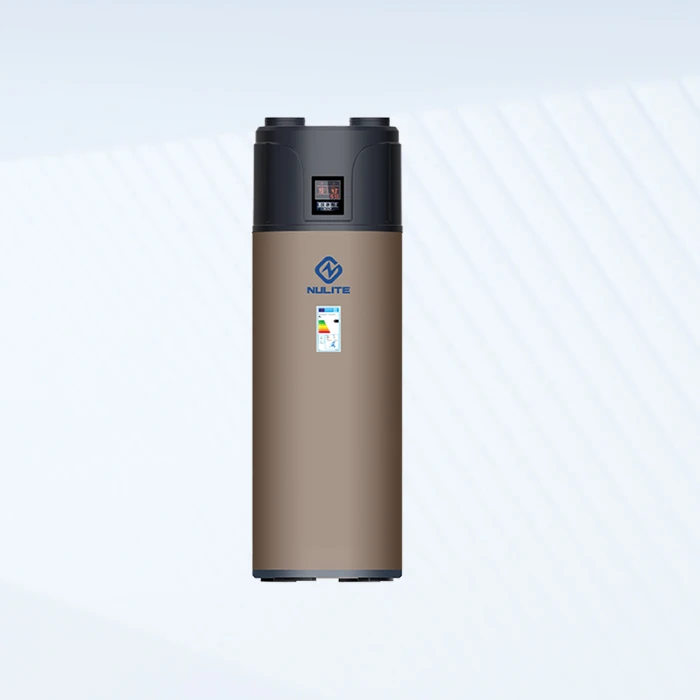

All in one heating system air to water heat pump for household usage high temperature
- Category: >>>
- Supplier: Nulite New Energy (guangzhou) Co. Ltd.
Share on (1600401065898):
Product Overview
Description
Details Images
The advantages of Nulite New Energy heat pump
LED touch screen control system
*Biology System and easy operation
Smart control system
*Luxury LCD screen touch control, flexible water temp. adjustment, multiple running modes are available, enjoy comfortable hot
water.
Smart control system
*Luxury LCD screen touch control, flexible water temp. adjustment, multiple running modes are available, enjoy comfortable hot
water.
Mitsubishl compressor
*Strong heating and powerful heart
*International famous brand,high quality compressor.
*Reduce compression leakage and improve compression efficiency
*International famous brand,high quality compressor.
*Reduce compression leakage and improve compression efficiency

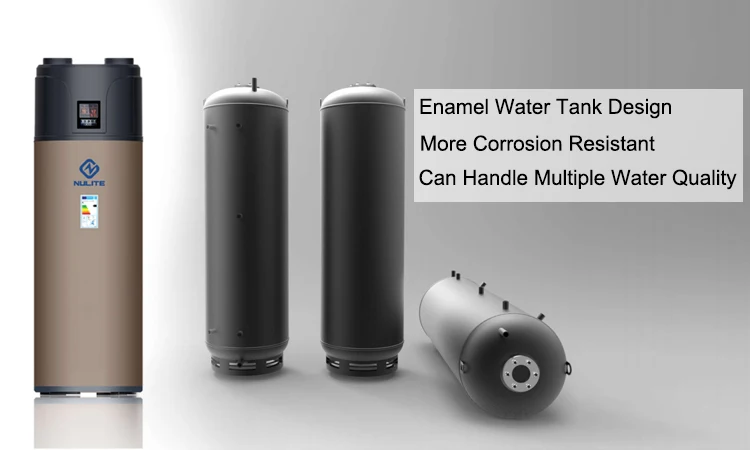

Super polyurethane insulation
*More instant hot water output and comfortable when using
* Super dense fluorofree polyurethane insulation can keep the hot water in the same temperature for longer time.
* Super dense fluorofree polyurethane insulation can keep the hot water in the same temperature for longer time.
Product Paramenters
Model | Unit | NL-FR1.0/EN150 | NL-FR1.0/EN200 | NL-FR1.0/EN300 | ||
Heating capacity | kw | 1.8 | 1.8 | 3.0 | ||
Water tank Volume | L | 150 | 200 | 300 | ||
Hot water production | L/h | 39 | 39 | 64 | ||
Power supply | V/Hz/Ph | 220～240V/50/1 | 220～240V/50/1 | 220～240V/50/1 | ||
Rated outlet water temp | ℃ | 55 | 55 | 55 | ||
Max outlet water temperature | ℃ | 75 | 75 | 75 | ||
Rated input power | W | 470 | 470 | 805 | ||
Current | A | 1.85 | 1.85 | 2.3 | ||
Auxiliary electric heating | W | 2000 | 2000 | 2000 | ||
E-heating current | A | 9.1 | 9.1 | 9.1 | ||
Refrigerant | / | R134a | R134a | R134a | ||
Compressor | / | Rotary | Rotary | Rotary | ||
Four-way valve | / | SHF-4 | SHF-4 | SHF-4 | ||
Motor | / | YDK25/32 | YDK25/32 | YDK25/32 | ||
Centrifugal fan | / | φ190 | φ190 | φ190 | ||
High pressure switch | Mpa | 3.0~2.4 | 3.0~2.4 | 3.0~2.4 | ||
low pressure switch | MPa | 0.05-0.15 | 0.05-0.15 | 0.05-0.15 | ||
Ambient temperature | ℃ | ﹣7～45 | ﹣7～45 | ﹣7～45 | ||
Waterproof protection level | / | IPX4 | IPX4 | IPX4 | ||
Product cabinet | / | Galvanized powder coated steel | ||||
Material of water tank | / | Enamel tank | ||||
Heat exchanger type | / | Extemal coil | ||||
Evaporator | / | Hydrophilic aluminum foil | ||||
Throttling device | / | Electrical expansion valve | ||||
Wire controller | / | Digital screen, touch buttons | ||||
Pipe diameter | inch | G1/2" | G1/2" | G3/4" | ||
Built-in pressure protection | MPa | 0.8MPa | 0.8MPa | 0.8MPa | ||
Product Dimensions | mm | φ570*1470 | φ570*1750 | φ640*2000 | ||
Packing Dimensions | mm | 710*680*1560 | 710*680*1842 | 720*720*2135 | ||
Net Weight | Kg | 85 | 112 | 142 | ||
Noise | dB(A) | ≤48 | ≤48 | ≤51 | ||
Erp Energy class level | / | / | 55℃ A++ | 55℃ A++ | ||

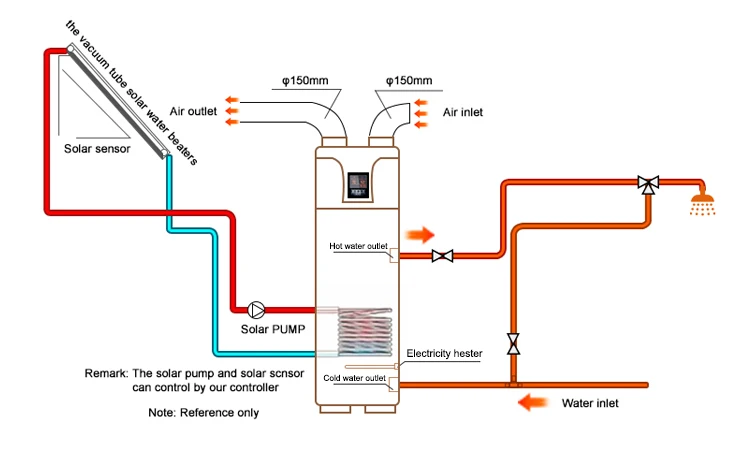

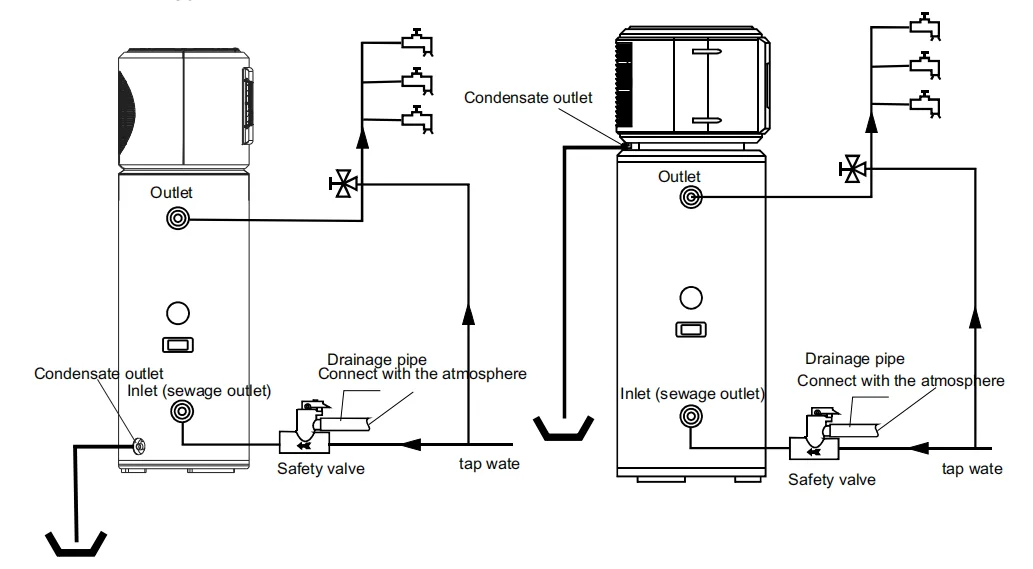

Installation Instructions
*Take a bath and enjoy every day.Let you in the bath, enjoy endless warmth
*Hot water in the kitchen, do not let cold water frostbite the hands of the family
*Let the hot water take your day off.
*Max hot water output temperature reach 75C
*Let the hot water take your day off.
*Max hot water output temperature reach 75C
Company Profile

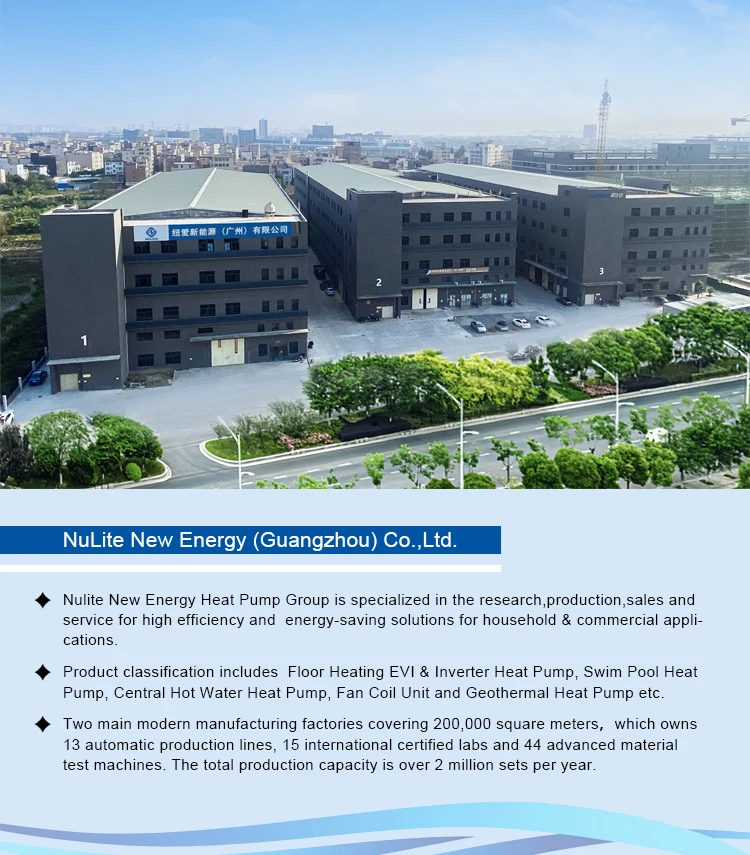

NuLite New Energy (Guangzhou) Co.,Ltd.
Nulite New Energy Heat Pump Group, based in Guangzhou and Foshan, is specialized in the R&D, manufacturing, sales and services for household & commercial high efficiency and energy-saving heat pump applications.

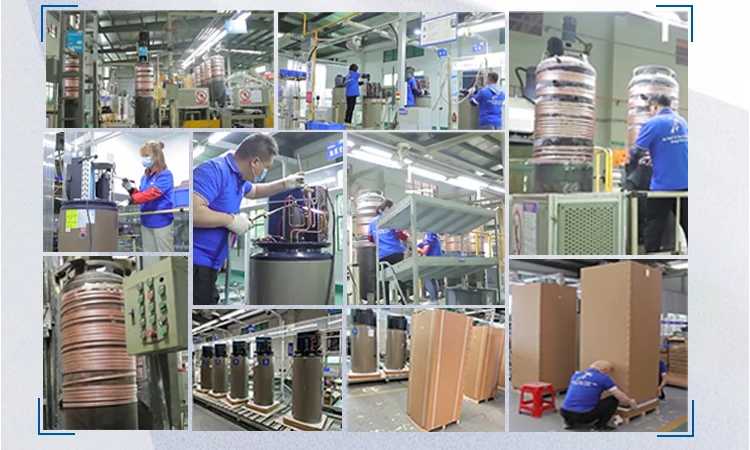

Our current product classification includes R290/R32/R410A/R134A refrigerant -30C EVI DC Inverter Heat Pump, Spa Pool Heat Pump,Commercial Heating/Cooling/Hot Water Heat Pump, Geothermal Heat Pump, Fan Coil Unit and Water Tank. With five main modern manufacturing factories covering 200,000 square meters, which owns 12 automatic production lines and 15 high-standard certificated inspection laboratories. The annual production capacity is over 500,000 units and more than 100,000 units has been exported last year in 2022.
NuLite, owns more than 20 years experience of heat pumps manufacturing & exporting, with EU-erP, CE, CB, EMC, ISO9001 certificated. As a double five-star supplier verified by Alibaba, we offer full range of OEM & ODM heat pumps and related products, now we sincerely recruit distributors worldwide.
Nulite, Be Your Right!
Our current product classification includes R290/R32/R410A/R134A refrigerant -30C EVI DC Inverter Heat Pump, Spa Pool Heat Pump,Commercial Heating/Cooling/Hot Water Heat Pump, Geothermal Heat Pump, Fan Coil Unit and Water Tank. With five main modern manufacturing factories covering 200,000 square meters, which owns 12 automatic production lines and 15 high-standard certificated inspection laboratories. The annual production capacity is over 500,000 units and more than 100,000 units has been exported last year in 2022.
NuLite, owns more than 20 years experience of heat pumps manufacturing & exporting, with EU-erP, CE, CB, EMC, ISO9001 certificated. As a double five-star supplier verified by Alibaba, we offer full range of OEM & ODM heat pumps and related products, now we sincerely recruit distributors worldwide.
Nulite, Be Your Right!
Certificates
Nulite New Energy Certificates
Our quality management system was certified in conformity with ISO9001, ISO14001 Standards, heat pumps with CE, EMC, erP, CB certificated. And also with customized OEM/ODM services for distributors all over the world.Now NuLite brand heat pump has been exported to more than 100 countries, even well installed.

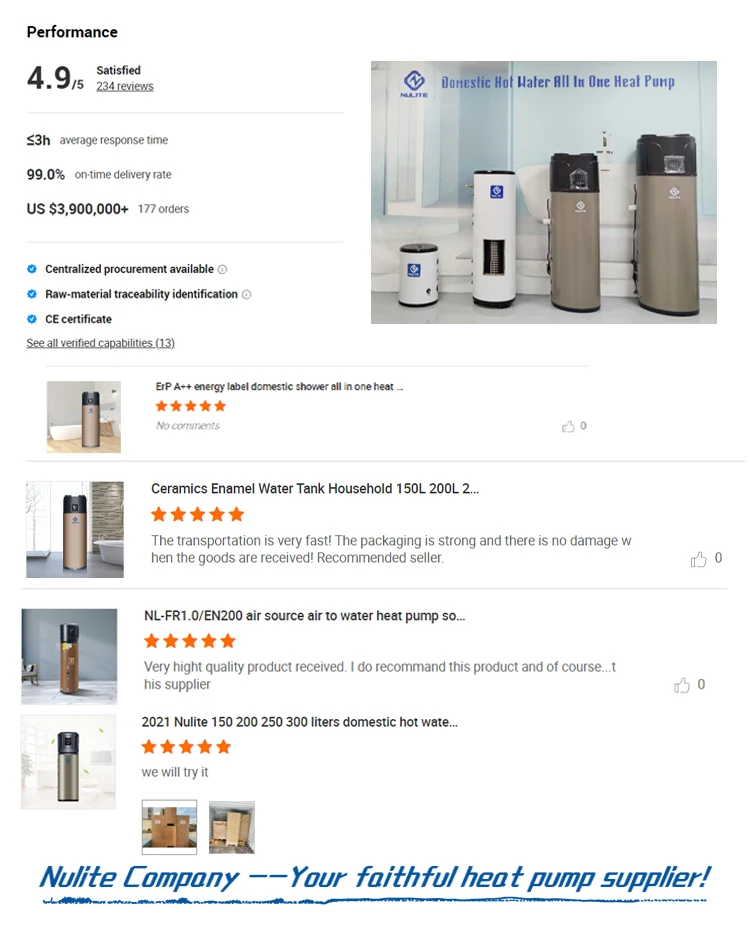

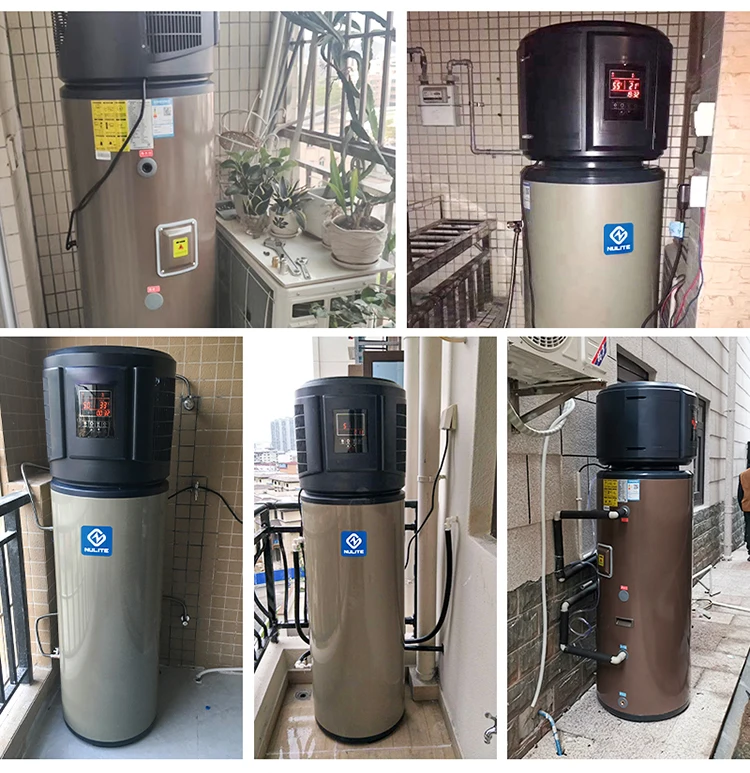

Customer Photos
Packing & Shipping
FAQ
Q: Are you heat pump supplier of trading company or manufacturer ?
A: We are R&D and manufacturing factory. With 200,000 sq meters modern factory in Guangzhou City & Foshan City. with OEM/ODM service.
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.
Q: Do you also provide other kind of heat pump?
Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance ,balance before shipment.
AIibaba trade assurance payment available. L/C Payment available only with 1 millon+ USD dealing amount.
For the most suitable Heating Cooling, Hot Water Solution!
A: We are R&D and manufacturing factory. With 200,000 sq meters modern factory in Guangzhou City & Foshan City. with OEM/ODM service.
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.
Q: Do you also provide other kind of heat pump?
Inverter/EVI/High/Low Temp Tech | Air/water/Geothermal source | CE ERP etc.
*House heating/cooling/DHW heat pump
* Household/Commercial heat pump
* Pool heater heat pump
*FCU | Stainless Steel Water tank (Buffer&DHW)
*House heating/cooling/DHW heat pump
* Household/Commercial heat pump
* Pool heater heat pump
*FCU | Stainless Steel Water tank (Buffer&DHW)
Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance ,balance before shipment.
AIibaba trade assurance payment available. L/C Payment available only with 1 millon+ USD dealing amount.
For the most suitable Heating Cooling, Hot Water Solution!
More details to confirm, please feel free to contact us as below!
We are professional,international and innovational heat pump manufacturer!
1.Response in 2 hours,Solution in 24 hours.send us message,and we will answer you quickly!
2.Free design for your house/project case,providing professional suggestion!
3.Long warranty terms and provide after-sale service quickly and free spare parts!
4.Marketing experience in HVAC industry,welcome to become our distributors!Do the heat pump business!
Please feel free to contact us right now!
