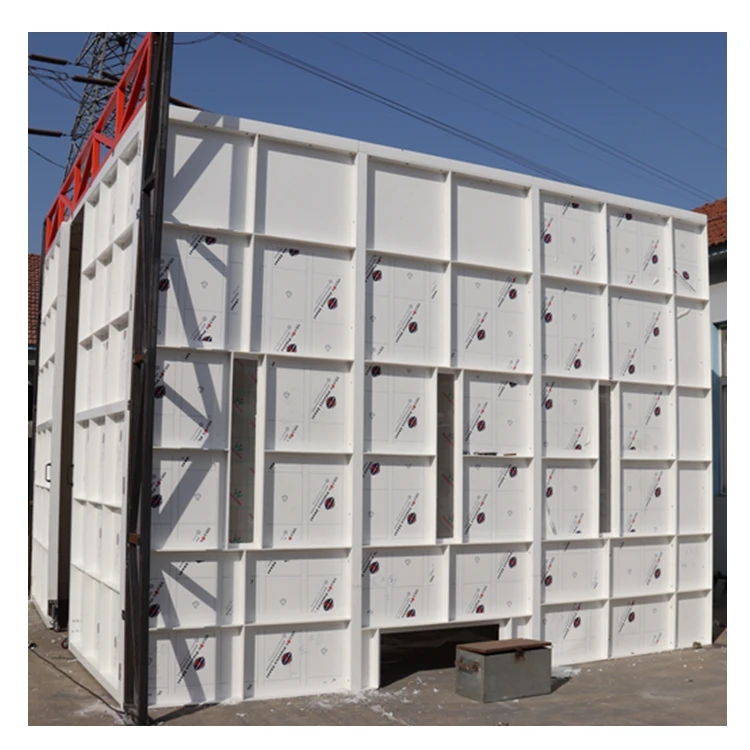

Walk in Electrostatic Manual Powder Coating Spray Booth for Large Parts

Inside Size(mm)

2500(L)*2500(W)*2200(H)

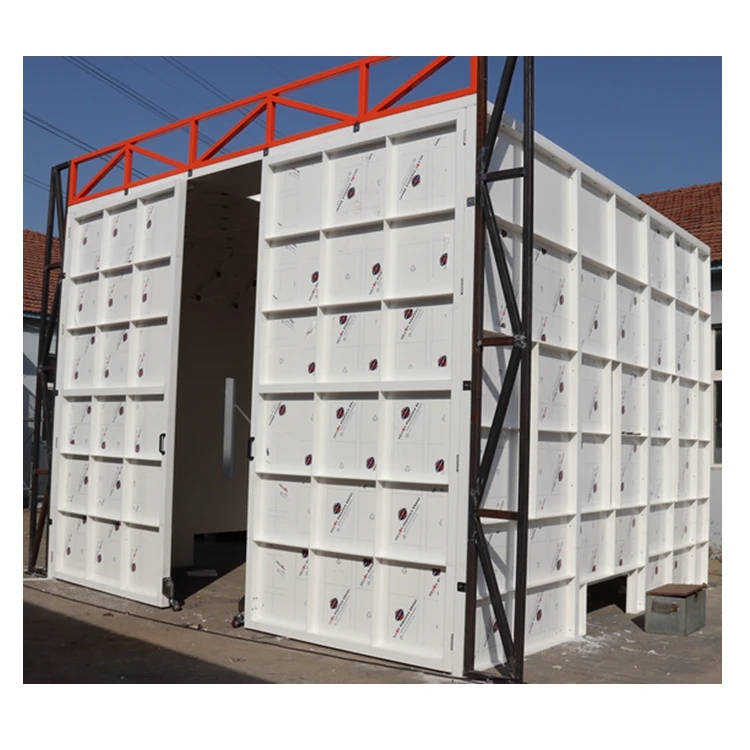

Door

There are 2 sliding doors

Door Open Size :2500mm*2200mm( W*H)

Door Working Size:1000mmm*2200mm(W*H)

Cabin System

Made by 1.5mm Galvanized Steel board,which is anti-electrostatic and easy to clean .The powder is hard to stick on the wall board,almost powder is dropped on the ground and collected together

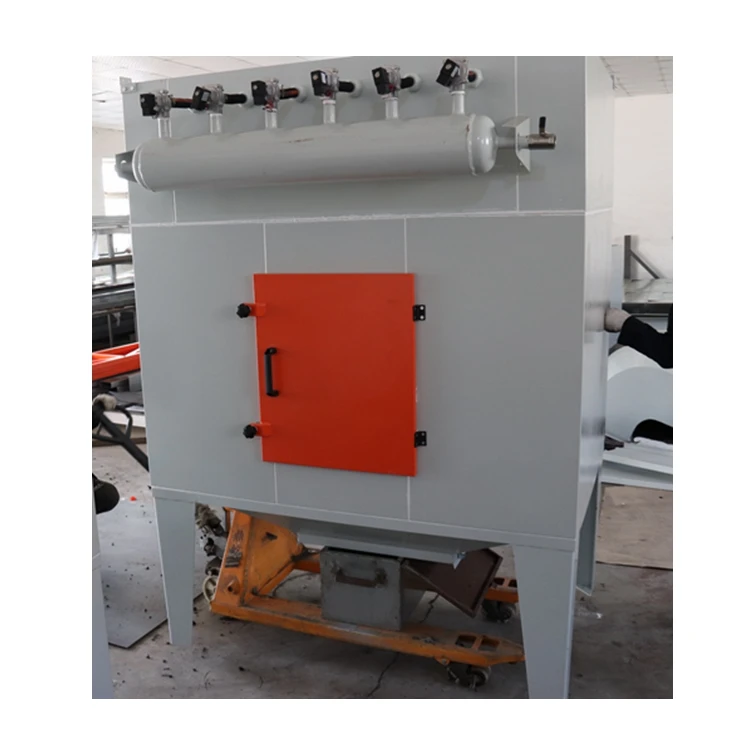

 Powder Recovery System

(1 sets)

Dust filter cartridges*6groups, 2pieces/group

Brand: Daikin Japan

Total:6pieces

Material: Nano-coated filter

each size: 660mm*Ø325mm

Quickly dismountable cartridge filter

The recycling cabinet is made of 2.0mm galvanized sheet for surface painting treatment.

Advantage : the air could exhausted in door ,no need to exhausted outside

Recovery system cabinet

Made by 2mm galvanized steel, powder coated on the surface.

Galvanized sheet is specially treated, anti-corrosion, anti-rust, spraying more beautiful

Location: On both sides of the spray booth

Circulation System(1 set)

1 set of centrifugal blower,7.5kw motor, top quality

The blower connected with booth by anti-flaming soft tubes

The exhaust vent of the blower could be adjusted in four directions

Air flow:4000m3/h

Air compressor:2500Pa

Blower Holder System

(1 set)

Made by 80*80 square tubes

Independent from the booth to prevent the resonance and reduce the noise

Lighting System

4 sets of explosion proof LED lights,there will be one cover on the light to avoid the powder

Control System

(1) Contains control of fans, lighting, and automatic backflushing systems;

(2) Fans, lighting, and automatic backflush systems are independently controlled;

(3) Built-in digital automatic pulse program controller;

(4) Chinese and English display control cabinet
