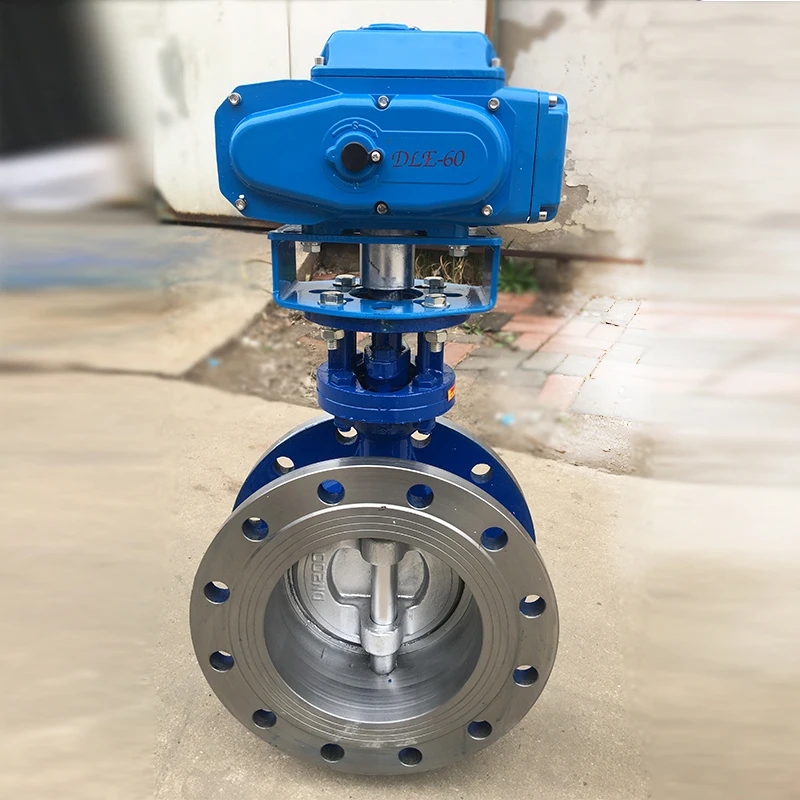

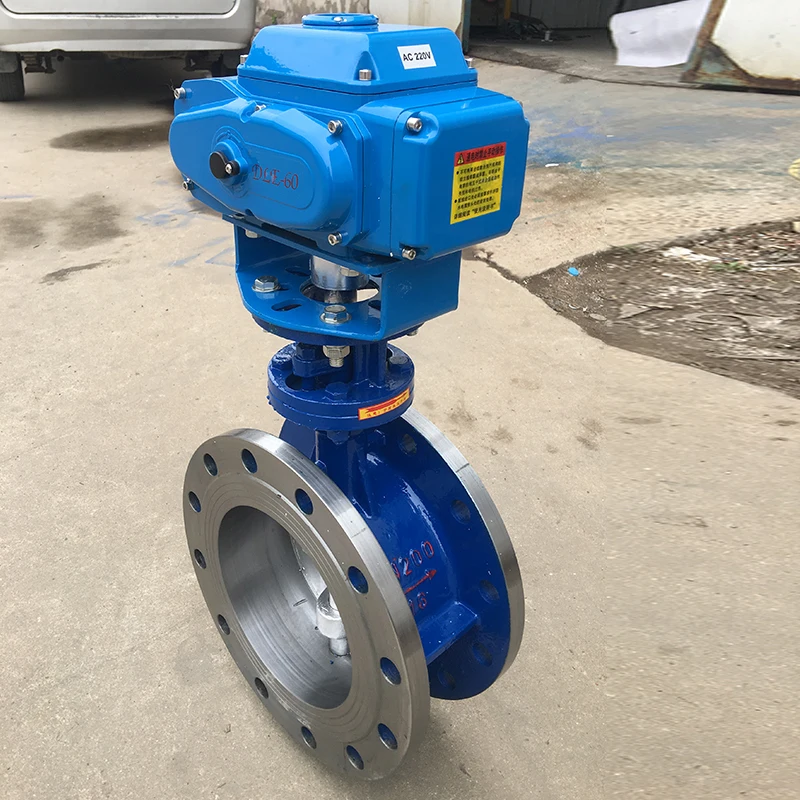

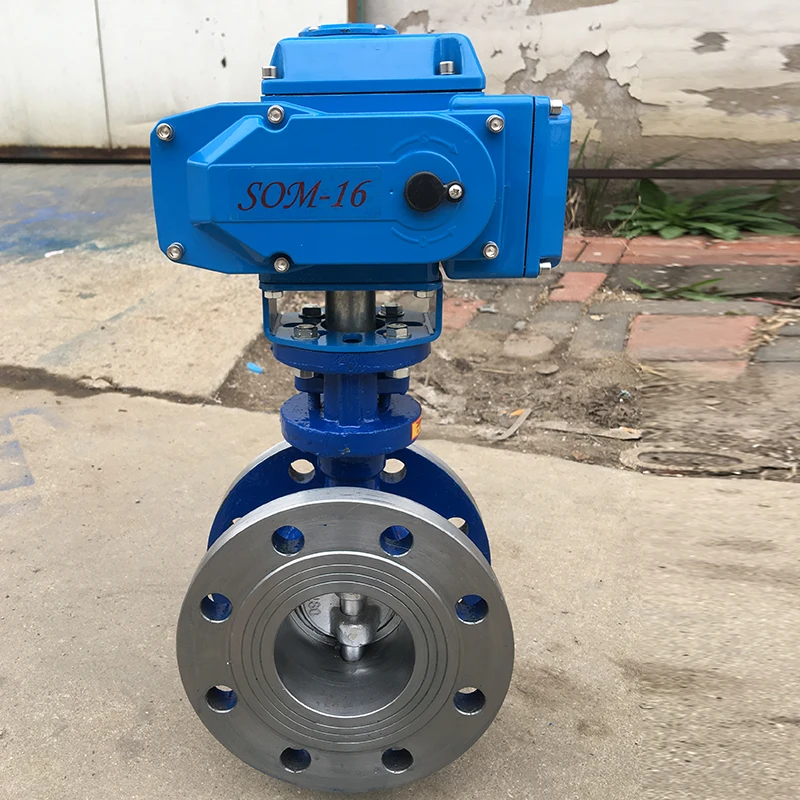

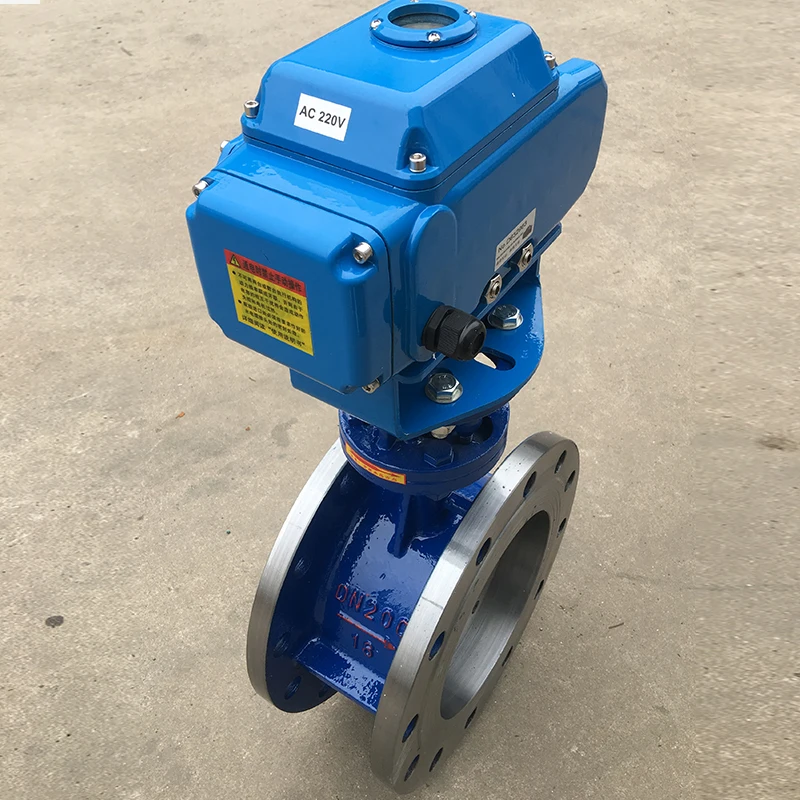

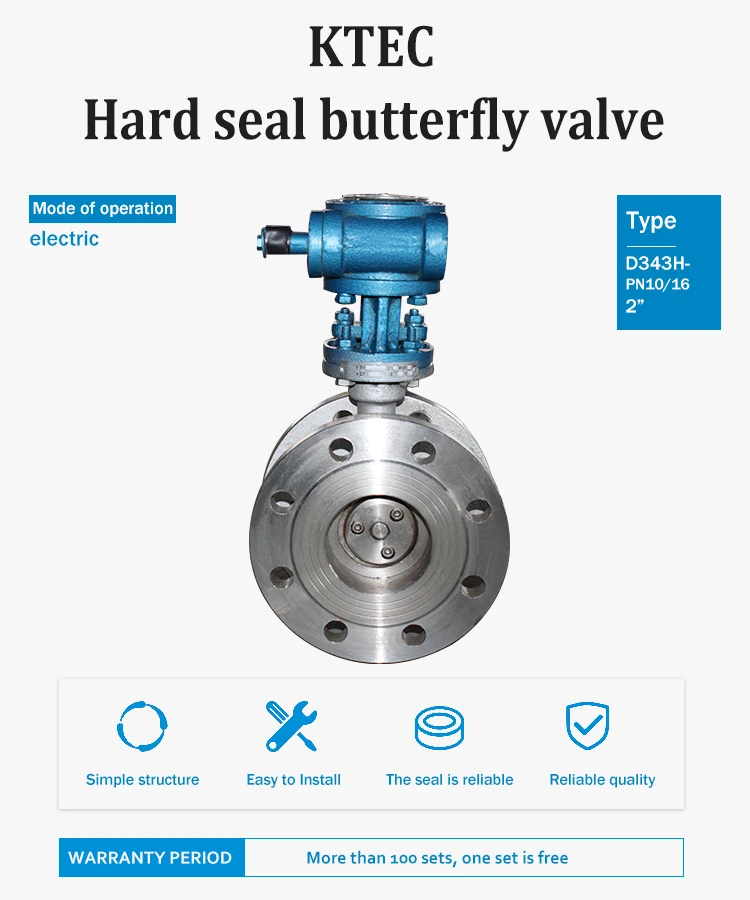

DN 50 2 inch extended stem Cast Iron EPDM rubber sealing flange butterfly valve with electric actuator

Product Overview

Description

Product name	hard seal butterfly valve
Model	Turbine
Size	DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300 DN350 DN400
Certification	ISO9001

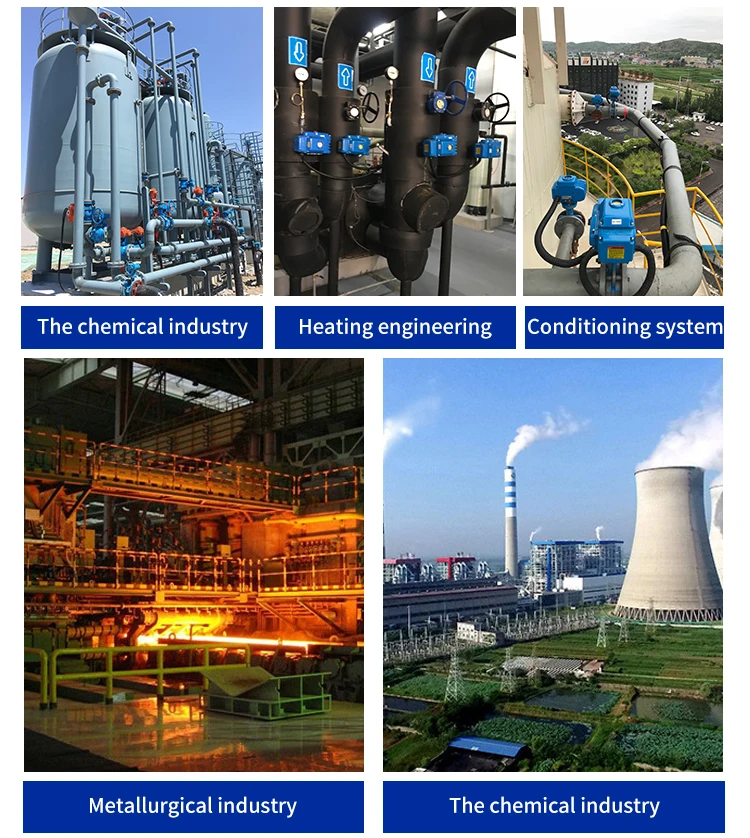

APPlication	petrochemical,electric power,metallurgy,menicine,real estate dan other industries.
Brand	KTEC
Pressure	PN10/PN16/150LB/JIS10K/JIS5K
Customized	OEM/ODM/OBM
Material	DI/WCB/SS304/SS316
Tempearture	-20-90℃
production process	investment casting,CNC lathe,Test,Cleaning,Packing,Storage

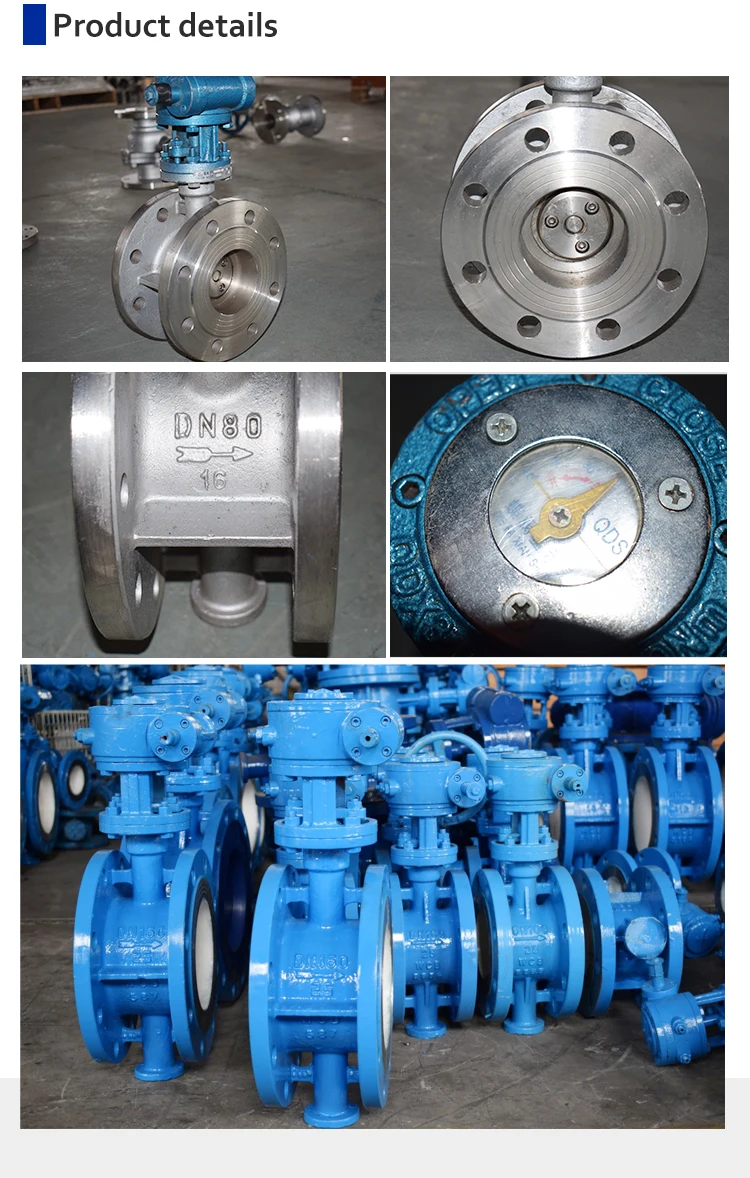

The characteristics of

1, the butterfly valve structure is simple, compact, light weight, easy to install and disassemble, convenient maintenance;

2, the butterfly valve adopts stainless steel "U" type sealing ring, has a certain flexibility in high and low temperature, it and butterfly plate have excellent sealing;

3, the butterfly valve three-dimensional eccentricity, after strict calculation, "U" type sealing ring and butterfly plate almost no friction, long service life, and has the function of the more close the tighter;

4, butterfly plate sealing surface using surfacing cobalt-based hard alloy, sealing surface wear resistance, long service life;

5, the butterfly valve unique structure, "switch" only need to turn the stem 90° can be completed.Flexible operation, convenient, labor-saving, not affected by the level of medium pressure, reliable sealing performance;

6, high temperature resistance, low temperature resistance, corrosion resistance.

With a standard

Design standard: GB/T12238-1989

Length: GB/T12221-1989

Pressure test: GB/T13927-1992;JB/T9092-1999

Technical parameters

Nominal menstruation	DN(mm)	50~1200
Nominal pressure	PN(Mpa)	0.6	1.0	1.6	2.5	4.0
Test pressure	Strength test	0.9	1.5	2.4	3.75	6.0
	Sealing test	0.66	1.1	1.76	2.75	4.4
	Gas seal test	0.6	0.6	0.6	0.6	0.6
Applicable medium	Water, steam, oil, acid corrosion, etc
Suitable temperature	Carbon steel: -29℃~600℃ stainless steel -40℃~600℃

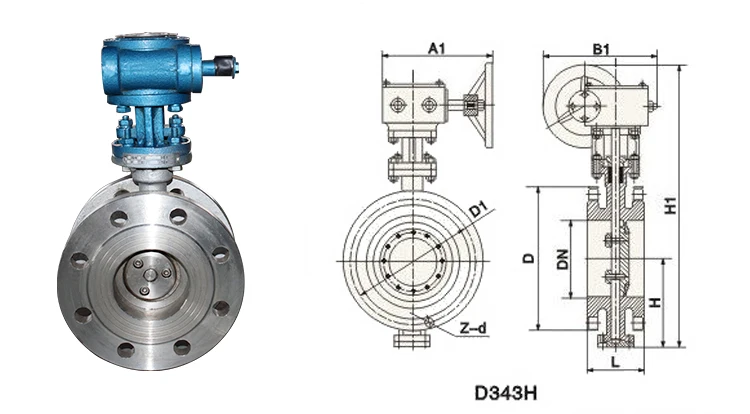

Main parts and materials

name	material
The valve body	Cast iron, cast steel, stainless steel, aluminum alloy
Disc plate	Cast steel, alloy steel, stainless steel
Sealing ring	Stainless steel, polyester, anti-wear materials
The valve stem	2CR13, 1CR13 stainless steel
packing	Flexible graphite

KTEC Fluid Control (Tianjin) Co,Ltd

Is a collection of valve design,research and development of low pressure butterflyvalve,spacial valve casting,manufacturing,and processing the sale is a body comprehensive enterprise,located in tianjin beichen science and technology industrial park .We have through the quality system certification of! S09001,ISO14001,API certification and TS certification.
