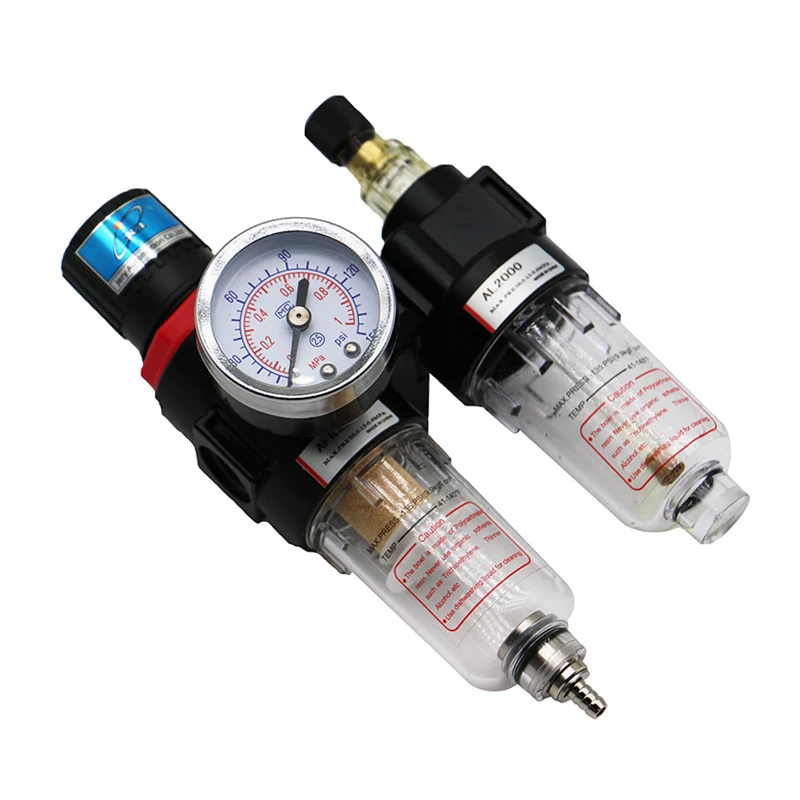

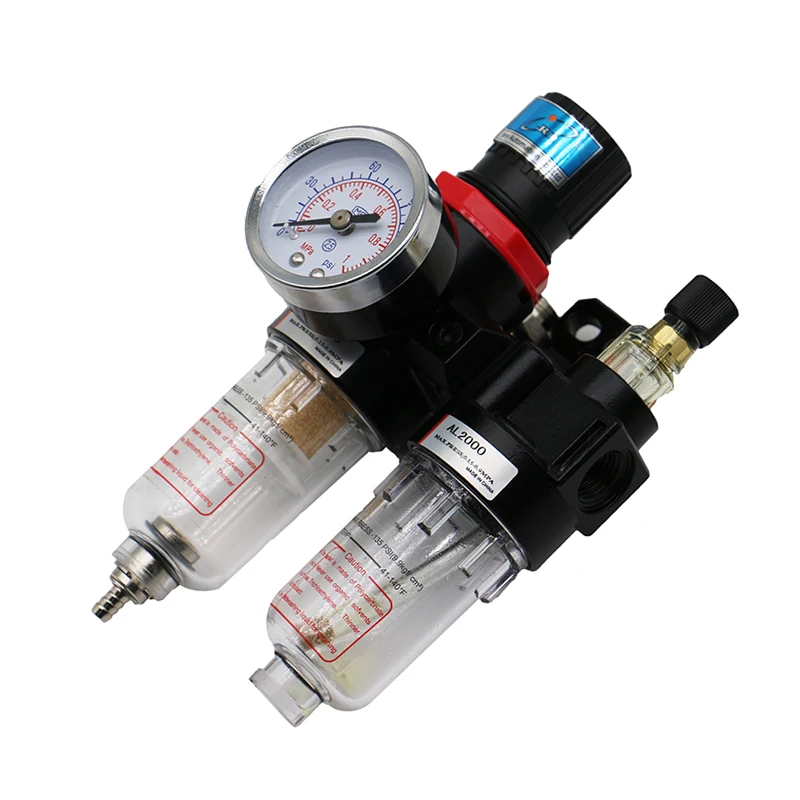

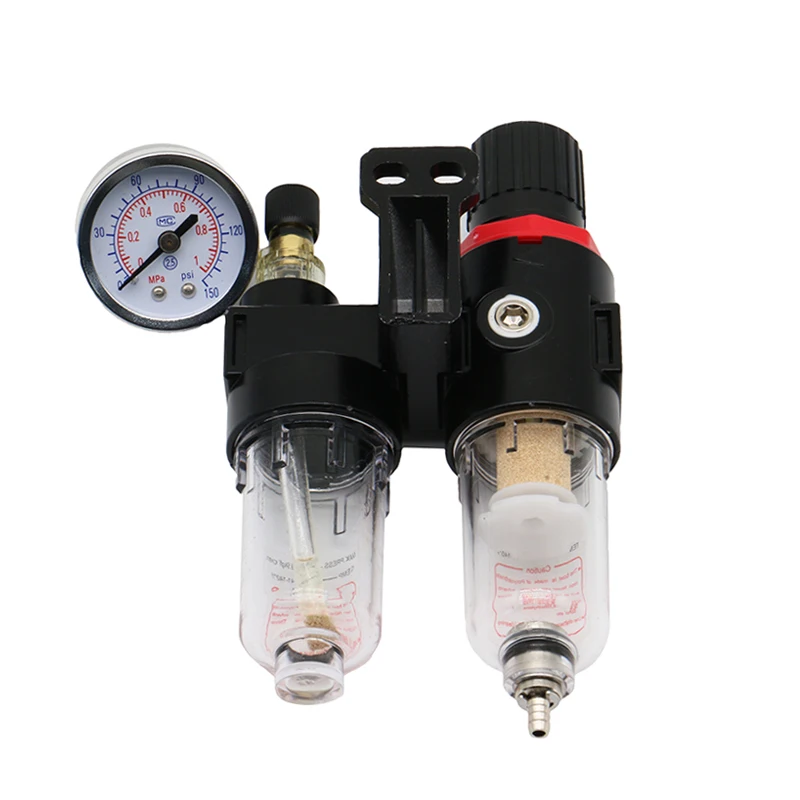

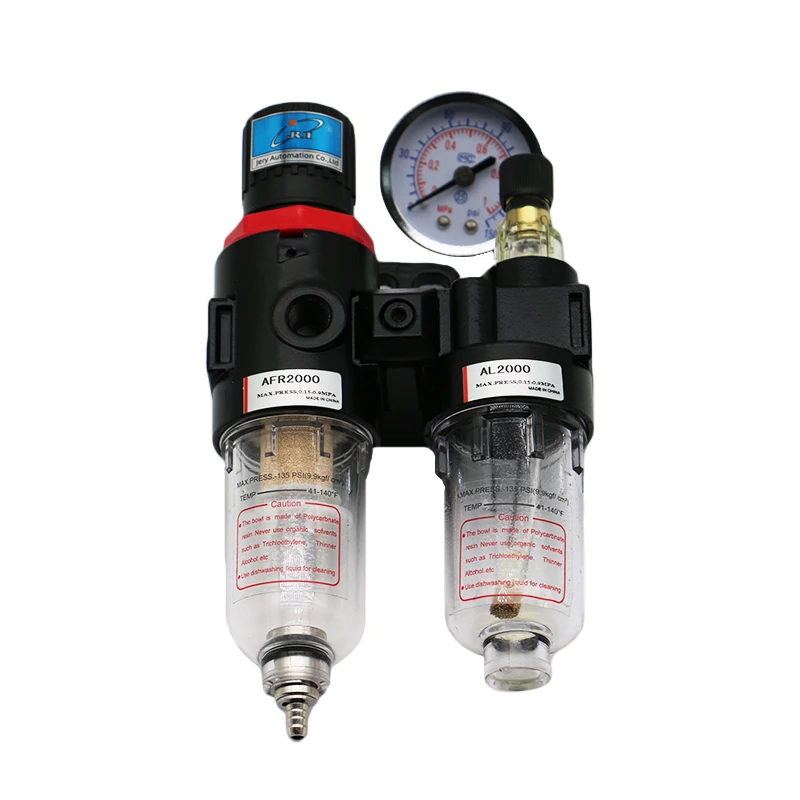

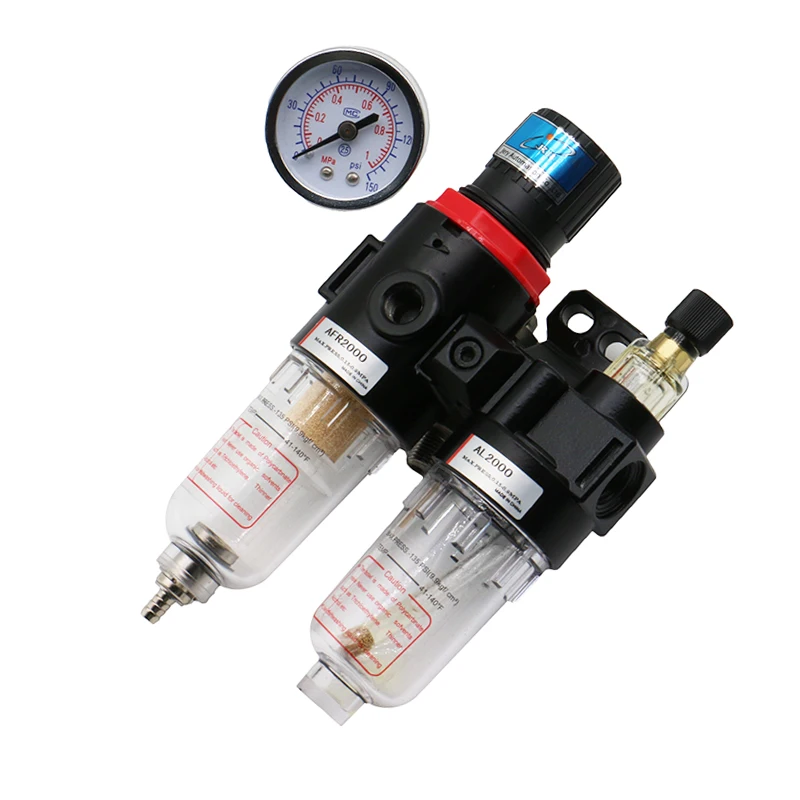

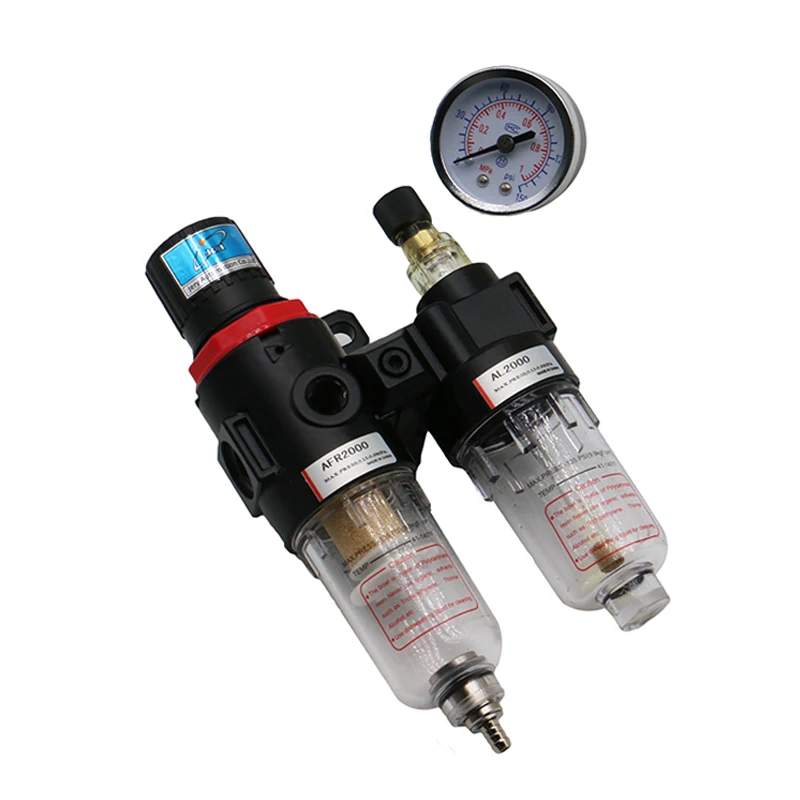

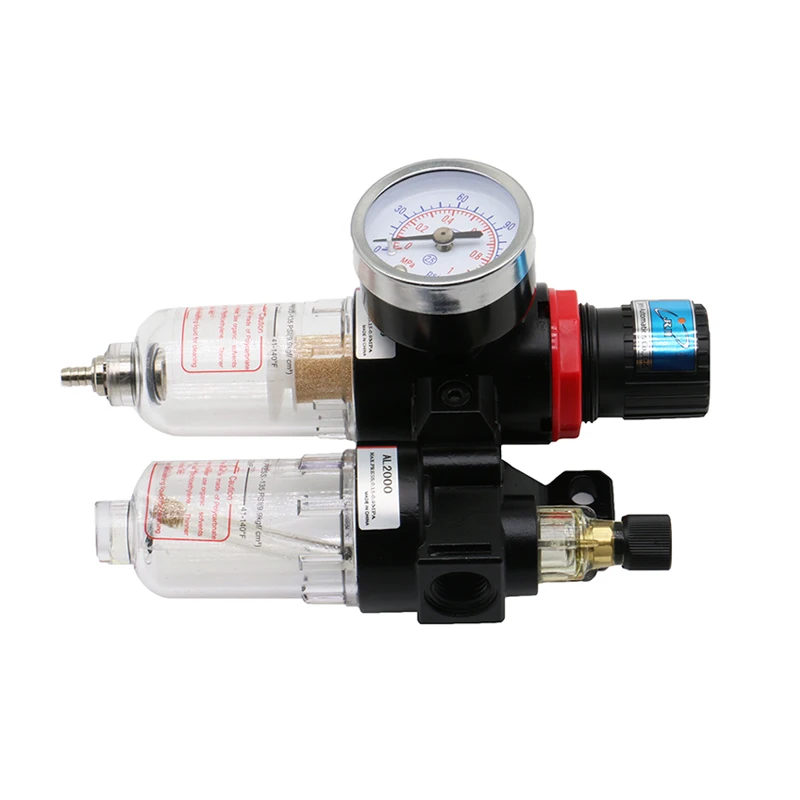

Good Quality AFC2000 BFC4000 Pneumatic Airtac Type Air Source Treatment Unit FR.L Combination Air Filter Regulator
- Category: >>>
- Supplier: Ningbo Fenghua Jery Automation Equipment Co. Ltd.
Share on (1600401176362):
Product Overview
Description
* Regulators: adjust and control the air pressure of a system to ensure that down-line components do not exceed their maximum operating pressures. This is the second step in the FRL system.
* Lubricators: reduce the internal friction in tools or equipment by releasing a controlled mist of oil into the compressed air. This is often done last and/or right before the component needing lubrication.
Model | AFC1500 | AFC2000 | BFC2000 | BFC3000 | BFC4000 | ||||||
Fluid | Air | ||||||||||
Port Size | 1/8'' | 1/4'' | 1/4'' | 3/8'' | 1/2'' | ||||||
Filtering Grade | 40μm or 5μm | ||||||||||
Pressure Range | Semi-auto and automatic drain: 0.15 to 0.9 MPa (20 to 130 psi) Manual drain: 0.5 to 0.9 MPa (7 to 130 psi) | ||||||||||
Max Pressure | 1.0 MPa (145 psi) | ||||||||||
Proof Pressure | 1.5 MPa (215 psi) | ||||||||||
Temperature Range | -5 to 70℃ (unfreeze) | ||||||||||
Capacity of drain bowl | 15CC | 60CC | |||||||||
Capacity of oil bowl | 25CC | 90CC | |||||||||
Recommand lubricant | ISO VG 32 or equivalent | ||||||||||
Constitute | Filter-Regulator | AFR1500 | AFR2000 | BFR2000 | BFR3000 | BFR4000 | |||||
Lubricator | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 | ||||||
1.Q: Are you trading company or manufacturer ?
A: Our factory in Ningbo Fenghua and our export office in Ningbo.
2.Q: What type of diaphragm used in oil media?
A: Usually, NBR, VITON, PTFE, and EPDM diaphragms are applicable in oil media.
3.Q: I have been told that 2-way valves only allow fluid flow in one direction is it correct?
A: Generally, 2-way valves allow fluid according to the cylinders. If there is a single-acting cylinder fluid flow in a single direction when a double-acting cylinder being used, fluid is able to flow in both directions.
4.Q: I am looking for a valve factory for a long term business relationship. What product you main specialized?
A: We've been in valve field since 2000s, mainly for solenoid valve, brass valve,screw air compressor solenoid valve, automobile valve,air treatment units and air suspension.
5.Q: I have a drawing for customized valve, can you do it?
A:Sure, we have our own CNC machine. No matter curved surface or complex process can be finished.
6.Q: Do you have stock for RTS?
A: Conventional products are fully stock on warehouse, once you place order, it will be send out in 1 day.
7.Q: We are concerned about the technical support after using your product. Any technical engineers can be provided?
A: Yes, our engineer 24 hrs onlineonce you contact.
8.Q: What methods of payment do you accept?
A: T/T, Paypal and credit card can be accept.
9.Q: What is the difference between a direct acting solenoid valve and a solenoid- pilot operated valve?
A: In a direct acting valve, the main body or poppet is moved using magnetic force generated by the electrical coil to shift the valve. In a solenoid-pilot operated valve, the main body or plunger is moved using force developed from the available pilot pressure. The coil in this case is used to control the pilot for the pilot piston.
10.Q: How many materials can be used apply to solenoid valve ?
A: Stainless steel 316L(Sanitary grades), Stainless Steel 316&304, Brass and cast steel.
11.Q:About samples
A:We can provide samples production and service. Usually 4 to 7 days, the sample can be sent to your hands. We will choose the shipping way as you required: by sea,by air,by express ect. Any question about samples, please contact us.
12.Q:For OEM products
A:We will finish the production within 20 days after payment has been confirmed.
