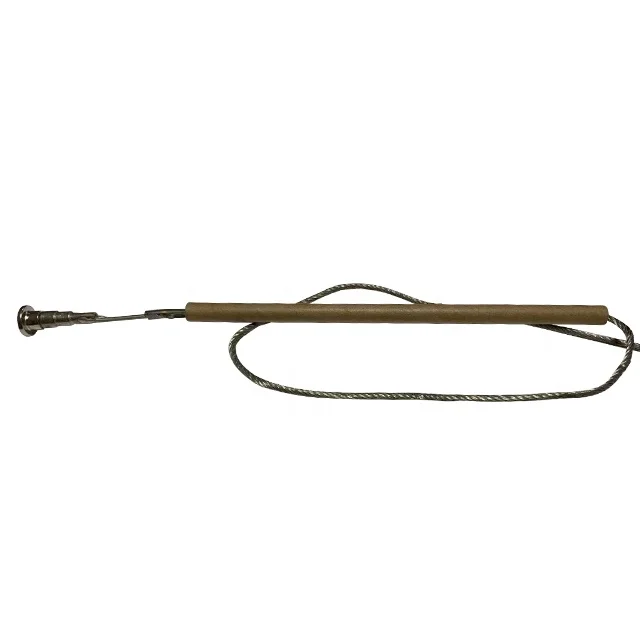

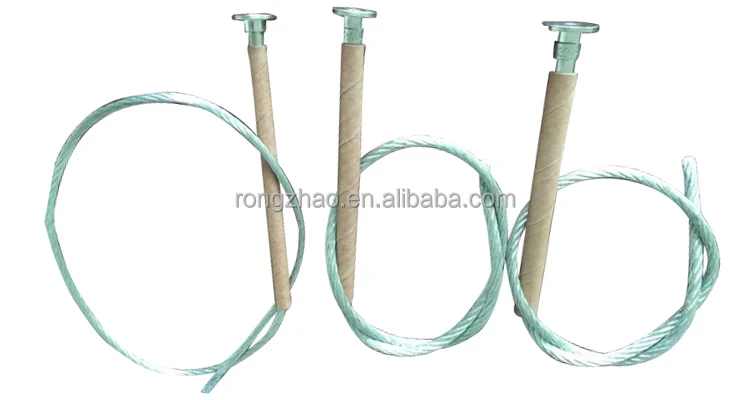

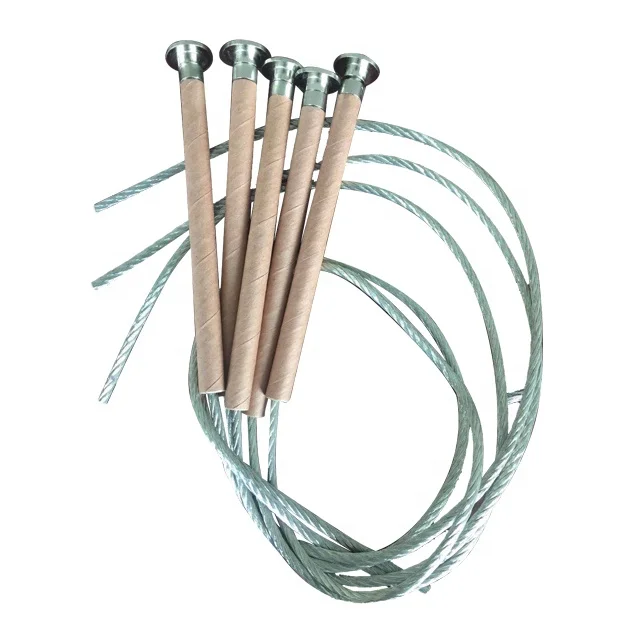

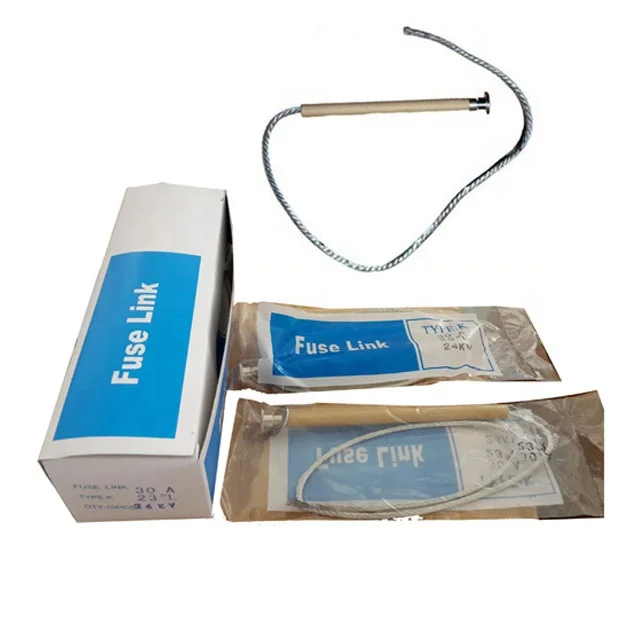

Alloyed K type T type high voltage fuse link with movable head button

Product Overview

Description

     Alloyed K type T type  high voltage fuse link with movable head button

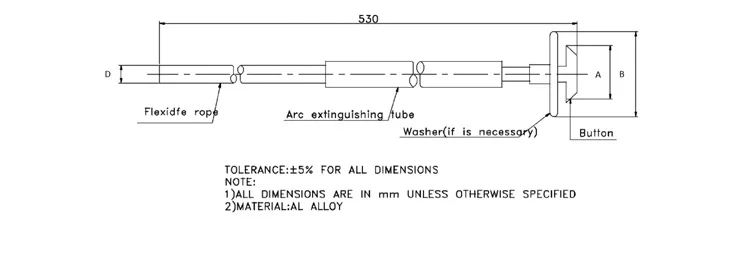

Rated current (A)	Dimensions (mm)
	A	B	C	D
1-25	12.5±0.2	19.0 ± 0.2	12/24KV: 530-570 38KV: 780	2
30-80	12.5±0.2	19.0 ± 0.2		3
90-175	19.0±0.3	not applicable		5
200~300	19.0±0.3	not applicable		7

Expulsion Fuse Link Specifications:



The Fuse Link are used for 11-38KV drop out fuse cutout.



The Fuse Element adopts  accurately tested material, high purity silver, or silver-copper eutectic or nickle-chrome eutectic, based on different rated current. The fuse element wire is extruded by mold of high accuracy. The cross section is inspected by laser micrometer to ensure the accuracy, while careful assembly guarantees no crack, shrinkage or twist which affects the time-current accuracy.
