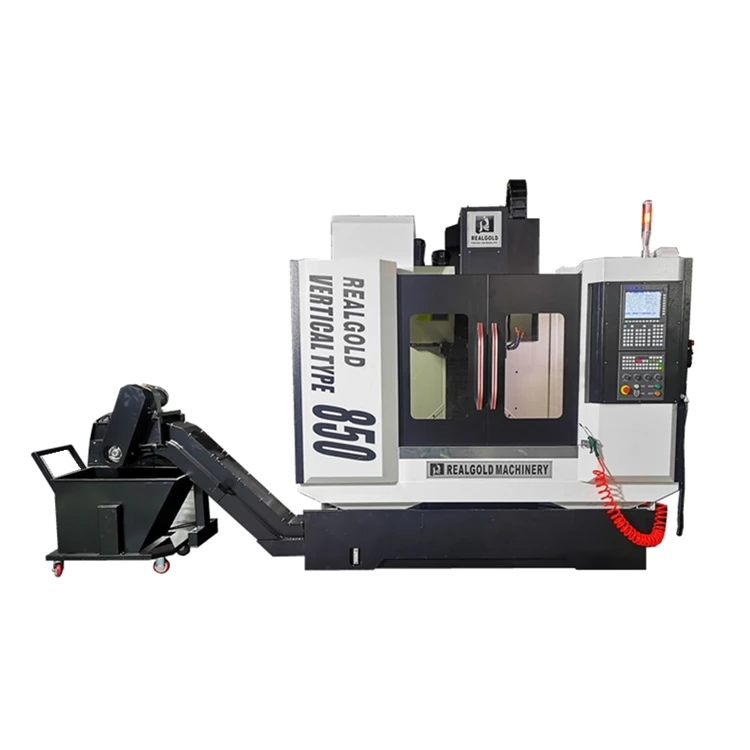

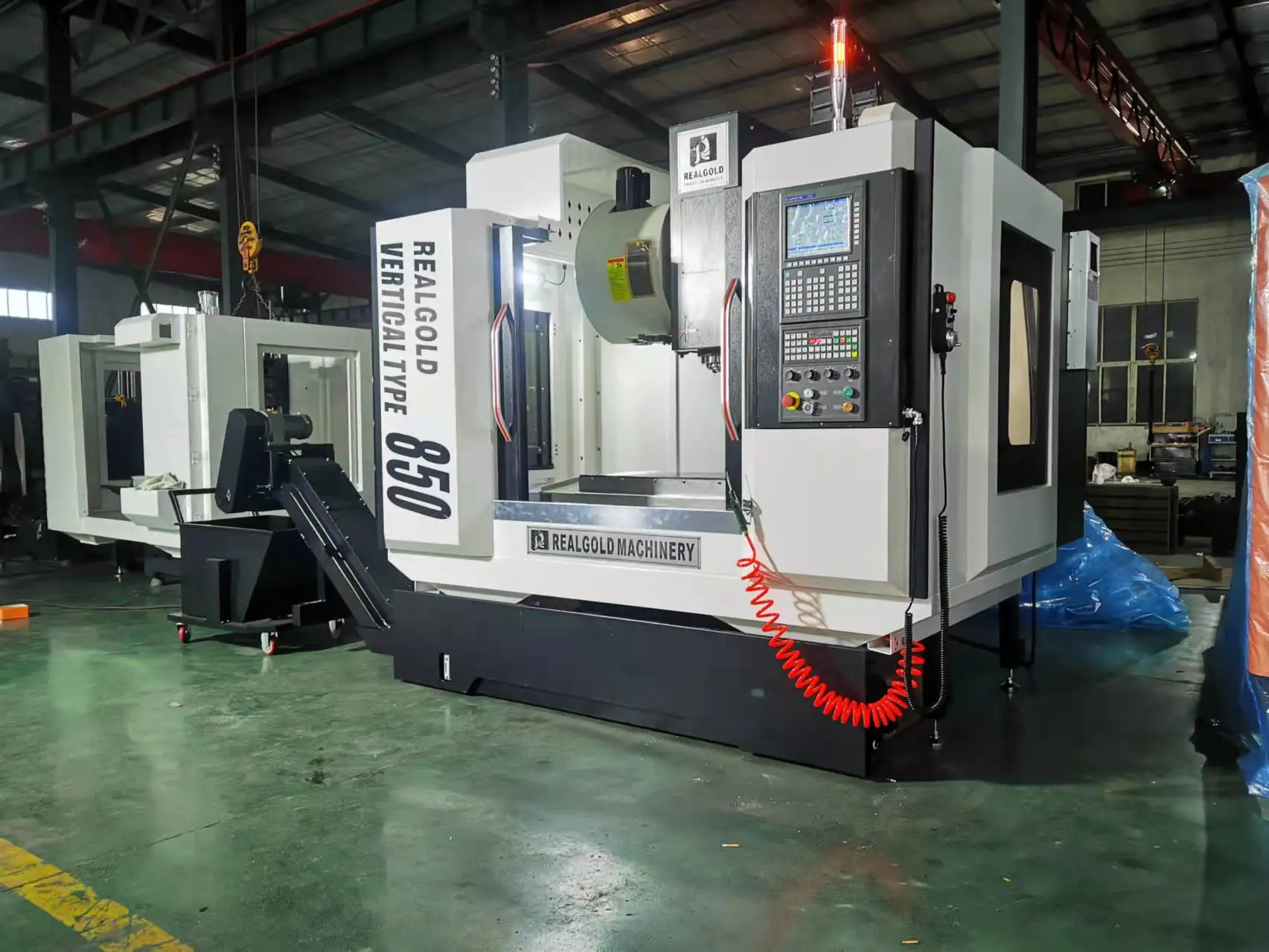

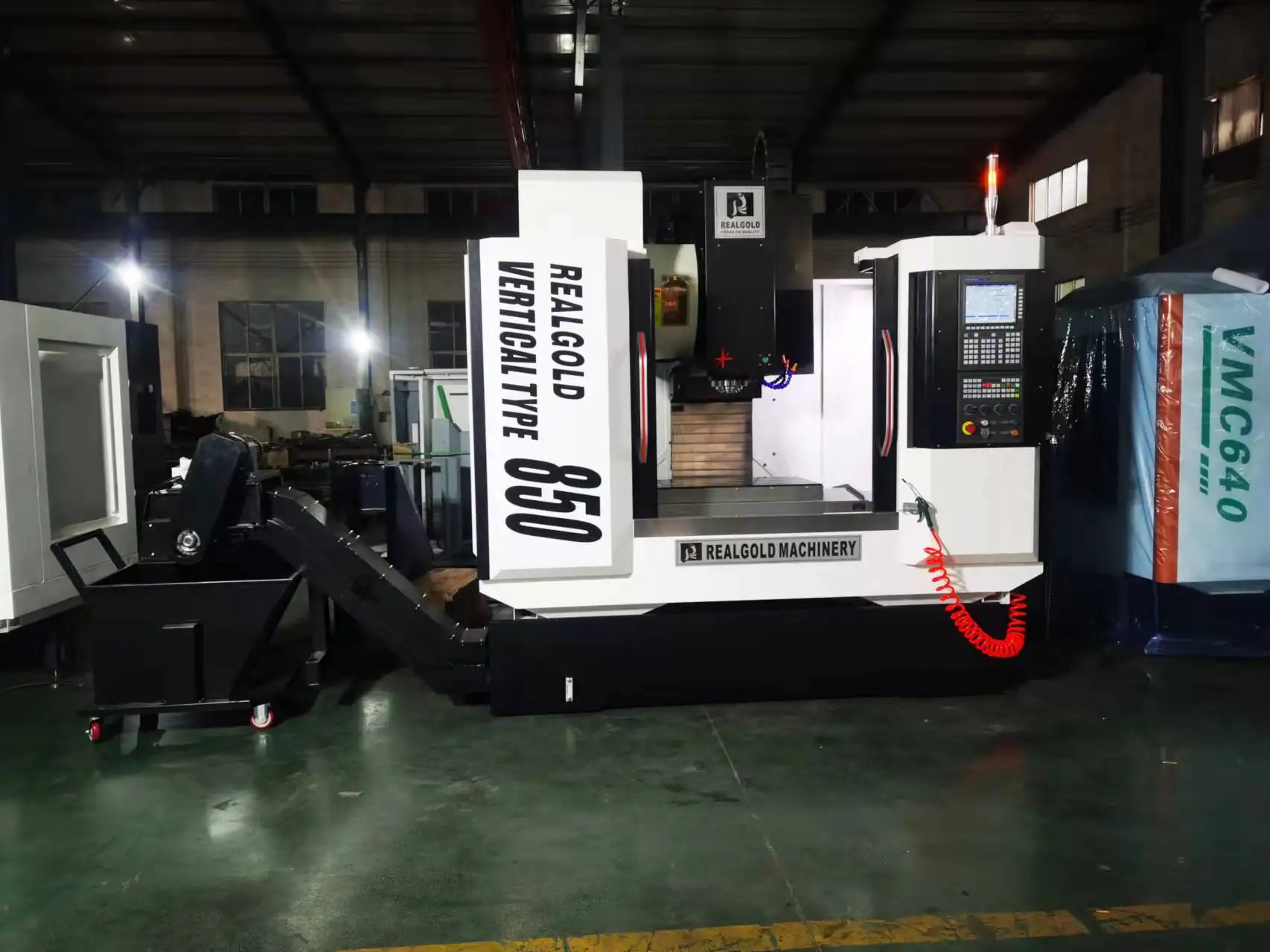

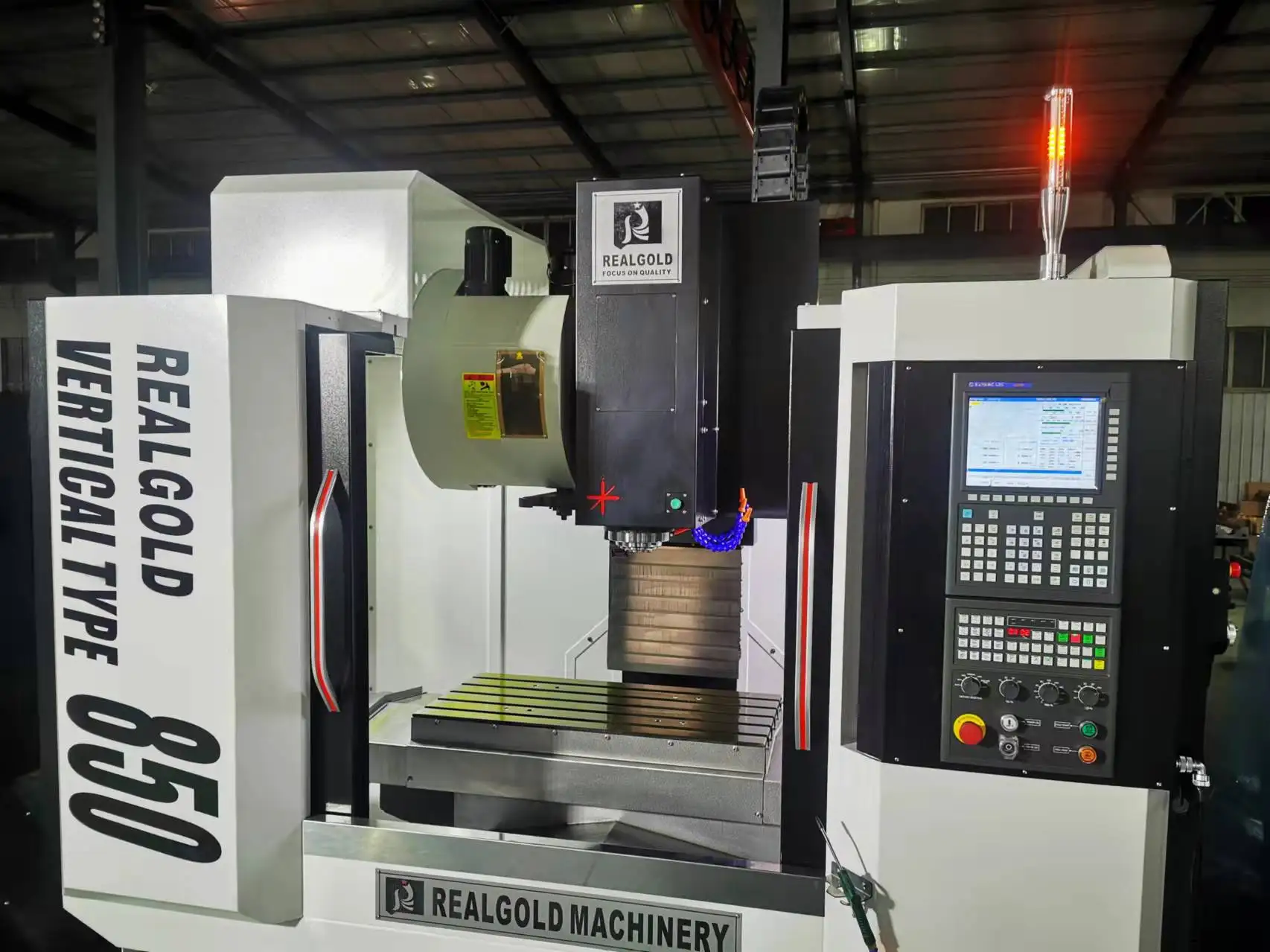

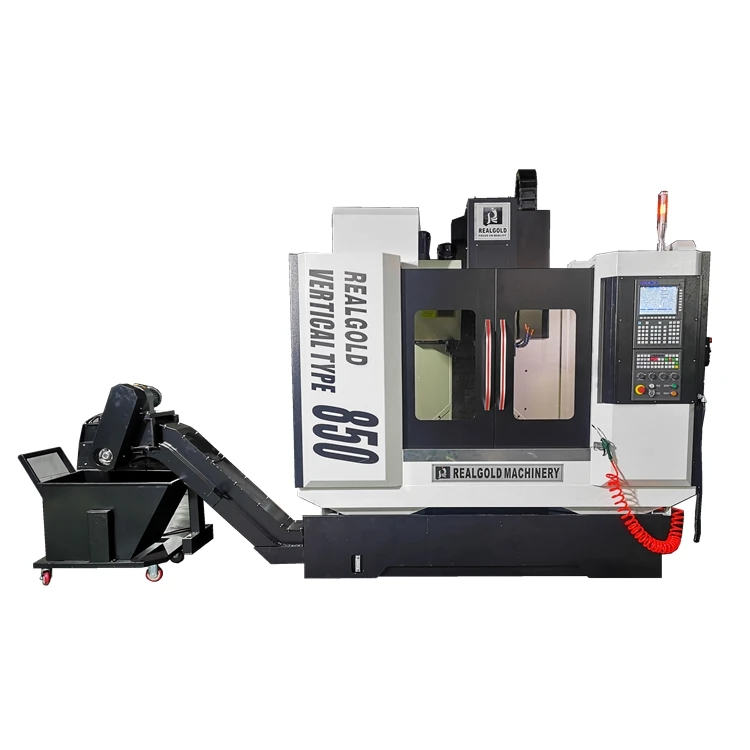

shoes mold 4th axis VMC850 CNC Vertical machining center for sale

Specifications

Units

VMC850

Table size

mm

1000x500

X axis travel

mm

800

Y axis travel

mm

500

Z axis travel

mm

500

Max. worktable load

kg

500

T slot(number-width-pitch)

5-18x100

Max. spindle speed

rpm

8000(Optional:10000 )

Spindle taper

mm

BT40

Main motor power

kw

7.5/11

X/Y/Z rapid traverse speed

m/min

36/36/24 (Optional:48/48/36 )

Cutting feed speed

mm/min

1-8000

Guide rail type

Linear rail

Distance from spindle axis to column surface

mm

525

Distance between spindle nose and worktable surface

mm

130-630

Positioning accuracy

mm

±0.0075

Repeat positioning accuracy

mm

±0.005

Tool magazine

Arm 24pcs

Max. tool diameter

mm

φ78 (Adjacent)/ φ120(Apart)

Max.tool weight

kg

8

Machine weight

kg

5600

Overall dimension

mm

2600X2300X2800

STANDARD ACCESSORIES

FANUC 0i-MF

Fully enclosure splash guard

Remote MPG

PU work lamp

Taiwan VOLIS spindle

Warming lamp

Cutting coolant unit motor

Lubrication system

Oil mist

Auto power off

Spindle water outlet

Transformer

NSK bearings

Arm type ATC 24pcs

Taiwan Hiwin 40mm ballscrew

Taiwan Hiwin 35mm roller type linear guide

OPTIONAL

Siemens 808Da, Mitsubishi M80, GSK25i

Chain type Chip conveyor

Spindle oil cooler (Taiwan)

Spindle 12000rpm(directly type)

Auto tool position device(Renishaw ts-27)

4 axis (125mm/250mm)

5 axis (320mm/250mm)
