Hidden installation high quality AC230V Radar Mobile inductive switch delay adjustable microwave reed output

Product Overview

Description

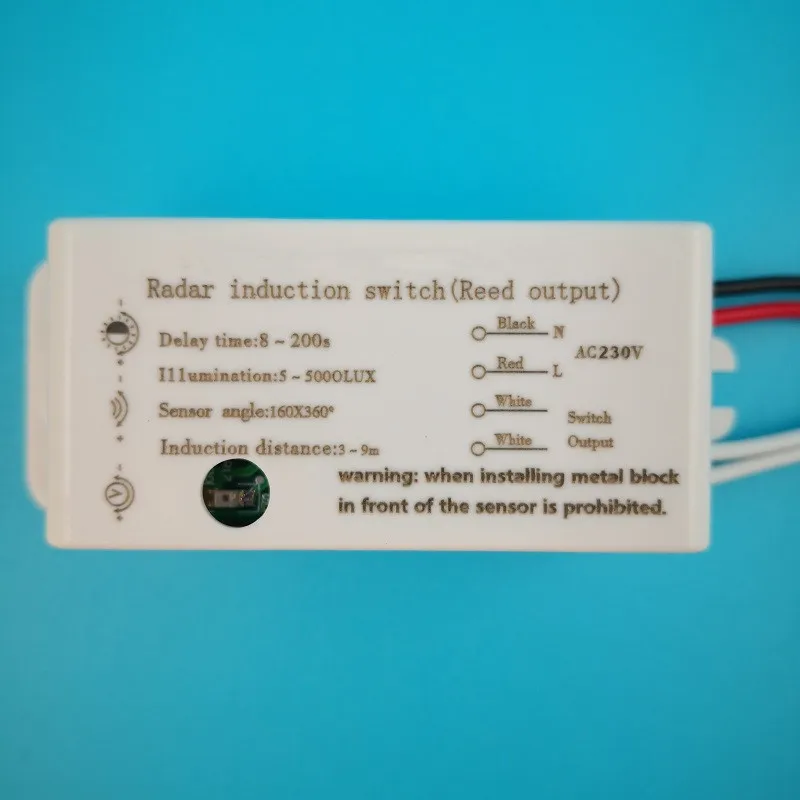

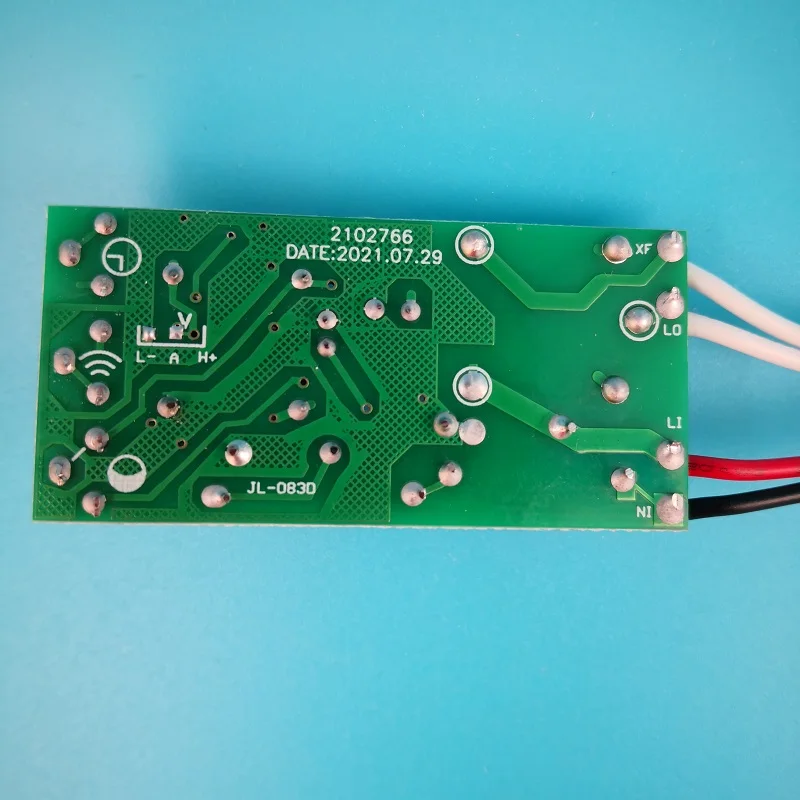

                    Microwave (radar) induction switch specification

  Model: JL-083 AC230V(Reed output)



Welcome to use our products. The company's products are all through strict test and aging test, the circuit is stable and reliable in quality.

When an active human body enters the sensing range, the switch starts to power up the load. If active in the sensing range and delay period, the switch will continue to delay automatically and will not close. Keep static or leave the sensing range, the switch will automatically close after one cycle delay.

With the function of ambient light detection, it works only at night by default (adjustable during the day).

Can penetrate some nonmetallic material induction, such as glass,gypsum board,wood, plastic, etc, are low In the 15 cm wall may pass through induction. Especially suitable for hidden installation and does not affect the appearance.

Specification:

Size: 78*30*23 mm.

Working power:AC230V.

Method of induction: Active.

Output: Reed output (is silent mode, no load, only the switch signal is output).

Delay time:(default 8second), 8~200second adjustable.

Illumination:(default 5LUX) , 5LUX~5000LUX adjustable.

Induction distance:(default 5m), 3~9m adjustable.

Sensor angle:360 degree.

Working temperature: - 20 ℃ ~ +50 ℃.

Attention:

1.   1.To turn off power when installation, must be installed by professional.

2.Please do not to volatile objects as the installed base. In the induction area, do not have an impact on the switch Detect obstacles or motion of object, don't have other equipment of the electromagnetic interference, such as high pressure Such as electricity, etc.

3.At the beginning of power on, the induction switch or induction lamp will be automatically powered on, and it will go out after a delay period to restore the normal light control and induction functions.

4.Being active induction, induction switch will emit electromagnetic waves, so on without stop, two micro Wave induction switch or the distance between the microwave induction lamp it's better to keep more than 5 meters, too close will interfere with each other.

5.This product is not suitable for outdoor installation.

Special tips:

A.   Radar inductive switch distance problem, affected by the actual installation environment, distance is in commonly 3 to 9 m, The smaller space more narrow scope of local induction, such as corridor, corridor and so on; Space is empty The sensing range, the greater the like the garage. This is not a switch quality problem, is one of the characteristics of microwave, in the little space because the reflected wave and transmitted wave normal offset each other.

B.   After adjusting range of induction, need to wait for 3 minutes is adjusted range, so don't assume that regulate didn't response.

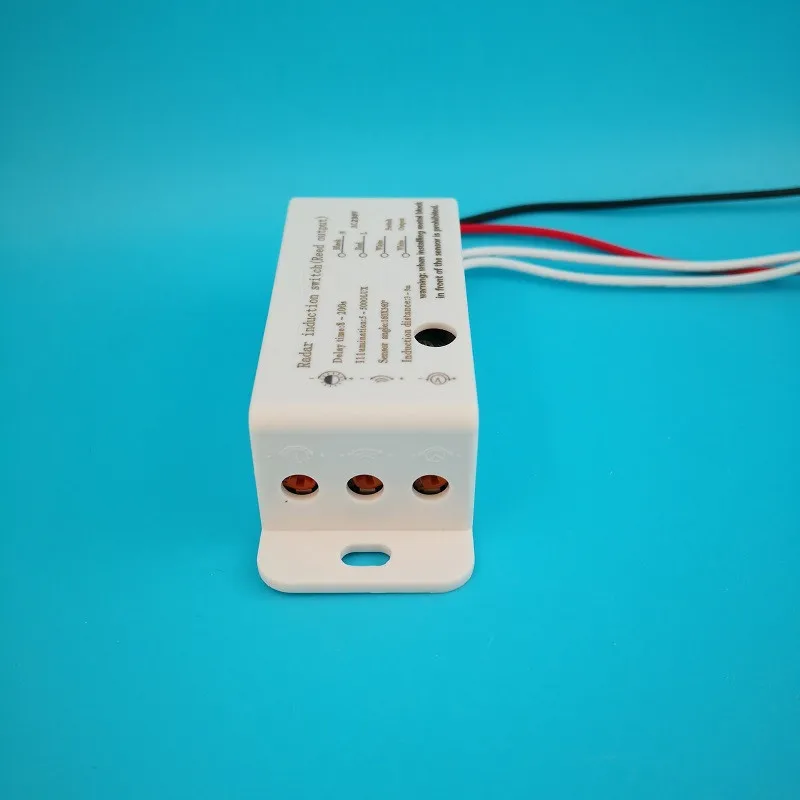

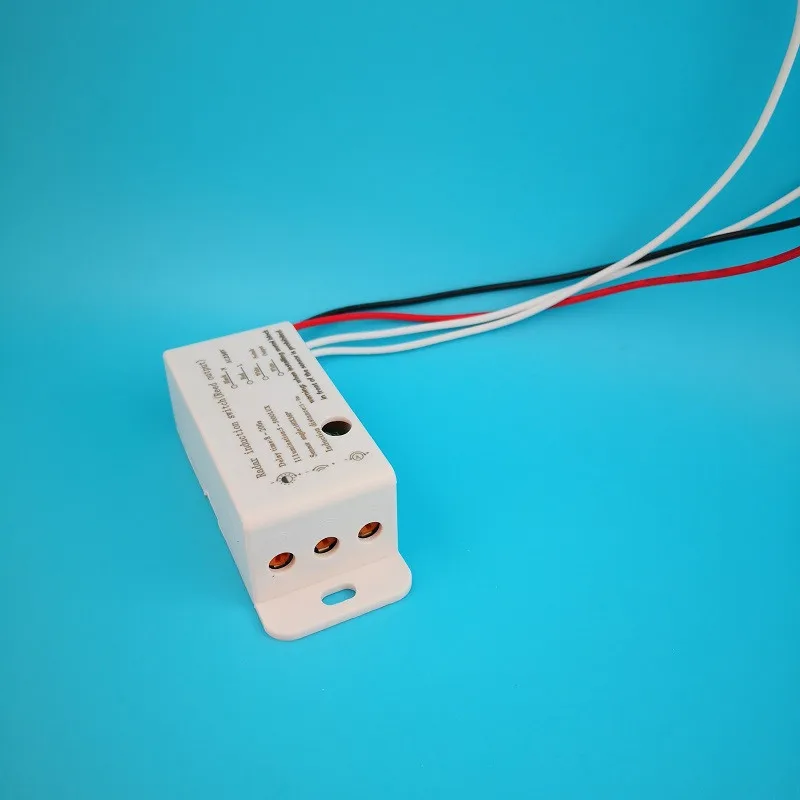

Adjust schematic diagram: Adjustable product at the time of debugging, please must use a straight screwdriver gently adjust.

               1. Illumination     2.Range              3. Time



  1: on the left night work, on the right daytime work.

  2: on the left to reduce scope, on the right to increase scope.

  3: on the left to reduce time, on the right to increase time.

Wiring diagram:
