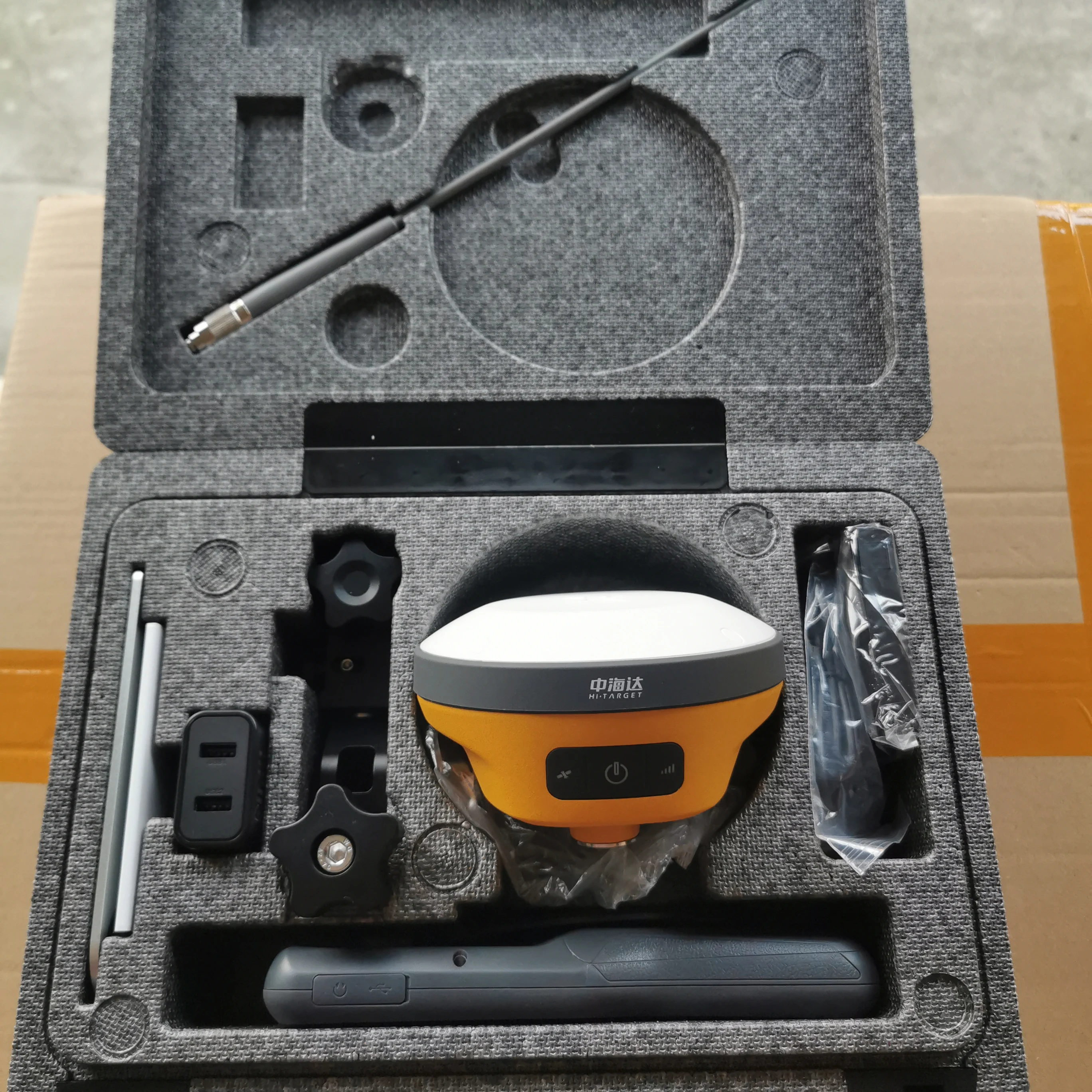

Best price high performance Survey Instrument Gnss GPS Receiver Hi Target V200 gnss rtk
- Category: >>>
- Supplier: Jiangsu Conwy Optoelectronic Technology Co. Ltd.
Share on (1600401487729):
Product Overview
Description
Product Description

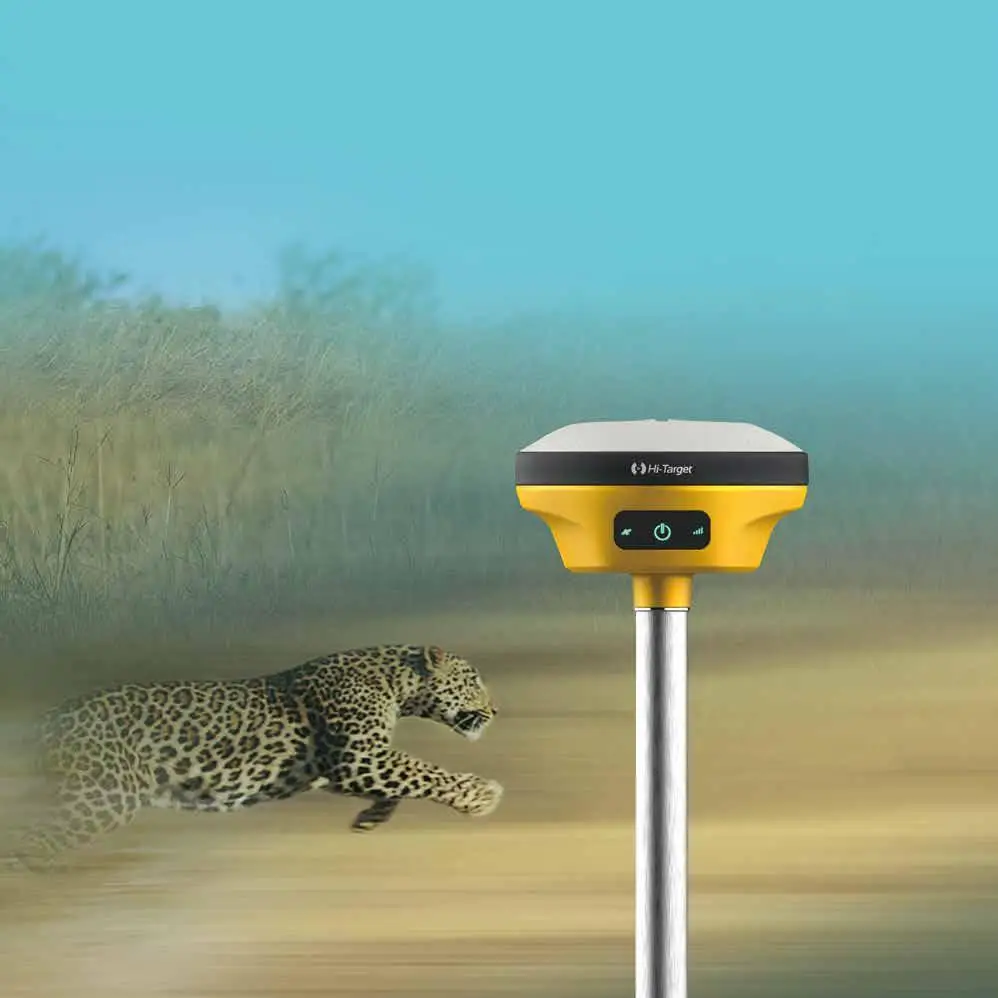

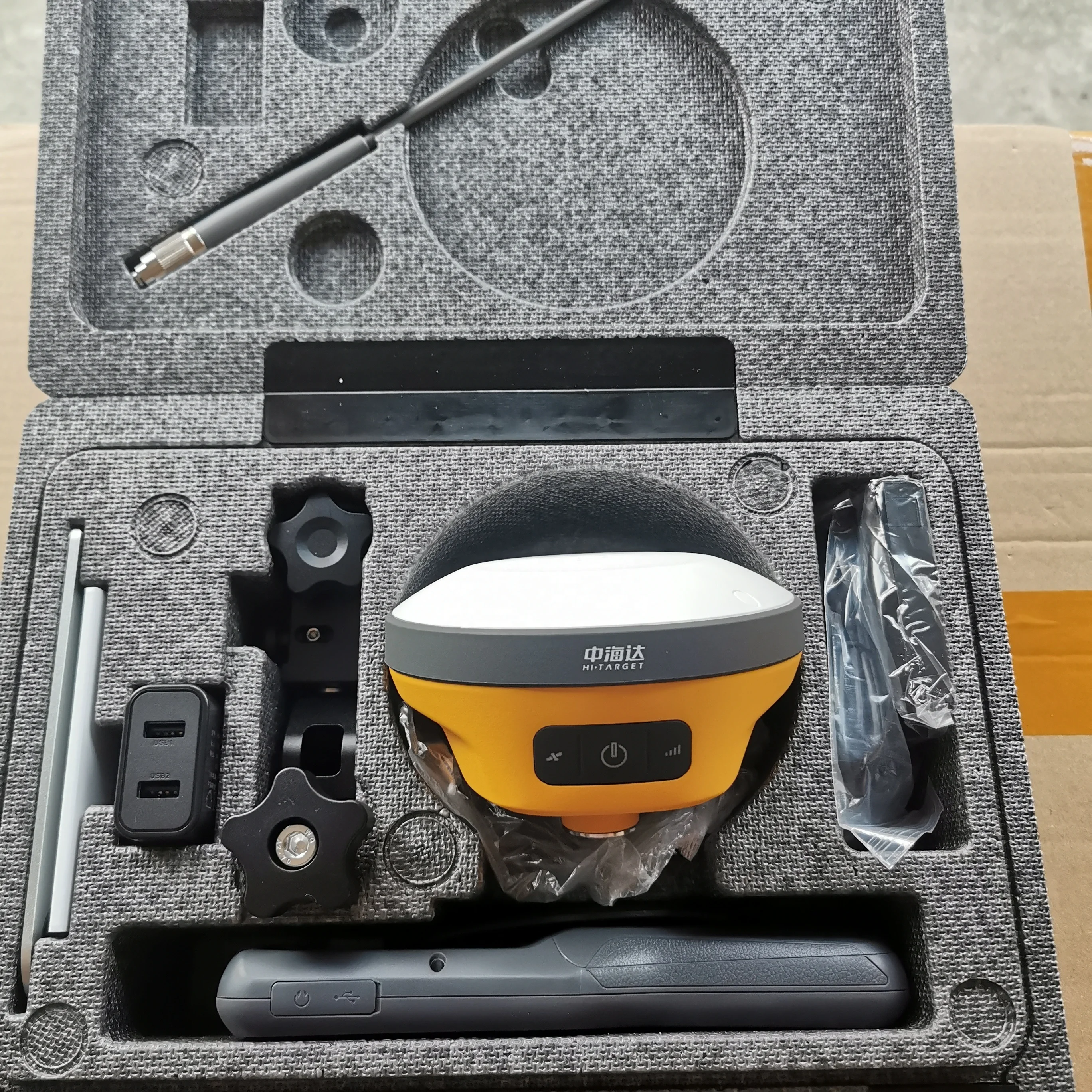

Best price high performance Survey Instrument Gnss GPS Receiver Hi-Target V200 gnss rtk
Specification
Model | V200 | ||||
System Configuration | Data storage | 8GB Internal storage (Support up to | |||
32GB external SD card) | |||||
Record GNS and RINEX fo | |||||
rmat simultaneously | |||||
Data Formats | 1Hz positioning output, up to 50Hz | ||||
CMR: CMR, CMR+, sCMRx | |||||
input and output | |||||
RTCM: RTCM 2.1, 2.2,2.3, 3.0, | |||||
3.1, 3.2 input and output | |||||
Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, | |||||
ROT, GGK, GGA, GSA, ZDA, VTG, GST, | |||||
PJT, PJK, BPQ, GLL, GRS, GBS | |||||
Navigation outputs binary: GSOF | |||||
Satellite Signals Tracked Simultaneously | Channels | 660 | |||
BDS | B1,B2 | ||||
GPS | Simultaneous L1C/A, L2C, L2E, L5 | ||||
GLONASS | Simultaneous L1C/A, L1P, L2C/A | ||||
(GLONASS M only), L2P | |||||
SBAS | Simultaneous L1 C/A, L5 | ||||
GALILEO | Simultaneous L1 BOC, E5A, | ||||
E5B, E5AltBOC | |||||
Static and Fast Static GNSS Surveying | Horizontal | 2.5mm+0.5ppm RMS | |||
Vertical | 5mm+0.5ppm RMS | ||||
Post Processing Kinematic (PPK / Stop & Go) GNSS Surveying | Horizontal | 1cm+1ppm RMS | |||
Vertical | 2.5cm+1ppm RMS | ||||
Initialization time | Typically 10 minutes for base while | ||||
5minutes for rover | |||||
Initialization reliability | Typically > 99.9% | ||||
Network RTK | Horizontal | 8mm+1ppm RMS | |||
Vertical | 15mm+0.5ppm RMS | ||||
Initialization time | Typically < 8seconds | ||||
Initialization reliability | Typically > 99.9% | ||||
Code Differential GNSS Positioning | Horizontal | 25cm+1ppm RMS | |||
Vertical | 50cm+1ppm RMS | ||||
SBAS | 0.50m Horizontal, 0.85m Vertical | ||||
Power and Battery | Power | 6V to 28V DC external power input, | |||
Power consumption ≤3.5W | |||||
Internal battery | Rechargeable, removable 7.4V, | ||||
5000mAh Lithium-ion battery | |||||
Internal battery life | Static 12hours | ||||
RTK rover (UHF/GPRS/3G) 10 hours | |||||
RTK base more than 8 hours | |||||
I/O Interface | 1 xBluetooth, NFC ,1 x standard USB2.0 port , | ||||
1 x TNC antenna connector, | |||||
1 x RS232 serial port ,1 x DC power input (5-pin) , | |||||
1 x MicroSD card port | |||||
Physical | Dimensions (W x H) | 153mm x 83mm (6.02inch x 3.27inch) | |||
Weight(without internal battery) | 950g (2.09lb) | ||||
Operating temperature | -40ºC to +65ºC (-40ºF to +149ºF) | ||||
Storage temperature | -55ºC to +85ºC (-67ºF to +185ºF) | ||||
Humidity | 100%, considering | ||||
Water/dustproof | IP67 dustproof, protected from temporary | ||||
immersion to depth of 1m (3.28ft). | |||||
Shock and vibration | Designed to survive a 3m(9.84ft) | ||||
natural fall onto concrete. | |||||
