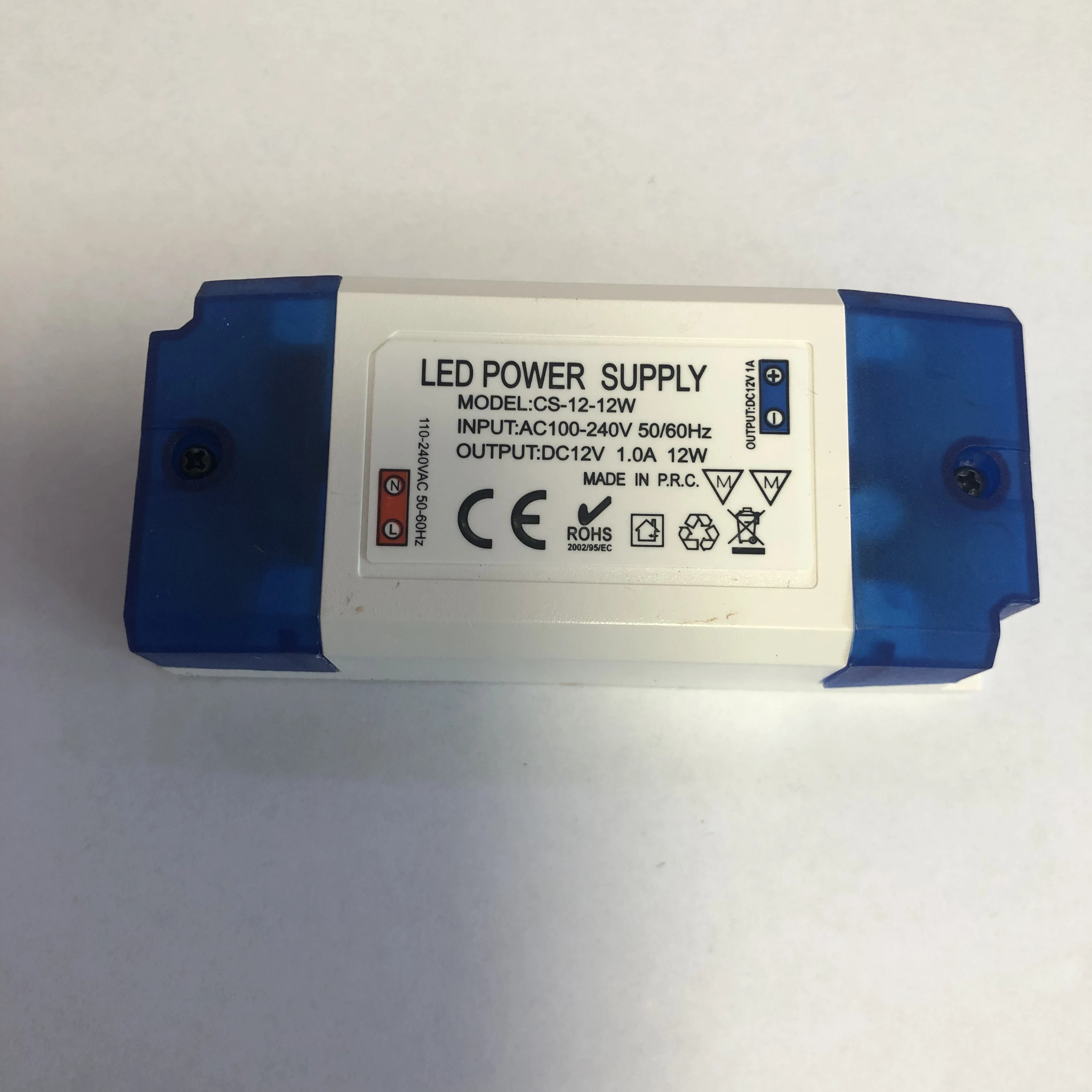

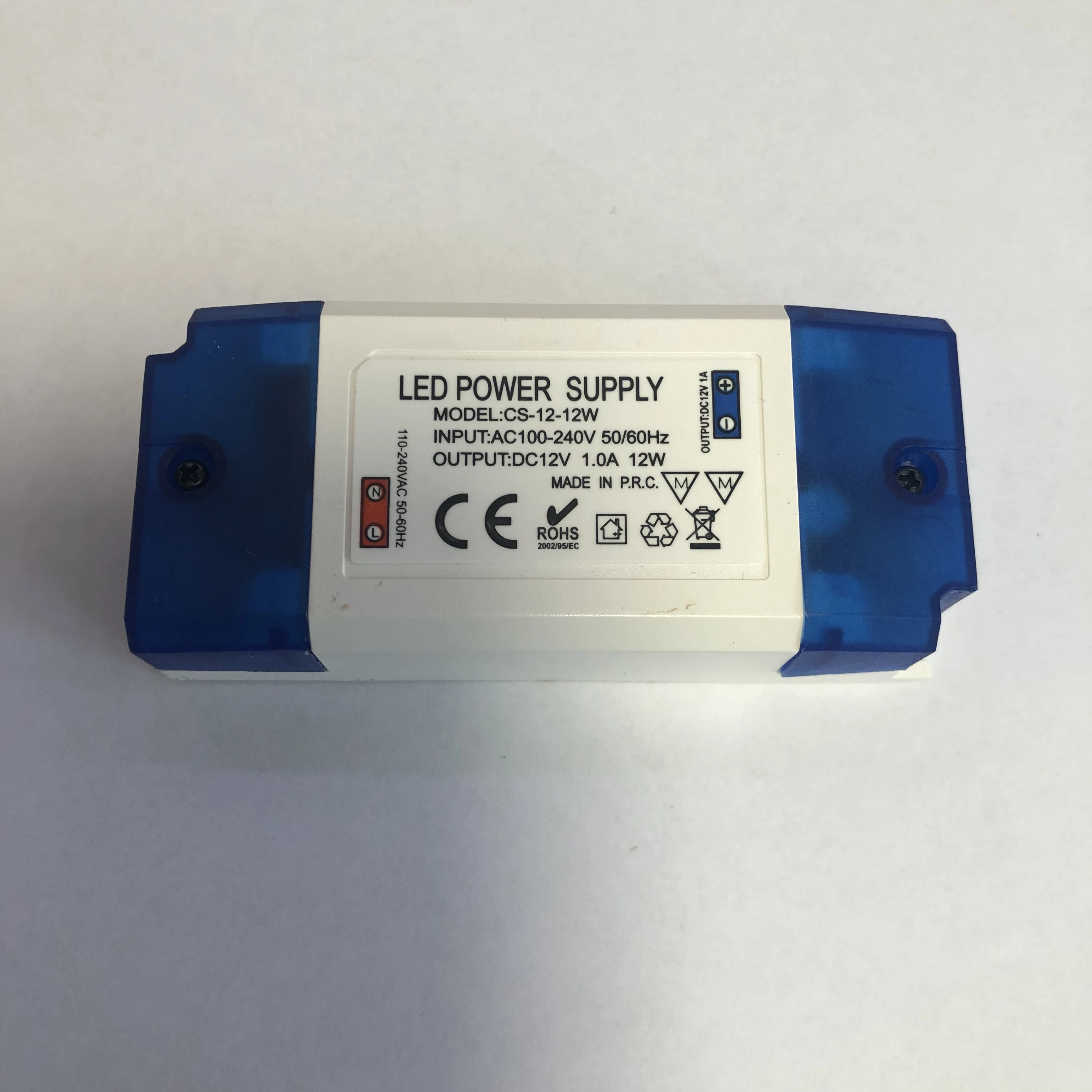

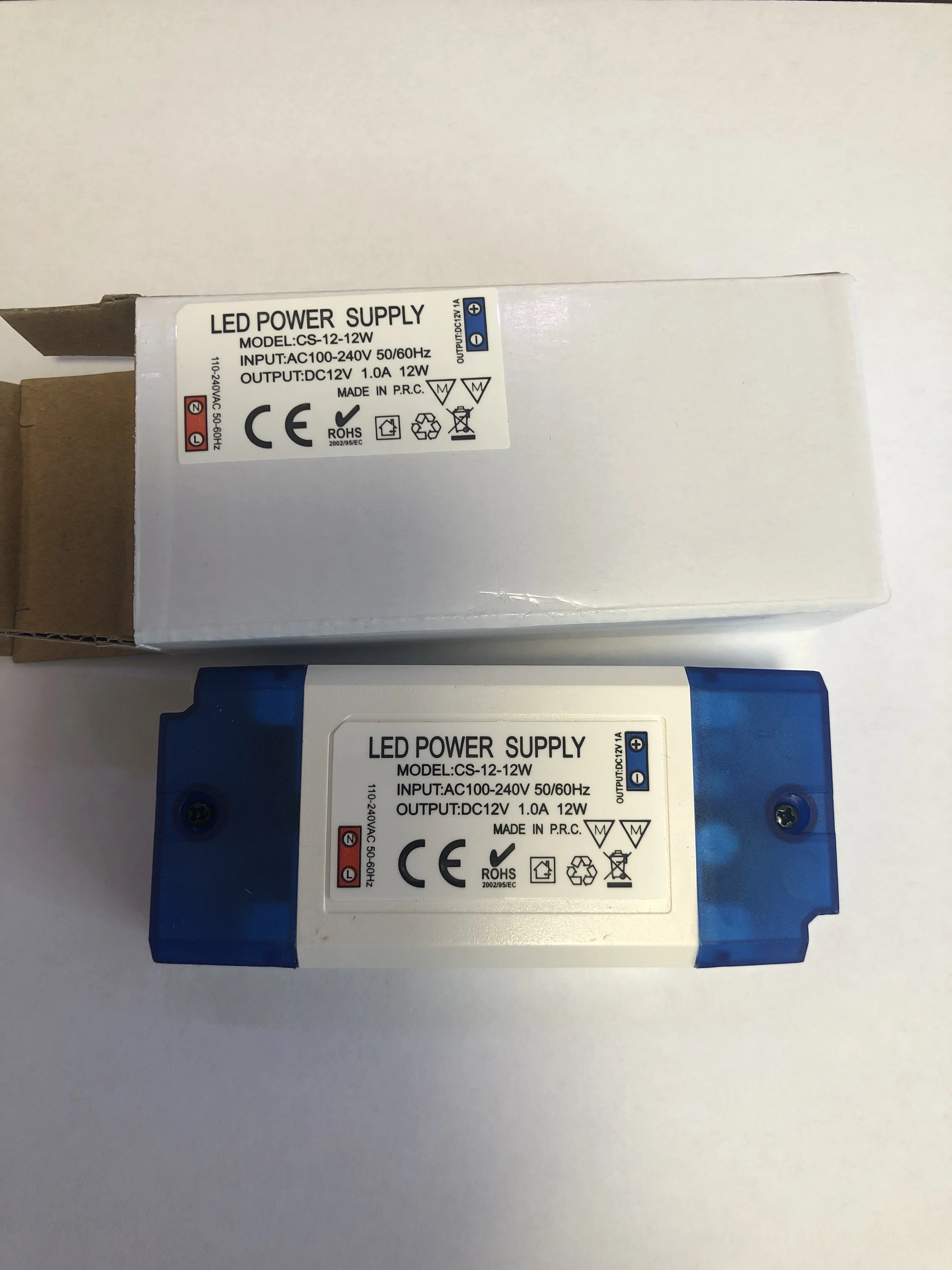

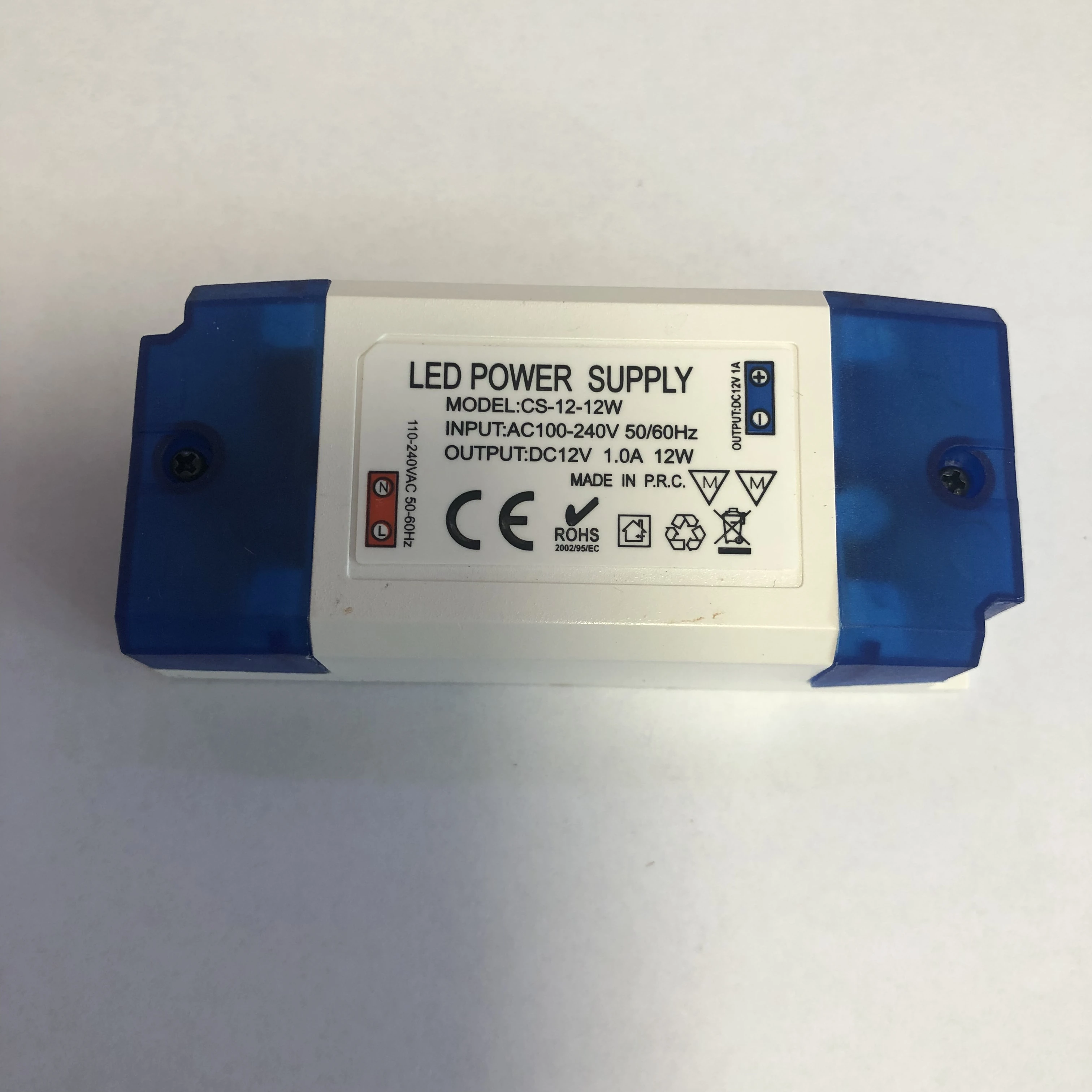

24v 0.5A 12V 1A Led driver switch power supply led power supply for led

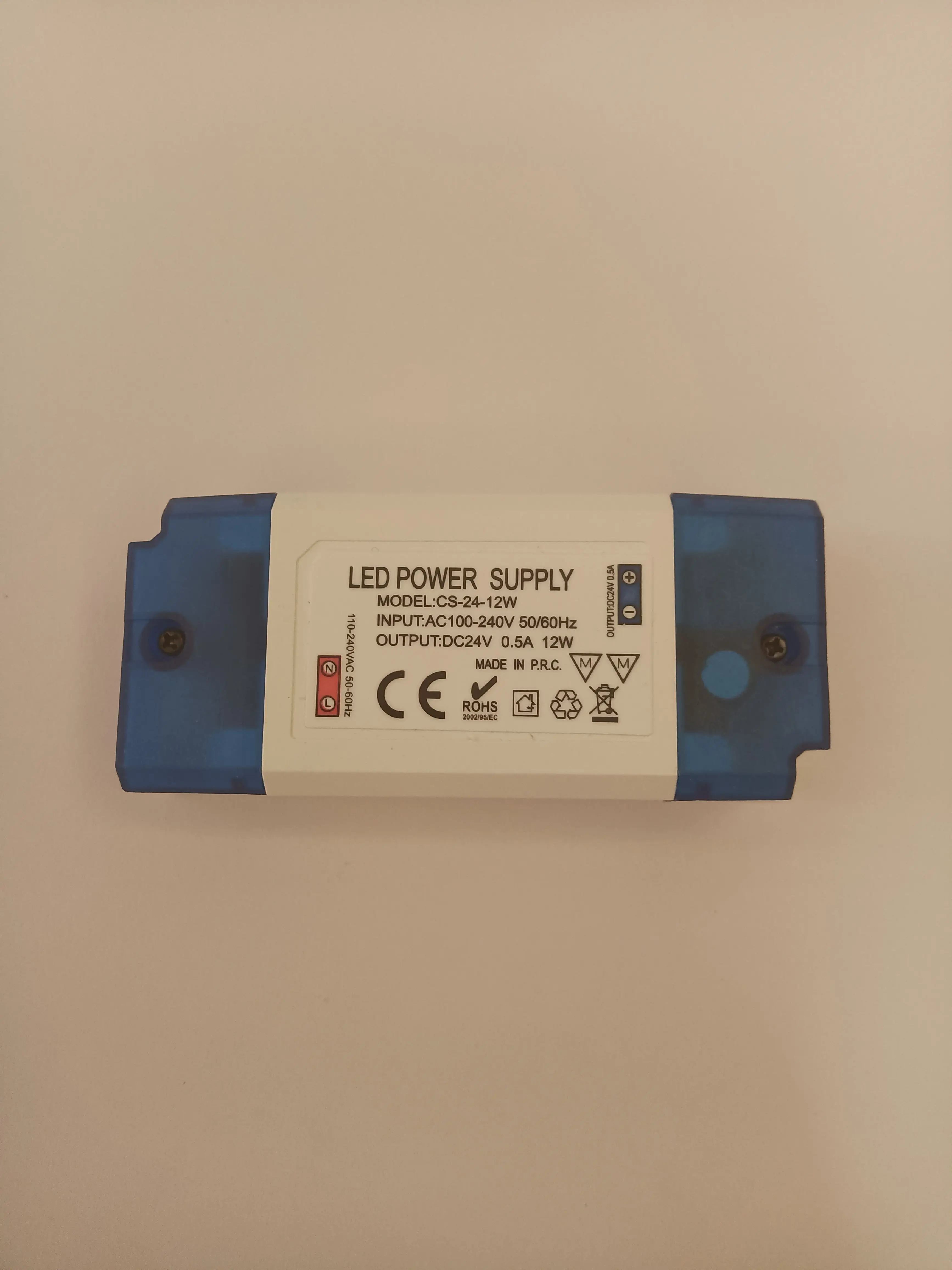

CS-24-12W

Two years warranty

Built-in EMI filter

100% Load aging test

Wide range of input voltage

Accurate and stable output voltage

Output over-voltage, over-current and short-circuit protection

Low output ripple and noise

Average no trouble working  >20,000 hours

Product Electric Parameters

Input specification

Input voltage

110-240VAC

Input frequency

50/60Hz

Input surge

Cold start: /230VAC

Output specification

Output voltage can be adjusted

±10%

Start-up time

<1S(input 230V,Io=100%)

Keep time

>20mS (input 230V,Io=100%)

Voltage regulation

(Full load) <0.5%

Protection function

Overload protection

105% - 150% rated power, automatic recovery

Over-voltage protection

105% - 150% of the rated voltage

Insulation intensity

Input---output

1500VAC/1min

Input---ground

1500VAC/1min

Input---ground

500VAC/1min

Safety standards

According with GB4943, UL60950-1,EN60950-1 standards.

EMC standards

According with GB9254, EN55022 class A  EN61347-2-13:2008 standards

Environmental

Working temperature

- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

Storage temperature

- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)

Height above sea level

<2000M

Structure

Size (mm)

89(L)*38(W)*22(H)

Cooling method

Cooling method

Natural cooling air convection

Weight

47g/PCS

Product Type Table

Product model

Output specification

Ripple, Noise

Efficiency

CS-12-12W

24V

0.5A

100mV

85%
