vibrating fluid bed dryer industrial pesticide farm chemicals drying equipment salt dryer machine price
- Category: Chemical & Pharmaceutical Machinery >>>
- Supplier: Changzhou Shinma Drying Engineering Co. Ltd.
Share on (1600402081571):
Product Overview
Description
Product Overview

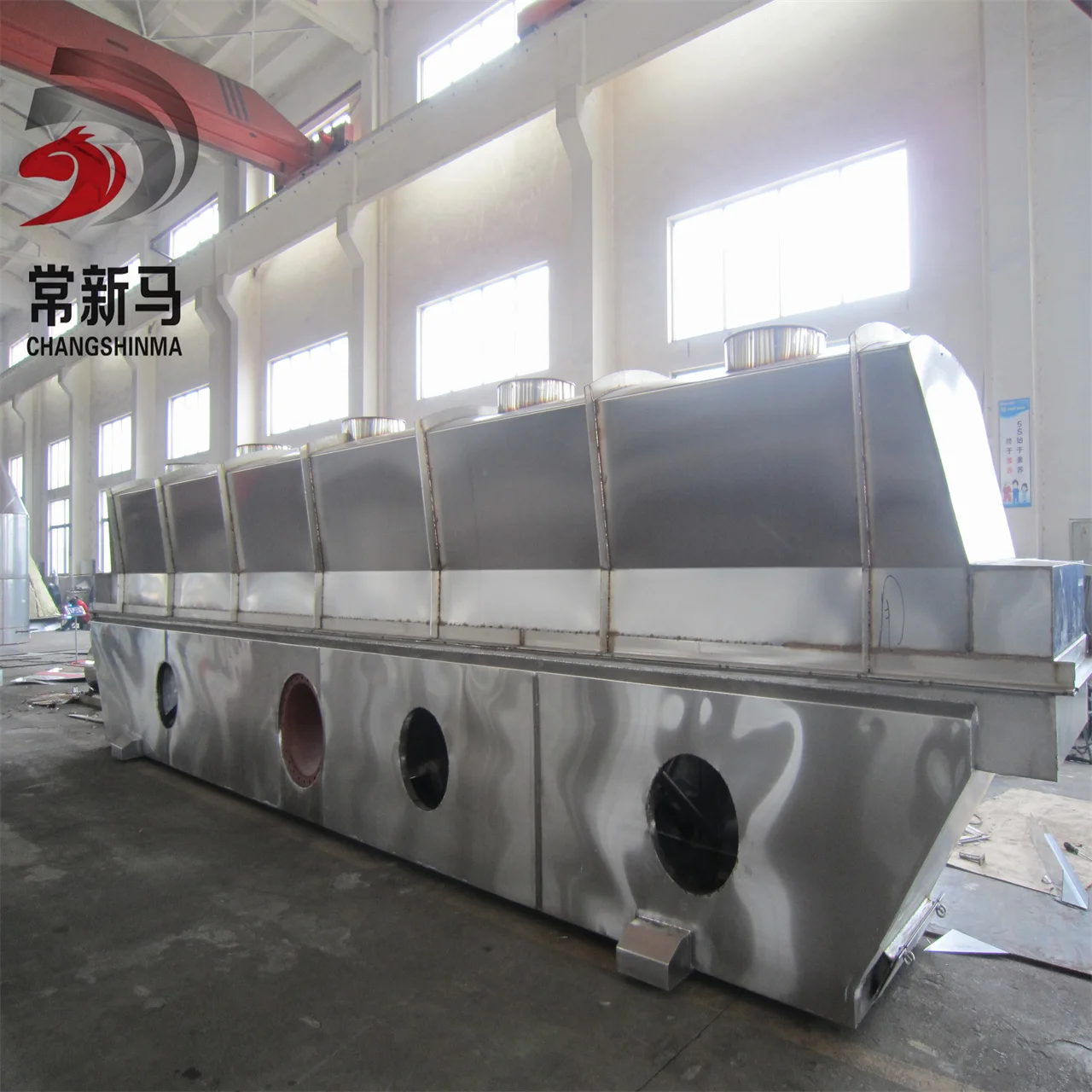

ZLG 6*0.6 vibrating fluid bed dryer industrial pesticide drying equipment salt dryer machine price
Material is fed into the dryer from feeding port, under the action of vibrating force, material moves forward with the fluidized state continuously along the horizontal direction. Hot air passes through fluid bed from bottom to up and does heat exchange with damp material. After the powder is collected by cyclone separator, damp air is exhausted out. Dried product is discharged from discharging port.
FEATURES AT A GLANCE
1 .Upper bed and bottom bed adopt the new quick-open type structure, upper bed can be moved quickly. It is easy to clean
completely.
2. Bed plate adopts laser punching way to make, it can avoid the bed plate be out of shape during the common punching process
3. Bottom plate is supported by stainless steel seamless tube, the structure of bed is stronger, and operational life is long
4. Material is heated uniformly, heat exchange is full, drying intensity is high, energy saving is about 30% than common dryer.
5. Vibrating source is vibrating motor, its work is stable, easy to maintain, noisy is low, life is long.
6. Fluidized state is stable, no dead corner or broken out phenomenon
/.Adjustability is good, and application scope is wide
8.Small damage to the surface of material, it can be used for drying breakable materials. It doesn' t effect the work efficiency
when the shape of material is irregular.
9. Ad opts all closed structure, it can avoid the cross pollution between material and air effectively. Work environment is clean.
3.Typical application:
light industry, chemical industry, foodstuff, agricultural products, powder, granule, and small block material in pharmaceutical
industry. Material examples are as following: refined salt, aginomoto, citric acid, oxalate, potassium permanganate, sesame,
pentaerythritol, HPAM, feed, hypha protein, sodium sulfate, plastic archon, catalyst, stripping and slicing potato, baking soda,
detergent, quartz sand, soybean billet, ban pulp.metal powder, boric acid, sodium borate, activated clay, compound fertilizer,etc
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | moisture evaporation amount | 130kg/h |
2 | area of fluid bed(㎡) | 3.6 |
3 | inter air temperature(℃) | 70-140 |
4 | outlet air temperature(℃) | 40-70 |
5 | Power(KW) | 3 |

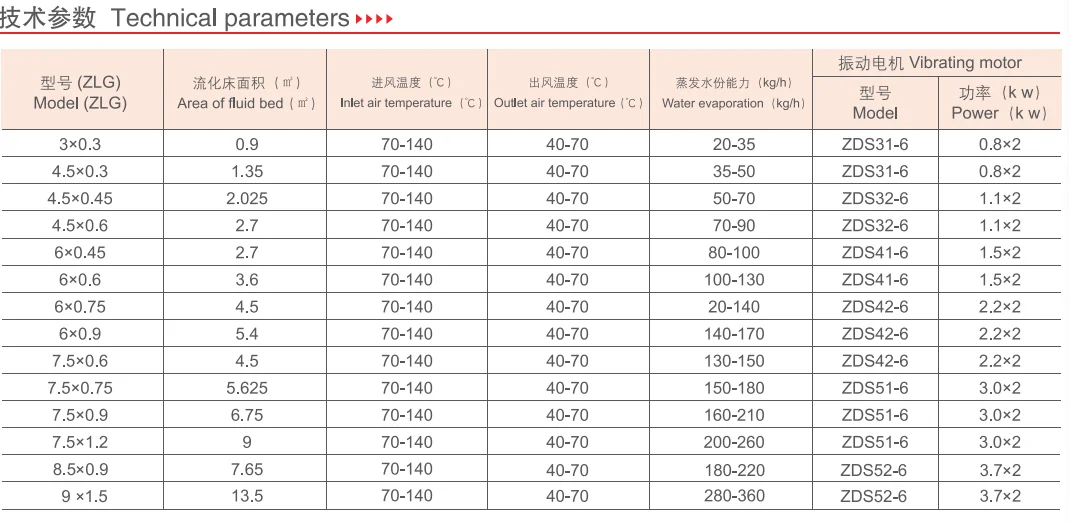

Other model technical parameters

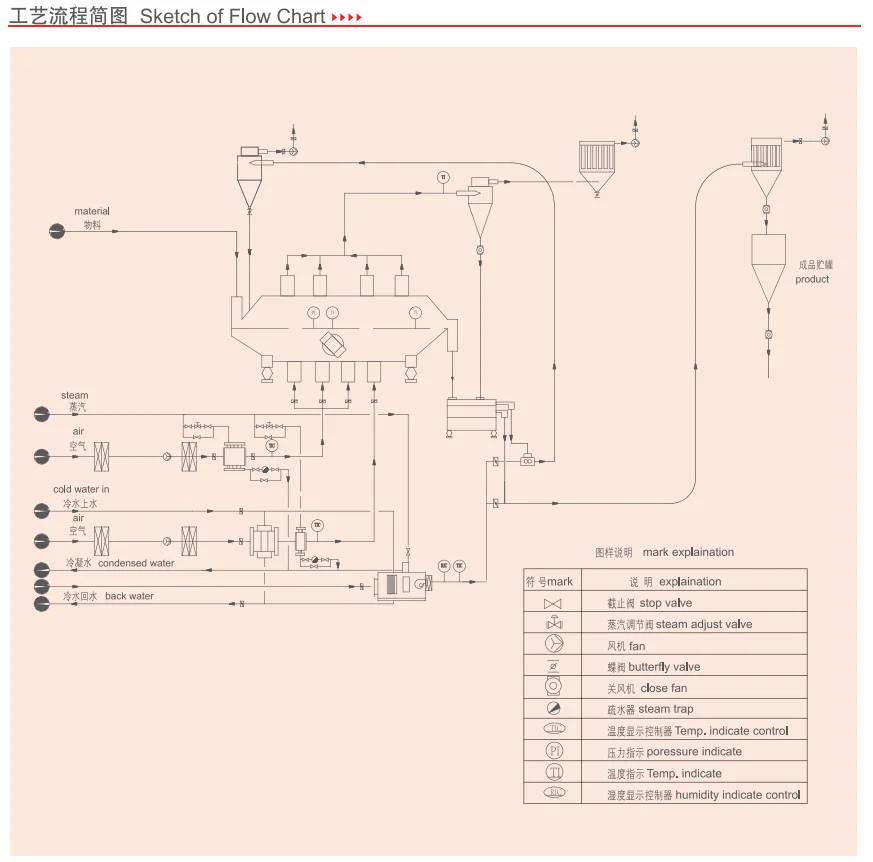

Sketch of Flow Chart
