Wood Flooring Sander High Precision Wide Belt Sanding Polishing Machine
- Category: Other Woodworking Machinery >>>
- Supplier: Shandong STX Machinery Trade Co. Ltd.
Share on (1600402467861):
Product Overview
Description

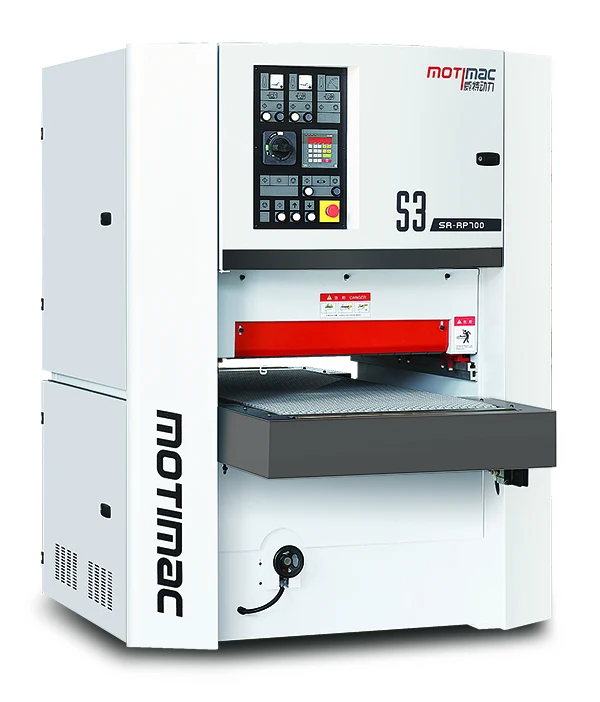

Wood Flooring Sander High Precision Wide Belt Sanding Polishing Machine
Product Features:
Compact the perfect embodiment of wisdom
Designed for sanding diverse widgets
Great choice for sanding small crafts and furniture parts. It is able to sand feed materials as short as 200 mm. Better rigidity and thermal stability. The accuracy is increased by 20% compared with the traditional model. Can meet the diverse needs of the processing, the thoroughly pursuit of
cost-effective, compact the perfect embodiment of wisdom.
| ||
Model | SR-RP1000 | SR-RP700 |
Sanding Unit |
|
|
Working Width | 1000mm | 700mm |
Min. Working Length | 470mm | 420mm |
Working Thickness | 3-160mm | 3-160mm |
Feeding Speed | 5-25m/min | 4-20m/min |
Total Motor Power | 38.87kw | 24.37kw |
Motor for First Unit | 22kw | 15kw |
Motor for Second Unit | 15kw | 7.5kw |
Feeding Motor | 1.5kw | 1.5kw |
Lifting motor | 0.37kw | 0.37kw |
Hardness of First Roller | steel roller | steel roller |
Hardness of Second Roller | 70sh | 70sh |
Diameter of First Roller | Φ190mm | Φ190mm |
Diameter of Second Roller | Φ160mm | Φ120mm |
Linear Speed of First Belt | 21m/s | 20m/s |
Linear Speed of Second Belt | 18m/s | 14m/s |
Abrasive Belt Size(mm) | 1030x2200mm | 730x1900mm |
Working Air Pressure | 0.6MPa | 0.6MPa |
Air Consumption | 17m3/h | 12m3/h |
Volume of Dust Collection Device | 3052m3/h | 3052m3/h |
Overall Dimensions (mm) | 1795*2150*2080mm | 1430*1990*1920mm |
Net Weight | 2300kgs | 1700kgs |
Price Term & Unit Price | FOB QINDAO PORT | FOB QINDAO PORT |
Package | Iron Pallet | Iron Pallet |
Delivery time | 45 days | 45 days |

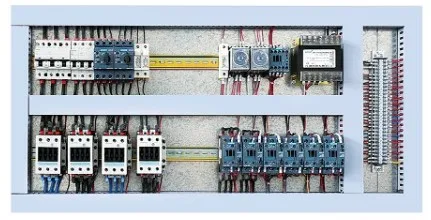

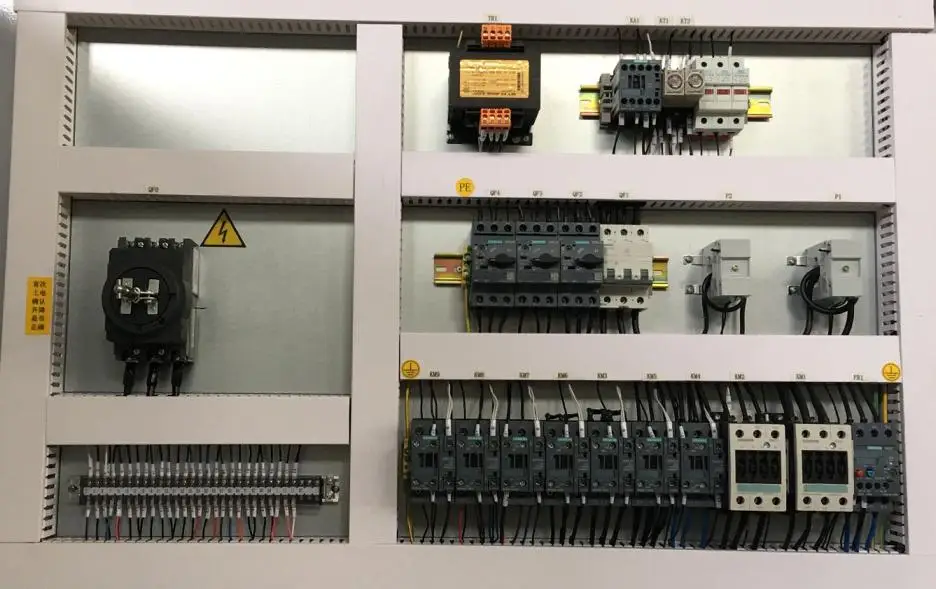

SIEMENS Electrical parts are adopted ensures enduring and steady service life. |

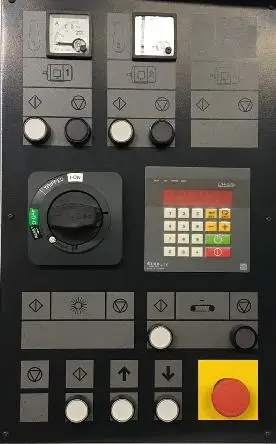

Control Panel: Numeral control panel CH-525 is used to adjust thickness figures. |
SIEMENS Buttons have steady and long service life. |

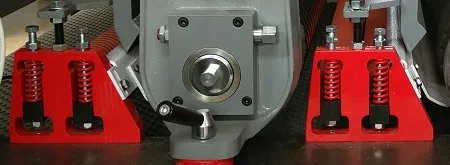

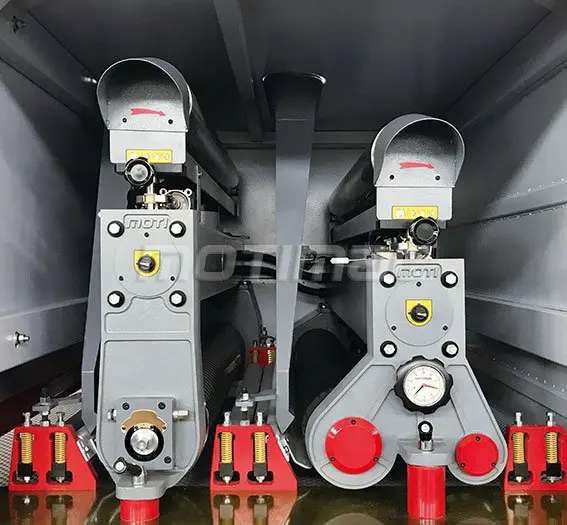

Double pressing roller structure design ensures stable feeding of work piece, Fine adjustment can be made according to the length of work piece. |

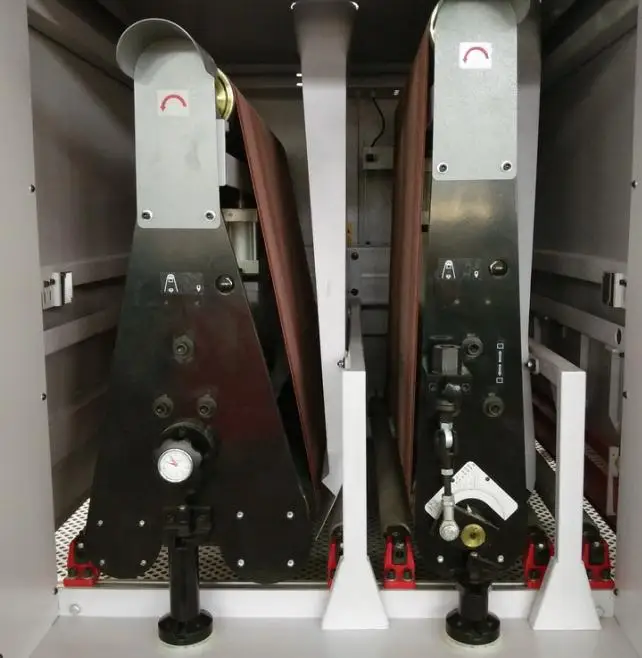

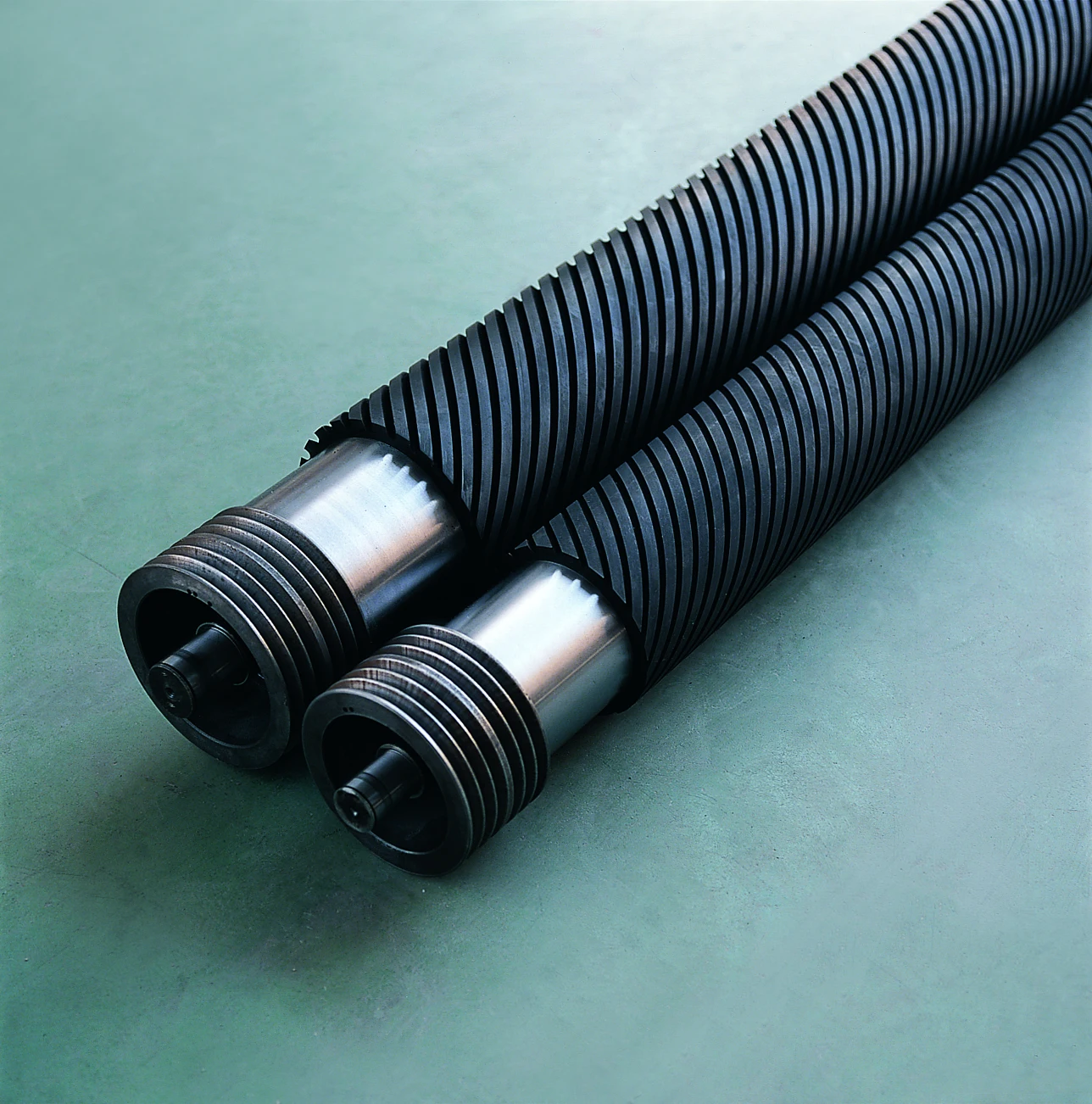

Calibrating roller and pulley integral structure, the operation is smooth and the accuracy is high. |

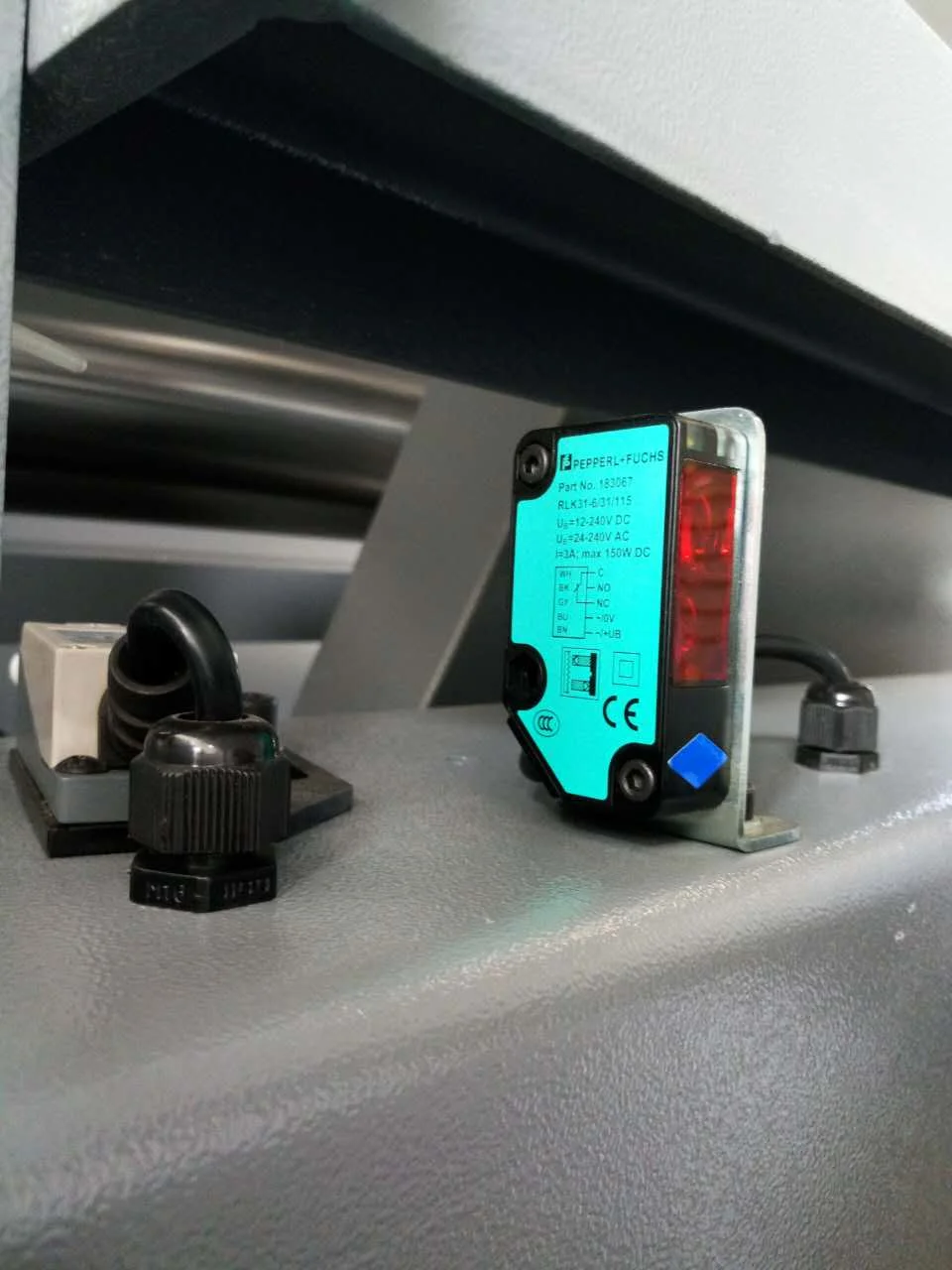

Omron limited switch, P+F photoelectric switch to control the abrasive belt. |
Packing: Iron pallet. |
