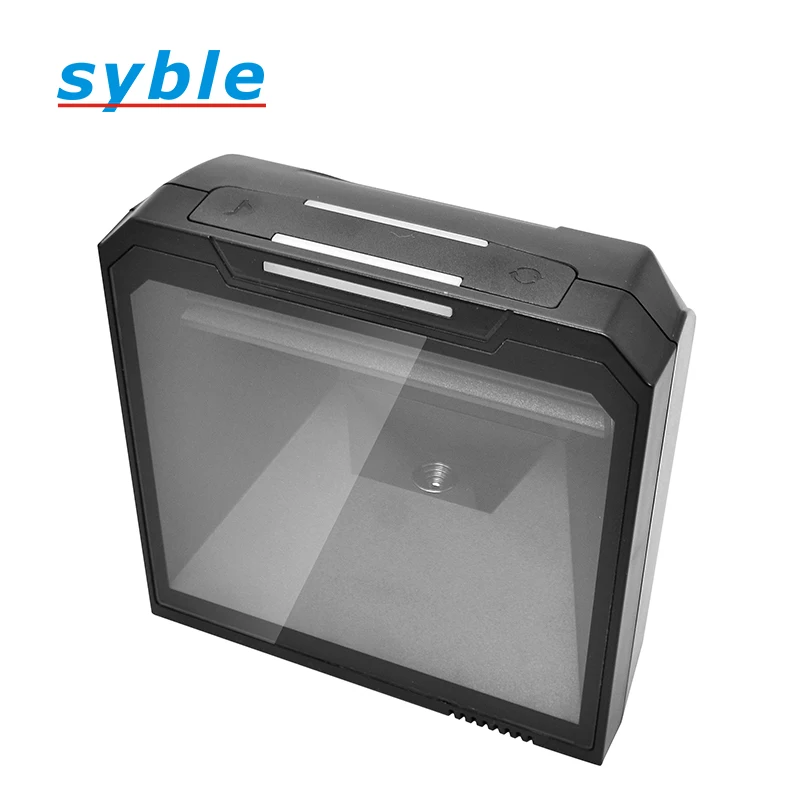

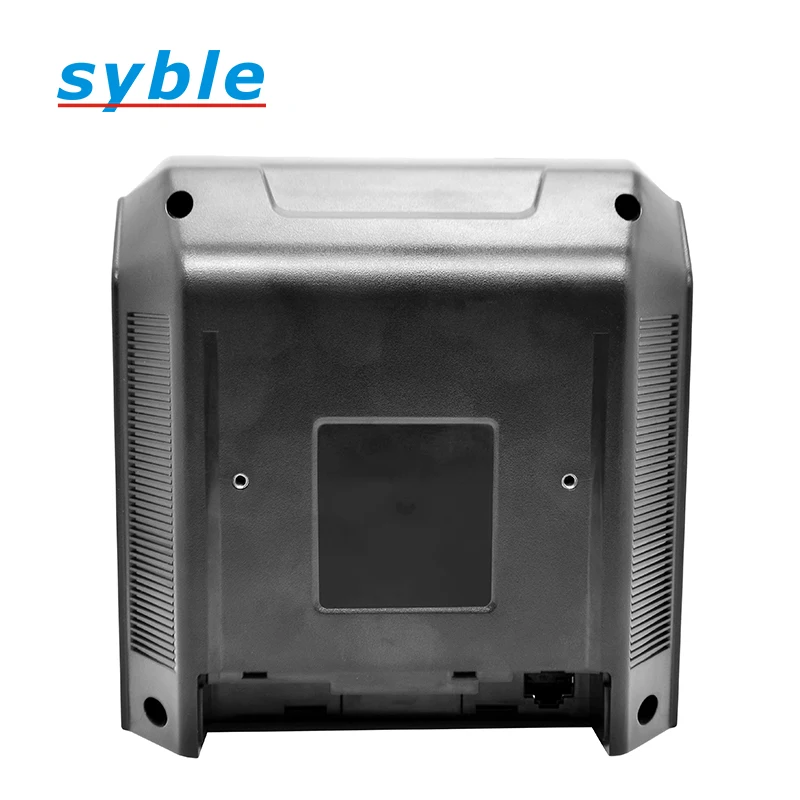

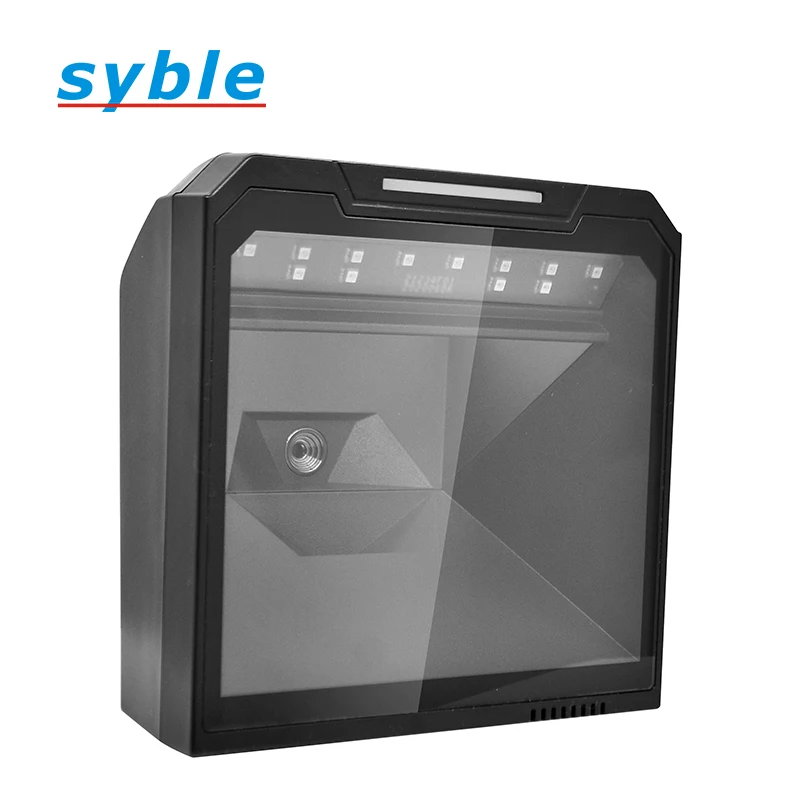

Big Screen Desktop USB Wired Barcode Scanner 1D 2D Reader For Supermarket
XB-8808H is 2D Presentation Barcode Scanner ,which we adopt latest and advanced digital imaging technology to provide intuitive and blazing decode of 1d and 2d barcodes without sacrificing scanning quality and performance ,it can read damaged ,poor printed ,dirty and distorted barcodes as well as barcodes from mobile devices displays ,the fast scanning and reliability make this 2D Omnidirectional Barcode Scanner ideally for supermarkets ,pharmacies store ,petrol stations and other similar retail stores .
Model : XB-8808H
Competitive Service
Compatible with Linux,Android,Windows XP,7,8,10,MAC OS
Fast and Accurate read most common 1D &2D symbologies
Excellent at reading symbologies with transparent film
Soft Supplementary light friendly to eyes
Wide scan angle and long scan distance
Motion tolerance up to 3.8m/s
Three tones are optional
Specifications:
Specification
| Performance Parameters | |
Light Sources | SXGA-W(Width1280*high1024) Ratio(5:4) |
Supported Symbologies | 1D:EAN-8,EAN-13,EAN-13 2 add-on,EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32,Code 39,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,ISBT-128,GS1-128,GS1 DataBar(RSS14),GS1 DataBar Limited,GS1 DataBar Expanded. 2D:PDF417,MicroPDF417,QR-code,MicroQR, Data Matrix,QR,Aztec. |
Scan Range | 5mil(Code39) 1cm~15cm; UPC-13mil 1cm~33cm; 20mil(code39) 1cm~40cm; 20mil(QR Code) 1cm~28cm |
System compatibility | Linux,Android,Windows XP,7,8,10,MAC |
Minimum recognition accuracy | Code 39 4mil |
Barcode Type | 1d or 2d barcodes for Paper or Film;1d and 2d for screen ,like Phone tablets |
Motion tolerance | 3.8meters/second |
Scan Mode | Automatic continuous reading mode |
Support Keyboard | Support Multi-Language |
Barcode output editing | Support for adding suffixes |
Print contrast | 20% |
Recognition angle range | Turn angle ±360°, elevation angle ±60°, declination angle ±70° |
Mutual Move | Led : Red and blue bi-color indicator: red light reading code, blue light power indicator. Beeper : Startup prompts, reading tips. Button : Switch three tones; switch read-only 1D mode. |
Interfaces | USB(Drive-Free),RS232 |
Physical Parameters | |
Dimensions | 150mm*83mm*150mm |
Weight | 576g |
Material | ABS+PC |
Cable Length | 180CM(±3CM) |
Environmental Parameters | |
Operating Temperature | -20℃~55℃ |
Storage Temperature | -20℃~60℃ |
Relative Humidity | 5%~95% RH(non-condensing/non-freezing) |
Waterproof and Dustproof | IP54 standard |
Ambient Ligh | 0-70000LUX |
Electrical Parameters | |
Working Voltage | DC5V |
Product details :
2d omnidirectional presentation scanner is a high performing and versatile data collection tool for a variety of applications.
The syble scanner uses latest digital imaging technology to provide intuitive and fast reading performance on 1D and 2D barcodes as well as supporting advanced features like image capture and EAS tag deactivation
Our Service :
The Warranty on this Wireless Laser Barcode Scanner is 24 month , cable and battery 6month
Details as below
During the warranty period ,if the product proved to be defective ,or any questions during operate ,contact us for instructions .
Regarding to the defective product :
1,we will delivery the replacement to you with your next order
2,if spare parts required urgently , we will delivery it as required and the shipping charge on clients side
Related Products
Approval Certificate
FAQ
1:Where is your company located ?
Our company located in Zengcheng ,Guangzhou ,China
2:Do you have CE FCC certificates for this 2D Imager Presentation Scanner ?
Yes ,we applied CE,FCC,Rohs etc certificates for all our Barcode Scanners
3:What is your quality policy about this 2D Omni Scanner ?
the warranty on the Barcode Scanner is 2years and cable 6months
4:Can we OEM this 2d Omnidirectional Barcode Scanner ?
Yes ,OEM service is available with MOQ 200units
5:Are you a trading company ?
No ,we are professional Barcode Scanner Manufacturer from China
