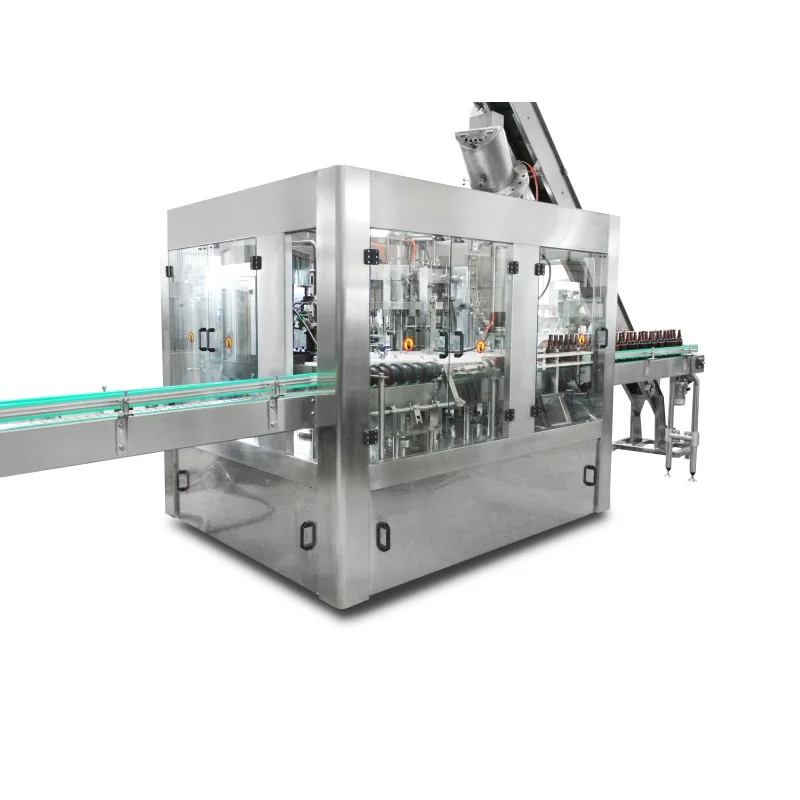

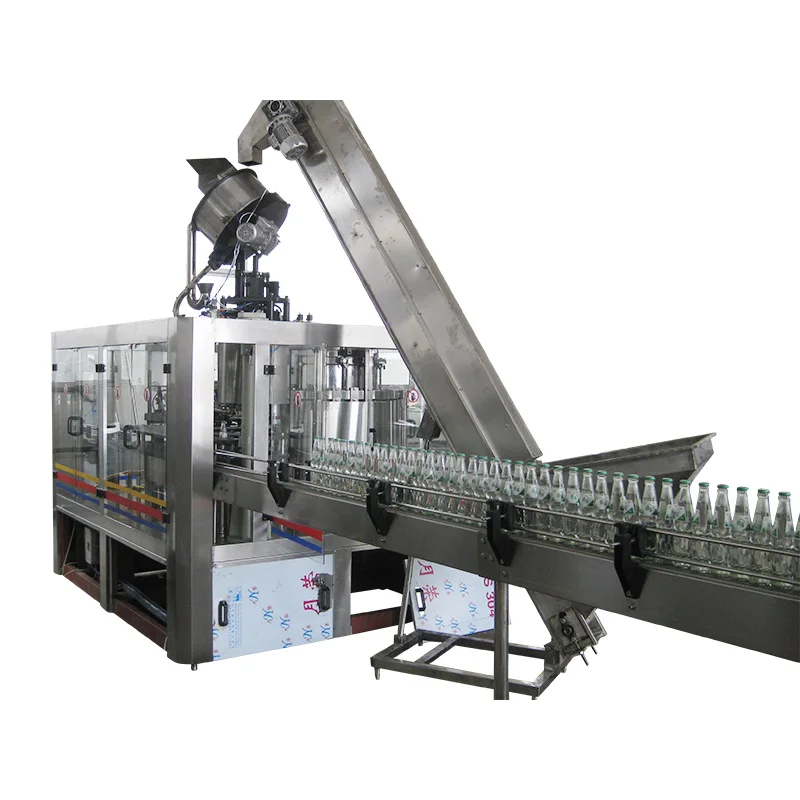

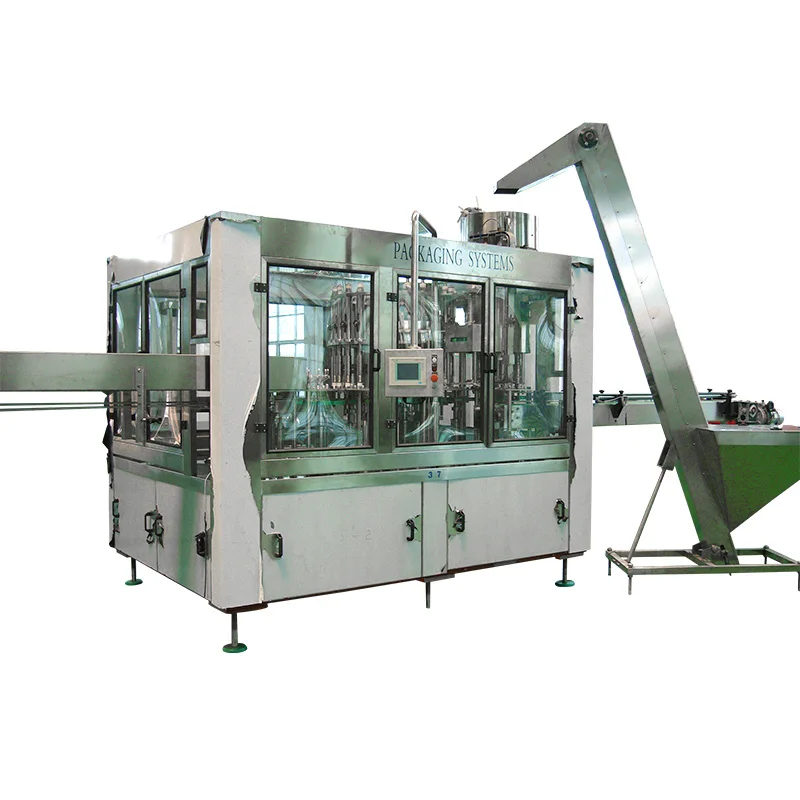

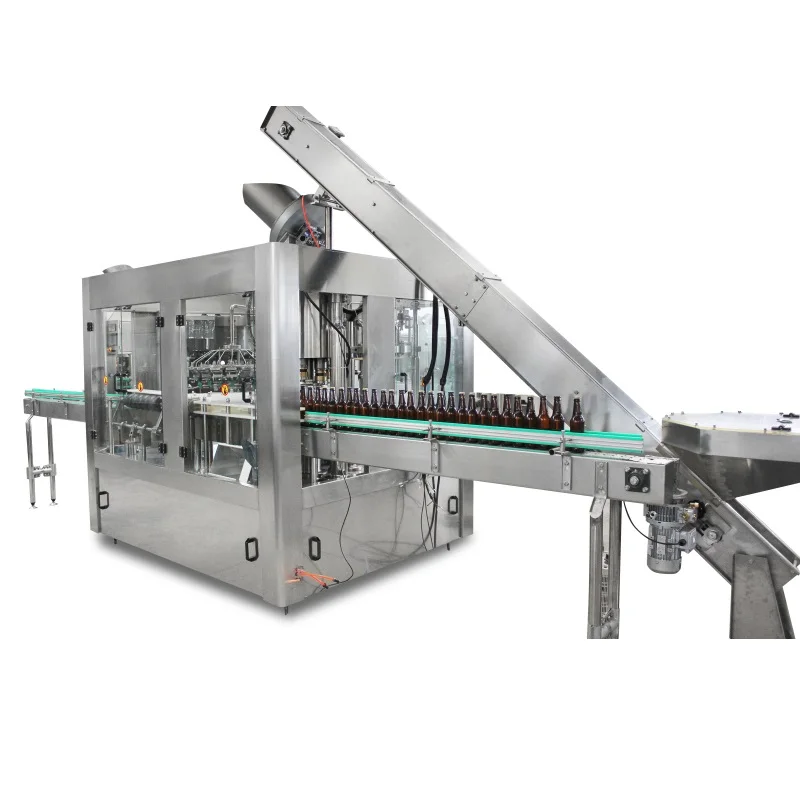

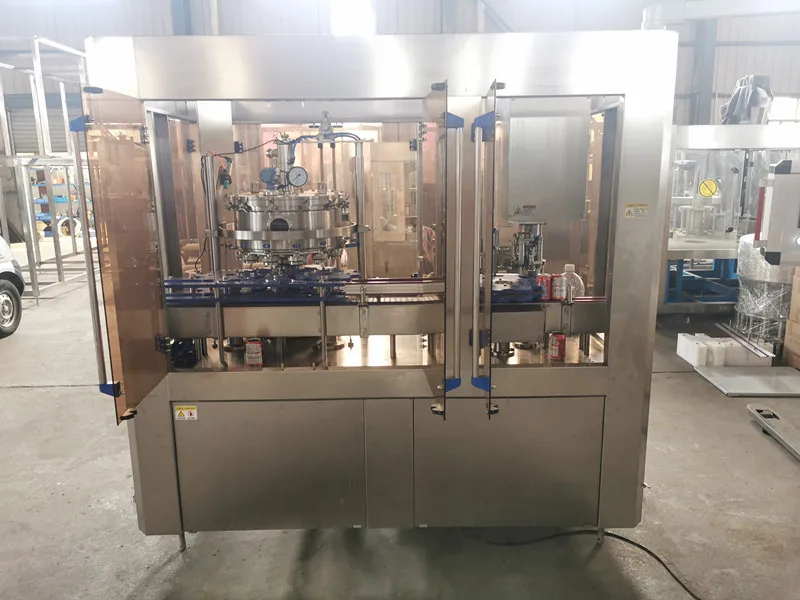

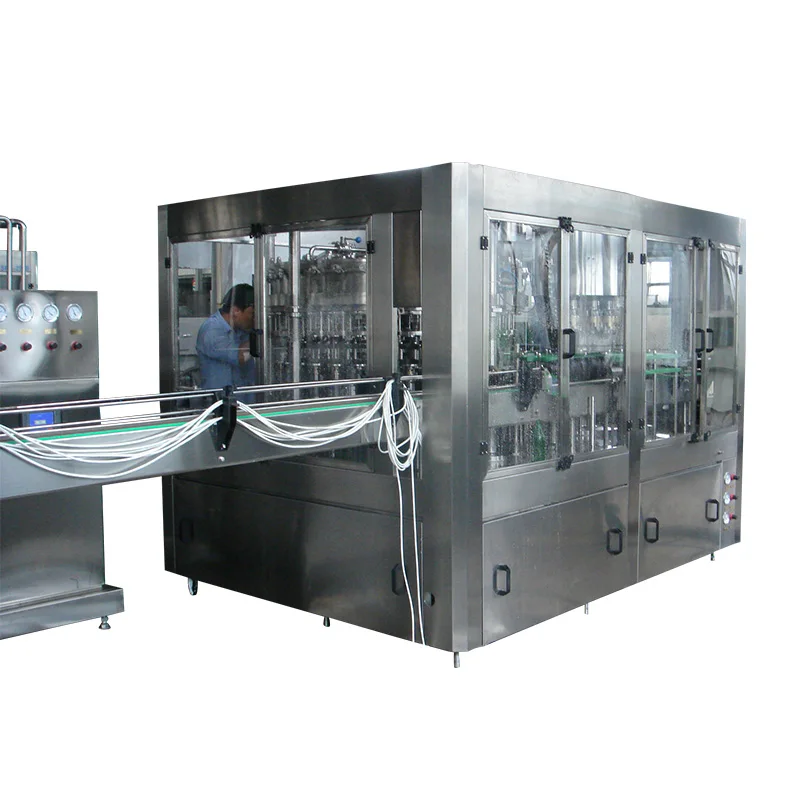

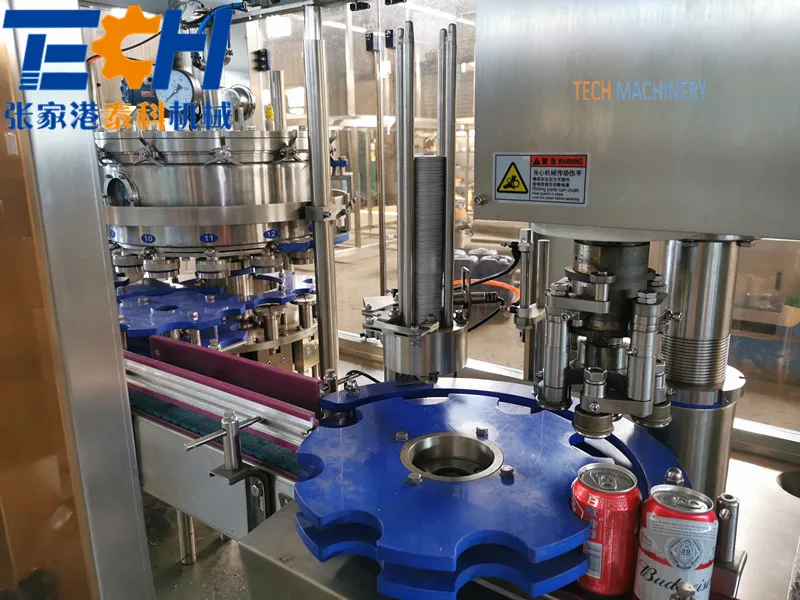

Automatic filling capping bottling line drinks Whisky/alcohol/juice/beer/water/wine glass bottle filling machine
- Category: >>>
- Supplier: Zhangjiagang Tech Machinery Co. Ltd.
Share on (1600403137698):
Product Overview
Description

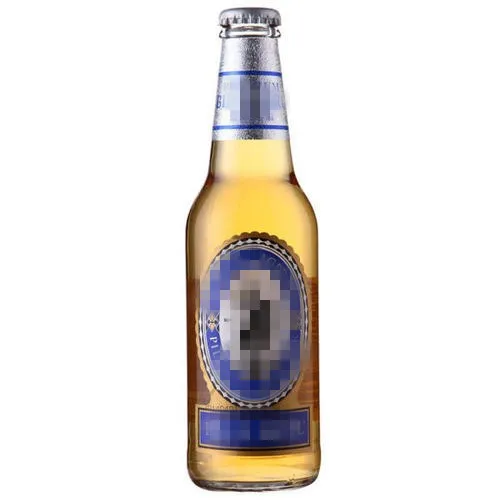

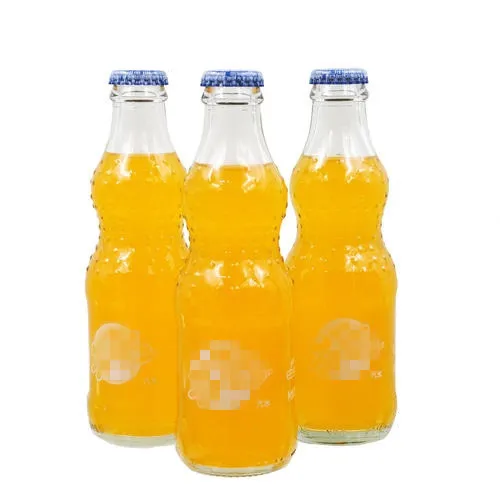

Suitable bottle
this set machine is suitable to work glass bottle size from 200ml to 880ml.
It can work carbonated beverage, beer, juice etc. just change filling part and capping part.
We can supply the right machine quotation solution project for you.
Products Description

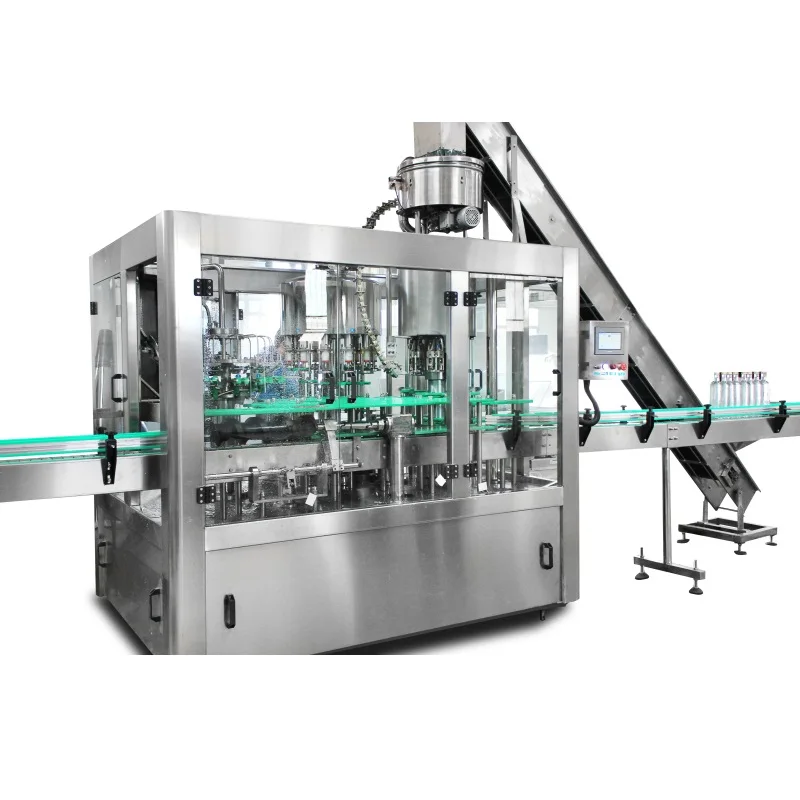

The series equipment is used for glass bottle rinsing/ filling/ sealing 3-in-1 unit machine for water/ juice/ tea/ wine and so on.And the capping part can be manufactured with crown cap/ screw cap/ normal cap.The machine integrates washing, filling, capping together. The design is scientific and reasonable. Its appearance is beautiful.Its operation and maintenance is convenient. The automation is high. It is good equipment for choosing hot drink filling machine. This series machine is adopt block bottle-neck hanging work state design, and be adopt filling valve rise-drop design, It's be satisfy for 95 degree hereinafter hot filling technology demand. It's adopted person-machine interface touch-screen, PLC, transducer etc advanced control technology. It's osculate the drink material parts are adopt the SUS304 stainless steel, The machine main motor, reducer, mostly axletree, pressurize parts and electricity ware element, gas drive element etc are adopt famous international manufacturer products.
Product Paramenters
Model: | BCGF14/12/5 | BCGF18/18/6 | BCGF24/24/8 | BCGF32/32/10 | BCGF40/40/12 | ||||
Capacity(BPH) | 3000 | 6000 | 8000 | 12000 | 15000 | ||||
Suitabe bottle (mm) | 150-340 | ||||||||
Suitable Cap (mm): | φ50-φ110 | ||||||||
Filling Pressure: | Normal pressure | ||||||||
Power (KW) | 3.2 | 5.6 | 6.3 | 7.3 | |||||
Size : (mm) | 2400×1670×2350 | 2865×2170×2350 | 3700×2570×2350 | 3800×2950×2400 | 4500×3400×2400 | ||||
Weight:(kg) | 2500 | 4000 | 5000 | 6000 | 8000 | ||||
Details Images
washing head
Spring cramps are used in the bottle washing process.The empty bottles can be turned over 180* along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
filling head
The most advanced technology is employed in the design.The gravity fixed liquid surface filling is used. The filling is fast,the amount of liquid is accurately controlled and the dropping and leakage are avoided.
capping head
The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged,the capping is reliable.
The bottle-necks are cramped and bottles are suspended during the operation process. This avoids many malfunctions caused by thinner bottle body or different highness of bottles.This design also reduce dramatically the required number of changeable parts,make it more convenient and quickly to change to another type of bottles. The bottle-necks are cramped and bottles are suspended during the operation proces. This avoids many malfunctions caused by thinner bottle body or different highness of bottles.This design also reduce dramatically the required number of changeable parts ,make it more convenient and quickly to change to another type of bottles.
Supporting equipment
water treatment
The water treatment system is pre-treating amd desalting the tap water in the raw water tank in the RO system to get pure water.The pre-treatment device consists of quartz sand filter, active carbon filter, natrium ionexchanger and precision filteronizer and so on. we adopt imported RO membrane of Hydranautics from U.S.A for RO system. The structure of whole line is simple, the operation is convenient, the technical level is high. This system is the most ideal drinkable water production line.
Company Profile
TECH machinery is a company with 15 years of production experience, is a dynamic and positive team. The company sets development, production, sales, after-sales as one; on the basis of consolidating the original high-quality, absorbing the latest technology in the world, providing a perfect solution for lots of customers. The main production equipment includes: water washing filling capping 3-in-1 machine, Carbonated beverage washing filling capping 3-in-1 machine, hot beverage tea washing filling capping 3-in-1 machine, barrel water filling machine etc. Pre-treatment equipment includes: water treatment equipment, sugar pot, production line necessary set Automatic labeling machine, automatic sticker labeling machine, film packaging machine, packing machine, palletizer, etc.; at the same time, it also provides PET bottle blowing machine, etc. Our customers are from all over the world, the main market: China, Myanmar, Cambodia, Thailand, Tanzania, Bangladesh, Russia and other countries and regions. Many years of sales also received good comments from customers, as well as satisfactory reply.
we have professional processing machine such as CNC, and we have experienced workers.
Sales department and technology department
We can supply professional sales project, and design machines for you.
Touch screen: Mitsubishi /Siemens
PLC: Mitsubishi
Inverter: Mitsubishi
Contactor: Siemens/ Schneider
Product packaging
Shipping
Delivery to Sea port by truck, then ship to customer's factory.
Projects in customer's factory
Project in customer's factory
We supply complete project for customer, from A to Z. Turnkey project.
