OEM One Stop Supplier 10/100/1000M/2.5G PCI Express RJ45 Network LAN Card Support Hardware Auto Correction

Product Overview

Description

Yinuolink PCIe new design Intel i305 Gigabit 1000Mbps RJ45 network lan card

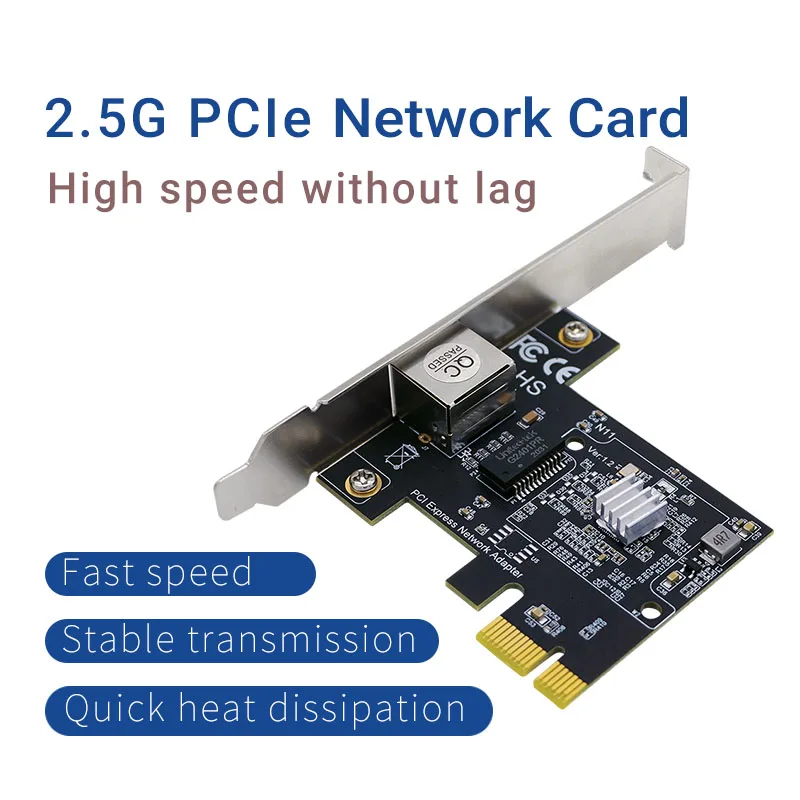

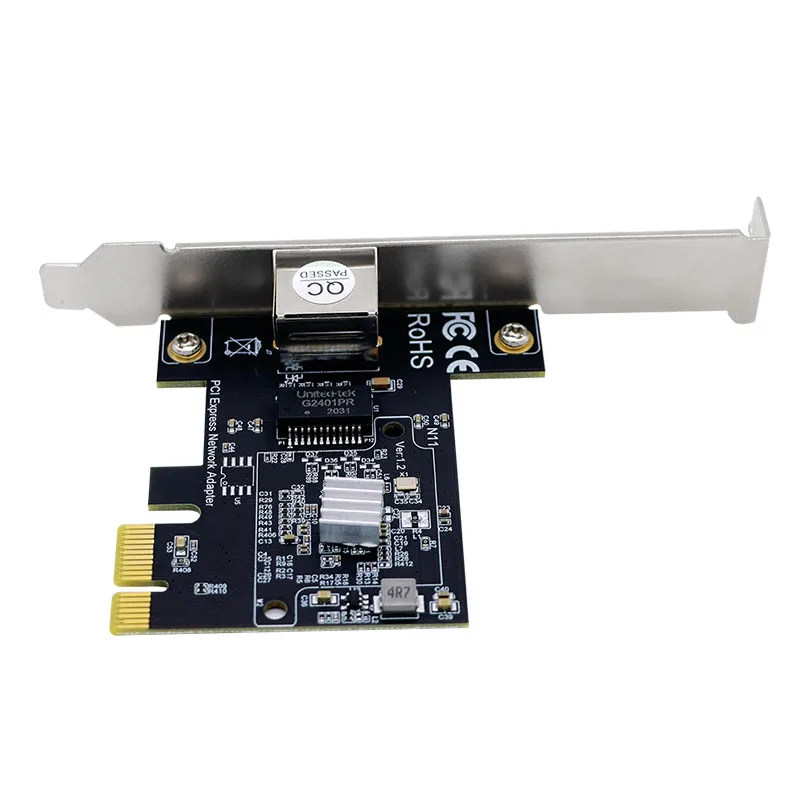

YN-N11 is a 2.5G network adapter with high integration, high cost performance supporting PCI Express (PCIe) bus interface following IEEE 802.3U, IEEE 802.3AB, and IEEE 802.3BZ standards.

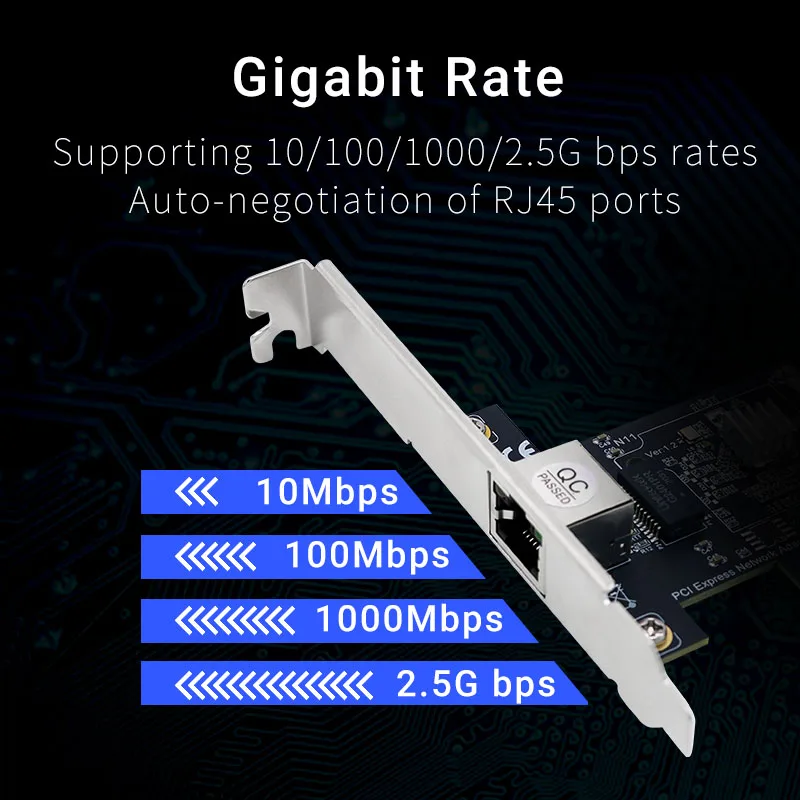

YN-N11 is simple to use and easy to operate. It supports 10 megabit/100 megabit full duplex / half duplex mode and gigabit full-duplex mode. It supports 10Mbps, 100Mbps, 1Gbps, and 2.5Gbps four kinds of network transmission rate, supports auto-negotiation which can automatically detect full duplex/half duplex mode, automatically match the network rate. Driver can support Windows 10, Windows 8, Windows 7, and Linux. If you want a high performance network card, with easy installation, and strong technical support, this network adapter is your best choice.







Wireless Standards	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m)
Data Rates	10/100/1000 Mbps for Half-Duplex mode,20/200/2000 Mbps for Full-Duplex mode

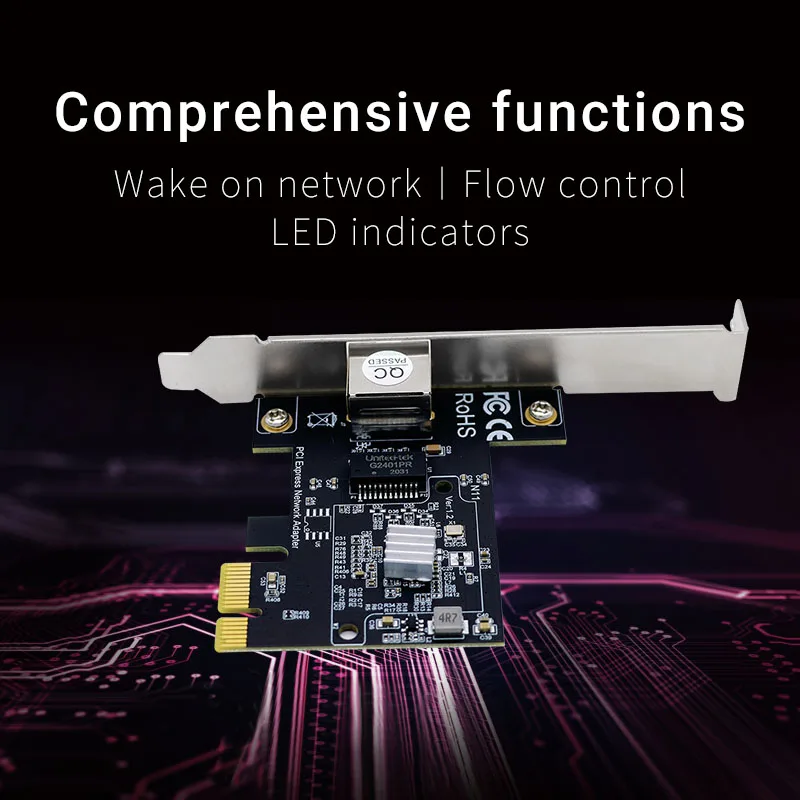

Flow Control	IEEE802.3x Flow Control (Full-Duplex)

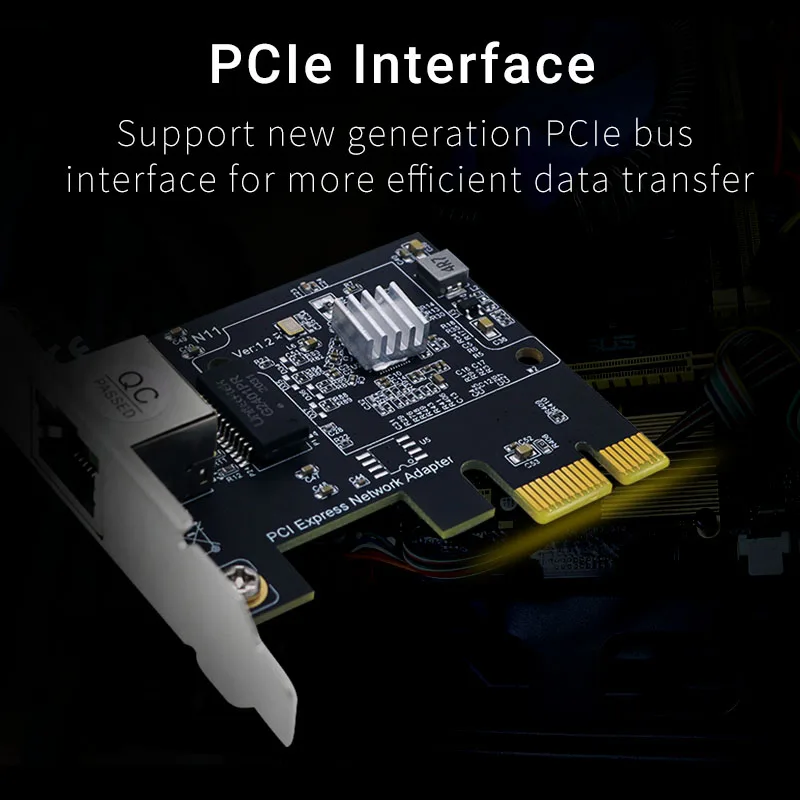

Interfaces	PCI-Express,1x10/100/1000M RJ45 Port, Auto-Negotiation, Auto MDI/MDIX
LED	Status
Product Size	66.9x55.5mm
Packing Size	180x135x30mm
System Requirements	Win10/8/7
Environment	Operating Temperature:0℃~40℃(32℉~104℉);  Storage Temperature:-40℃~70℃(-40℉~158℉); Operating Humidity:10%~90%RH non-condensing; Storage Humidity:5%~90%RH non-condensing;



Founded in 2012, YINUO-Link is a global provider of reliable network devices integrating R&D, manufacturing and marketing.



YINUO-Link is committed to providing the most convenient local area network interconnection and Internet access means for the world, and providing high-quality and cost-effective comprehensive devices solutions for the growing network use needs of the public in life, work and entertainment.



YINUO-Link involved in WiFi Lan, broadband access, Ethernet, powerline. in addition to the established main areas of transmission, switching and routing, YINUO-Link has expanding the field of wireless image video transmission, smart home, cloud computing, edge computing, data storage, industrial and other areas, so as to provide systematic equipment, solutions and overall services for a wider range of users.



Providing professional services and cost-effective products is our commitment to customers. In this belief, we will continue to improve the company's services to meet the needs of different customers. Let's bring more convenience and communication channels to the world together.







1. If you encounter any problems when using this network card, please check the following settings:

A. The driver was installing correctly.

B. The cable is connected to the port of the network card correctly.

C. Check the status of the LED indicators.



2. 10/100M LED (Green), 1G LED (Green), 2.5g LED (green) three lights are Link/Active/Speed multi-function indicator. When the 2.5g LED (green) is on, it indicates that the network adapter is successfully connected (Link) to the network and the transmission Speed is 2.5Gbps. If the indicator blinks, it means the network adapter is being transmitted over the 2.5Gbps network (Active). The 10/100M LED (Green) and 1G LED (Green) are similar to the 2.5G LED.
