Automatic Alu Alu Blister Packaging Machine for Medicine
- Category: >>>
- Supplier: Pharmec Technologies Co. Ltd.
Share on (1600403232930):
Product Overview
Description
Products Description
Introduction

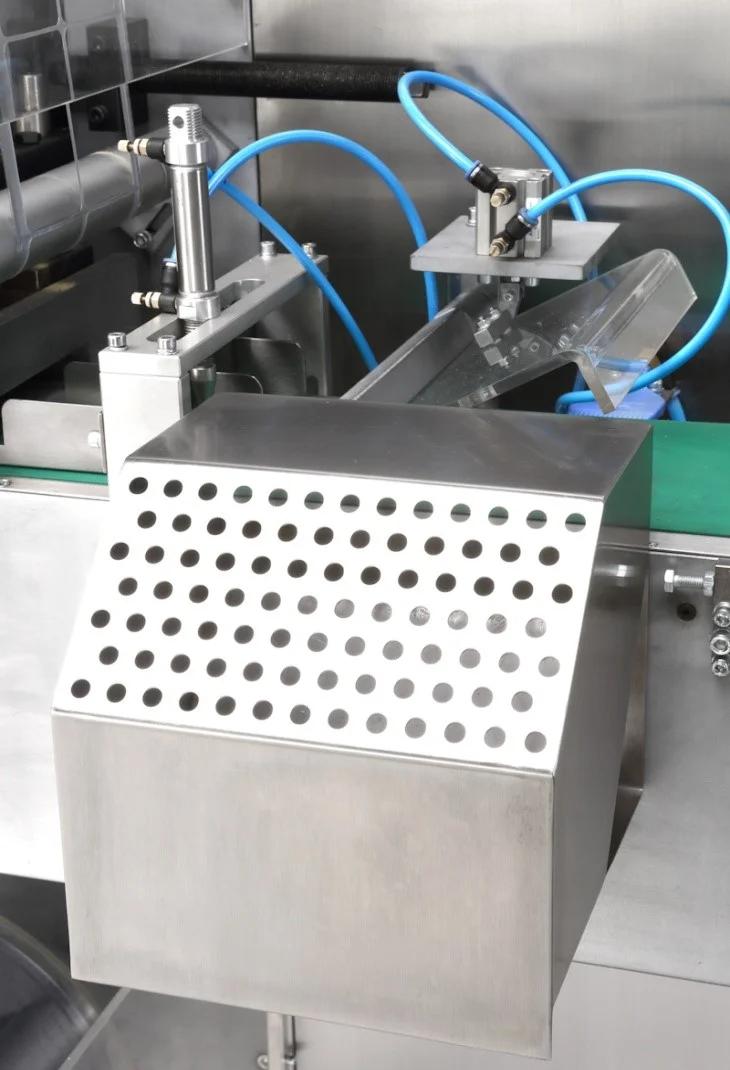

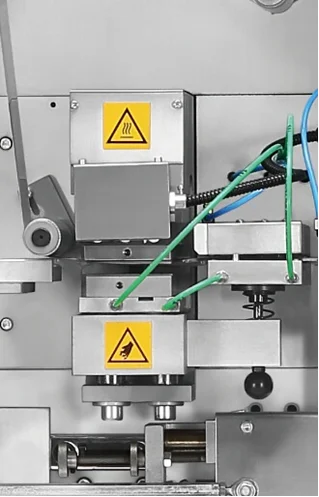

This Roller ALU-PVC blister packing machine is the new high-tech production combined with domestic and abroad experiences. It adopts complete servo motor driving system, can complete accurate control, low noise, high speed of production, easy changing of model, accordingly achieve high-efficiency automatic medicine packing, minimum personnel and material cost. To achieve automated and efficient production of pharmaceutical packaging, the labor cost and material cost are reduced to a minimum, effectively improving the production efficiency of the enterprise, and ensuring that the packaging production process of the drug is in full compliance with the requirements of the GMP. The machine has a wide-ranging application. It is mainly used for medicine (tablets, capsules, pills, special-shaped tablets),food and other similar solid things. It packs the medicine into the bubble between the PVC and Alu foil, can satisfy the different blister shapes required by different customers.
Technical Data
Technical Data
Items | PT-DPH-260 | PT-DPH-320 | PT-DPH-350 |
Punch Frequency(times/min) | ALU-PVC: 60-150 ALU-ALU: 40-80 | ALU-PVC: 60- 150 ALU-ALU: 40-80 | ALU-PVC: 60- 150 ALU-ALU: 40-80 |
Max forming area (mm) | 260x250 | 320×260 | 350x230 |
Forming depth (mm) | Max. 12 | Max. 12 | Max. 12 |
Packing material mm*mm | PVC reel：0.15-0.5×260 PTP Alu foil：0.02-0.035×260 Reel Aperture：74 | PVC reel：0.25-0.35×320 PTP Alu foil：0.02-0.035×320 Reel Aperture：74 | PVC reel：0.15-0.5×350 PTP Alu foil：0.02-0.035×350 Reel Aperture：74 |
Total Power (kW) | 18 | 20 | 20 |
Air consumption (m3 /min) | 12m3 /h | 15m3 /h | 16m3 /h |
Overall Dimension (mm) | 3860x1135x1725 | 4750×1680×2200 | 4600x1380x1930 |
Weight (KG) | 3000Kg | 3500 | 4000 |
Material | Stainless Steel |
Customized | Accept |
Service | OEM and ODM |
Package | Standard wooden packing for sea shipping |
