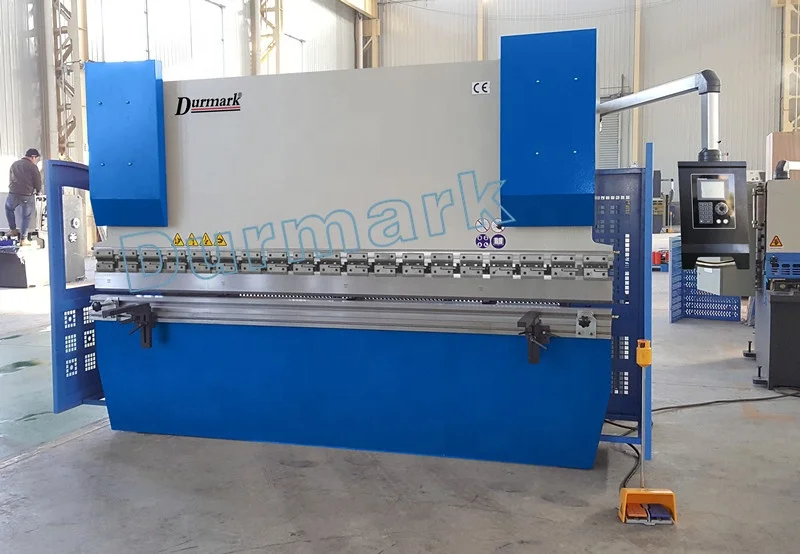

durmark press brake sheet metal press brake bending machine
- Category: >>>
- Supplier: Anhui Lifu Machinery Technology Co. Ltd.
Share on (1600403370862):
Product Overview
Description
Product Description
1. Totally EU streamlined design. Monobloc by welding robots & apparatus and stress relief process by annealing treatment.
2.Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision.
3.Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch Rexroth, Germany.
4.Travel limit protection, full machine guarding with safety interlocker.
5.Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.
6.The stroke and distance of the back gauge is adjusted by the motor.
7.Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays
8.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.

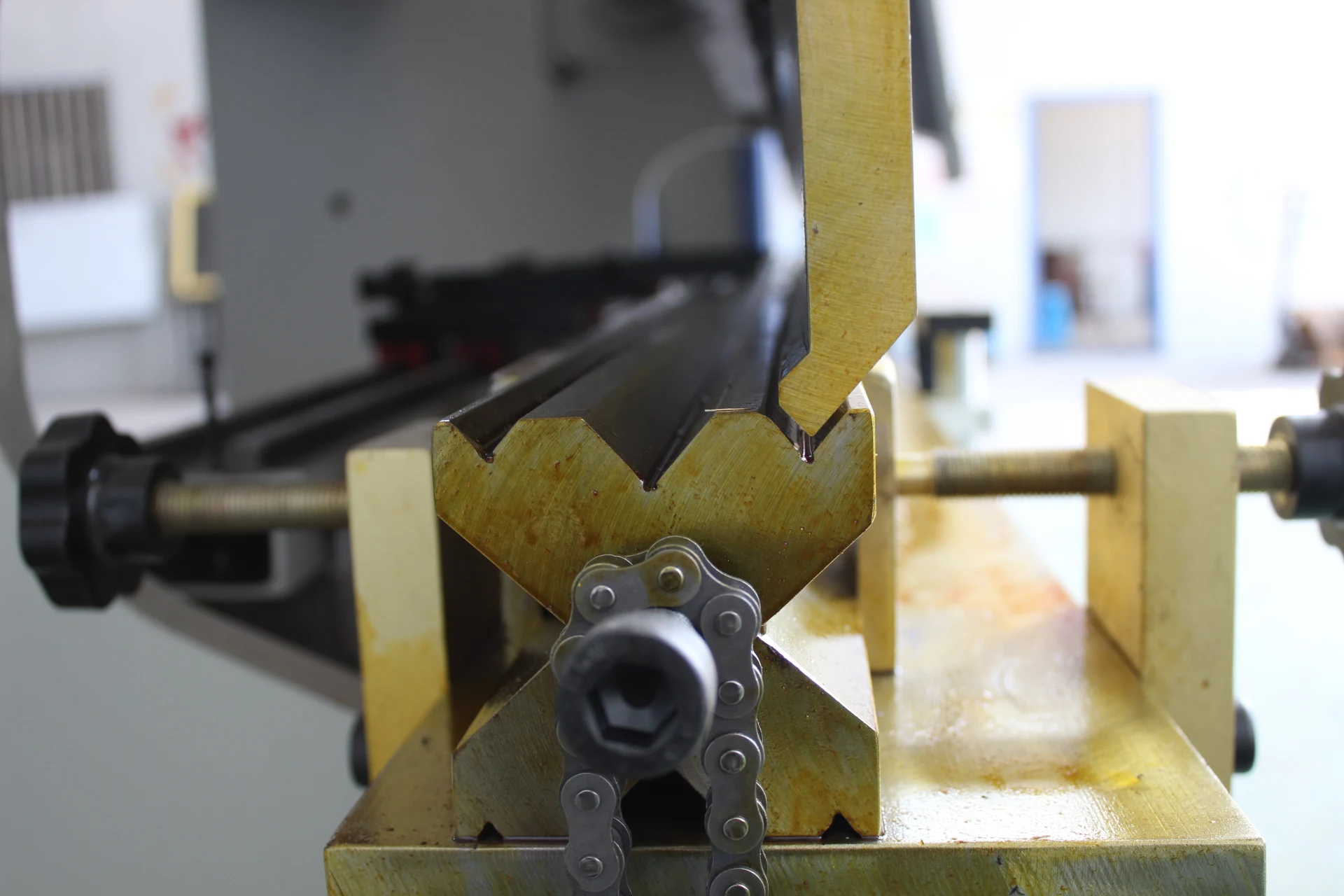

9.Standard punches and dies. Front arm material support. Foot pedal with emergency stop.
10. Control system: Estun E21
2.Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision.
3.Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch Rexroth, Germany.
4.Travel limit protection, full machine guarding with safety interlocker.
5.Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.
6.The stroke and distance of the back gauge is adjusted by the motor.
7.Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays
8.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
9.Standard punches and dies. Front arm material support. Foot pedal with emergency stop.
10. Control system: Estun E21
Safety Standards
EN 12622:2009 +A1:2013
EN ISO 12100:2010
EN 60204-1:2006+A1:2009
Front finger Protection(Safety light curtain)
South Korea Kacon Foot Switch(Level 4 of safety)
Back metal safe fence with CE standards
Safety relay with Monitor the pedal switch and safety protection
EN ISO 12100:2010
EN 60204-1:2006+A1:2009
Front finger Protection(Safety light curtain)
South Korea Kacon Foot Switch(Level 4 of safety)
Back metal safe fence with CE standards
Safety relay with Monitor the pedal switch and safety protection
type | 100ton 3200mm |
nominal pressure（KN） | 1000 |
length of table（mm) | 3200 |
throat depth(mm) | 320 |
ram stroke(mm) | 120/150 |
main motor(kw) | 7.5/11 |
weight(kg) | 6800 |
overall dimensions L*W*H(mm) | 3200*1600*2600 |
Details Iamges

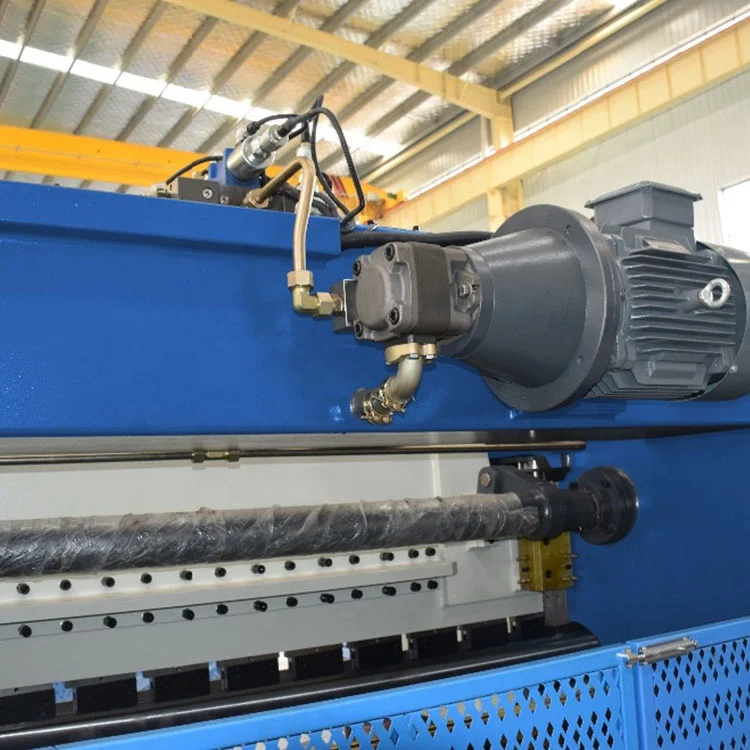

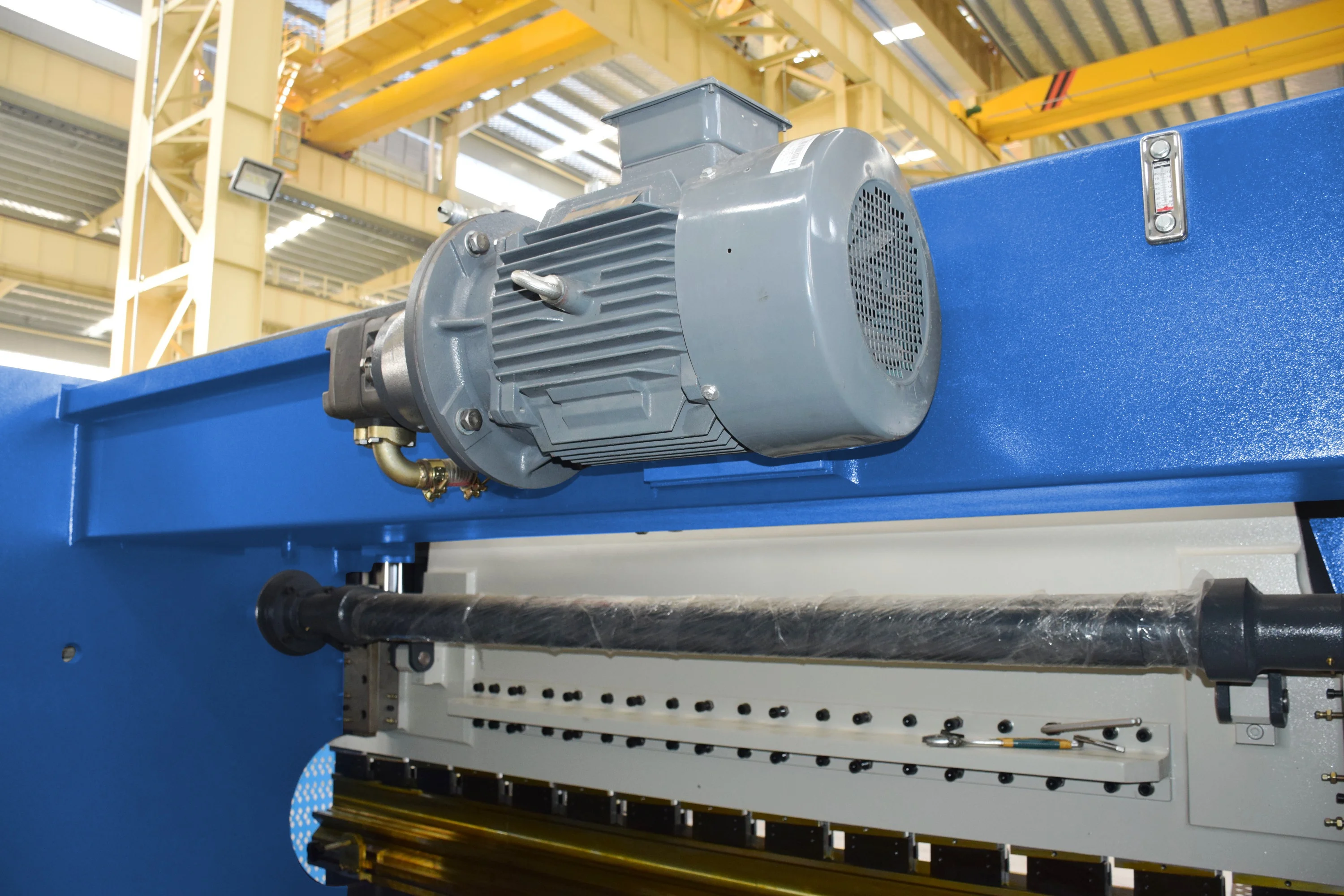

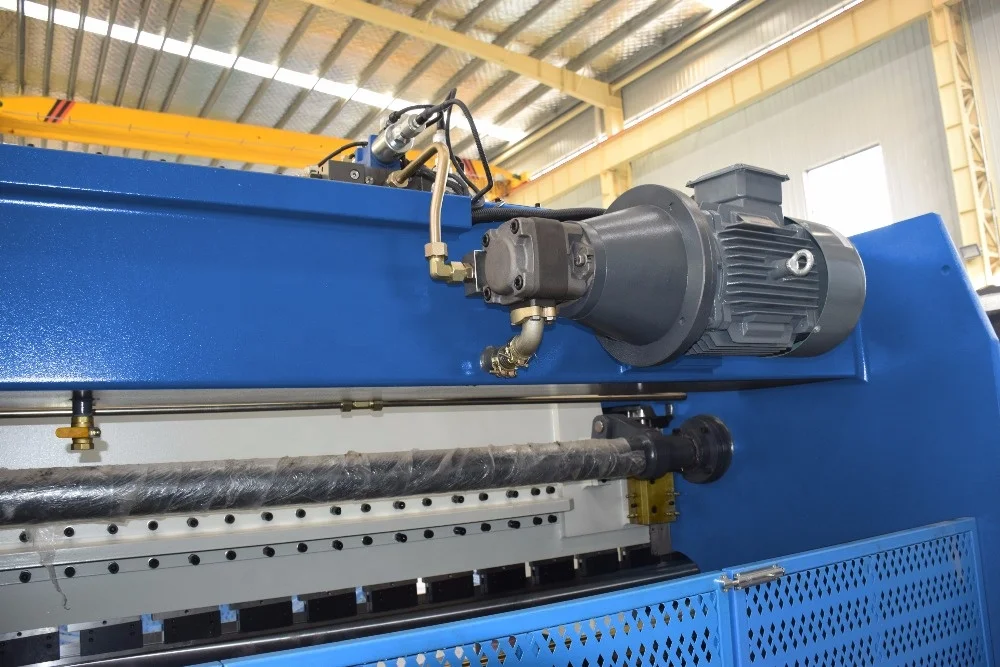

Moter
German famous brand motor improves the lifespan of the machine and keeps the machine working in low noise environment

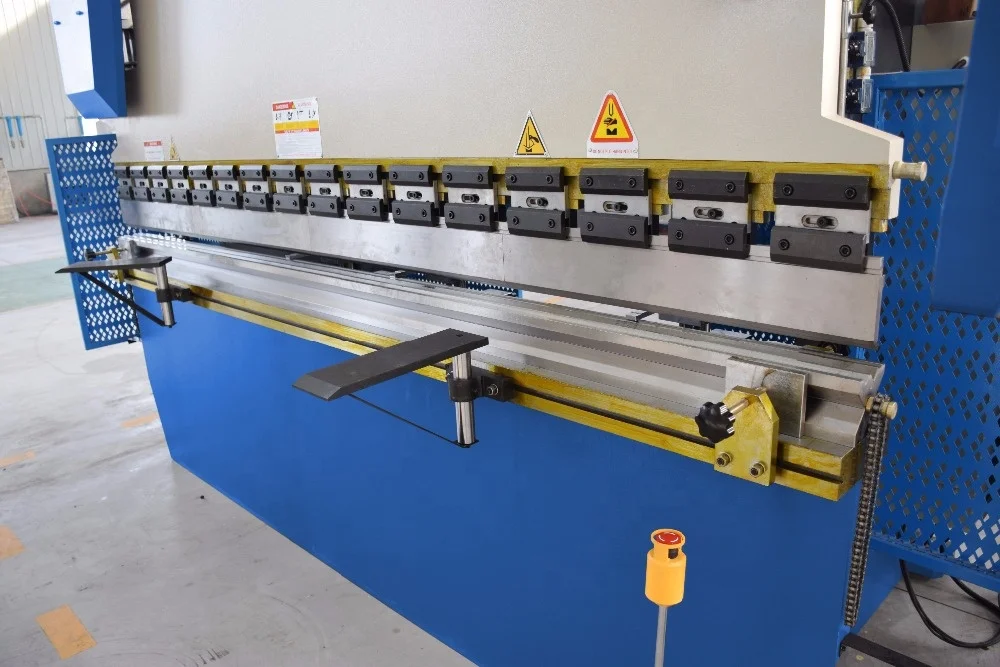

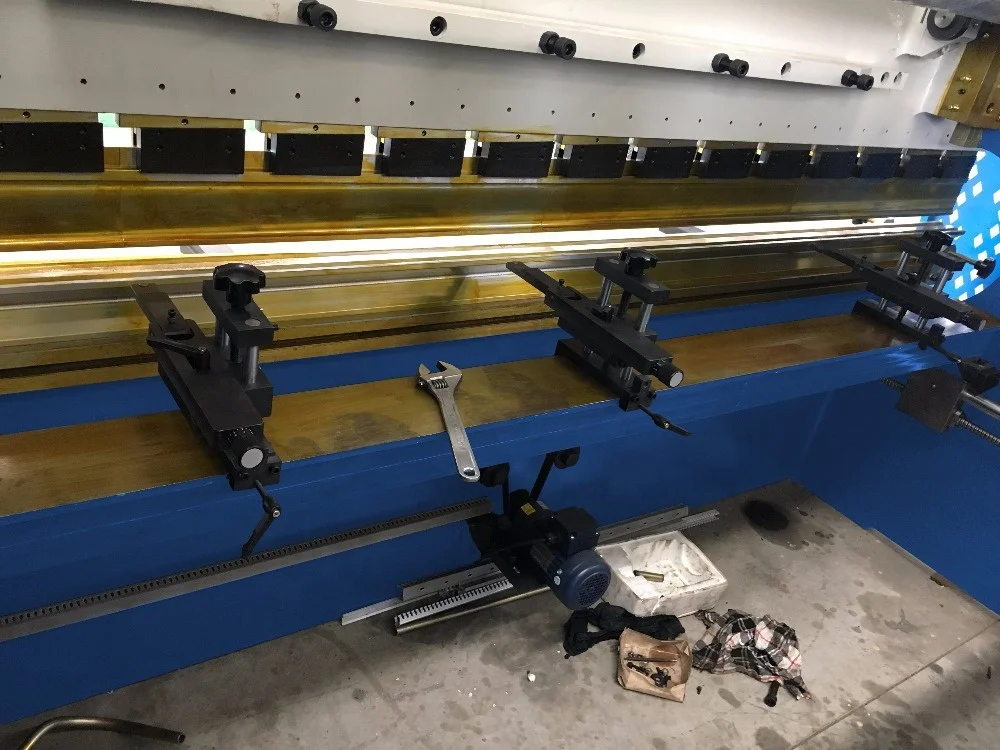

Front Supportor
Front supporter with features of simple structurer, powerful functions ,can be adjusted up and down , or moved along the workbench
in rightwards and leftwards
in rightwards and leftwards

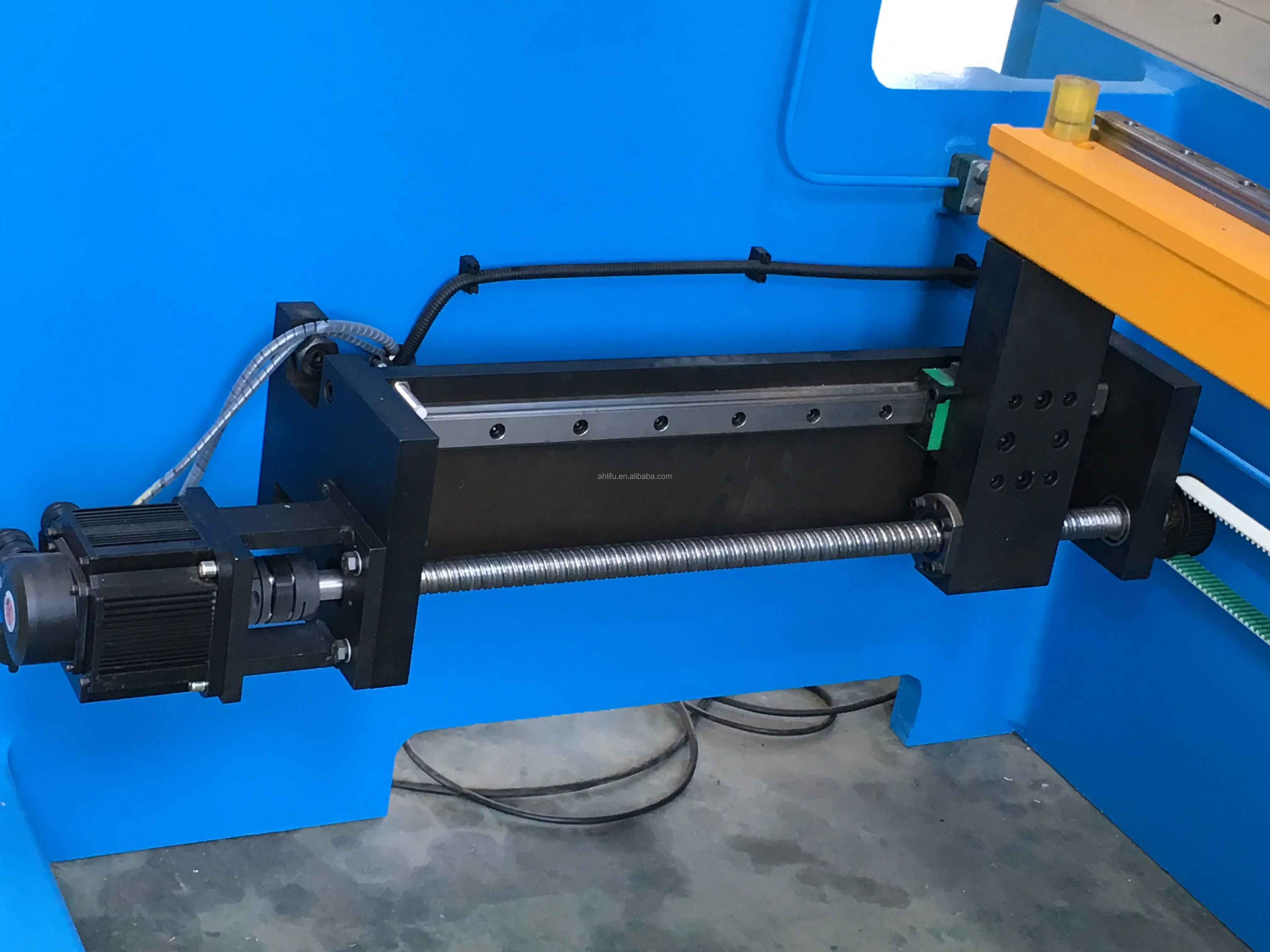

Backgauge
3+1 Axis CNC Backgauge ,can move up and down ; front and back , left and right , the fine adjustment with high accuracy up to ± 0.02mm

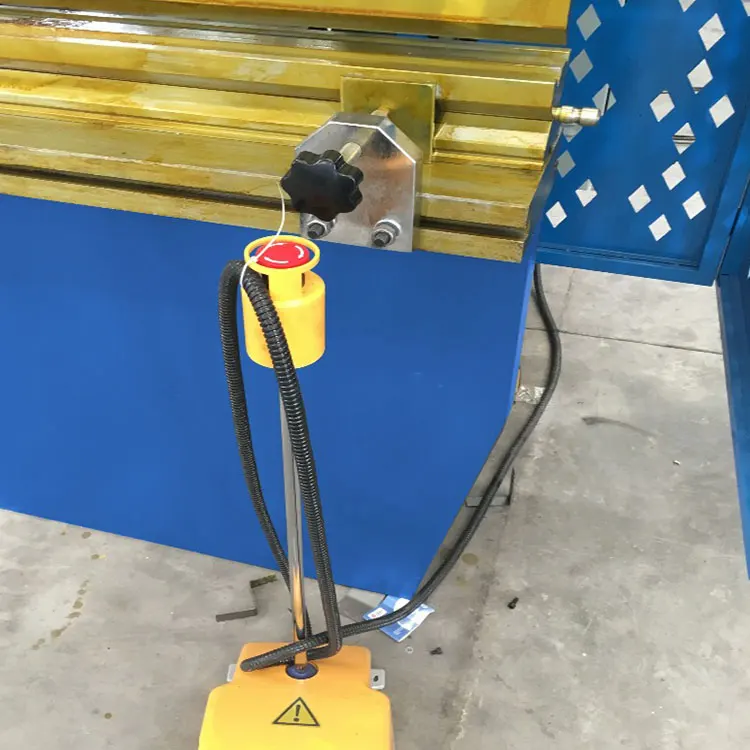

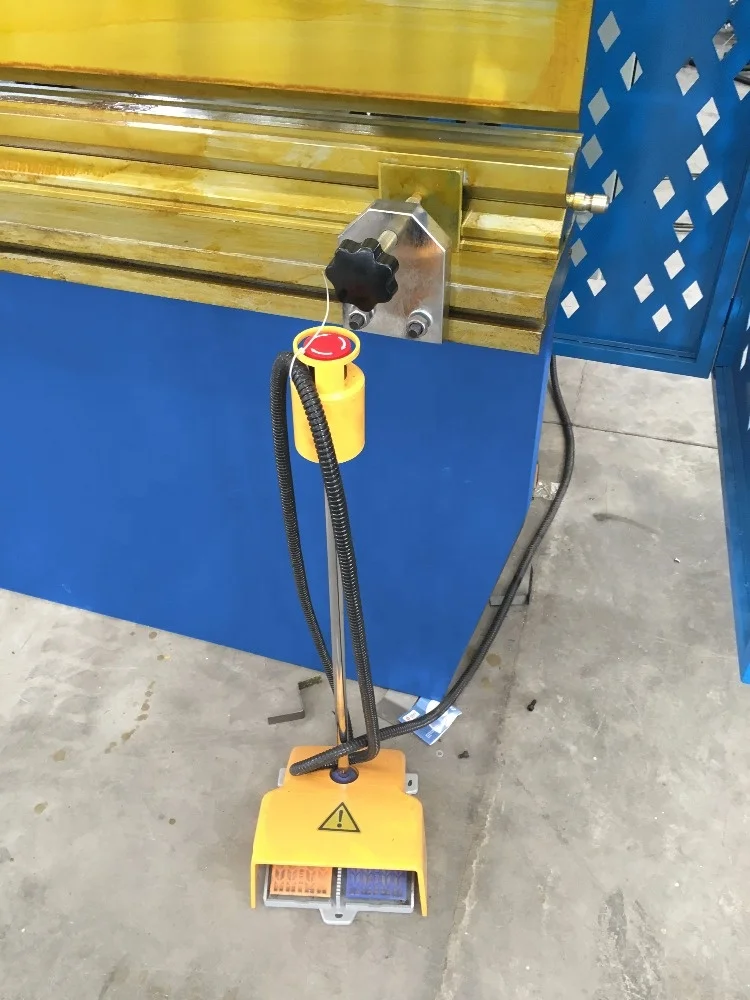

Foot Switch
south korea kacon foot switch
the machine can be controlled by foot pedal ,the operation is simple .
Sunny Pump
The sunny pump of a well-known American brand can provide great power to the entire hydraulic system.
Why Choose Us
Pre-sales service
Inquiries and responses to enquiries Respond within 24 hours
Product details sent
Factory Tour
OEM ODM
On-Sales Service
Production situation report
Vessel booking service
Documents support
Machine checking support
After Sales Service
Installation instruction
Instruction on use
Overseas engineer service
Video Online Service
Parts replacement
Instruction on use
Overseas engineer service
Video Online Service
Parts replacement

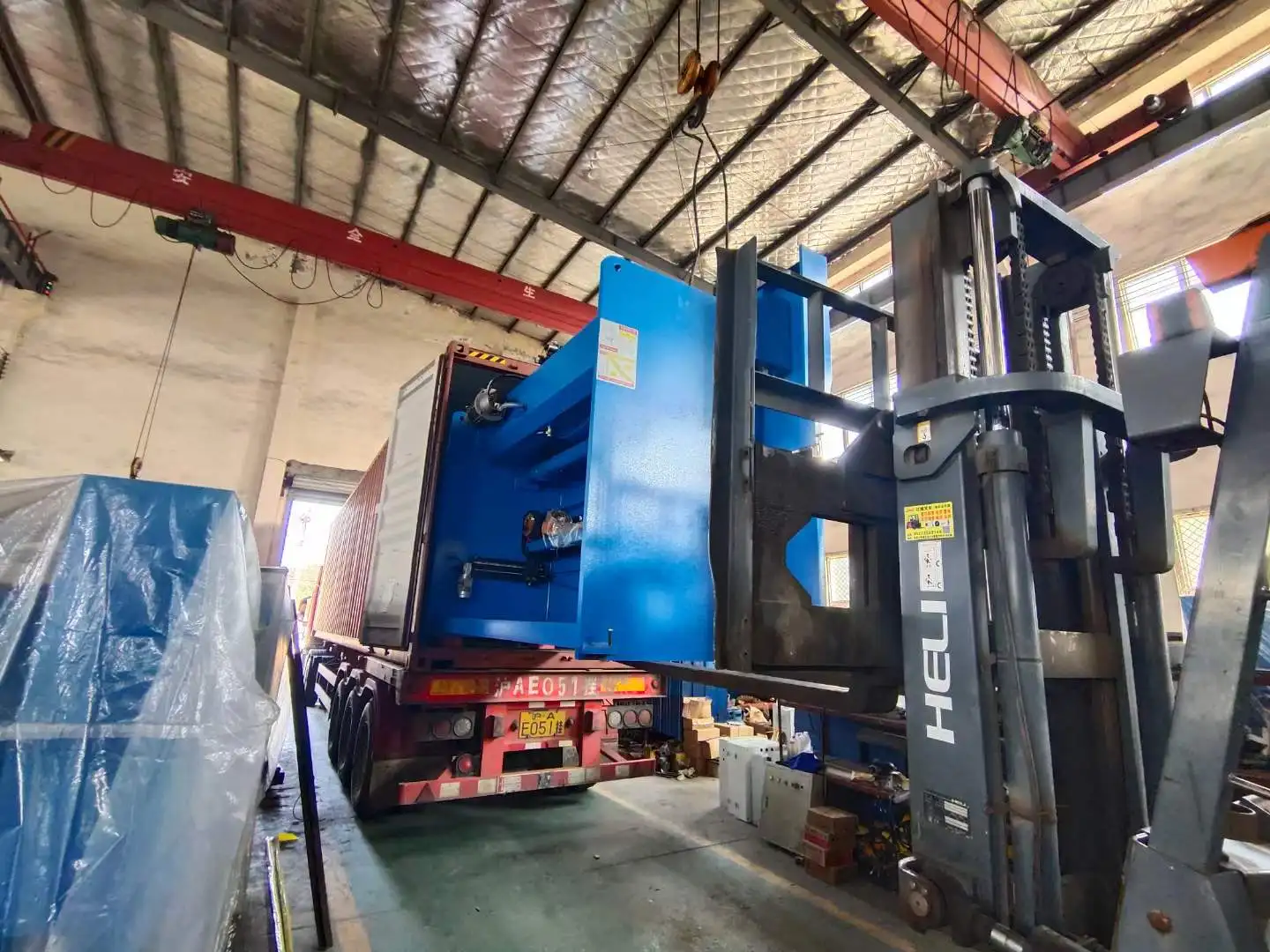

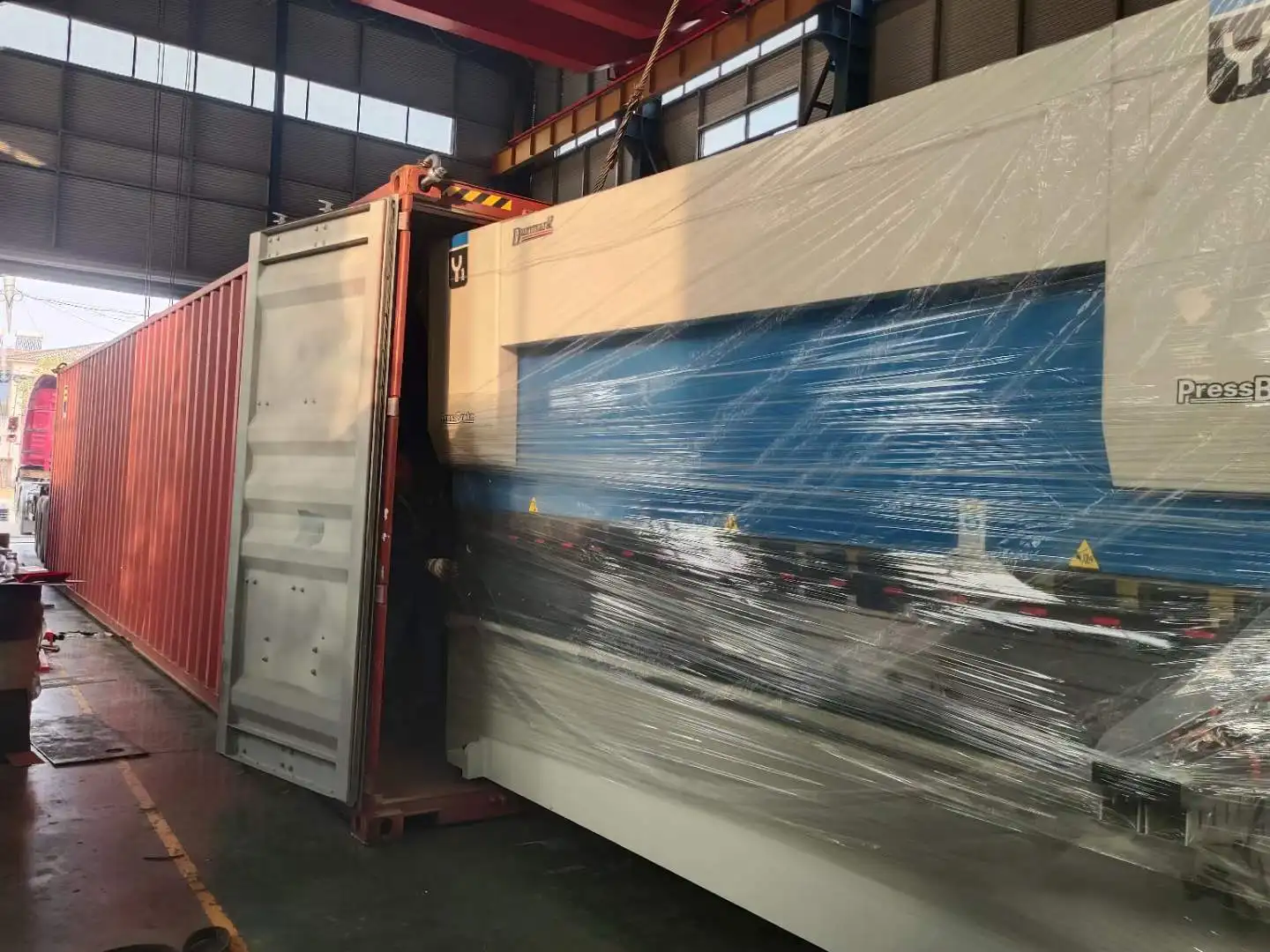

Product packaging
