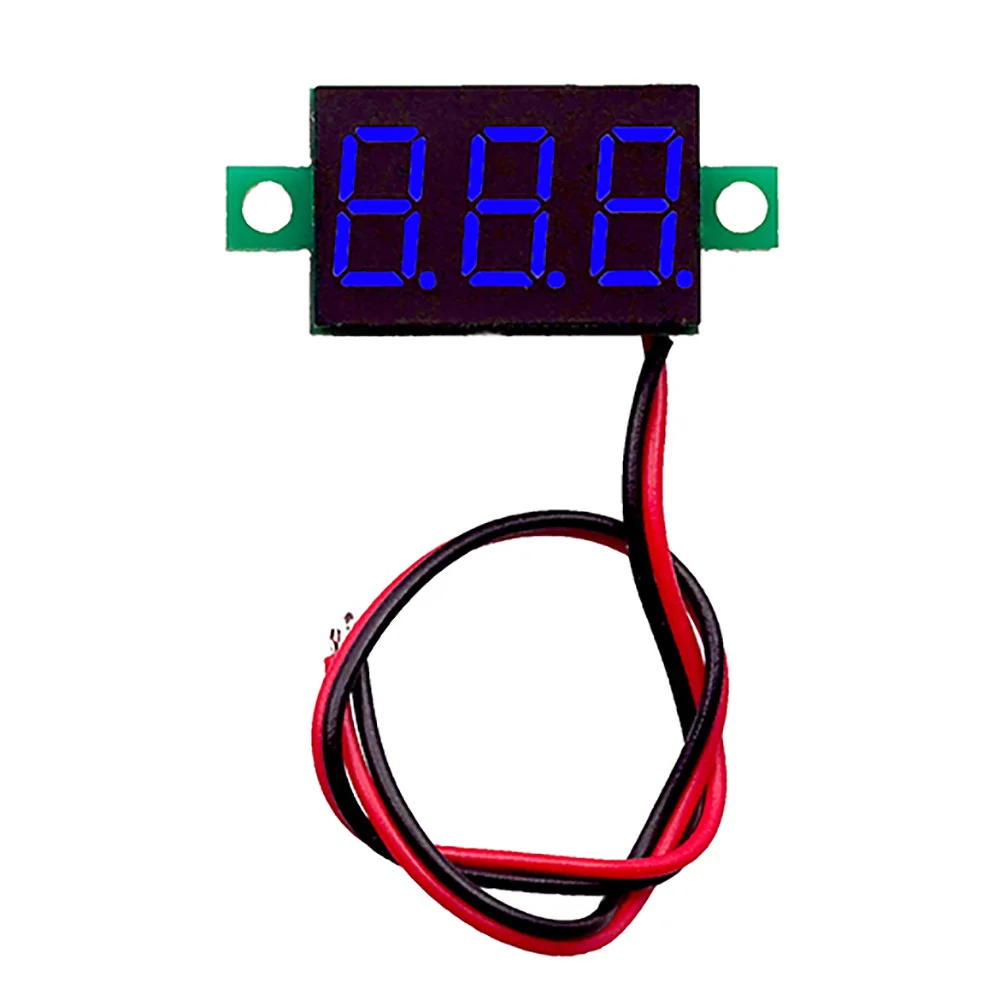

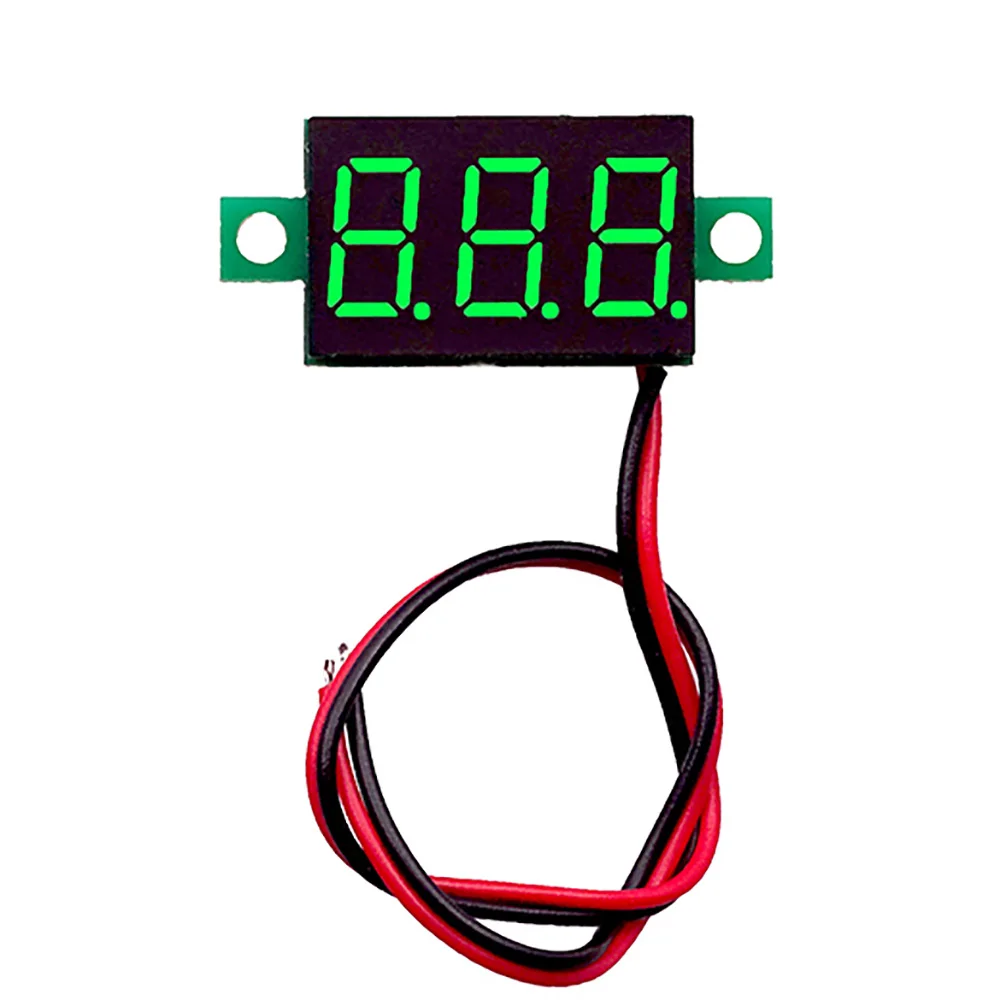

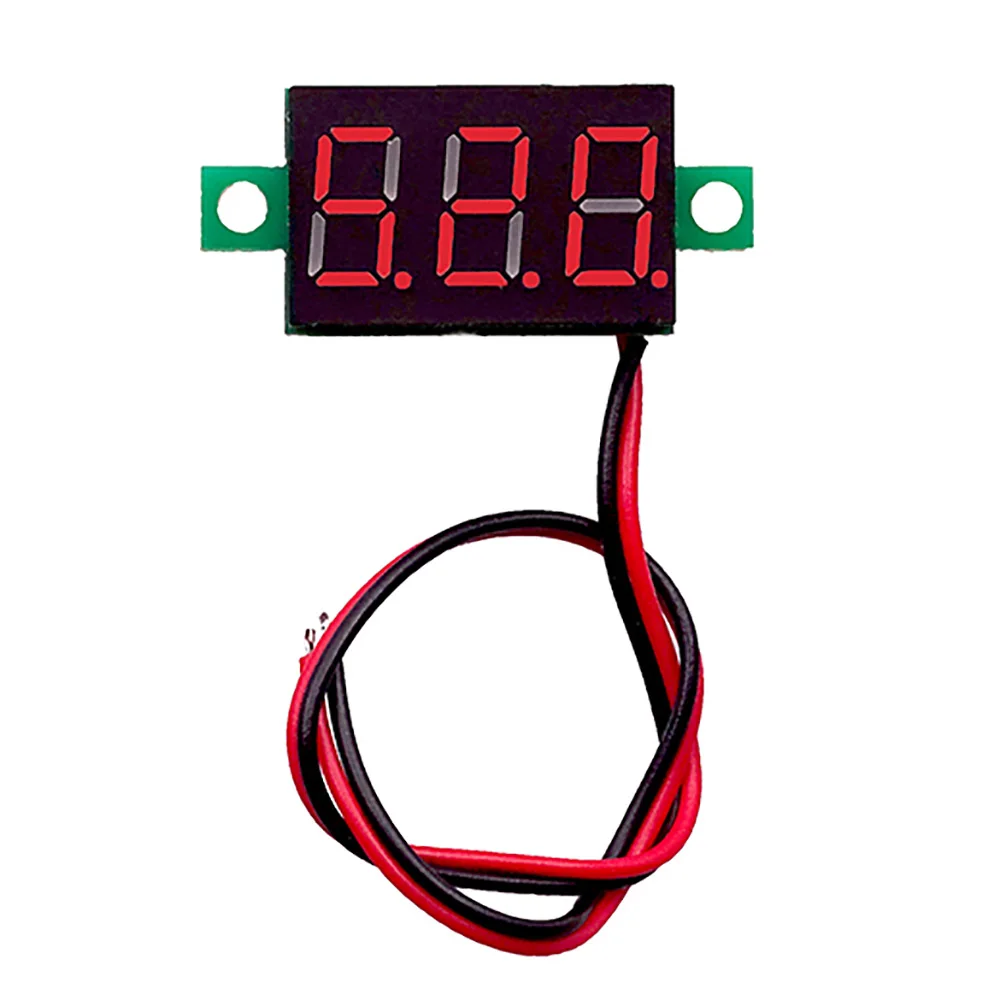

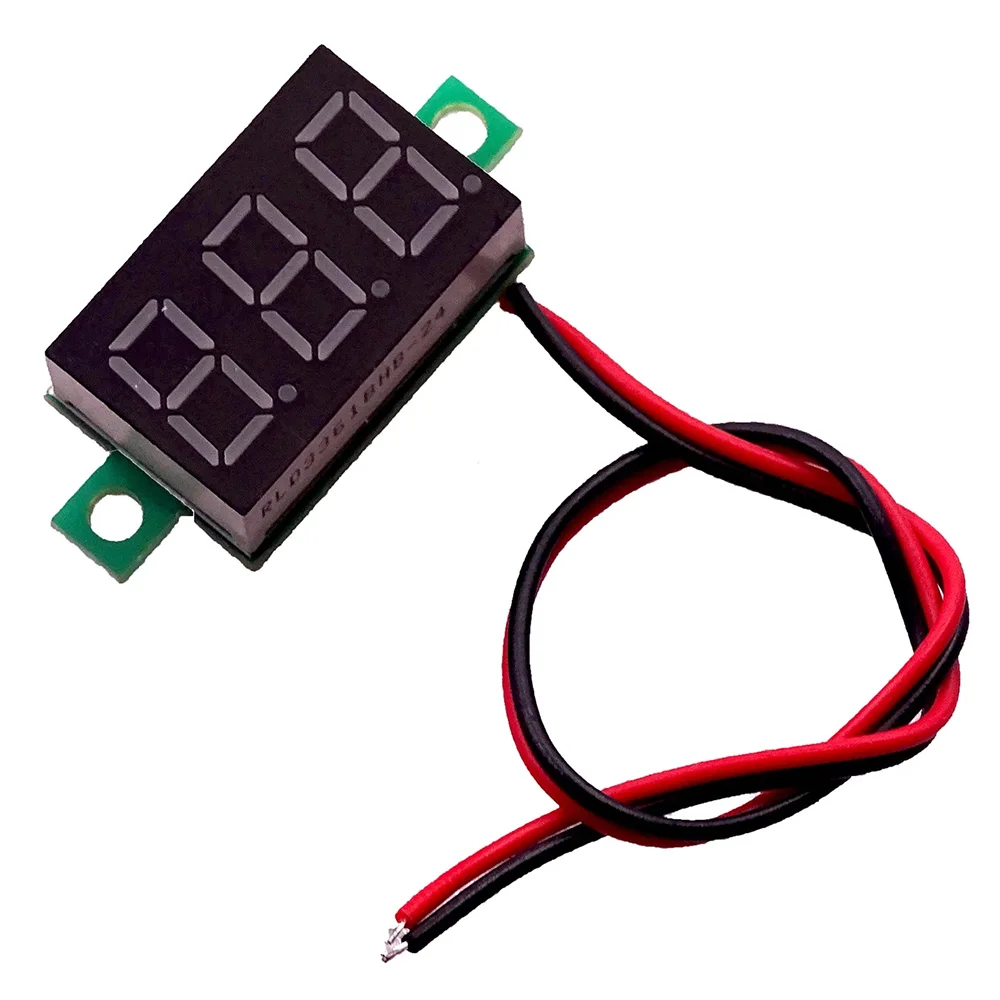

0.36 Inc 2 Wire 0.36' DC 4.5 30v 3 Display Voltmeter Mini LED Digital Voltage Meter Instrument Red/Blue/Green digital voltmeter

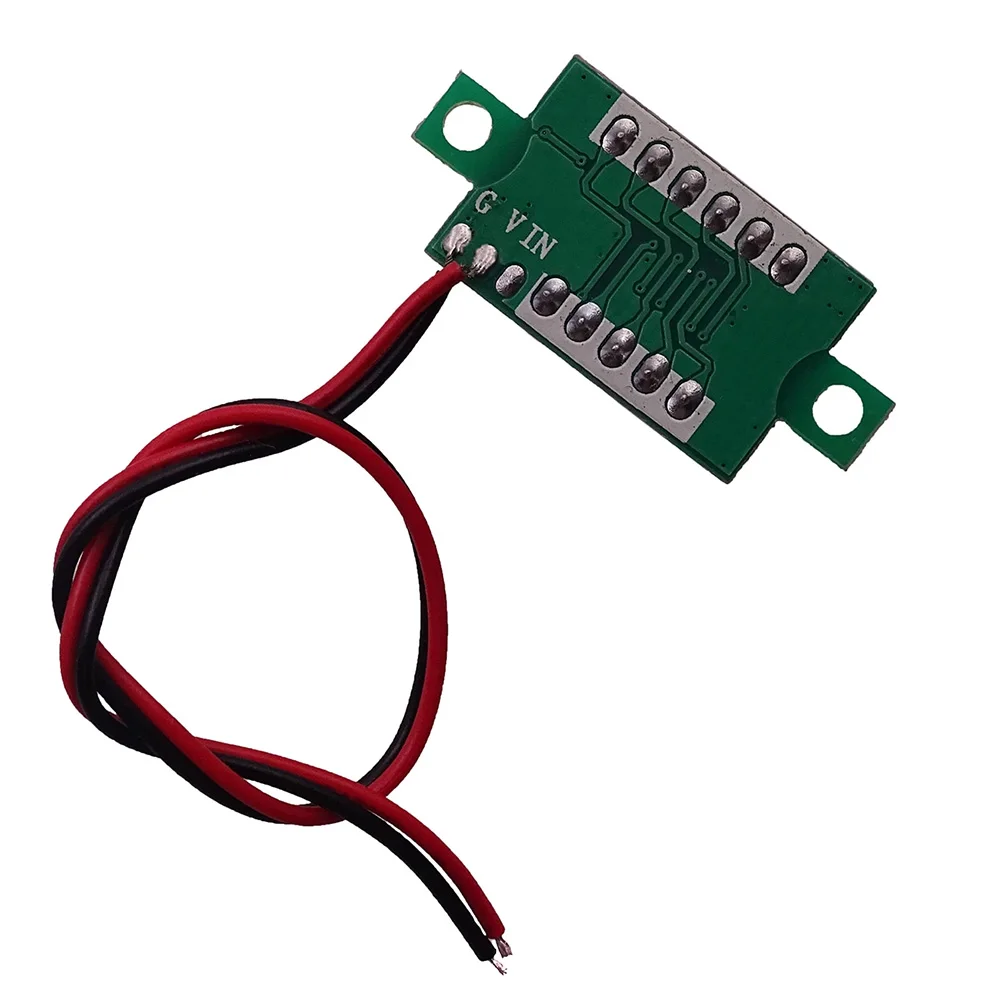

1. The wiring of this voltmeter is simple. The two wires are used regularly. The red is connected to the positive, the black is connected to the negative, and the reverse connection is protected.

2, the conventional need no external working power supply, can work directly with the measured voltage, measuring the voltage range of the second line 4.5-30V.

3, wide voltage operation, red minimum measurement voltage 4.5V, maximum safe pressure up to 40V, more than 40V may be damaged.

4. When measuring voltage below 10V, two digits are displayed after the decimal point; when measuring voltage above 10V, one digit is displayed after the decimal point.

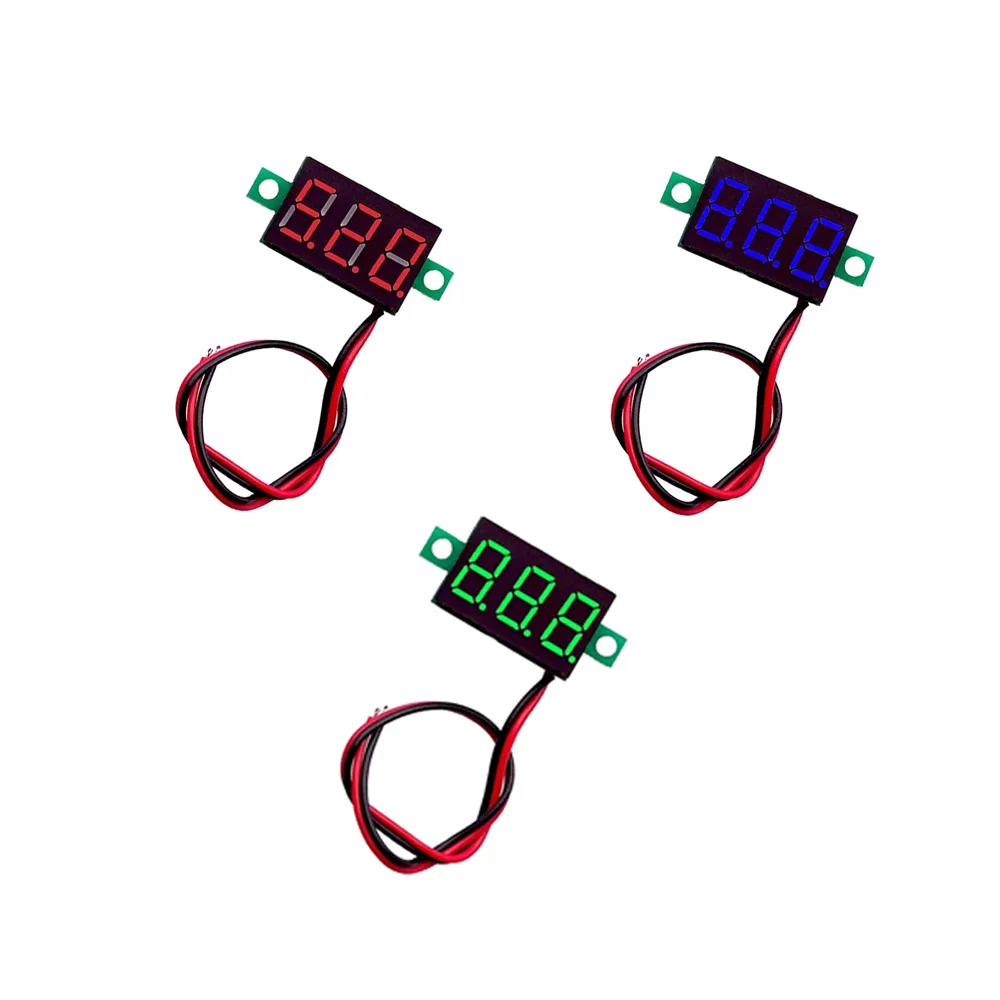

Note:Low-start operating voltage, minimum 4.5V for red, 4.7V for green, and 5.0V for blue.

Measuring range:Two-wire DC4.5~30V
Power supply range:No need to supply power separately Tested voltage <40V higher than 40V may be damaged
Test accuracy: ±1% >10V error positive and negative 0.2V <10V positive and negative 0.03V
Input impedance: >50KΩ
Working current :<30mA
Refresh rate is: about 100mS
Display specifications :Three 0.36LED digital tube (red, blue, green, yellow and white 5 colors optional)
Lead length default :15cm
Dimensions :33 x 15 x 10 mm
Working temperature: -10 ~ +65°C
Working humidity :10 ~ 80%
Working pressure :80 ~ 106kPa
