High Quality LCD wall 4k 2x3 2x2 video wall processor IR HDMI Video Wall Controller
- Category: >>>
- Supplier: Shenzhen Bitvisus Technology Limited
Share on (1600403659321):
Product Overview
Description
Product Details
●Max resolution up to 4K@60hz 4:4:4

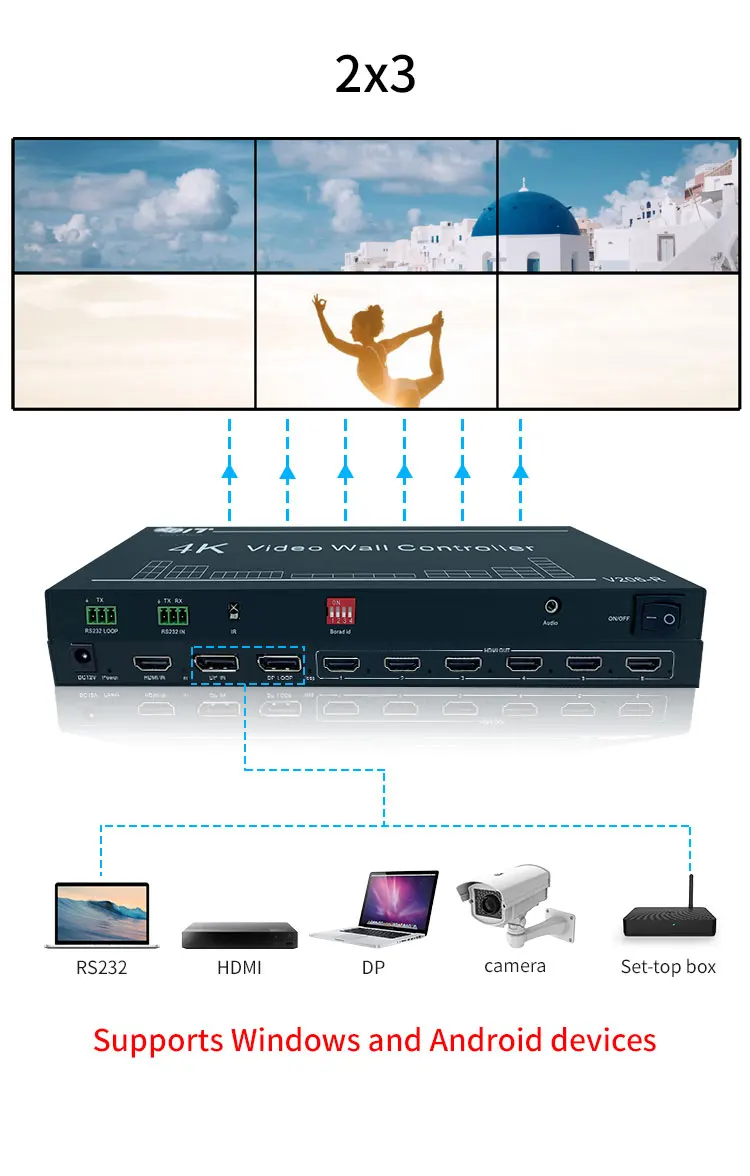

●Supports 2x2, 2x3, 3x2, 5x1,6x1 Video Wall Splicing mode
●Support multiple parallel units to achieve exponential screen expansion

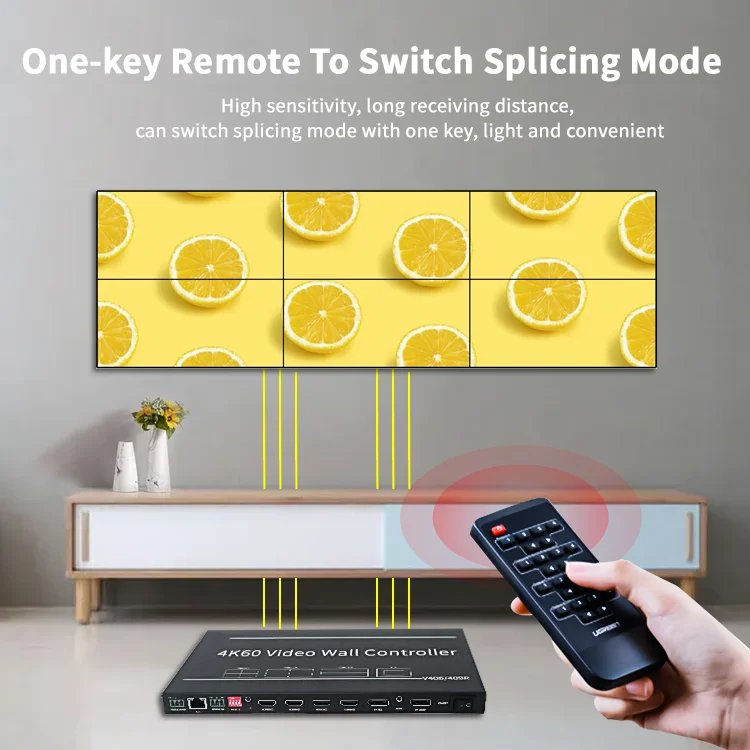

●Support IR control 、RS232 control 、LAN Software control
●Display modes：PIP、PBP、Quadview、Clone 、Switcher、Splicing
Lock Custom EDID

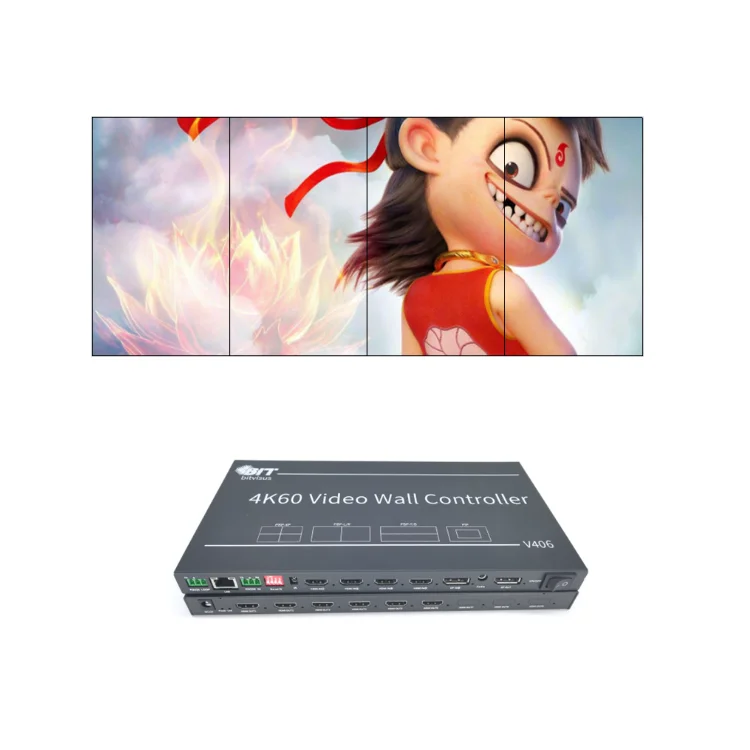

Any splicing mode can achieve equal proportion of the whole screen without deformation and stretching
More usage
Multiple devices are connected to the graphics card in parallel.
Through the NVIDIA Surround/Mosaic allows you to join multiple displays into a single immersive viewing surface.
And can achieve 4K/6K/8K/12K/16K and higher display resolution.
Product Description
Packing List
1 * 5x6 Video Wall Controller
1 * IR Remote control
1 * IR extension line
1 * DC 12V 2A Power Adapter (AU/ EU/ UK/US Standard)
1 * 5x6 Video Wall Controller
1 * IR Remote control
1 * IR extension line
1 * DC 12V 2A Power Adapter (AU/ EU/ UK/US Standard)
Specification
Product name | BIT-V406R |
Input Max. Pixel FPS | 600MHz |
Input supports the highest resolution | 3840*2160@60Hz |
DP signal | Display port 1.2*1 |
HDMI signal | HDMI 2.0*1,，HDMI 1.4 *3 |
Output Max. Pixel FPS | 165MHz |
Output single screen support resolution | 1920*1080@60Hz |

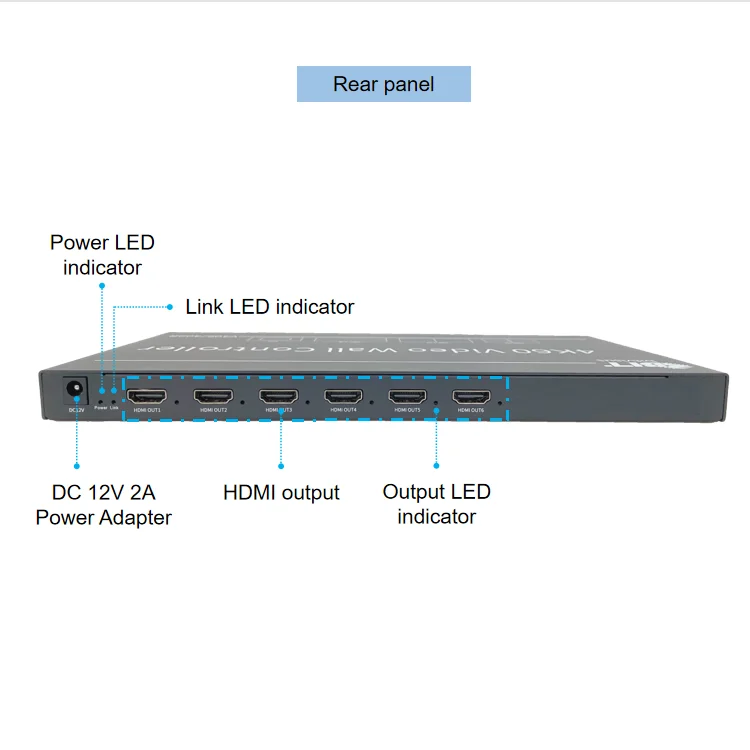

HDMI output interface | HDMI 1.3 * 6 |
Audio output | 3.5mm Headphone |
Control method | Remote control, RS232 serial port (can be looped out) |
Factory default resolution | HDMI：3840*2160@60Hz DP：3840*2160@60Hz |
Support custom resolution | Yes |
Operating temperature | 0℃-50℃ |
Power consumption | 12W |
Power supply | 12V@2A AC-DC |
Weight | 840g |
Size | 270mm * 122.5mm * 20mm |
Annex | One DP Cable One 12V@2A AC-DC One remote control |
Power Supply | 12V@2A AC-DC |
Warranty | One year |
Customer customized resolution EDID reference table | ||||||
Support splicing Mode | Full screen input resolution | Full screen output resolution | Single screen resolution | |||
1x2 | 3840x1080@30Hz | 3840x1080@60HZ | 1920x1080@60HZ | |||
1x3 | 3840x720@30HZ | 5760x1080@60HZ | 1920x1080@60HZ | |||
1x4 | 4096x576@30HZ | 7680x1080@60HZ | 1920x1080@60HZ | |||
1x5 | 4080x459@30HZ | 9600x1080@30HZ | 1920x1080@60HZ | |||
1x6 | 4032x378@30HZ | 11520x1080@60HZ | 1920x1080@60HZ | |||
6x1 | 1184x3996@30HZ | 1920x6480@60HZ | 1920x1080@60HZ | |||
5x1 | 1408x3960@30HZ | 1920x5400@60HZ | 1920x1080@60HZ | |||
4x1 | 1776x3996@30HZ | 1920x4320@60HZ | 1920x1080@60HZ | |||
3x1 | 1920x3240@30HZ | 1920x3240@60HZ | 1920x1080@60HZ | |||
2x1 | 1920x2160@30HZ | 1920x2160@60HZ | 1920x1080@60HZ | |||
2x2 | 3840x2160@30HZ | 3840x2160@60HZ | 1920x1080@60HZ | |||
2x3 | 3840x1440@30HZ | 5760x2160@60HZ | 1920x1080@60HZ | |||
3x2 | 2816x2376@30HZ | 3840x3240@60HZ | 1920x1080@60HZ | |||
