2D 3D Manual Automatic Optical Equipment CNC Vision Measure Systems Video Measuring Machine
- Category: >>>
- Supplier: Xiamen Lester Scientific Instruments Co. Ltd.
Share on (1600404117779):
Product Overview
Description

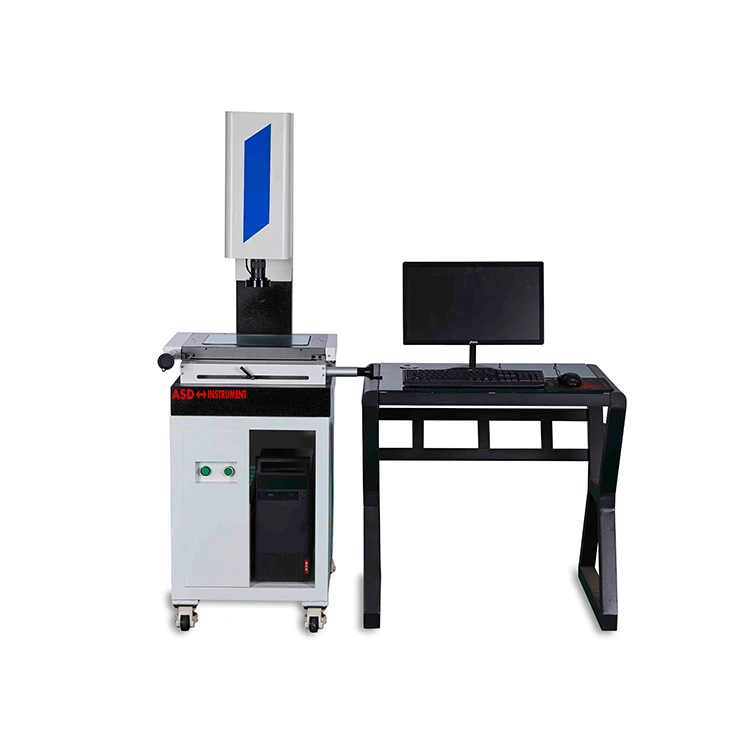

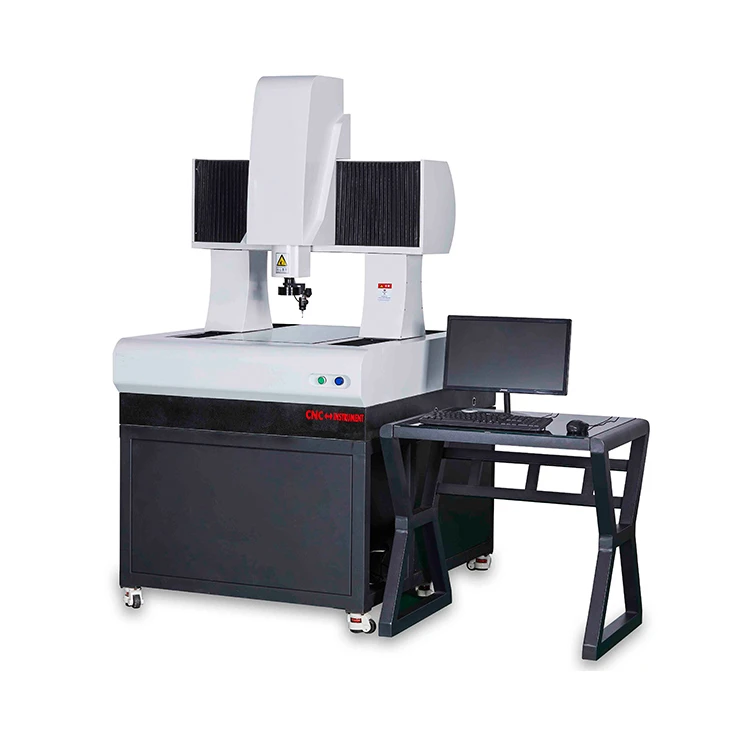

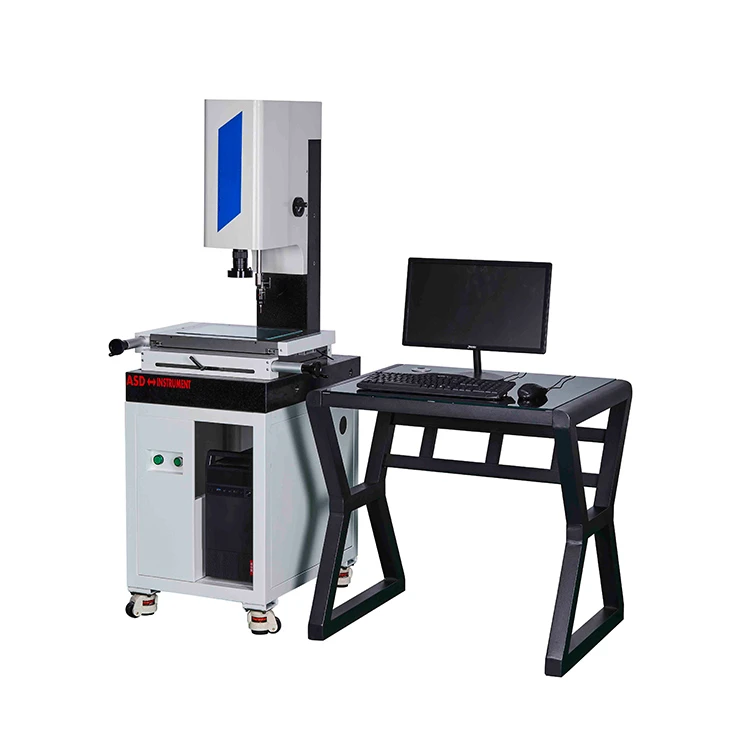

2D 3D Manual Automatic Optical Equipment CNC Vision Measure Systems Video Measuring Machine
Product Description
Product Parameter
| Model | QL-2010 | QL-3020 | QL-4030 |
| Actual measurement size | 200*100mm | 300*200mm | 400*300mm |
| Measurement accuracy | (3+L/200)μm | (3+L/200)μm | (3+L/200)μm |
| Size | 380*580*900mm | 480*680*900mm | 580*780*900mm |
| Weight | 180kg | 240kg | 300kg |
| Mechanical body | Base and column: granite with a precision of 00; flatness 3μm; physical stability | ||
| Guide rail: P-level V-type high balance cross guide rail | |||
| Grating ruler: original German IC-house chip closed grating ruler, resolution 1 micron | |||
| Optical system | CDD: Japanese Sony chip high resolution 1/3 color CCD | ||
| Lens: Customized high-definition lens that can be continuously zoomed, with an optical magnification of 0.7x-4.5x | |||
| Surface light: American lamp beads LED ring cold light source, stable light source, long life | |||
| Contour light: American lamp beads LED round cold light source, stable light source, long life | |||

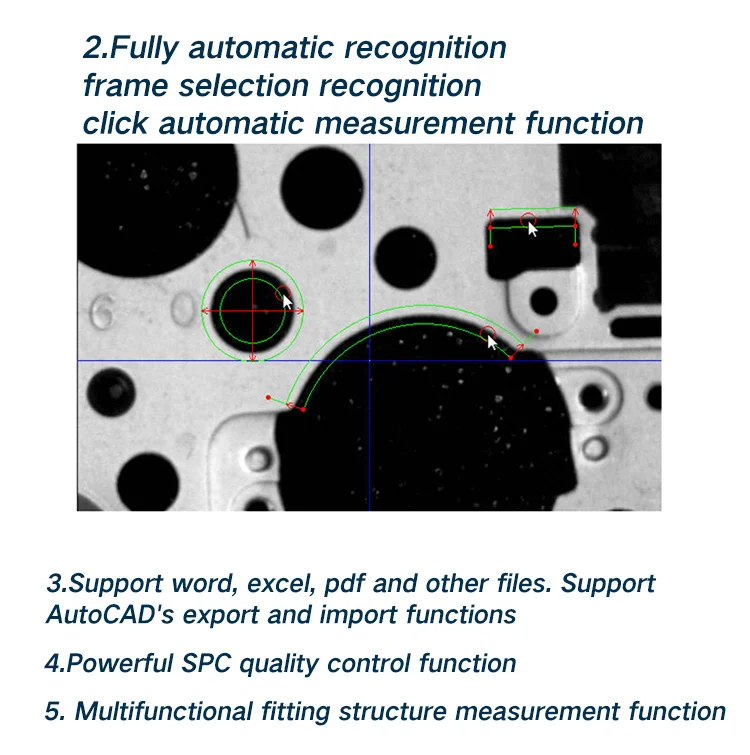

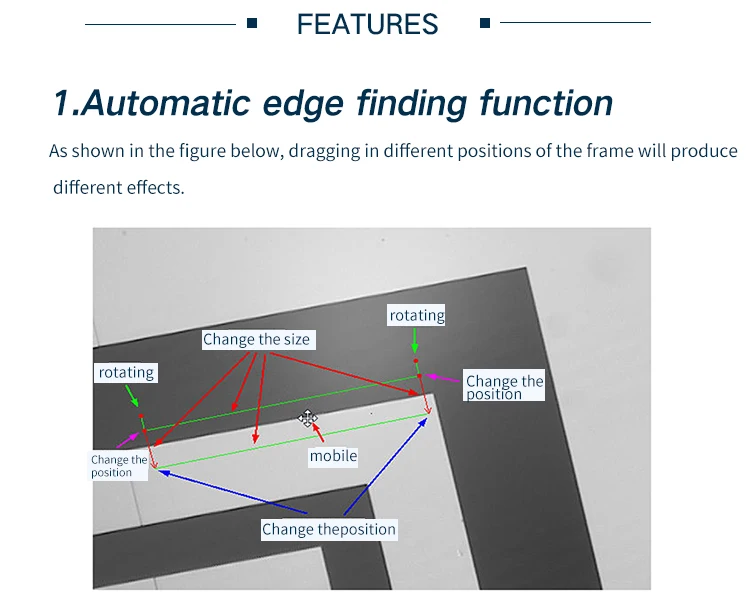

| Software system | REICAVMT automatic measurement system | ||
| 0.1 micron resolution DC3000 resolution system | |||
| High-definition SDK2000 video capture system | |||
| Attachment | Maintenance manual | ||
| Factory inspection report | |||
| Calibration sheet with 1 micron resolution | |||
| All kinds of applicable connecting wires | |||
Company Information
FAQ
1. How long is the delivery time?
Normally goods will be shipped out within 3 - 7 days after payment.
2. Is it possible to make our own brand/logo on your product?
Yes, but depends on MOQ.
3. What's your MOQ?
This depends on different types of products. If it is a large machine, the MOQ is usually 1 set.
4. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sales service team will provide comprehensive technical support to help customers solve problems encountered when using our products, and promptly handle customer problems and complaints.
5. How to install and use the product?
The product is shipped with an operating instructions of English version. We also can provide installation video with English subtitles.
