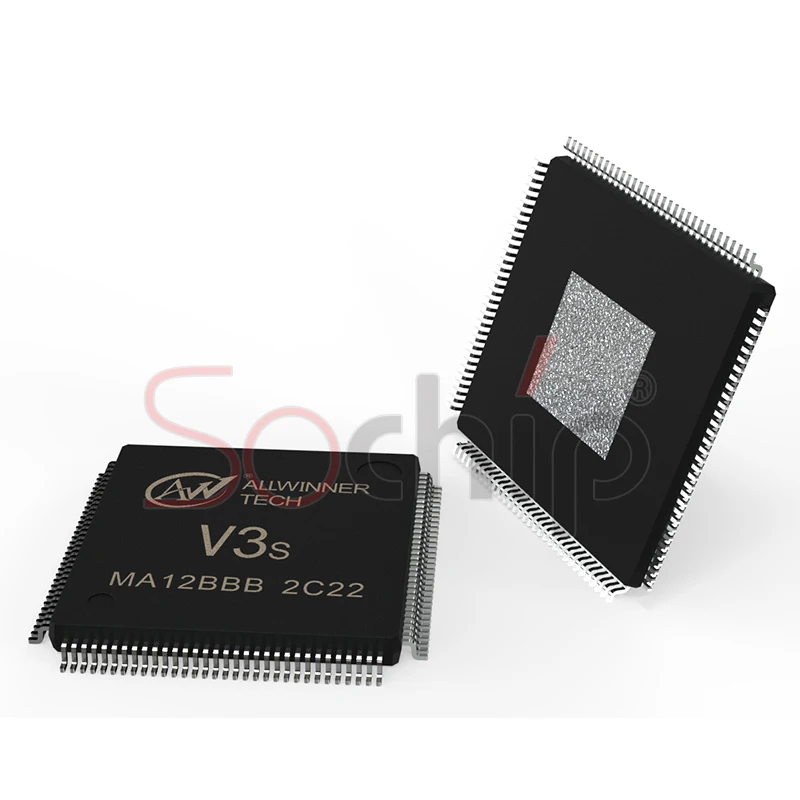

Allwinner V3S AXP209 02 integrated circuit CPU PMIC video encoding processors in Camdroid/LINUX built in DDR2 memory 64MB ELQFP
- Category: >>>
- Supplier: Shenzhen Sochip Technology Co. Ltd.
Share on (1600404147404):
Product Overview
Description
Product Description
Dear Friends,
The price will increase soon, please order soon if you need that
Happy to get your attention for our parts, we are Allwinner's official distributor in China, all our selling parts are original new, with optimistic , positive pre- and after- sales and technical R&D, we are willing to give you a comfortable shopping experience, please feel free to contact us at any time.
Please contact us for full datasheet
The V3s processor represents Allwinner’s latest achievement in video encoding processors, which integrates a single ARM CortexTM-A7 CPU that operates at speed up to 1.2GHz with supporting numerous peripherals. The processor targets the need of the growing Car Digital Video Record (DVR) and IP Camera (IPC) Monitor System.
A 512Mbit DDR2 is highly integrated in the V3s, in addition the V3s has optimized external memory interfaces to SPINAND /Nor flash, SD/MMC. Dedicated video engine is included to provide an advanced multimedia applications and services. Video Engine supports multi-format such as H.264 encoder by 720p@60fps, H.264 decoder by 1080p@30fps, JPEG/MJPEG decoder by 1080p@30fps. To enrich camera feature, V3s equips an 8M HawkView ISP with advanced features like spatial de-noise, chrominance de-noise, zone-based AE/AF/AWB statistics, black level correction, lens shading correction, color correction and anti-flick detection statistics.
To reduce total system cost and enhance overall functionality ,V3s has some popular hardware peripherals such as UART,SPI, USB HS/FS OTG , TWI etc.
Product features:
CPU: ARM Cortex™-A7
Memory: Integrated 64MB DRAM
Audio Codec:
* Integrated 92dB audio codec
* Supports two ADC channels and two DAC channels
* Supports one low-noise analog microphone bias outputs
* Supports one microphone input and one stereo microphone output
Package:128-pin eLQFP
Video
* Supports 1080p@40fps or 1080p@30fps+VGA@30fps H.264 video encoding,
* Supports H.264 1080p@30fps decoding, MJPEG 1080@30fps decoding
Video Input/Output
* Supports 8/10/12-bit parallel CSI and 4-lane MIPI CSI2
* Supports up to 5M CMOS sensor
* Supports RGB/i80/LVDS LCD up to 1024x768 resolution
Connectivity
* 3 x SD card controllers
* LRADC/SPI/TWI/UART/PWM
* USB, EMAC+PHY
ISP
• Integrated ISP up to 5M pixels
• Supports two channel outputs for display and encoding respectively
• Supports various input and output formats
• Supports AE/AF/AWB
• Supports saturation adjustment/ noise reduction/ defect pixel correction/distortion correction
OS
• Supports Camdroid OS, an Android-lite operating system
• Supports Linux OS
A 512Mbit DDR2 is highly integrated in the V3s, in addition the V3s has optimized external memory interfaces to SPINAND /Nor flash, SD/MMC. Dedicated video engine is included to provide an advanced multimedia applications and services. Video Engine supports multi-format such as H.264 encoder by 720p@60fps, H.264 decoder by 1080p@30fps, JPEG/MJPEG decoder by 1080p@30fps. To enrich camera feature, V3s equips an 8M HawkView ISP with advanced features like spatial de-noise, chrominance de-noise, zone-based AE/AF/AWB statistics, black level correction, lens shading correction, color correction and anti-flick detection statistics.
To reduce total system cost and enhance overall functionality ,V3s has some popular hardware peripherals such as UART,SPI, USB HS/FS OTG , TWI etc.
Product features:
CPU: ARM Cortex™-A7
Memory: Integrated 64MB DRAM
Audio Codec:
* Integrated 92dB audio codec
* Supports two ADC channels and two DAC channels
* Supports one low-noise analog microphone bias outputs
* Supports one microphone input and one stereo microphone output
Package:128-pin eLQFP
Video
* Supports 1080p@40fps or 1080p@30fps+VGA@30fps H.264 video encoding,
* Supports H.264 1080p@30fps decoding, MJPEG 1080@30fps decoding
Video Input/Output
* Supports 8/10/12-bit parallel CSI and 4-lane MIPI CSI2
* Supports up to 5M CMOS sensor
* Supports RGB/i80/LVDS LCD up to 1024x768 resolution
Connectivity
* 3 x SD card controllers
* LRADC/SPI/TWI/UART/PWM
* USB, EMAC+PHY
ISP
• Integrated ISP up to 5M pixels
• Supports two channel outputs for display and encoding respectively
• Supports various input and output formats
• Supports AE/AF/AWB
• Supports saturation adjustment/ noise reduction/ defect pixel correction/distortion correction
OS
• Supports Camdroid OS, an Android-lite operating system
• Supports Linux OS
Specification
item | value |
Model Number | ALLWINNER V3S |
Type | integrated circuit |
Place of Origin | China |
Guangdong | |
Brand Name | allwinner |
D/C | 2021+ |
Package | ELQFP 128 |
Description | V3S processor |
Application
Company Profile
Sochip is a high-tech company engaged in the development and design of consumer electronics products with well-equipped testing facilities and strong technical force. It focuses on the development of portable digital entertainment multimedia products.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in DVR, SDV, IPC and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in DVR, SDV, IPC and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Packing & Delivery
Allwinner standard package
FAQ
1. who are we?
We are based in Guangdong, China, start cooperation with Allwinner from year 2006, being Allwinner's major distributor and continuously won Allwinner's prize of core partner, except for distributor, we are also a design company, we have our own development board to help customers finish their design quickly, we are also a design company, have our R&D team, you can outsource project to us, after that we can also help you make PCBA or finish goods.
2. how can we guarantee quality?
As Allwinner's official distributor, all our selling are original and new, if any Quality problem, we will ask Allwinner for replace
3.what can you buy from us?
All series of Allwinner ICs especially for V and R series, and development boards and PCBA boards.
4. why should you buy from us not from other suppliers?
Major agent of Allwinner
Rich R&D experience
powerful technical support
ODM/OEM available
5. what services can we provide?
We are based in Guangdong, China, start cooperation with Allwinner from year 2006, being Allwinner's major distributor and continuously won Allwinner's prize of core partner, except for distributor, we are also a design company, we have our own development board to help customers finish their design quickly, we are also a design company, have our R&D team, you can outsource project to us, after that we can also help you make PCBA or finish goods.
2. how can we guarantee quality?
As Allwinner's official distributor, all our selling are original and new, if any Quality problem, we will ask Allwinner for replace
3.what can you buy from us?
All series of Allwinner ICs especially for V and R series, and development boards and PCBA boards.
4. why should you buy from us not from other suppliers?
Major agent of Allwinner
Rich R&D experience
powerful technical support
ODM/OEM available
5. what services can we provide?
Fast delivery
Quality ensurance
Technical support
Tax inclusive and tax free transactions
Dedicated customer service
Dedicated customer service
