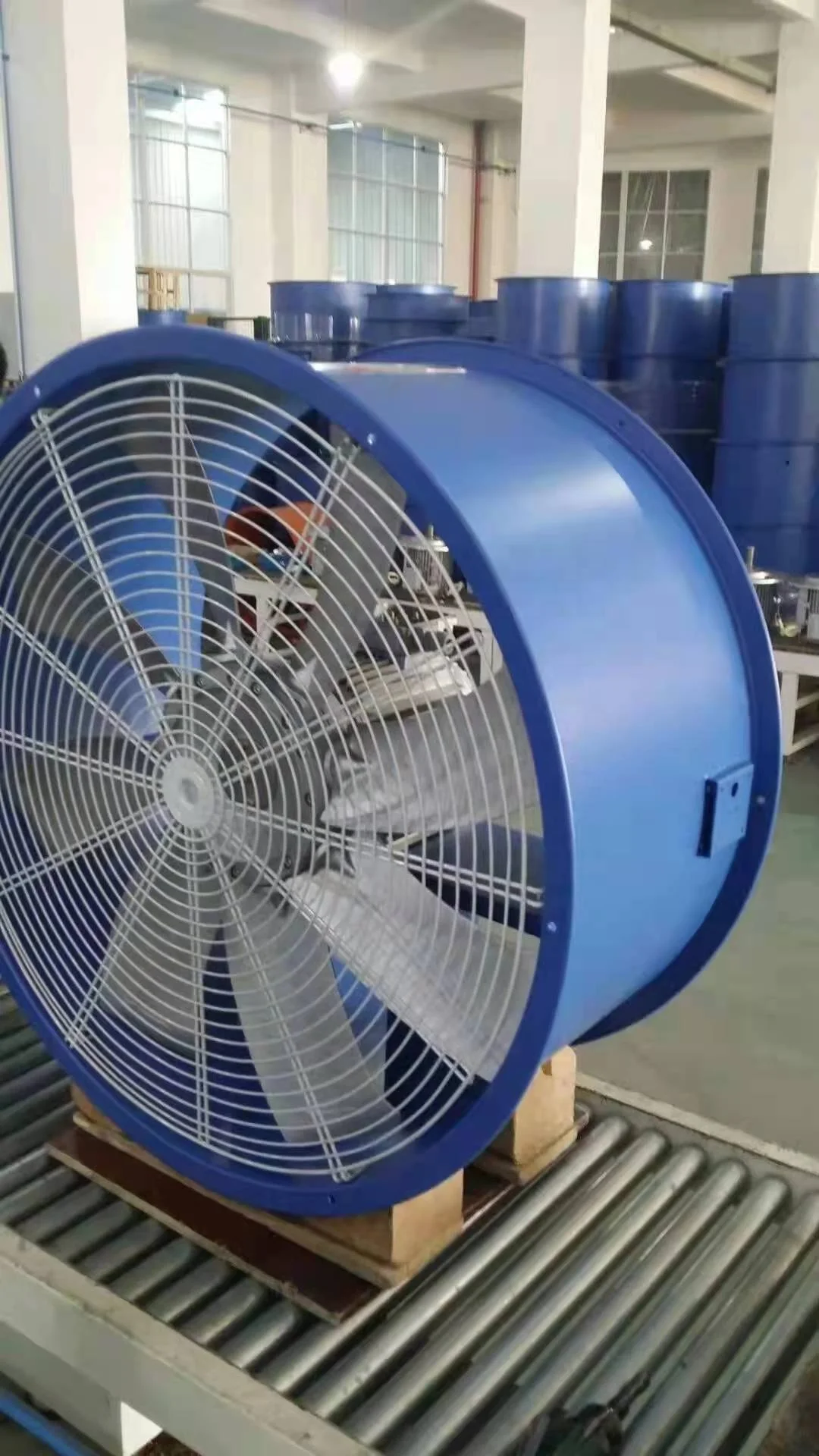

CRF grain drying diagonal flow fan
- Category: >>>
- Supplier: Fujian Diamond Electrical And Mechanical Equipment Co. Ltd.
Share on (1600404159148):
Product Overview
Description

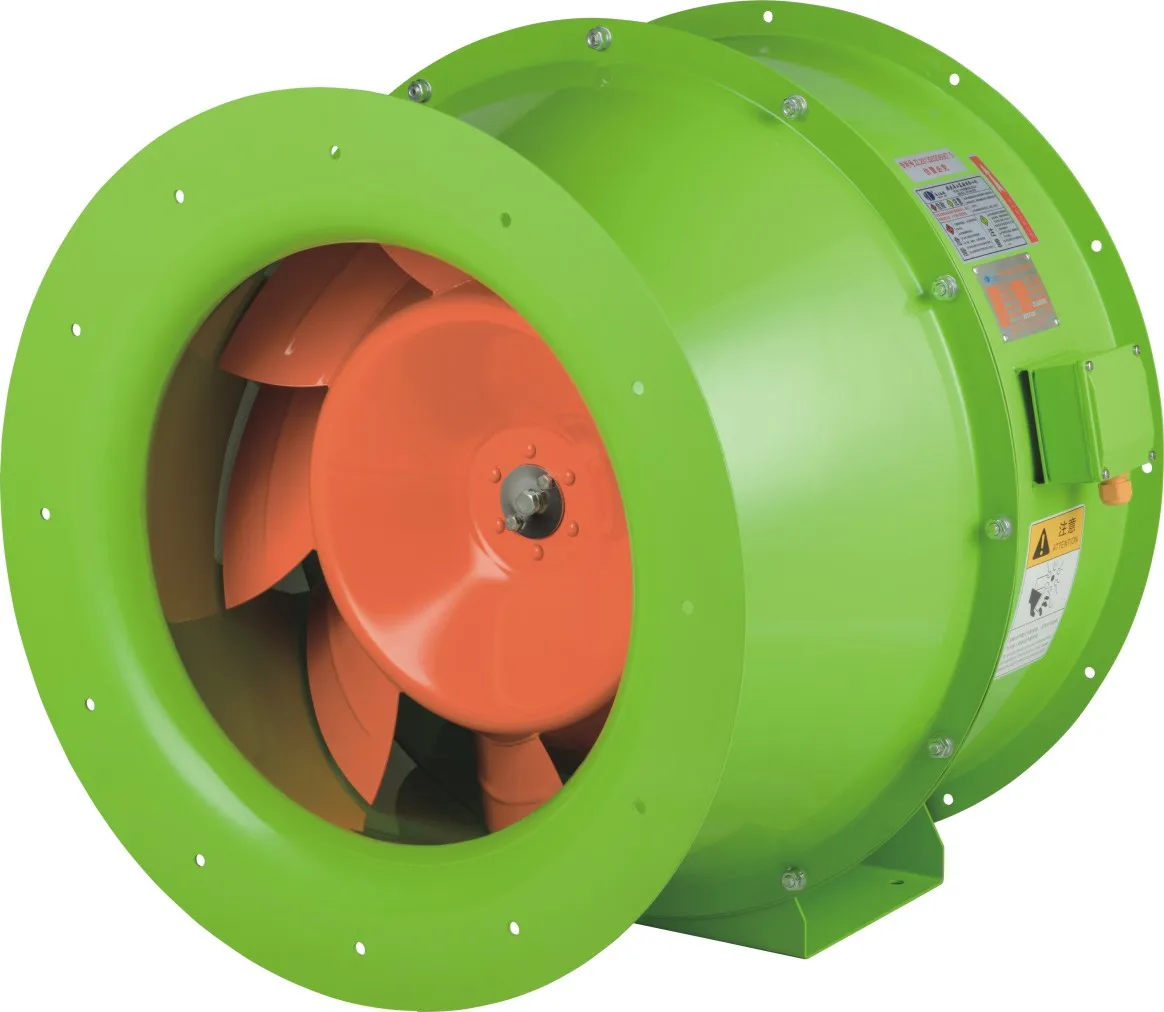

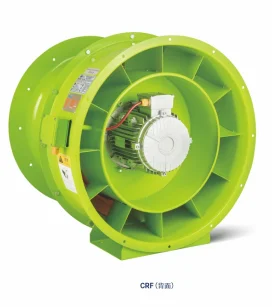

CRF grain drying diagonal flow fan with high temperature resistance
CRF grain drying diagonal flow fan with high temperature resistance is widely used in barking grains,other agricultural ,food,industrial,mining enterprises,hotel,restaurants,museums,gymnasiums,high-rise building for ventilation.
Fan Blade:Carbon Steel
Fan Casting :Carbon Steel
CRF grain drying flow fan with high temperature resistance is a new type of optimal design and high-tech fan,which is similar between axial fan and centrifugal fan.The fan is made of cylindrical housing and three flanges.The outlet and inlet follow the air by connecting a pipe network.The inlet wind collector is made of gradually shrinking streamline form and a sound-absorbing plate.The outlet has a pre-rotation vane,whose gas has a good air flow-distribution and a stable pressure resistance.Thanks to the new design of the meridian acceleration,the pressure is higher than axial fan and the air volume is larger than centrifugal fan.It features high efficiency,low noise,compact dimensions and convenient installation.This fan has obtained national patent for utility model and the patent number is ZL201320208067.5 and has applied for invention patent.
Tech Data
Item No. | Diameter | Speed （rpm) | Motor No. | Power (KW) | Total pressure (Pa) | Hydrostatic (Pa) | Air Volume(m³/min) | Noise（dB) |
6.5 | 650mm | 1450 | 100L1-4 | 2.2 | 260-560 | 220-540 | 9500-5500 | ≤80 |
7 | 700mm | 1450 | 100L2-4 | 3 | 350-660 | 300-640 | 11000-6000 | ≤83 |
7.5 | 750mm | 1450 | 112M-4 | 4 | 420-720 | 360-700 | 14000-10000 | ≤85 |
7.5 | 750mm | 1450 | 132S-4 | 5.5 | 420-780 | 360-760 | 14000-10000 | ≤85 |
8 | 800mm | 1450 | 132M-4 | 7.5 | 800-1100 | 500-900 | 21000-17000 | ≤87 |

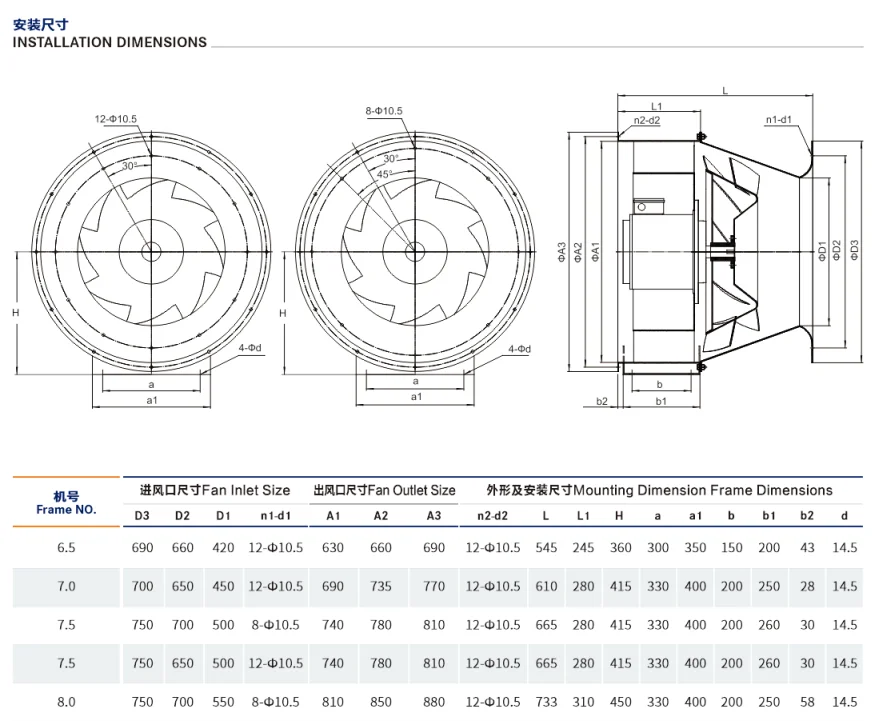

Installation
Company Profile
Fujian Diamond Electrical and Mechanical Equipment Co.,Ltd is specialized in hvls industrial fans and axial flow fans.We offer high quality goods with the most competitive factory prices.Our fans are popular with customers from more than 30countries.
We offer different diameters to meet different demand of airflow .If u have any requirements on ventilation system,pls do not hesitate to contact us.We will try our best to offer best goods and after sales service.

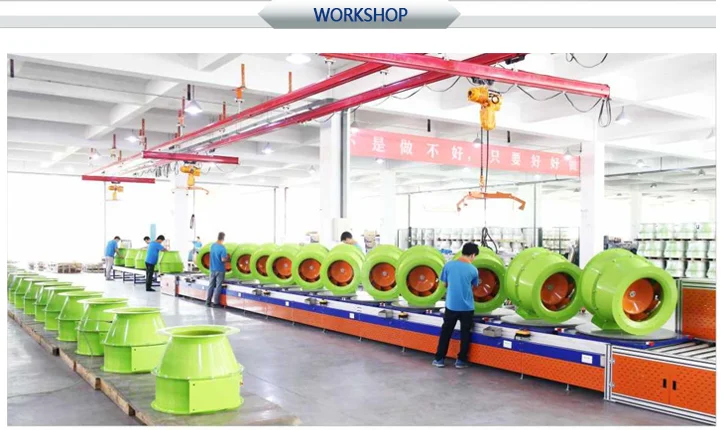

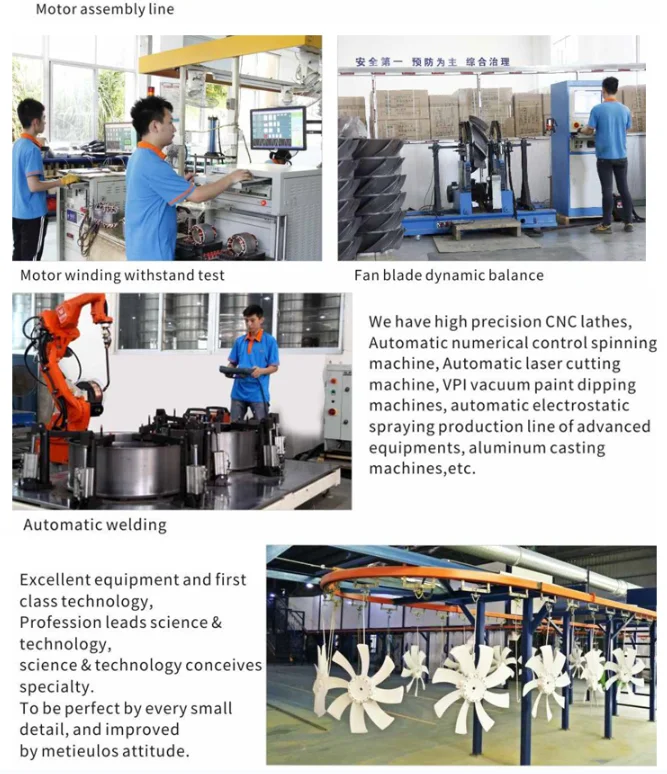

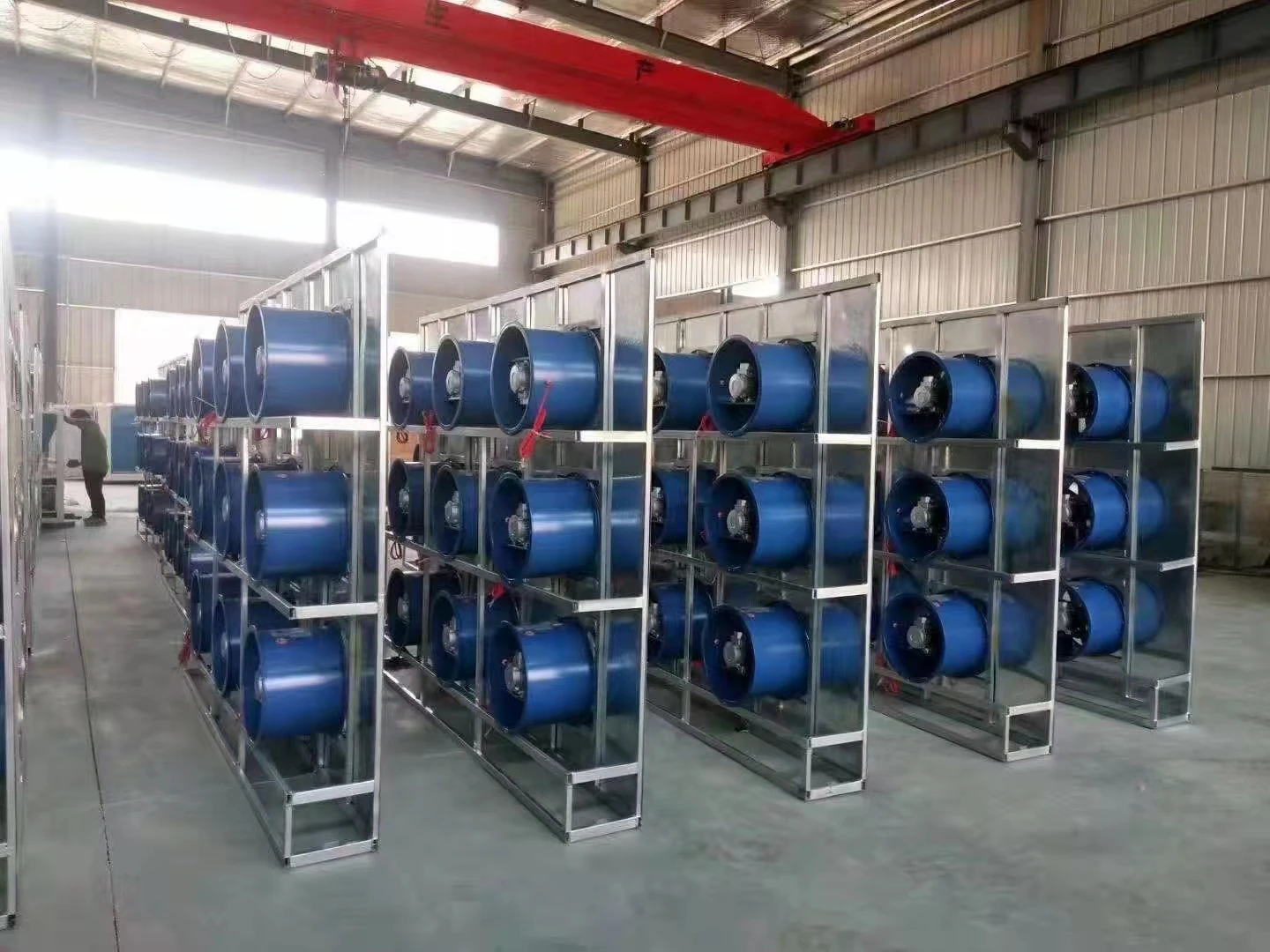

Production Line

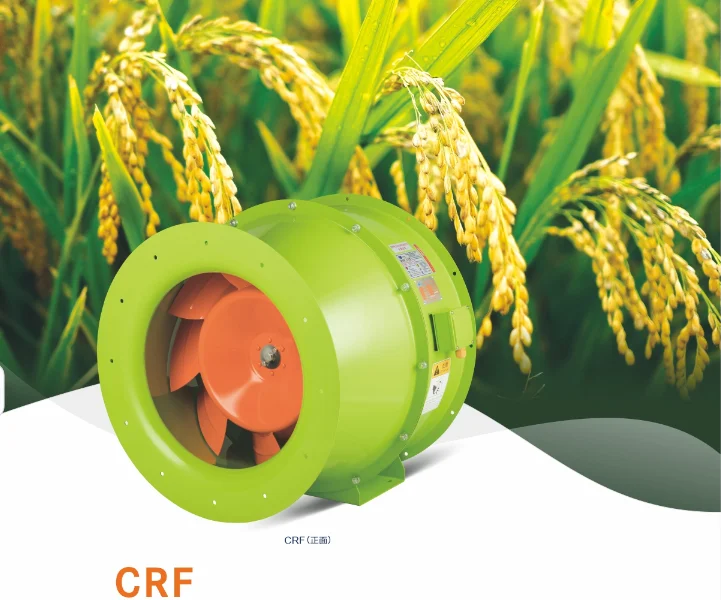

Application

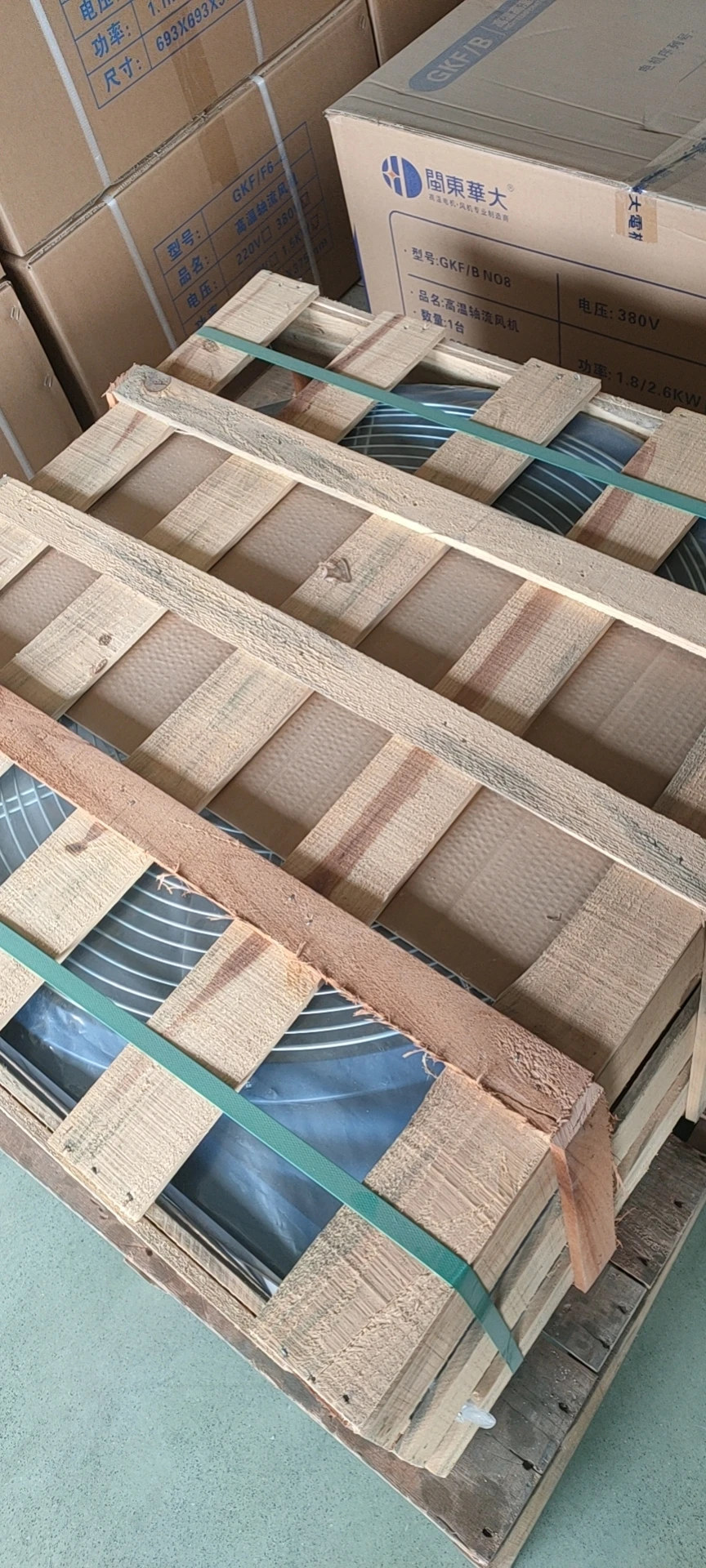

Packing Method
Packing:1)Cartons+pallet
2)Plywood
