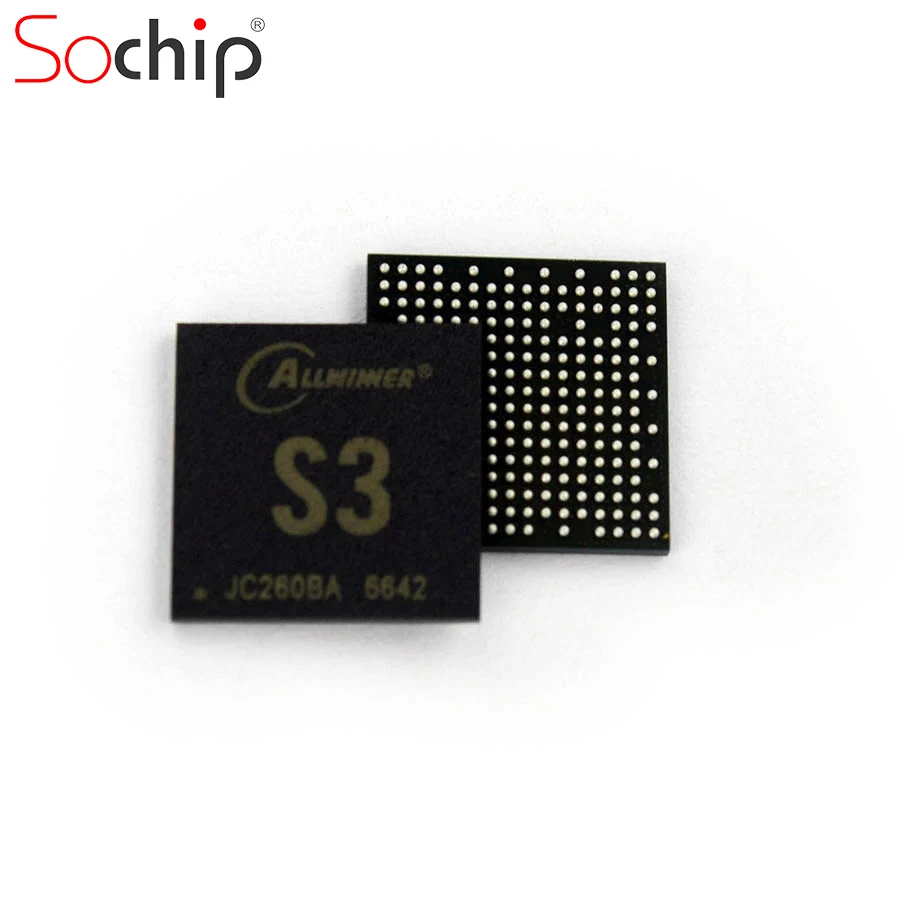

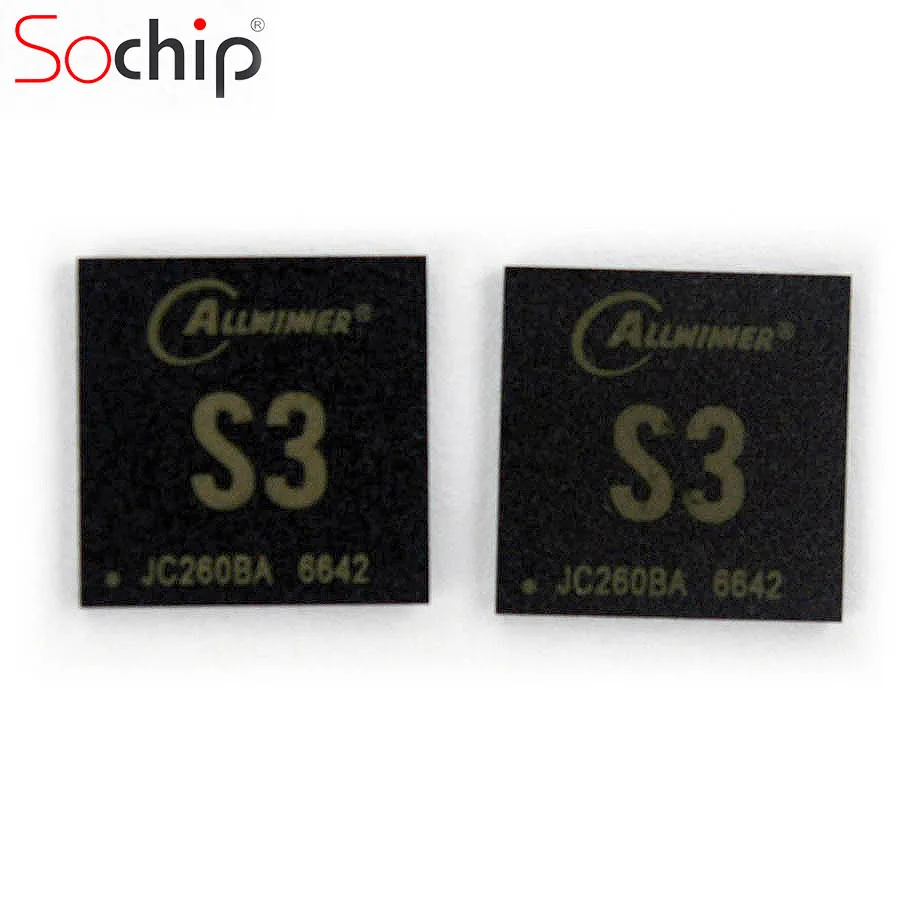

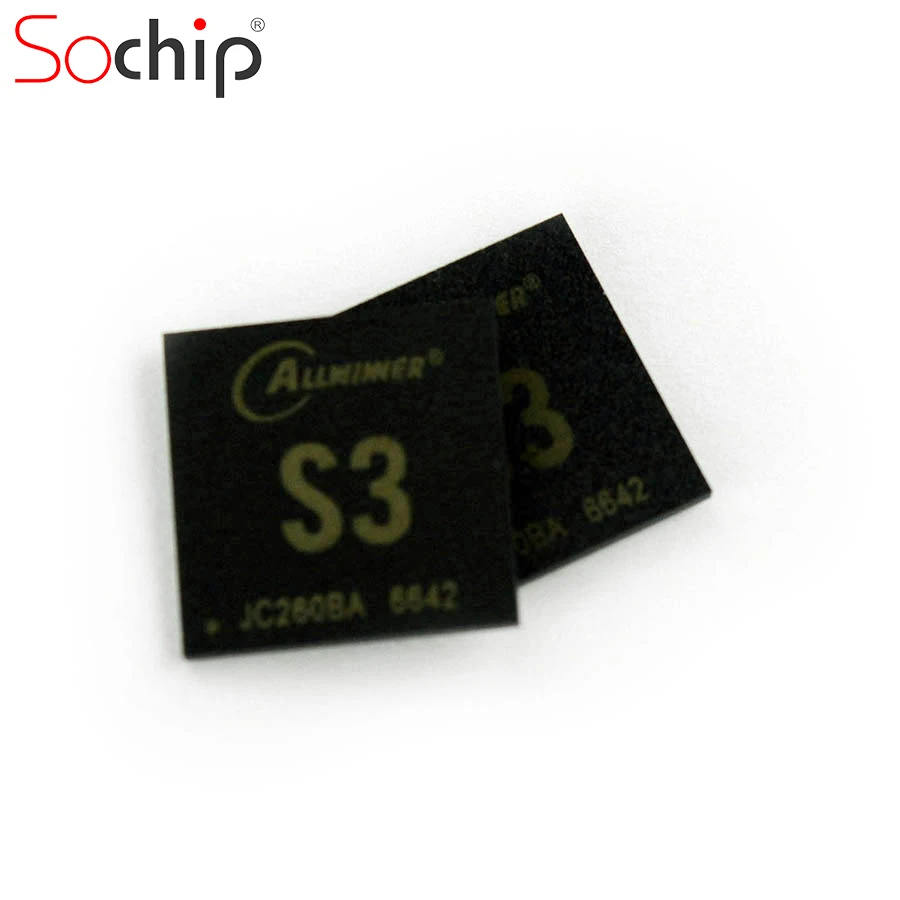

Allwinner S3 AXP209 Processors integrated circuit and PMIC SIP 128MB DDR3 apply in video encoding processors FBGA 234

Share on (1600404189906):


Price:$6.90 - $7.35

Quantity:


Product Overview

Description



Attention




We are ALLWINNER'S official distributor in China, S3 is one of our customized processor, it integrates a 128MB DDR3, it can be widely used in video decoding industry, join us, we can give you a competetive unit price, stable supply and technical support .

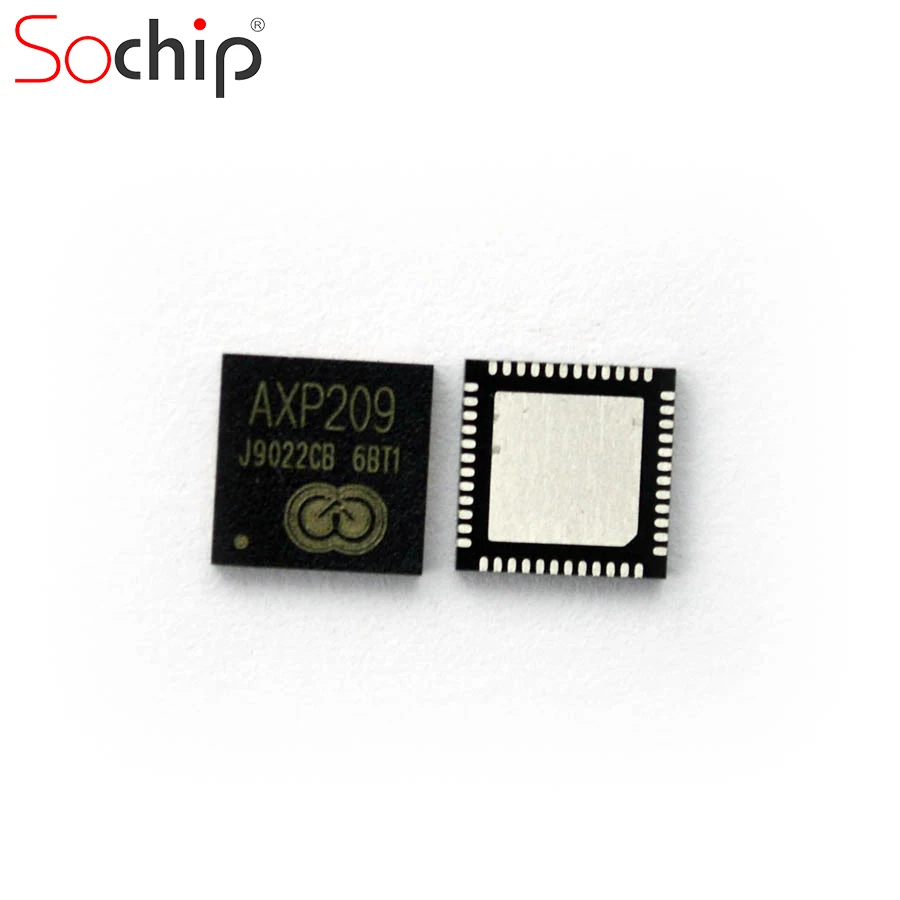

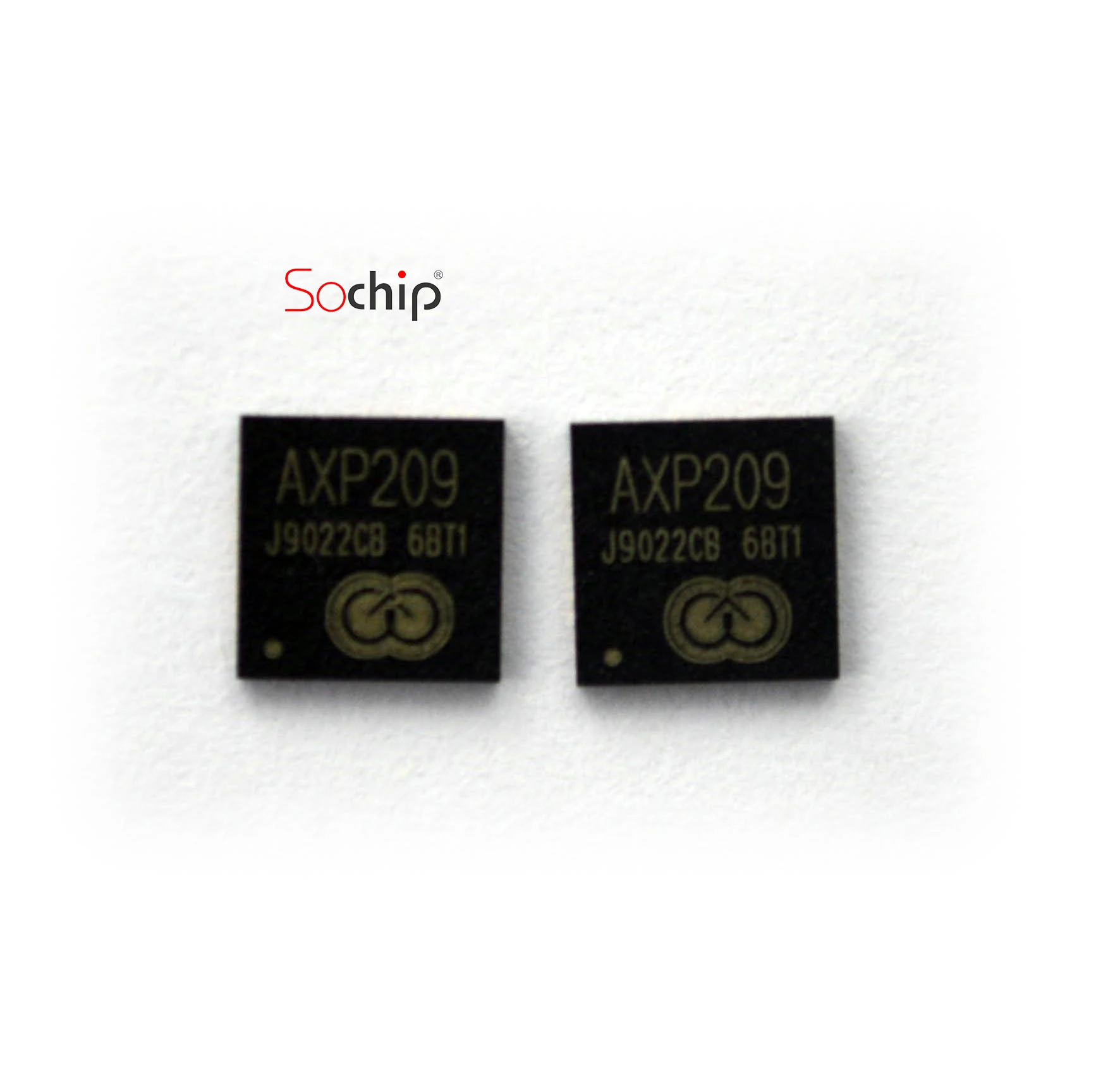

The unit price includes both S3 and AXP209






Product Description










CPU



  • ARM Cortex A7 @ 1.2GHz

  • Support NEON Advanced SIMD instruction

  • VFPv4 Floating Point Unit

  • Video Encoding

    • Support H.264 video encoding profile BP/MP/HP

    • Support MJPEG/JPEG encoding

    • H.264 video encoding up to HD@120FPS/ FHD@60FPS

    • Support 4 ROI



  • Video Input

    • Support 8/10/12-bit CMOS sensor parallel interface

    • Support MIPI-CSI2 interface compliant with MIPI-DPHY v1.0 and MIPI-CSI2 v1.0

    • Support MIPI-CSI2 1/2/3/4 data lanes configuration

    • Support BT.656/ BT.1120



  • Image Processing

    • Support image mirror flip and rotation

    • Support two output channels

    • Speed up to 8MPixels@24fps

    • Defect pixel correction

    • Super lens shading correction

    • Anisotropic non-linear Bayer interpolation with false color suppression

    • Programmable color correction

    • Advanced contrast enhance and sharping

    • Advanced saturation adjust

    • Advanced spatial(2D) de-noise filter

    • Advanced chrominance noise reduction

    • Zone-based AE/AF/AWB statistics

    • Anti-flick detection statistics

    • Histogram statistics



  • Video output

    • Support LVDS interface with single link, up to 1024x768@60fps

    • Support RGB interface with DE/SYNC mode, up to 1024x768@60fps

    • Support serial RGB/dummy RGB/CCIR656 interface, up to 800x480@60fps

    • Support i80 interface with 18/16/9/8 bit, support TE, up to 800x480@60fps



  • Audio Interface

    • Integrate Audio Codec

    • Support I2S/PCM interface



  • External Storage

    • Support SPI Nor Flash

    • Support SPI Nand Flash

    • Support SD/TF card

    • Support eMMC



  • Peripheral Interface

    • One USB 2.0 OTG controller with PHY

    • Support RGMII/MII/RMII interface. Integrated an internal 10/100M PHY

    • Up to three UART controllers

    • Up to two Two Wire Interface(TWI)controllers



  • Security Engine

    • Support AES, DES, 3DES, SHA-1, MD5



  • Package

    • FBGA 234 balls

    • 0.65mm ball pitch, 11mm x 11mm
