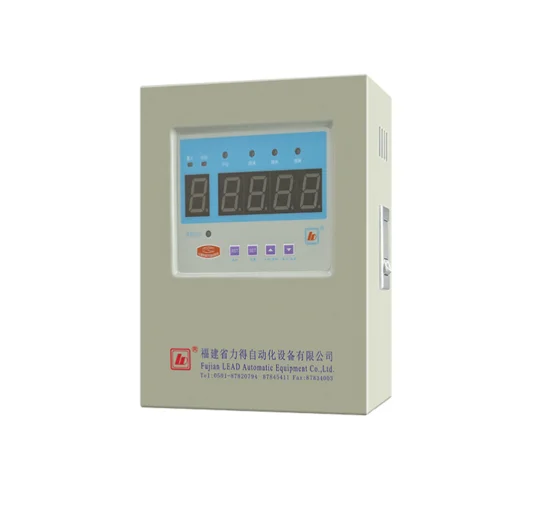

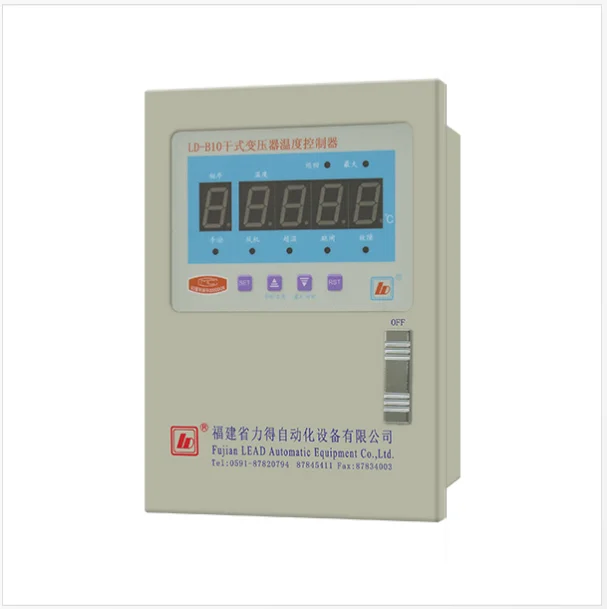

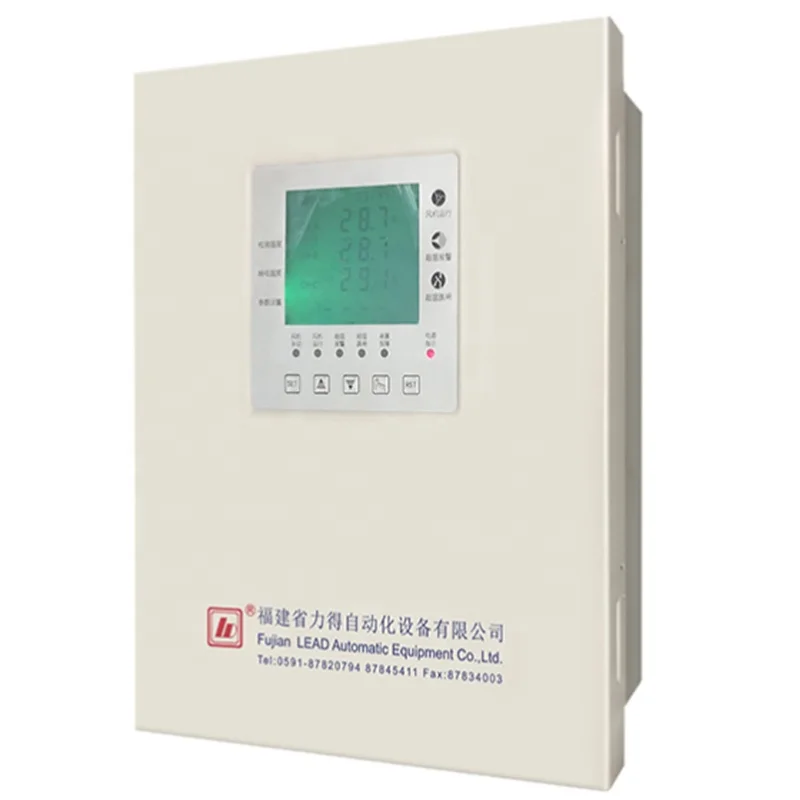

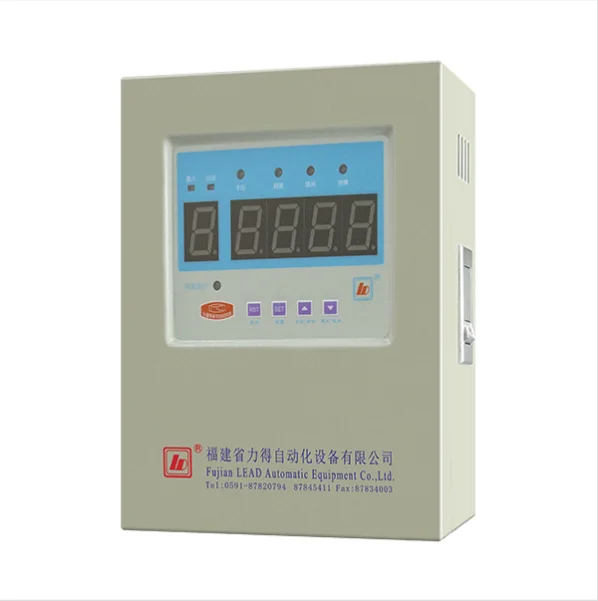

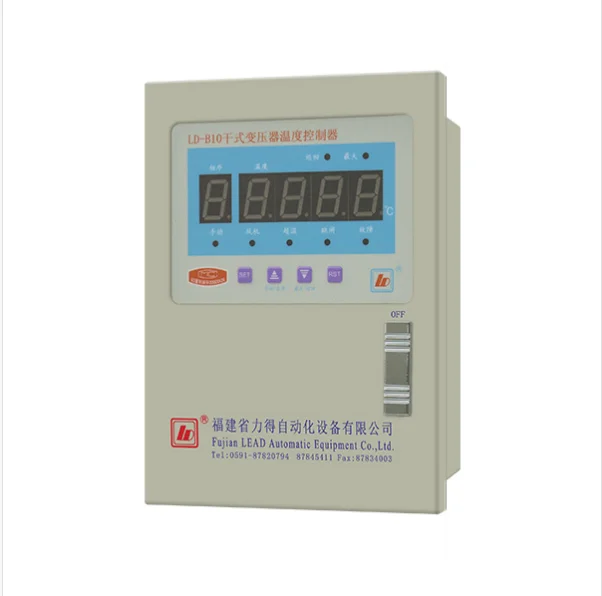

Factory Wholesale Good Reliability Temperature Controller Thermostat For Dry Type Transformer

Share on (1600404276804):


Price:$1.20 - $1.80

Quantity:


Product Overview

Description



Product Description




LD-BK10 series dry-type transformer temperature controller is an intelligent controller specially designed for the safe operation of dry-type transformers. The thermostat uses single-chip microcomputer technology to detect and display the temperature rise of the transformer winding by using the platinum thermal resistance embedded in the dry-type transformer windings. It can automatically start and stop the cooling fan to force the windings to cool the windings to avoid or reduce the temperature caused by the transformer. Faults caused by excessively high temperature can control over-temperature alarm and over-temperature trip output to ensure that the transformer runs in a safe state, thereby prolonging the working life of the transformer.


Specification


item
value
Place of Origin
China
Brand Name
Giantway
Model Number
LD-BK10-220/380Y
measuring range
 -30.0℃~240.0 ℃
working voltage
220VAC、220VDC、110VDC(+10%,-15%)(choosable)
measurement accuracy
Temperature controller level 0.5
model
​LD-BK10-220/380Y
Ac power frequency
50 hz or 60 hz




Packing & Delivery


standard export packing with cartons or pallets.
