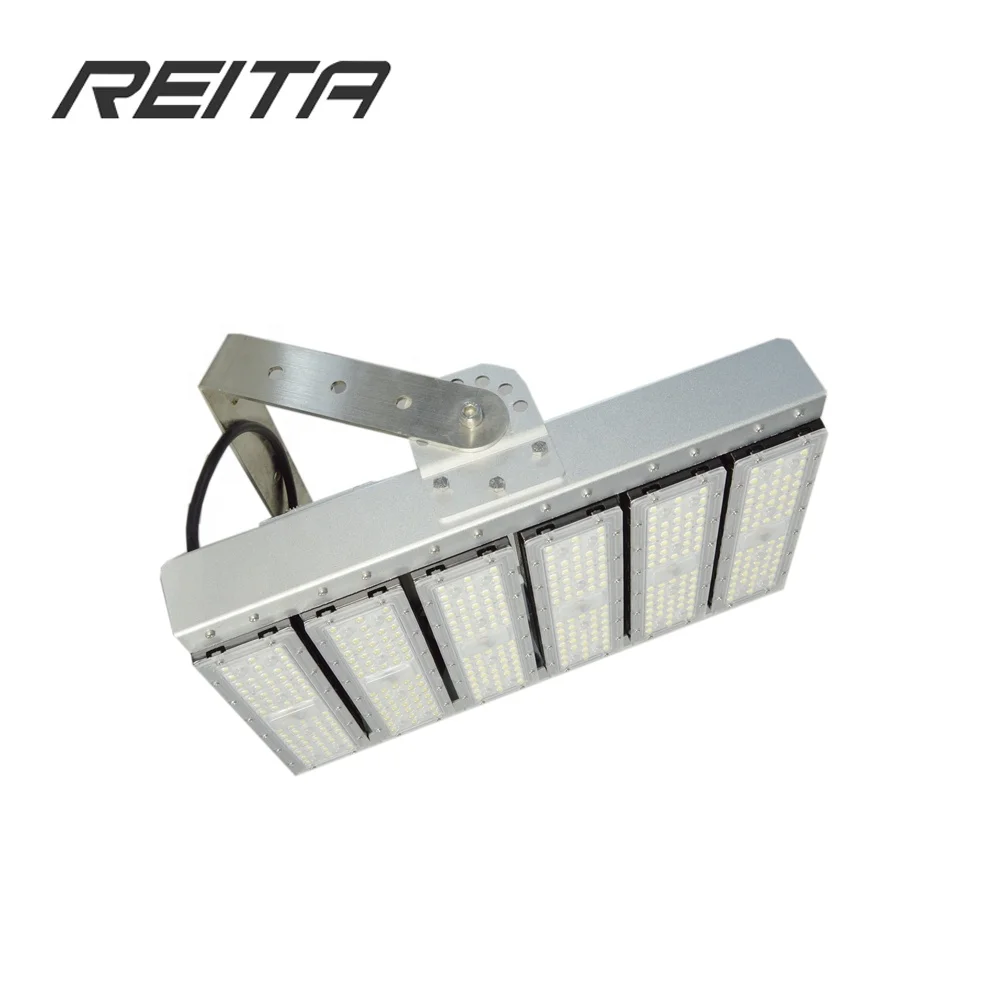

300W linear highbay light highbay led light300W 400W 500W for basketball court lighting
- Category: >>>
- Supplier: Reita Industrail Co. Ltd.
Share on (1600404276993):
Product Overview
Description

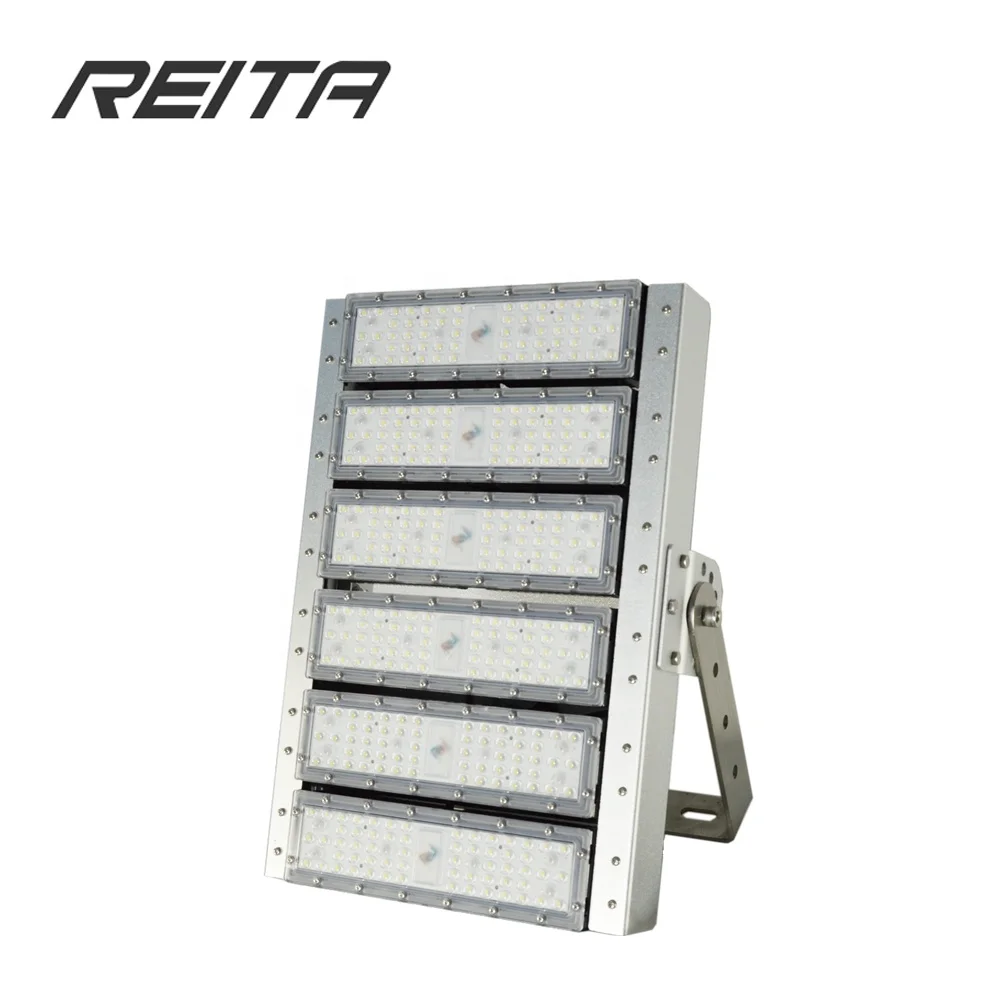

Led HighBay/Flood Light
Reita RT-ILseries sophisticated highpower LED luminaires. By using Reita modular systems the power range varies from 50 up to 1000W at CCT up to 6500K with expected lifetime more than 80,000 hours. High value of CRI > 75 Ra brings optical performance which is essential for the correct performance of a working area where daylight is limited. CRI > 95 Ra is possible on order.
Part.No | RT-IL50W | RT-SL100W | RT-IL150W | RT-IL200W | RT-IL240W | RT-IL500W | RT-IL500W | RT-IL500W | RT-IL1000W | ||||||||
Power | 50Watt | 100Watt | 150Watt | 200Watt | 240Watt | 300Watt | 400Watt | 500Watt | 1000Watt | ||||||||
Light Efficacy | 130lm/watt | ||||||||||||||||
Lumen | 6500lm | 13000lm | 19500lm | 26000lm | 31200lm | 39000lm | 52000lm | 65000lm | 130000lm | ||||||||
Chip | Bridgelux | ||||||||||||||||
Input Voltage | 100-277VAC Standard 347-480VAC Available | ||||||||||||||||
Color Temperature | 3000/4000/5000/5700 K | ||||||||||||||||
CRI | >75 | ||||||||||||||||
Power Factor | >90% | ||||||||||||||||
Beam Angle | 10/25/40/60/90/150*45/150*65/150*75 | ||||||||||||||||
Lumen Maintenance | L70>50,000 hrs | ||||||||||||||||
Material | 6063 Aluminum | ||||||||||||||||
IP Grade | IP65 | ||||||||||||||||
Warranty | 5 Years | ||||||||||||||||
Bracket | Rigid U-Bracket Standard | ||||||||||||||||
Net Weight | 2KG | 2.8KG | 4.7KG | 6.2KG | 7.5KG | 9.5KG | 10.8KG | 14.2KG | 22.5KG | ||||||||
Product Detail

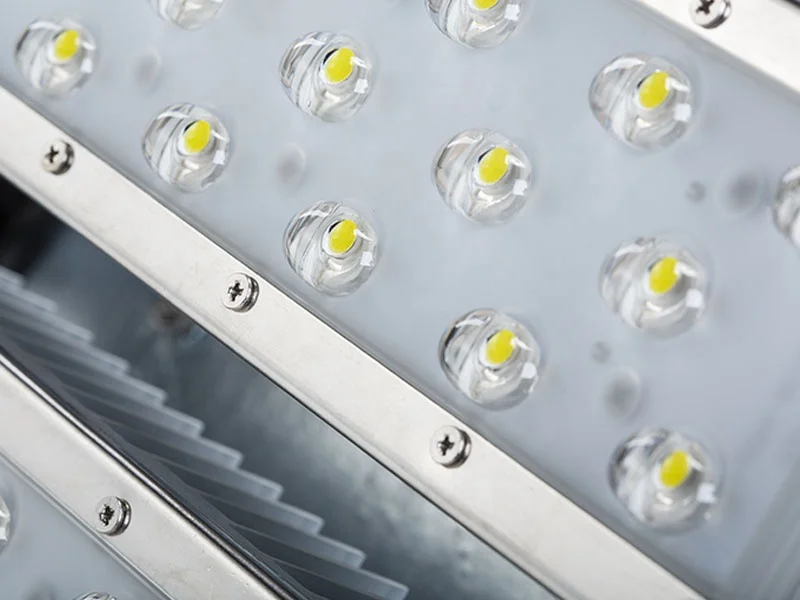

1. High Brightness Bridgelux Chip 160lm/watt

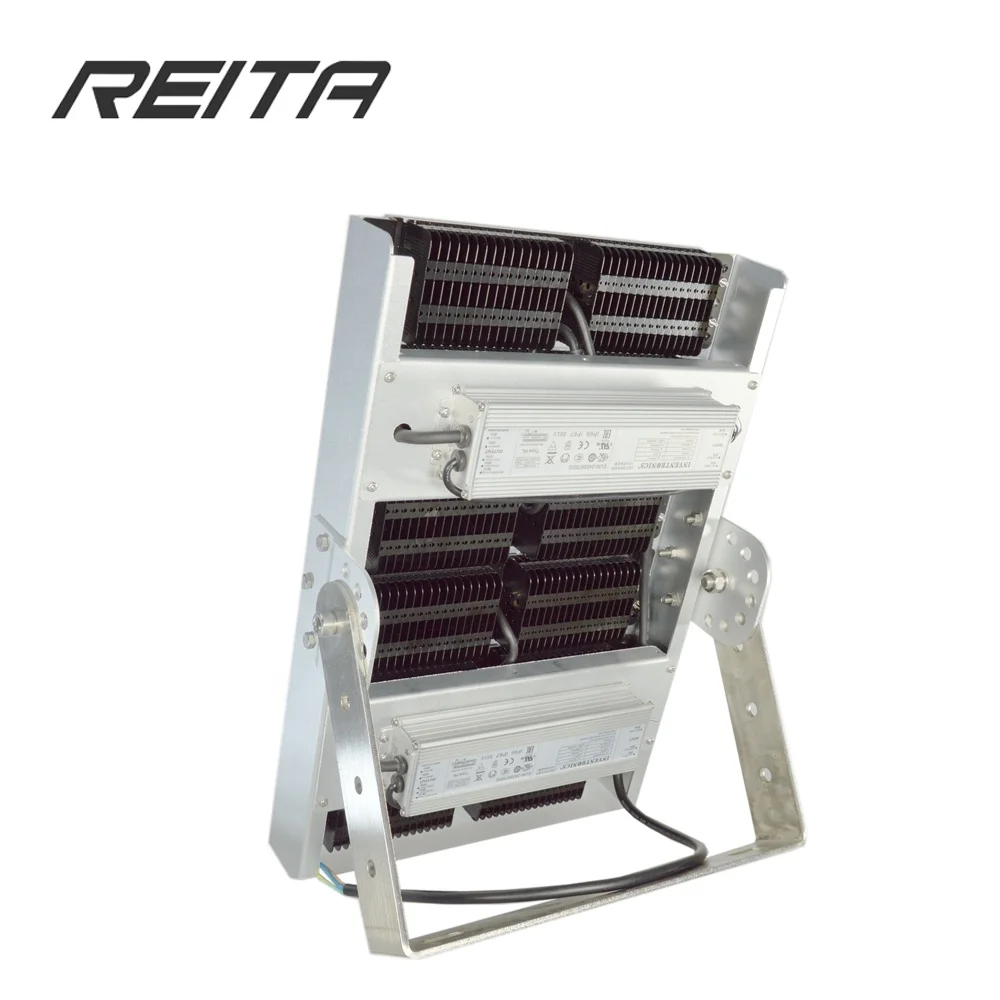

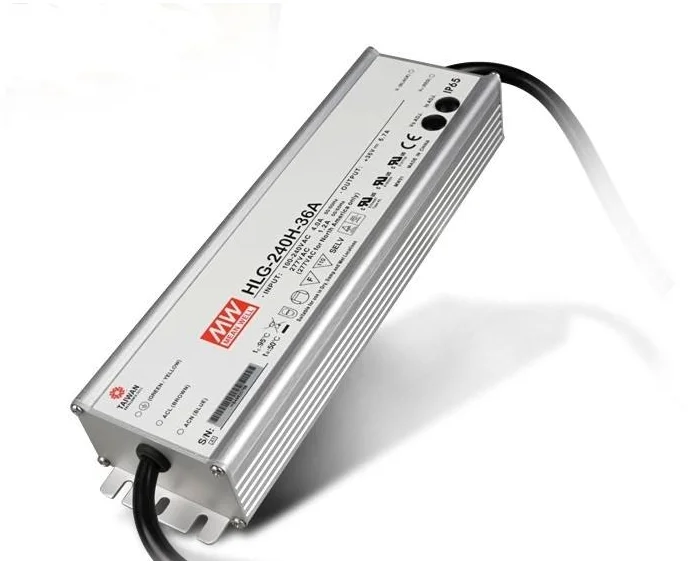

2. Meanwell/Inventronics Driver

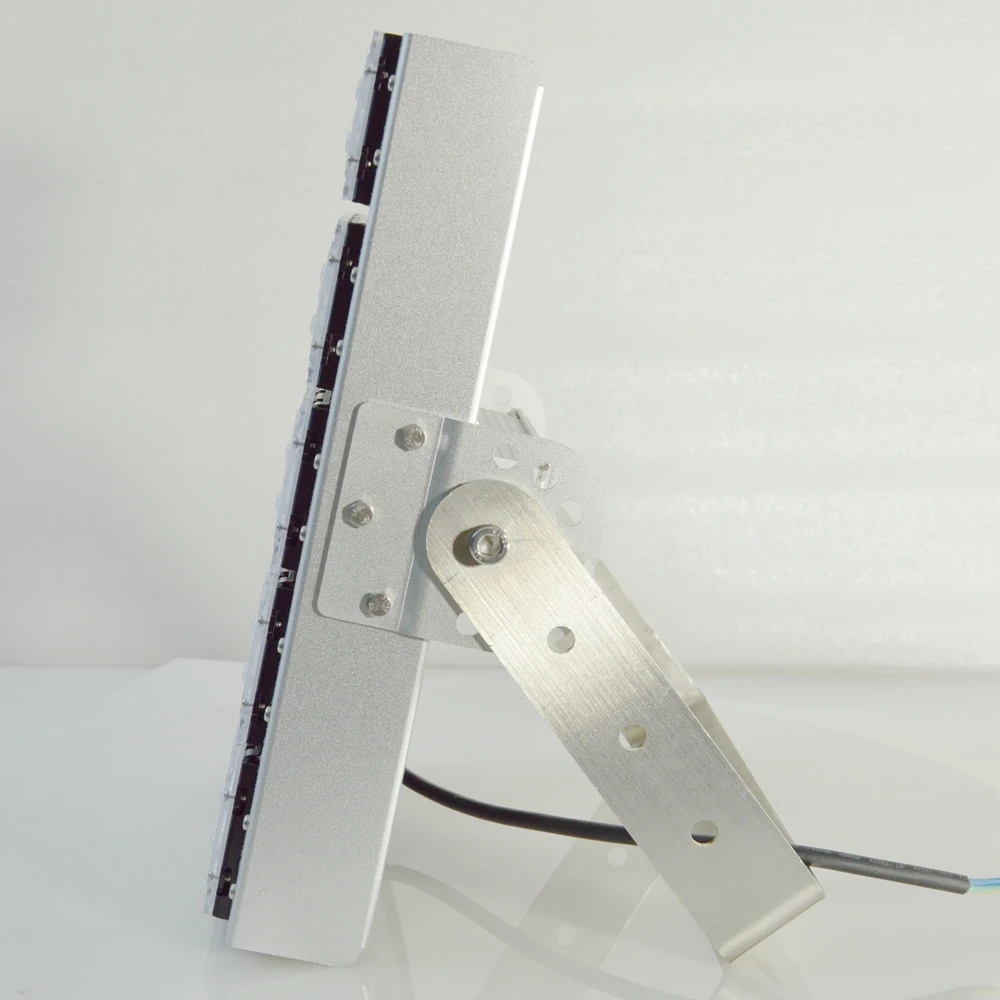

3. 304 Stainless Steel for Bracket and Screw
316 can be offered for seaside application to anti-corrosion.

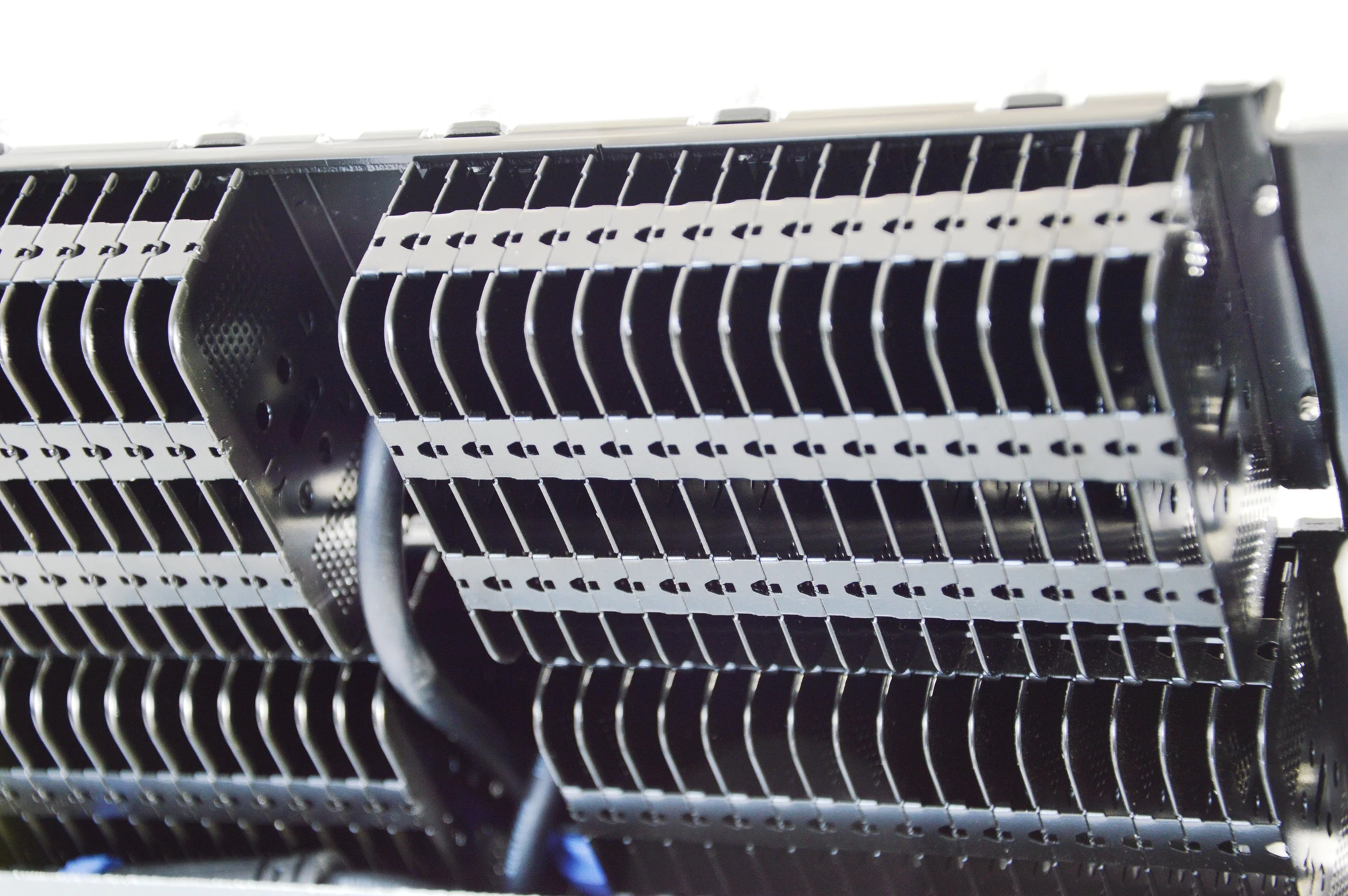

4. Innovated 3D Finned Heatsink, 360° heat release.

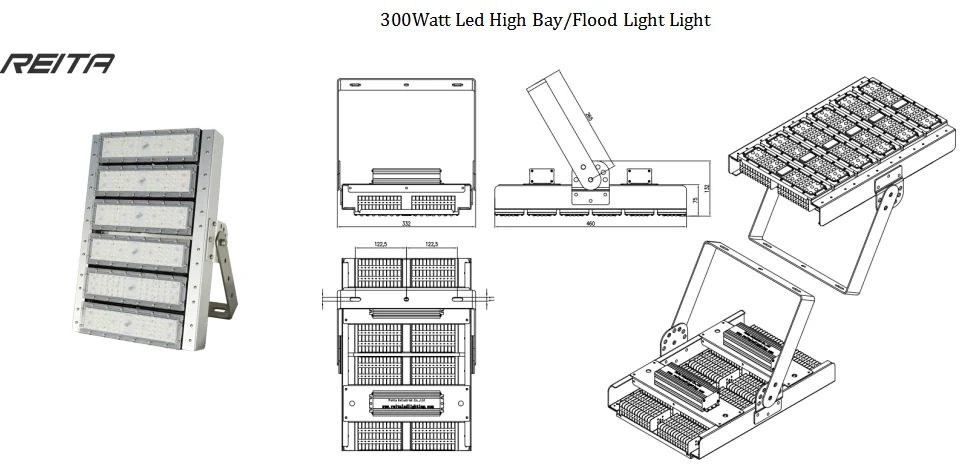

Technical Drawing for RT-IL300W
Company Profile
Our Certification
RFQ
Q1.Lead time ?
A1: 3-5 days for sample order,15-25days for mass order.
Q2. Payment term ?
A2: Sample order: T/T 100%, Paypal, Western Union. Mass order: Normally,T/T in advance (30% as deposit,70% before shipment).
Q3. Shipment ?
A3: For sample order, normally with Express like DHL, UPS, TNT, FEDEX, EMS. For batch order, air cargo or sea cargo,You can also assign the forwarder to make the transportation.
Q5. I really would like to try a sample first ,is that possible ?
A5: Sure.Sample order is available, it’s a way to know each other better, we focus on a long term and win-win cooperation.
Q6. Can we make our own label on the sample lights?
A6: Yes, we can use the label you offer, we can also do OEM & ODM.
Q7. Our project is on seaside, what if your lights be corrosion by seawater?
A7: Metal has high corrosion resistance.Besides, we can do best on light surface treatment,please donot worry.
A1: 3-5 days for sample order,15-25days for mass order.
Q2. Payment term ?
A2: Sample order: T/T 100%, Paypal, Western Union. Mass order: Normally,T/T in advance (30% as deposit,70% before shipment).
Q3. Shipment ?
A3: For sample order, normally with Express like DHL, UPS, TNT, FEDEX, EMS. For batch order, air cargo or sea cargo,You can also assign the forwarder to make the transportation.
Q4. Warranty ?
A4: 5 years, can be used for 10years.
A4: 5 years, can be used for 10years.
Q5. I really would like to try a sample first ,is that possible ?
A5: Sure.Sample order is available, it’s a way to know each other better, we focus on a long term and win-win cooperation.
Q6. Can we make our own label on the sample lights?
A6: Yes, we can use the label you offer, we can also do OEM & ODM.
Q7. Our project is on seaside, what if your lights be corrosion by seawater?
A7: Metal has high corrosion resistance.Besides, we can do best on light surface treatment,please donot worry.
