Product Overview
Description
Product Description
1.Military-grade hardware design, the use environment temperature range can reach -25℃-50℃, adapt to different harsh scenes, MTBF (mean time between failure) can reach ≥190Khrs MIL-HDBK-217F(25℃))；
2. Digital control, digital display, real-time monitoring, strong anti-interference；
3. Using Ti brand phase-shifting full-bridge soft switching circuit, the efficiency of the analog hard switching circuit can be increased by more than 10%, the response time is less than 0.1s, and the anti-interference is strong；
4. Using imported Ti brand PFC power factor control chip, the maximum power factor reaches 0.99；
5. Equipped with ST brand ARM chip, human-computer interaction is simple and clear, powerful remote debugging communication function, seamless docking with any application scenario, independent research and development software intelligently judges and coordinates the data collected in real time, which can realize power self-matching. Stable without change；
6. Compared with the power changes caused by power grid voltage fluctuations, air source pressure fluctuations, and nozzle loss of conventional models, the power can be matched and set in real time under digital control, and the adjustable power range is expanded by 4 times；
7. Support digital communication interface (232 interface and 485 interface) and analog communication interface, powerful remote communication function;
8. The following 9 real-time detection functions are provided, including air pressure detection, motherboard temperature detection, transformer arc voltage detection, transformer primary peak current detection, grid voltage detection, grid current detection, motor power supply voltage detection, motor power supply current detection, spray gun speed detection；
9. Provide more than ten kinds of fault alarm functions, and shorten the troubleshooting time by more than 80%；
10. Support jet spray gun and rotary spray gun at the same time, one-key setting, change at any time；
11. Provide 3 kinds of online automation solutions to seamlessly connect to customer production lines and reduce cost；
12. It has protection functions such as over-temperature protection, overload protection, short circuit, open circuit, overload, leakage protection, and various misoperation protection.
2. Digital control, digital display, real-time monitoring, strong anti-interference；
3. Using Ti brand phase-shifting full-bridge soft switching circuit, the efficiency of the analog hard switching circuit can be increased by more than 10%, the response time is less than 0.1s, and the anti-interference is strong；
4. Using imported Ti brand PFC power factor control chip, the maximum power factor reaches 0.99；
5. Equipped with ST brand ARM chip, human-computer interaction is simple and clear, powerful remote debugging communication function, seamless docking with any application scenario, independent research and development software intelligently judges and coordinates the data collected in real time, which can realize power self-matching. Stable without change；
6. Compared with the power changes caused by power grid voltage fluctuations, air source pressure fluctuations, and nozzle loss of conventional models, the power can be matched and set in real time under digital control, and the adjustable power range is expanded by 4 times；
7. Support digital communication interface (232 interface and 485 interface) and analog communication interface, powerful remote communication function;
8. The following 9 real-time detection functions are provided, including air pressure detection, motherboard temperature detection, transformer arc voltage detection, transformer primary peak current detection, grid voltage detection, grid current detection, motor power supply voltage detection, motor power supply current detection, spray gun speed detection；
9. Provide more than ten kinds of fault alarm functions, and shorten the troubleshooting time by more than 80%；
10. Support jet spray gun and rotary spray gun at the same time, one-key setting, change at any time；
11. Provide 3 kinds of online automation solutions to seamlessly connect to customer production lines and reduce cost；
12. It has protection functions such as over-temperature protection, overload protection, short circuit, open circuit, overload, leakage protection, and various misoperation protection.

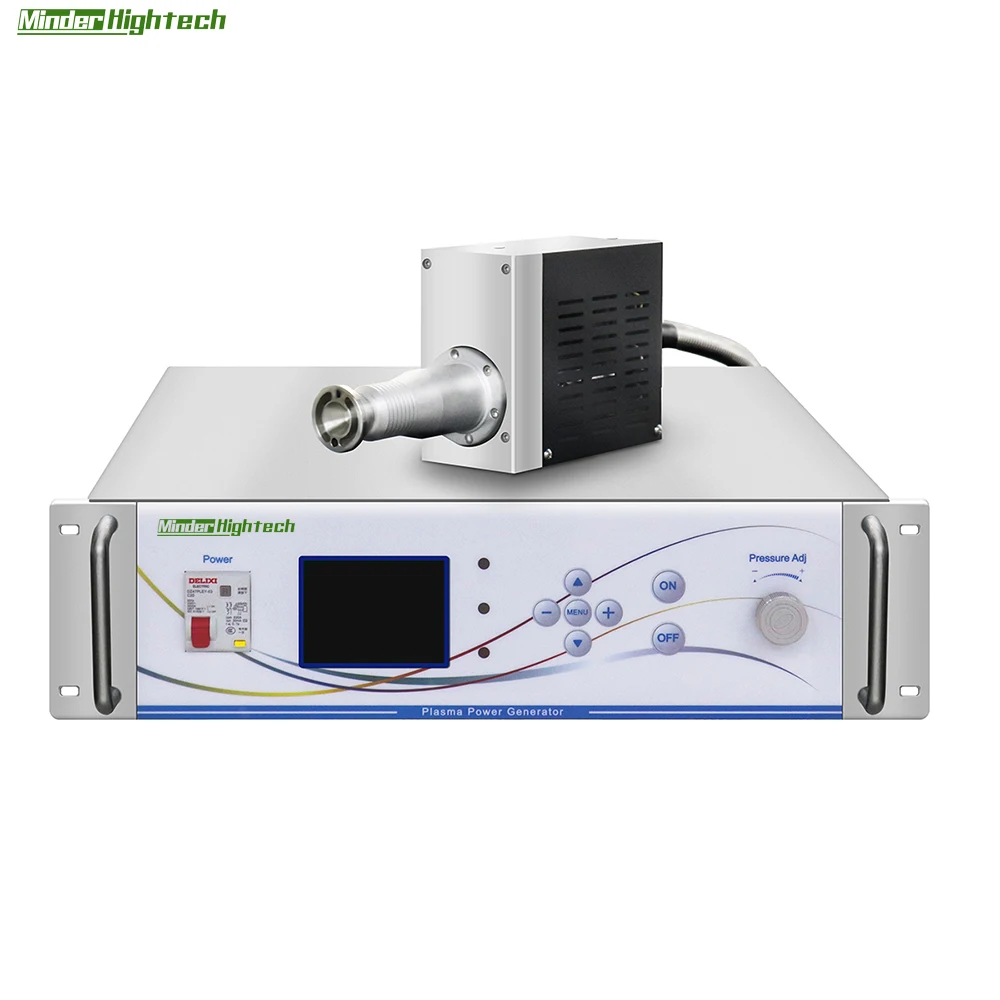

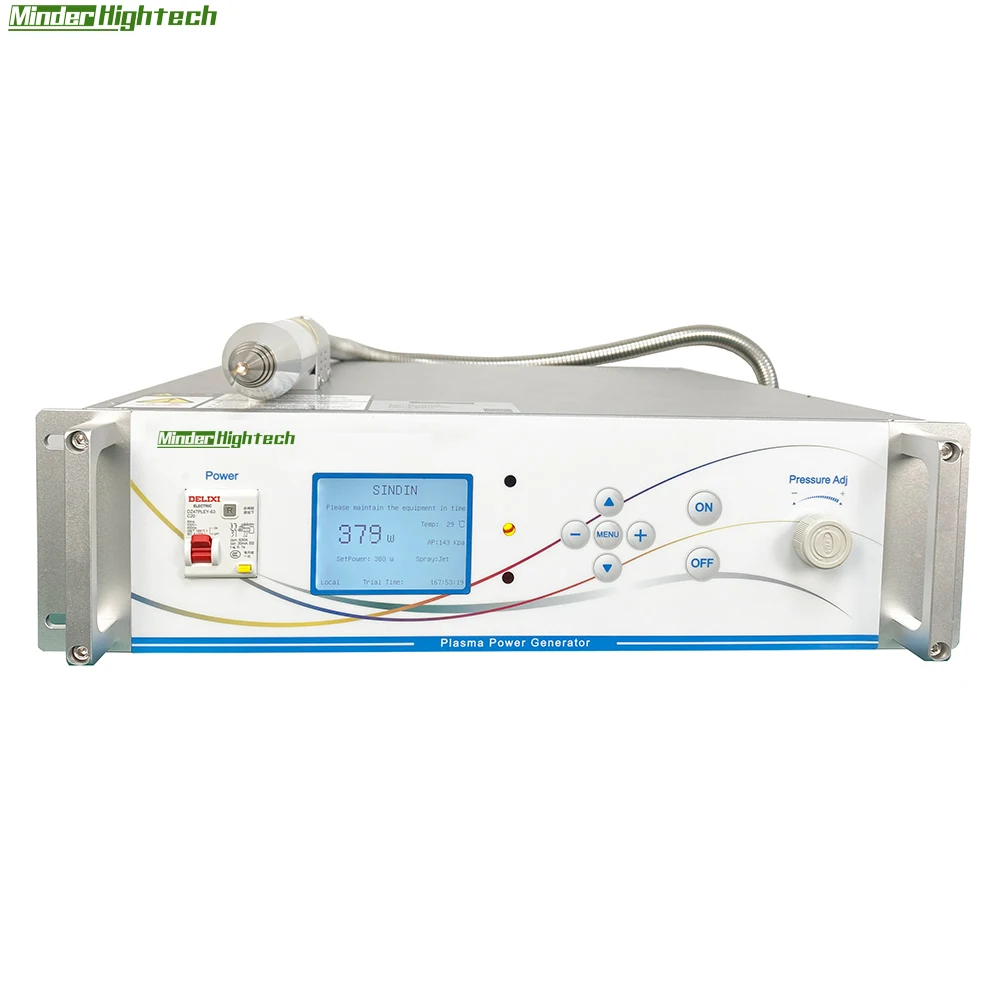

SPA-5800, as the first initiate "full digital atmospheric plasma cleaner" in China, has comprehensive digital control functions, which can digitally monitor and control air pressure, power, speed of revolution, and grid voltage.Real-time monitoring of air pressure, power, speed, and grid voltage and display on the software interface. Precisely set air pressure, power, reduce interference, strong stability, and make human-computer interaction easier.
Digital control power self-matching, adjustable power range expanded by 4 times
The power adjustment range of atmospheric plasma cleaner for analog circuit is small. Generally, the adjustable power range of atmospheric plasma cleaner equipped with jet spray gun is 200W-500W, while the adjustable power of rotary spray gun is 500W-700W.
Power adjustment by knob, large error, low accuracy, power accuracy is ± 5%, and the actual working power cannot be understood and judged in real time;
SPA-5800's adjustable power range is 200W-1000W, with a large adjustable power range. And equipped with an ARM chip, it can realize fast self-matching of set power, power accuracy is ± 1%, stable and unchanged, will not cause the actual working power to change due to air pressure fluctuations, network voltage fluctuations, and nozzle gun and electrode aging, ensure uniform and stable cleaning effect;
Monitor the actual working power of the plasma in real time and display it on the system interface.
Industry applications
3C industry: mobile phone assembly bonding, camera module, headphone bonding, middle frame bonding
Display Industry: | TP Bonding |
Automotive industry bonding: | headlights, steering wheels, EPDM seals, windshield glass, automotive electronics |
Connector industry: | cable character printing |
Watch industry: | bonding, inlaying, agglutinate |
Plastic industry: | surface activation, bonding, screen printing |
Metal industry: | gold plating, silver plating, welding, removal of residual organic matter |
Glass industry: | coating, ink printing, coating, paste |

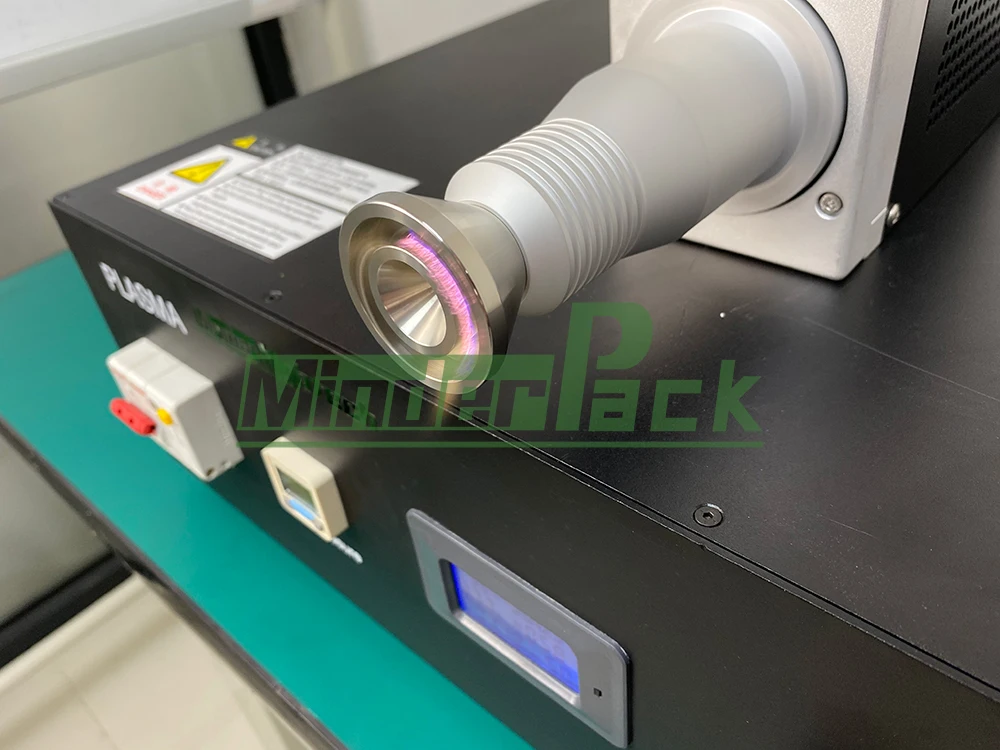

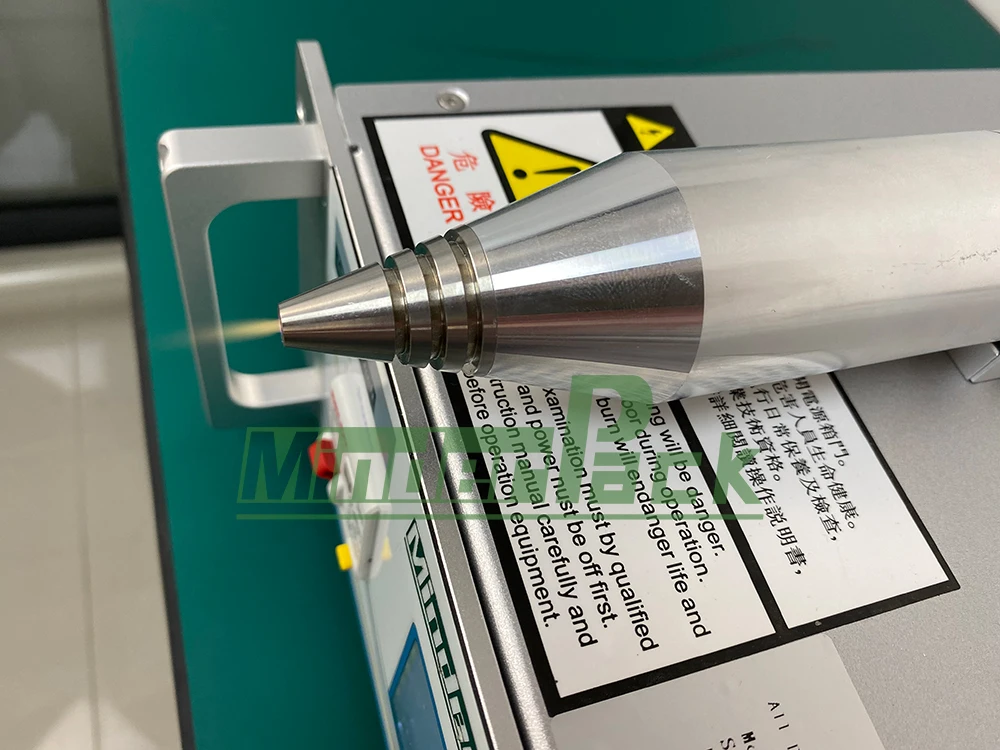

Details Images
Specification
elecommunication mode | Support RS232 / 485 interface, and have analog communication interface | Remote ON / OFF I / O interface |
Power matching | Equipped with ARM chip for power self-matching | Continuous testing by adjusting the knob |
Power output accuracy | ±1％ | ±5％ |
Power factor | ＞ 0.9 | 0.65 |
Response time | 0.1s | 1.2s |
Power range | 0-1000W adjustable | Jet spray gun: 200W-500W, rotary spray gun: 500W-700W |
Air pressure range | 40Kpa ~ 400Kpa adjustable; | Jet spray gun: 40Kpa ~ 160Kpa; Rotary spray gun: 100Kpa-400Kpa |
Data inspection | Air pressure detection, motherboard temperature detection, transformer arc voltage detection, grid voltage detection, 24v DC power detection, motor power detection, spray gun speed detection | Air pressure detection |
Alarm | Short circuit, open circuit, insufficient gas pressure alarm, excessive gas pressure alarm, motherboard error alarm, overload alarm, insufficient motor current alarm, excessive motor current alarm, power mismatch alarm, software malfunction alarm, low motor speed alarm | Short circuit, open circuit, insufficient gas pressure alarm |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
