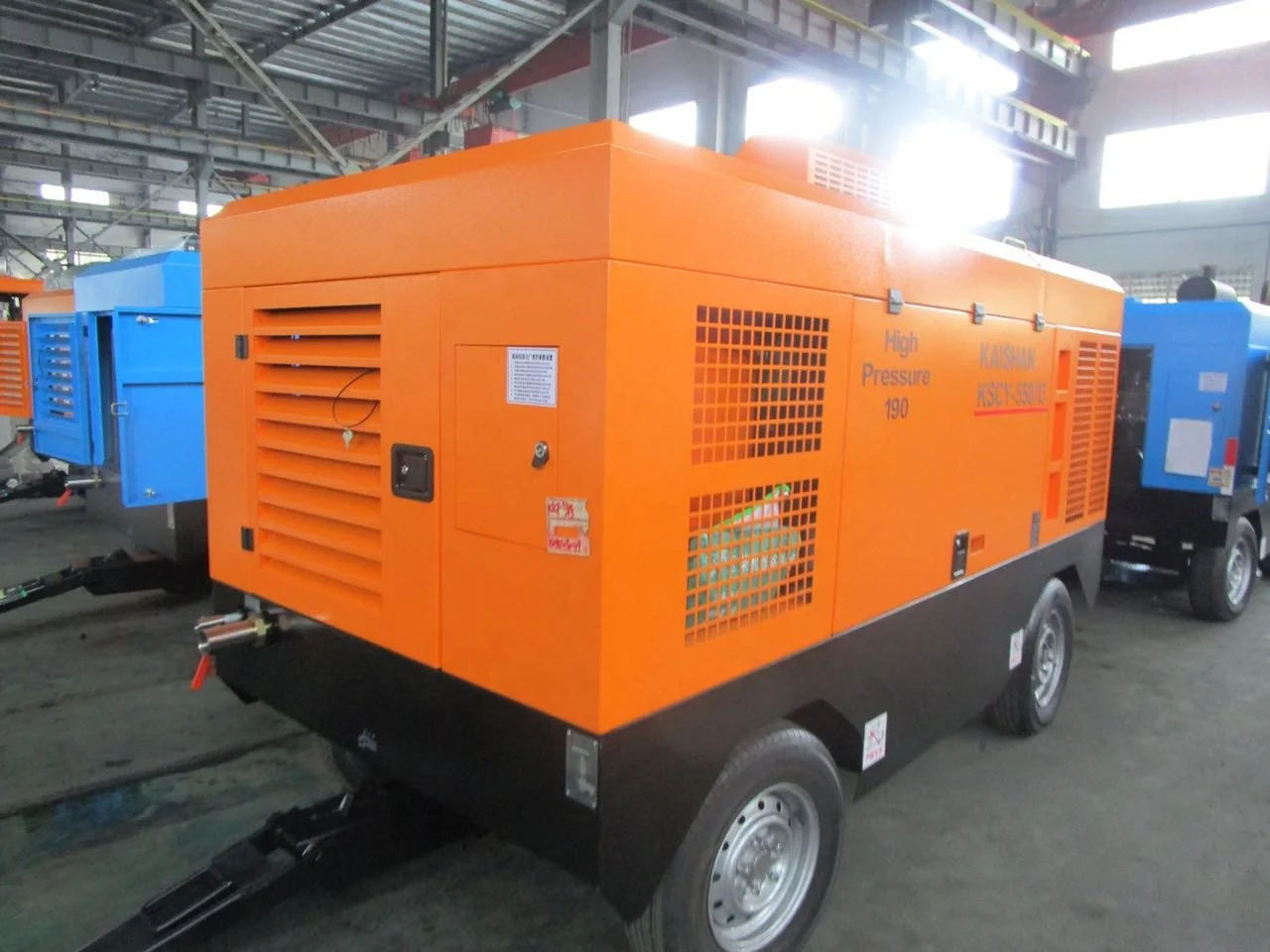

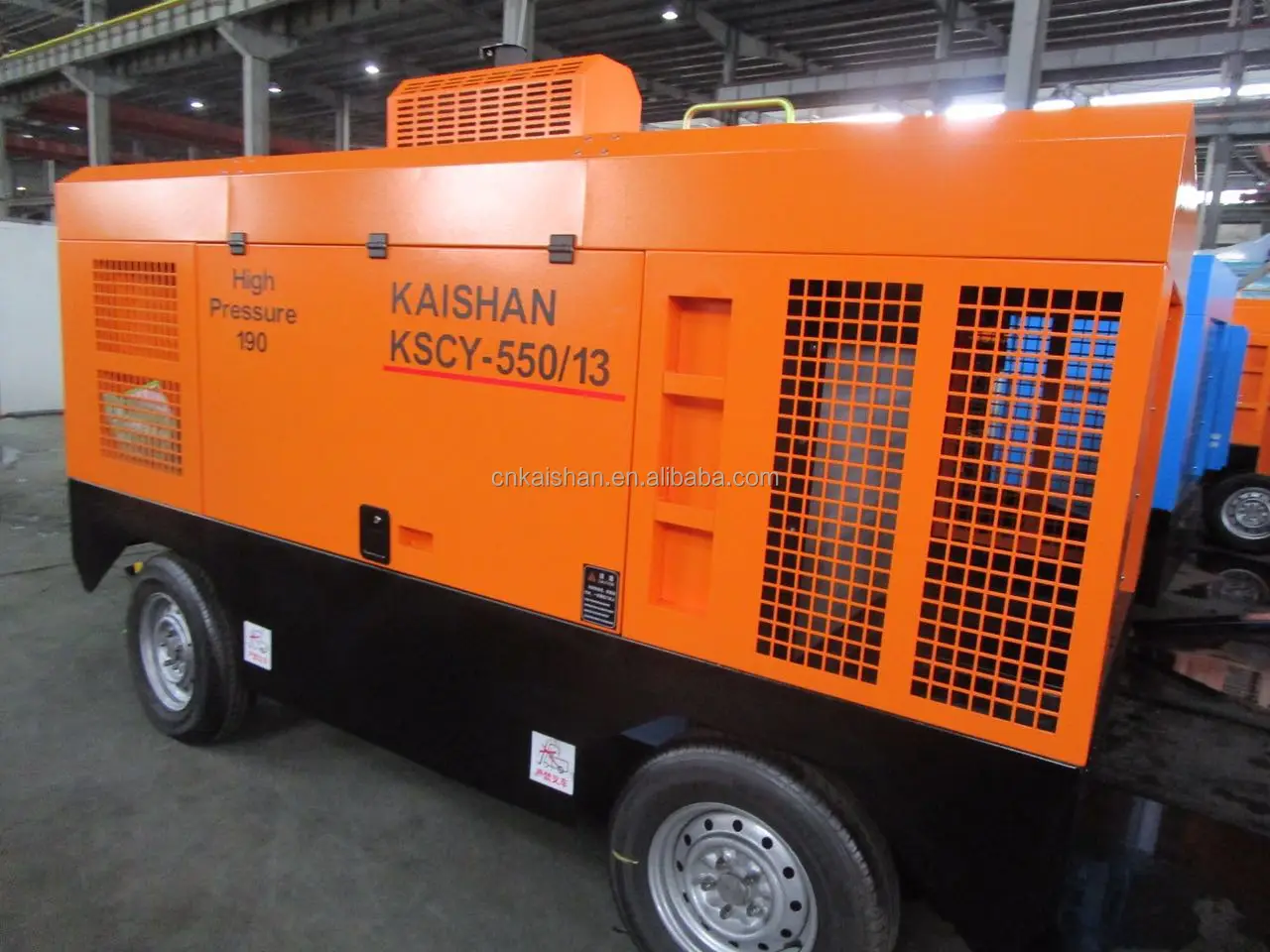

China Kaishan air compressor KSCY570/12 for water well drilling rig 570cfm 12bar Screw air compressor
- Category: >>>
- Supplier: Zhengzhou Kaishan Mechanical & Electrical Equipment Co. Ltd.
Share on (1600404289302):
Product Overview
Description
Product Description
KSCY potable diesel type screw air compressor machine superiorities:
1. More beautiful appearance, superior anti-corrosion performance
2. Exhaust pipe is set in the tail position, more environmentally friendly
3. Part position and road system structure is more reasonable
4. Imports solenoid valve(advanced configuration)
5. Imported oil filter and customized oil and gas separator filter(Germany MANN)
6. Higher configuration of pipeline connection details parts
1. More beautiful appearance, superior anti-corrosion performance
2. Exhaust pipe is set in the tail position, more environmentally friendly
3. Part position and road system structure is more reasonable
4. Imports solenoid valve(advanced configuration)
5. Imported oil filter and customized oil and gas separator filter(Germany MANN)
6. Higher configuration of pipeline connection details parts
Product Paramenters
product model | Exhaust pressure ( Mpa) | Displacement (m3/min) | Matching engine power (KW) | Exhaust interface | Weight (kg) | Overall dimension (mm) |
KSCY-220/8 | 0.8 | 6 | 55 | G1 1/4×1，G3/4×1 | 1440 | 3000×1760×1820 |
KSCY-330/8 | 0.8 | 9.5 | 88 | G1 1/4×1，G3/4×1 | 1550 | 3240×1760×1785 |
KSCY-360/13 | 1.3 | 10 | 118 | G1 1/2×1，G3/4×1 | 1880 | 3300×1880×2100 |
KSCY-425/10 | 1 | 12 | 118 | G1 1/2×1，G3/4×1 | 1880 | 3300×1880×2100 |
KSCY-400/14.5 | 1.45 | 11 | 118 | G1 1/2×1，G3/4×1 | 1880 | 3300×1880×2100 |

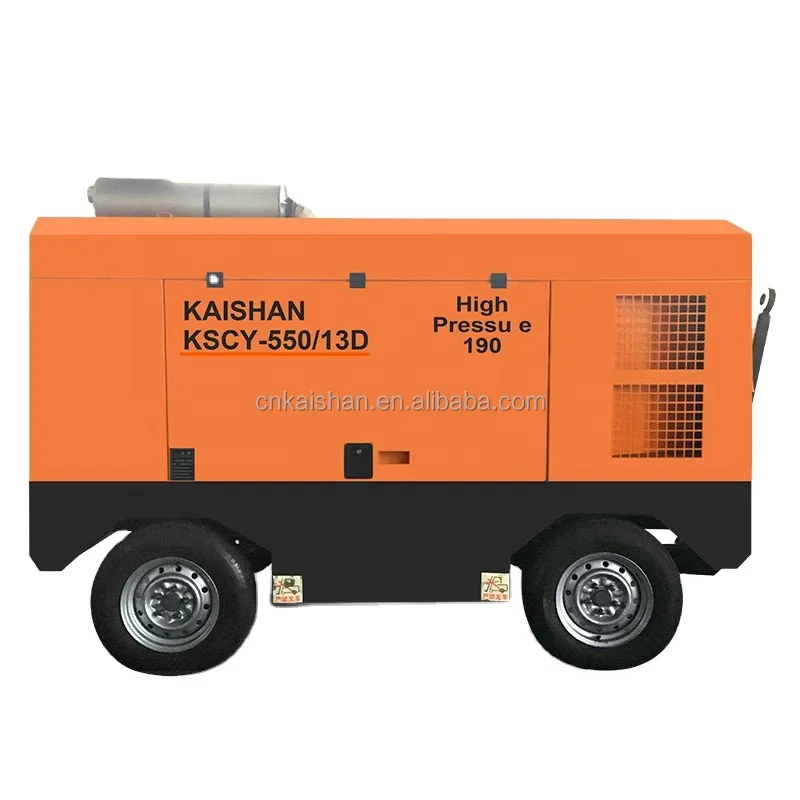

KSCY-550/13 | 1.3 | 15 | 132 | G1 1/2×1，G3/4×1 | 2400 | 3000×1520×2200 |
KSCY-550/13 | 1.3 | 15 | 140 | G1 1/2×1，G3/4×1 | 2400 | 3000×1520×2200 |
KSCY-560/15 | 1.5 | 16 | 140 | G1 1/2×1，G3/4×1 | 2400 | 3000×1600×2230 |

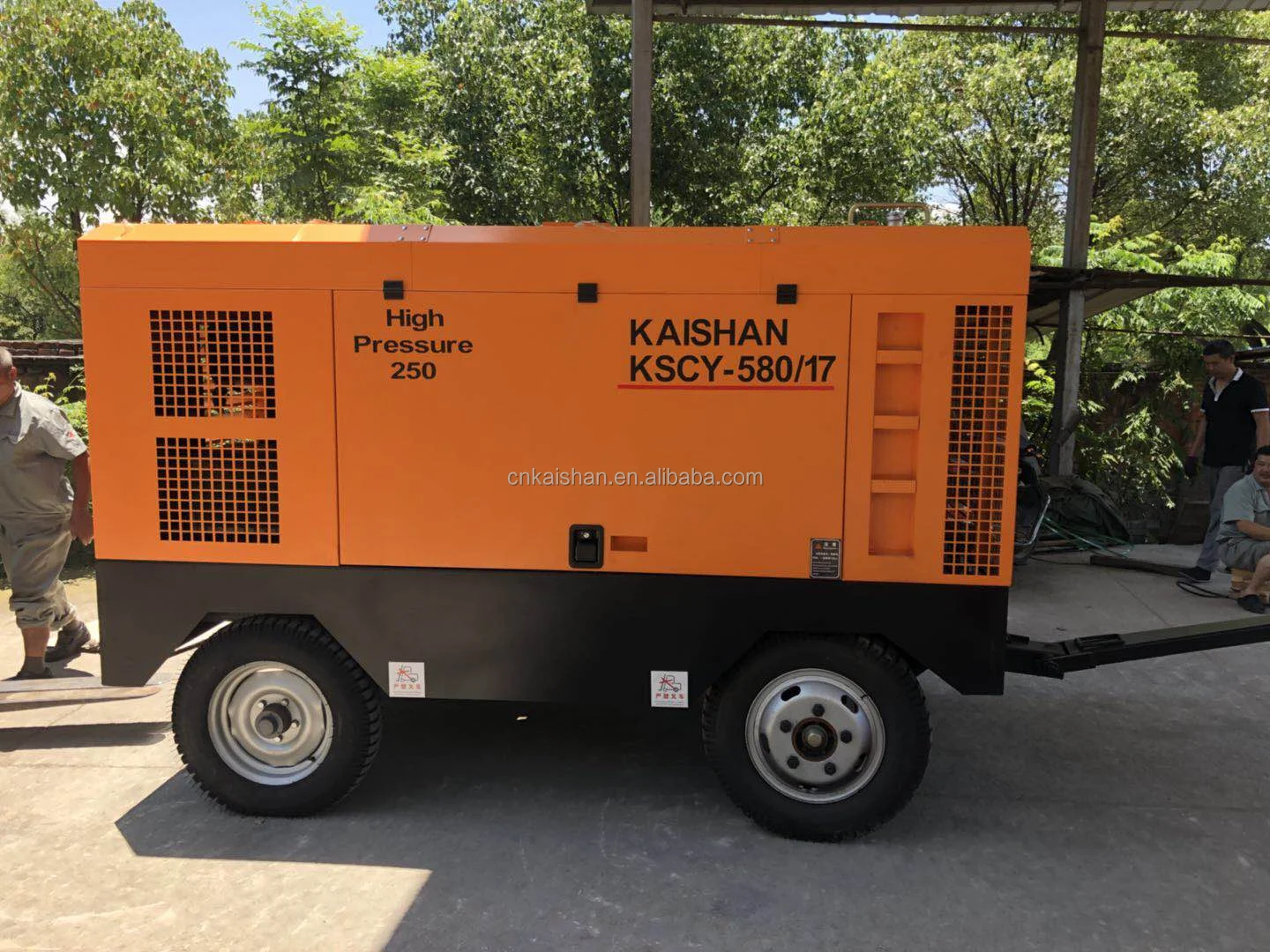

KSCY-580/17 | 1.7 | 17 | 194 | G2×1，G3/4×1 | 3200 | 3200×1800×2450 |
KSCY-580/17 | 1.7 | 17 | 194 | G2×1，G3/4×1 | 3200 | 3200×1800×2450 |
KSCY-680/14.5 | 1.45 | 19 | 194 | G2×1，G3/4×1 | 3200 | 3200×1800×2450 |
KSCY-750/20 | 2 | 22 | 228 | G2×1，G3/4×1 | 3900 | 3300×1800×2300 |
Efficient cooling system
The latest achievements in R&D center of North America, ensure the compressor always state the optimal operation. Independent oil, water, gas cooler with design of large diameter fan, to adapt to the cold and hot summer climate.

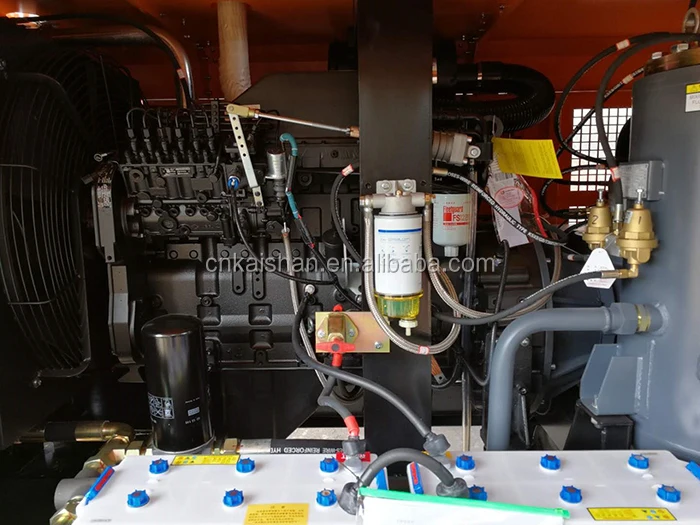

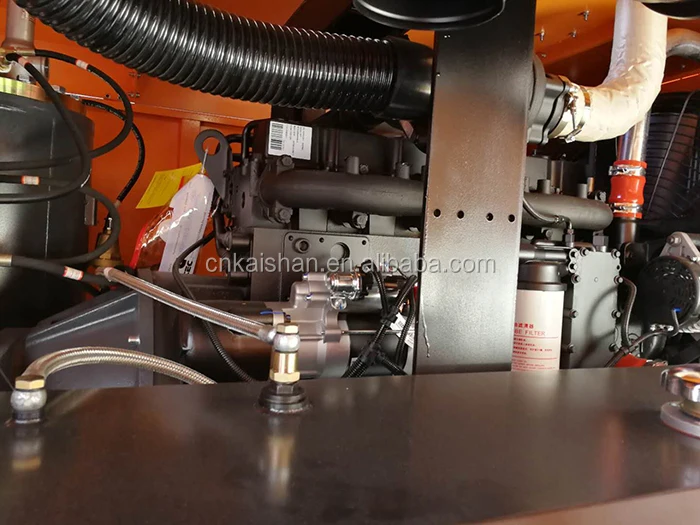

Heavy load EFI diesel engine
Fuel speed control system, electronically controlled high pressure common rail.
Assort cumins, Yuchai etc. diesel engine electronically controlled fuel injection system, according to load condition, electronic control fuel injection quantity precisely, to achieve best combustion state in full range running.
Assort cumins, Yuchai etc. diesel engine electronically controlled fuel injection system, according to load condition, electronic control fuel injection quantity precisely, to achieve best combustion state in full range running.
Triple air filtration system
The patent maintenance-free centrifugal air pre-filter filter out more than 90% of the dust and impurities, make filter maintenance and change cycle prolong 5 times; Whirlwind main air filter precision strainer filtering out the rest of the dust,
ensure there is no wear and tear;The security filter can make the filter maintenance with the machine non-stop, to ensure the safe operation of the machine. Suitable for continuous operation under harsh conditions such as desert and multi-dust.
ensure there is no wear and tear;The security filter can make the filter maintenance with the machine non-stop, to ensure the safe operation of the machine. Suitable for continuous operation under harsh conditions such as desert and multi-dust.
4.Triple oil and gas separation system
Reduce oil separation system too little or too much influence on the oil content of compressed air, always keep the oil content of compressed air less than 3 ppm. Clean compressed air is helpful to safe operation of gas equipment.
5.Computer control system
The interface of microcomputer control system is friendly and intuitive, shows all the running speed, gas supply pressure, oil pressure, exhaust temperature, coolant temperature, fuel level, operation parameters, and has a fault self-diagnosis, alarm and shutdown functions. Simple operation ensure the safe of the machine unattended.
Reduce oil separation system too little or too much influence on the oil content of compressed air, always keep the oil content of compressed air less than 3 ppm. Clean compressed air is helpful to safe operation of gas equipment.
5.Computer control system
The interface of microcomputer control system is friendly and intuitive, shows all the running speed, gas supply pressure, oil pressure, exhaust temperature, coolant temperature, fuel level, operation parameters, and has a fault self-diagnosis, alarm and shutdown functions. Simple operation ensure the safe of the machine unattended.
6.Optional low temperature starting system
Fuel oil heater pump the coolant within the engine block to the heat exchanger, pump the fuel within the fuel tank to burner and burn. Improve the temperature of the cooling liquid, the lubricating oil and the whole machine through the cycle of heat transfer, also ensure starting performance of the diesel engine in cold or high temperature environment.
Fuel oil heater pump the coolant within the engine block to the heat exchanger, pump the fuel within the fuel tank to burner and burn. Improve the temperature of the cooling liquid, the lubricating oil and the whole machine through the cycle of heat transfer, also ensure starting performance of the diesel engine in cold or high temperature environment.

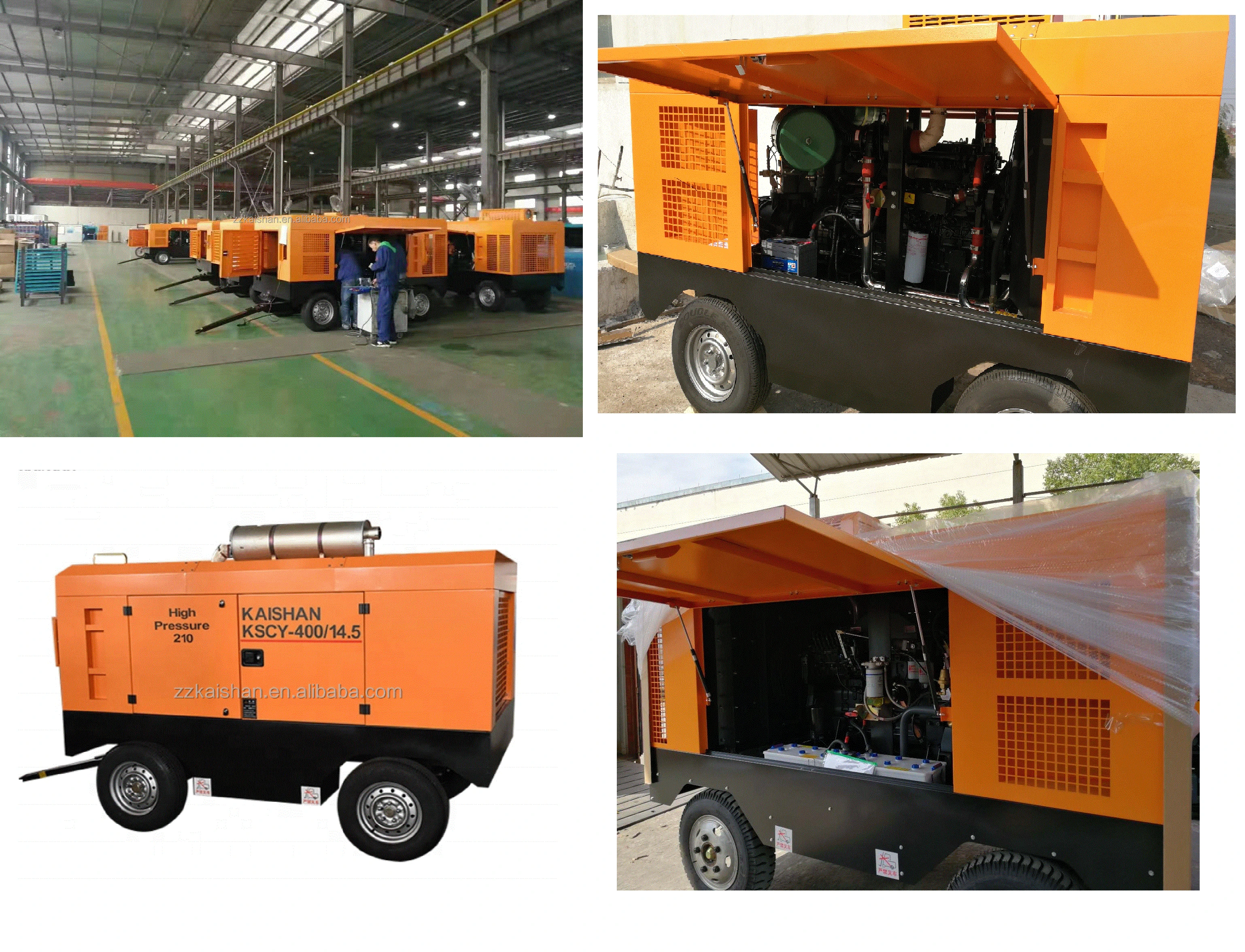

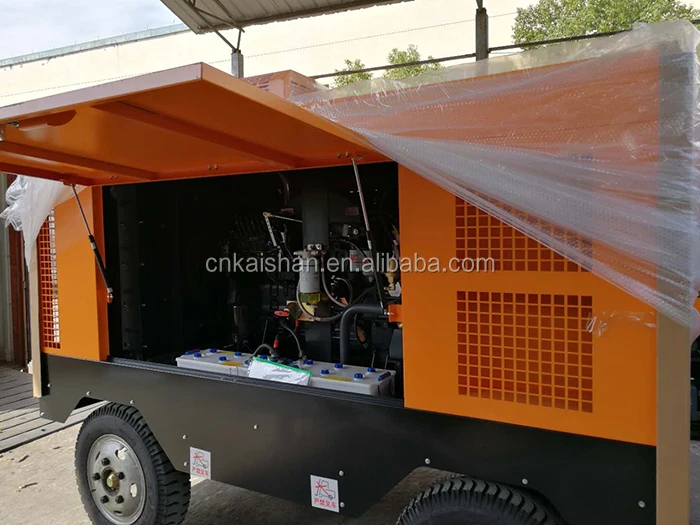

7.Convenient maintenance
Totally enclosed chassis and mute cover design, make the machine more environmental protection, running noise is lower. Spacious open windows and doors, make the maintenance of air filter, oil filter, oil core more convenient. Repair parts can be accessible in range, reduced downtime, maintenance time and maintenance costs.
Totally enclosed chassis and mute cover design, make the machine more environmental protection, running noise is lower. Spacious open windows and doors, make the maintenance of air filter, oil filter, oil core more convenient. Repair parts can be accessible in range, reduced downtime, maintenance time and maintenance costs.
Related Products
Company Profile
Zhengzhou Kaishan Mechanical & Electrical Equipment Co., Ltd.Our company are specialized in this filed for over 25 years with high quality and competitive price. We provide various kinds of high-end rock drilling equipment and air compressors, including borehole drilling rig, screw air compressor, industrial piston air compressor, and construction tools and parts. These products have been widely used in many industries like open pit mines, quarry and construction projects of railway, road, hydroelectric power station, and buildings.We aims at producing and selling high-quality product and providing high quality pre-sale and after-sale service.
Welcome to contact us if you are interested in our products. In addition to our standard products listed on this website, we can also provide OEM and ODM services. Besides, you are also welcome to become one of our agents around the world.
Welcome to contact us if you are interested in our products. In addition to our standard products listed on this website, we can also provide OEM and ODM services. Besides, you are also welcome to become one of our agents around the world.
Exhibition
Certifications
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
A: The main products of our company include blasting drilling rig,water well drilling rig and all kinds of air compressors.
Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C.
Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
A: Yes, we are a professional down the hole drill rig and top hammer drill rig manufacturer.
Q2: What does your company produce?
A: The main products of our company include blasting drilling rig,water well drilling rig and all kinds of air compressors.
Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends on different products.
Q4: What methods of payment do you accept?
A: We accept T/T, L/C.
Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
