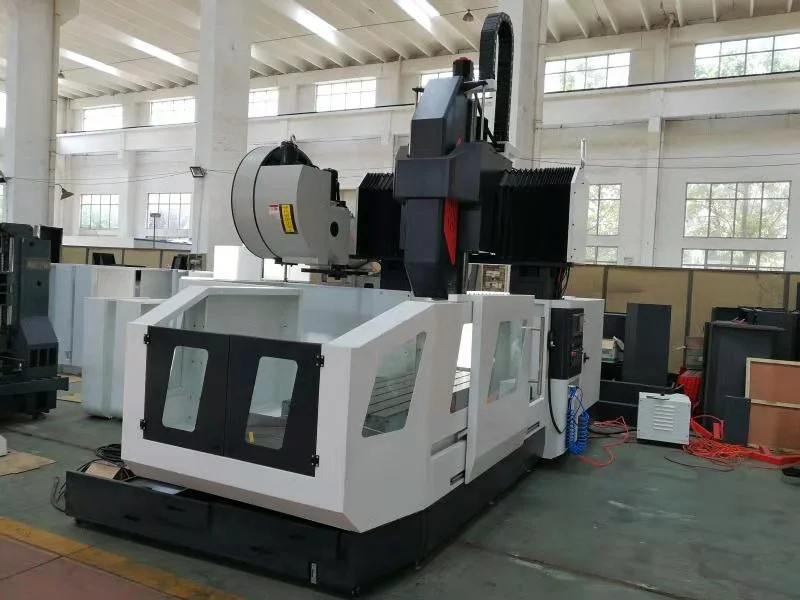

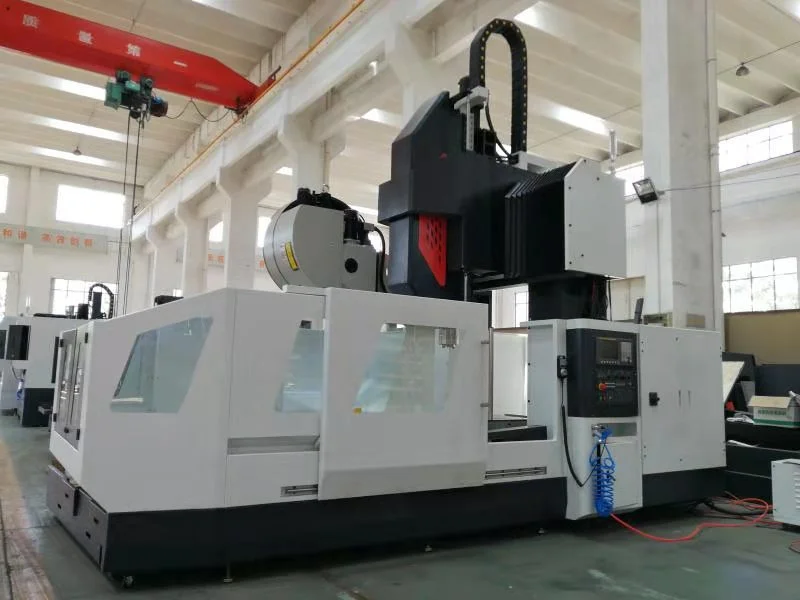

GL2016 SYNTEC controller big CNC VMC machine
- Category: >>>
- Supplier: Shandong Feifan CNC Equipment Co. Ltd.
Share on (1600404355145):
Product Overview
Description
Product Display

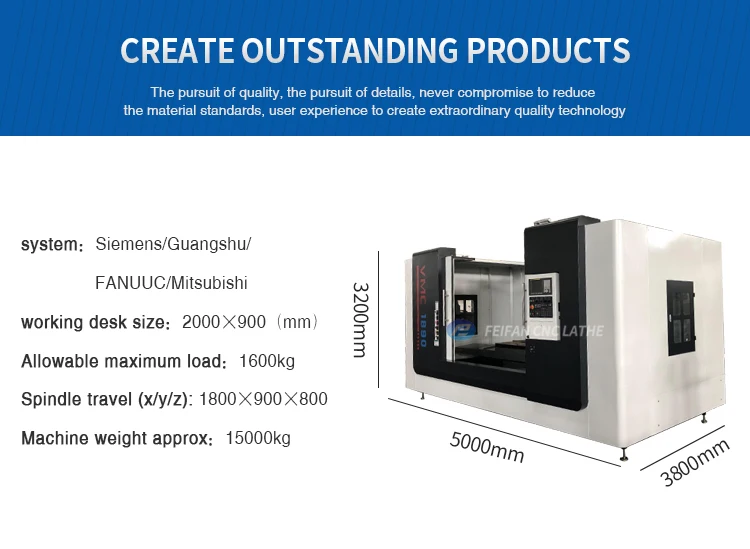

Products Information
item | u | VMC1890 | ||
travel | X | mm | 1800 | |
Y | mm | 900 | ||
Z | mm | 900 | ||
table | Size of table | mm | 2000×900 | |
Max load | kg | 1600 | ||
T-slot | mm | 5-22-165 | ||
spindle | Spindle taper | BT50 | ||
Spindle power | kW | 18.5/23 | ||
spindle speed | rpm | 6000 | ||
feeding | feeding speed(X/Y) | mm/min | 15000 | |
feeding speed(Z) | mm/min | 12000 | ||
feeding cutting | mm/min | 1-5000 | ||
feeding motor (X/Y/Z) | NM | 32/40/32 | ||
Screw | X/Y/Z轴 | mm | 55×12 | |
Tool magasin | diameter | mm | Φ127/Φ200 | |
Max length of cutting | mm | 350 | ||
Max load | kg | 15 | ||
accuracy | Processing accuracy | mm | ±0.01 | |
repatability | mm | ±0.0075 | ||
Net weight(About) | kg | 15000 | ||
Main Products
Packaging and Shipping
1. Packing method: wooden cases can also be packed according to customers' requirements.
2. Mode of transport: by sea or by land.
2. Mode of transport: by sea or by land.

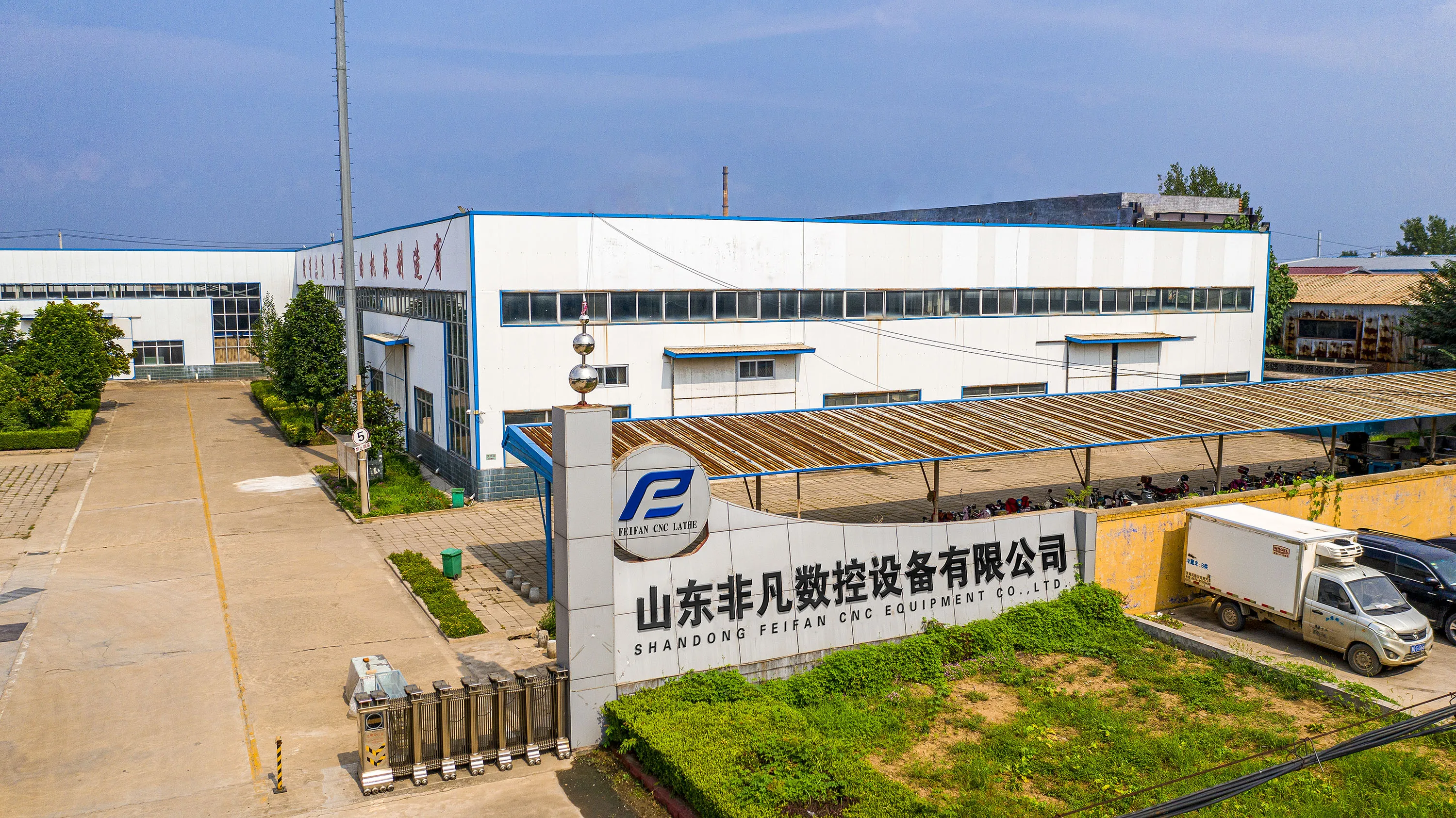

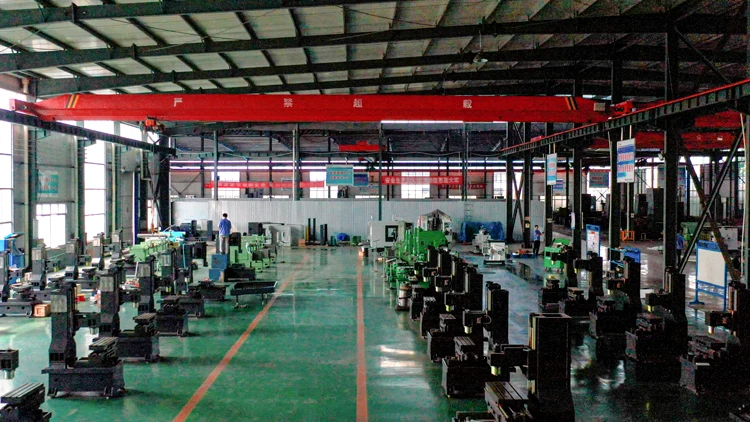

Company Information
Shandong Feifan CNC Equipment Co., Ltd. covers an area of 360,000 square meters and is a high-tech enterprise specializing in the research and development, production, sales and service of CNC machine tools. Investment promotion projects.
The company is committed to the development, production, sales and service of the whole machine from casting raw materials to casting processing. The company cooperated with Shandong University to establish a scientific research achievement transformation base. In 2010, it also established an academician workstation in cooperation with East China University of Science and Technology. Development center, information data processing center, product supervision and testing center and measurement room, new product development and enterprise information management all adopt CAD. The company has 367 engineers and technicians, and 432 sets of main production equipment and key testing and debugging instruments. By absorbing advanced foreign technology, the company cooperates with colleges and universities and combines its own R&D and design. Main products: Gantry type, horizontal/vertical machining center, CNC milling machine, CNC drilling and milling machine, CNC lathe. We are good at customizing various CNC machines according to customer needs.
The company is committed to the development, production, sales and service of the whole machine from casting raw materials to casting processing. The company cooperated with Shandong University to establish a scientific research achievement transformation base. In 2010, it also established an academician workstation in cooperation with East China University of Science and Technology. Development center, information data processing center, product supervision and testing center and measurement room, new product development and enterprise information management all adopt CAD. The company has 367 engineers and technicians, and 432 sets of main production equipment and key testing and debugging instruments. By absorbing advanced foreign technology, the company cooperates with colleges and universities and combines its own R&D and design. Main products: Gantry type, horizontal/vertical machining center, CNC milling machine, CNC drilling and milling machine, CNC lathe. We are good at customizing various CNC machines according to customer needs.
Certificate
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2:What's your main products of your company?
2:What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine and so on .
3: Where is our factory located? How can I visit there?
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. Whatis your trade terms?
A : FOB, CFR and CIF all acceptable.
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: Your products can be customized?
A: of course, if our product can't meet your needs, tell us the model and send us the drawing, recommend suitable products to you, we can also design and produce the machine meet your requirements.
