MX5068 Woodworking spindle moulder shaper with tilting angle

Product Overview

Description

Introduction of MX5068 Woodworking spindle moulder shaper with tilting angle

MX5068, MX5067, MX5078 woodworking routers can be installed with a variety of milling tools, chamfer polishing, contouring, round holes, irregular holes, and simple milling reliefs, etc. Preferred machine

The MX5078 table is upgraded and enlarged with a router. The groove in the middle of the table is more fitted to the shape of the human body, which saves labor and speeds up workers.



Parameter of MX5068 Woodworking spindle moulder shaper with tilting angle



Model	MX5068	MX5078	MX5067
Motor power	3kw/4kw	3/4kw	2.2/3kw
Working table	800*700mm	800*750mm	700*500mm
Working table tilting angle	0~45degree
Working air pressure	0.6~0.8Mpa
Spindle speed	18000r/min  or 10000/20000r/min	18000r/min
Working table Lifting stroke	180mm		80mm
Max. Processing thickness	150mm		130mm
Max.spindle stroke	65mm	65mm	40mm
Type	Single speed or double speed type	Single speed
Spindle clamp diameter	6.3/12.7mm
Dimension	1500*900*1700mm	1650x950x1700mm	1600*770*1500mm
Weight	400kg	450kg	260kg

Feature of MX5068 Woodworking spindle moulder shaper with tilting angle



Grooving, milling, polishing, drilling, chamfering, contouring

High precision, both spindle and table can be lifted

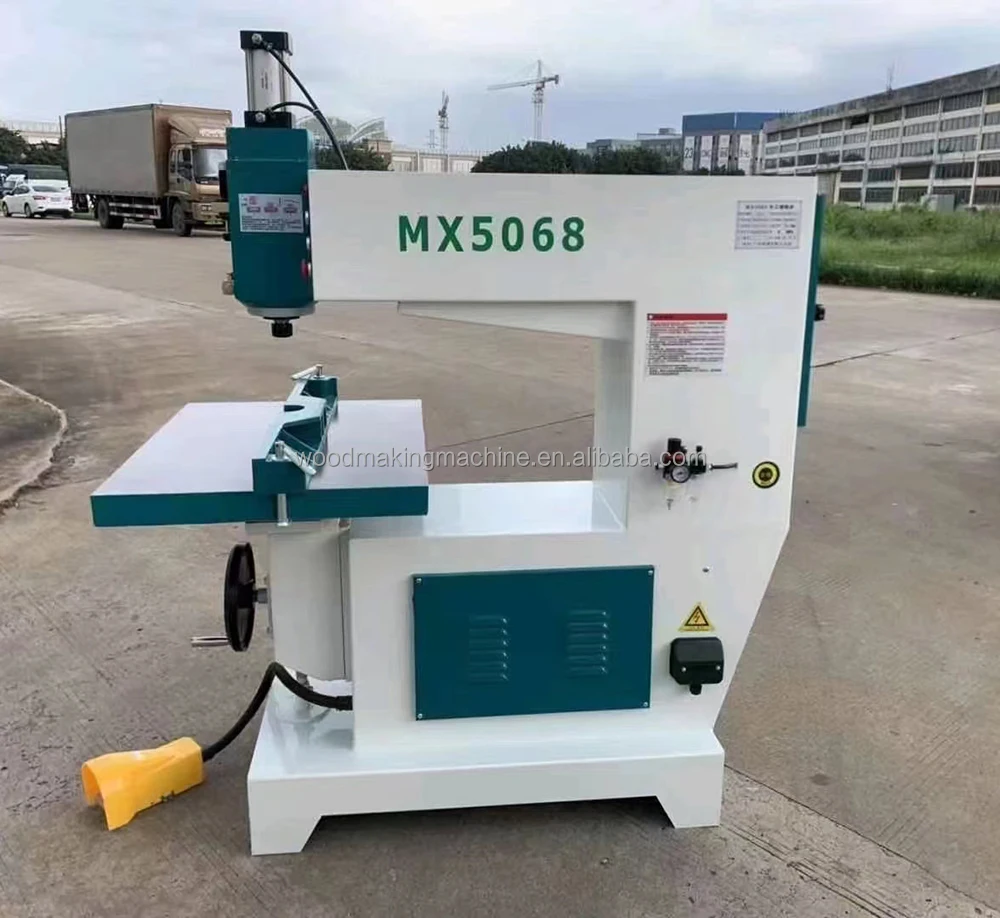

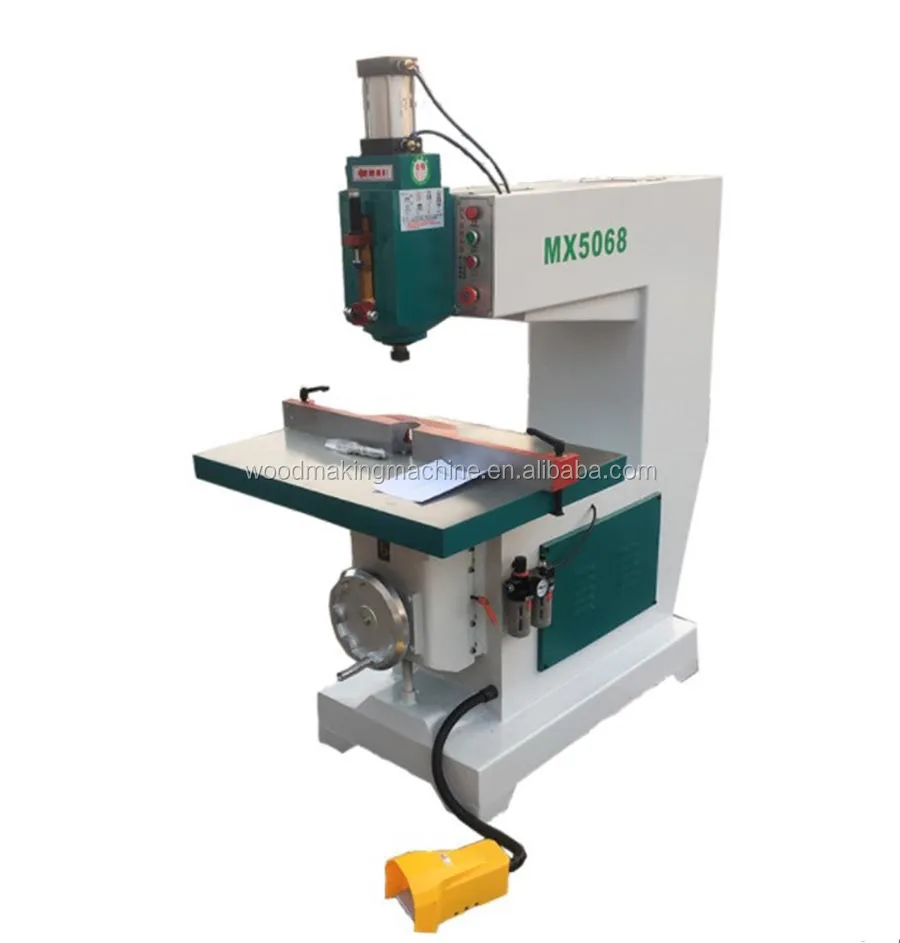

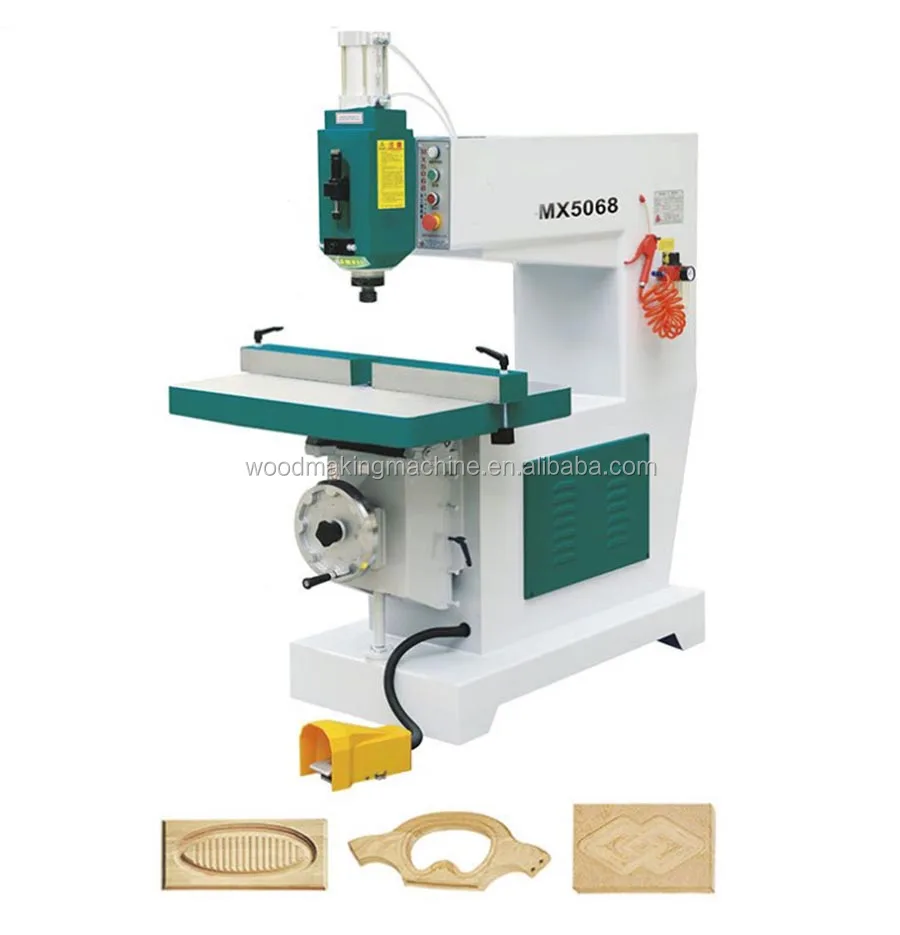

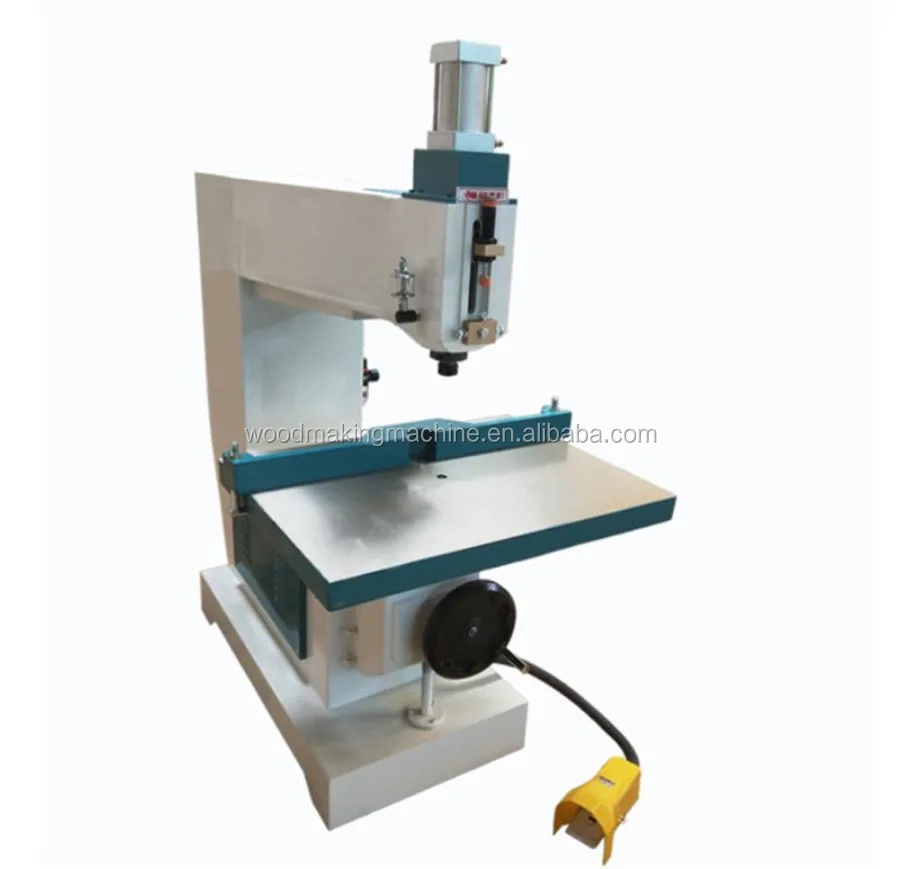

Photo of MX5068 Woodworking spindle moulder shaper with tilting angle
