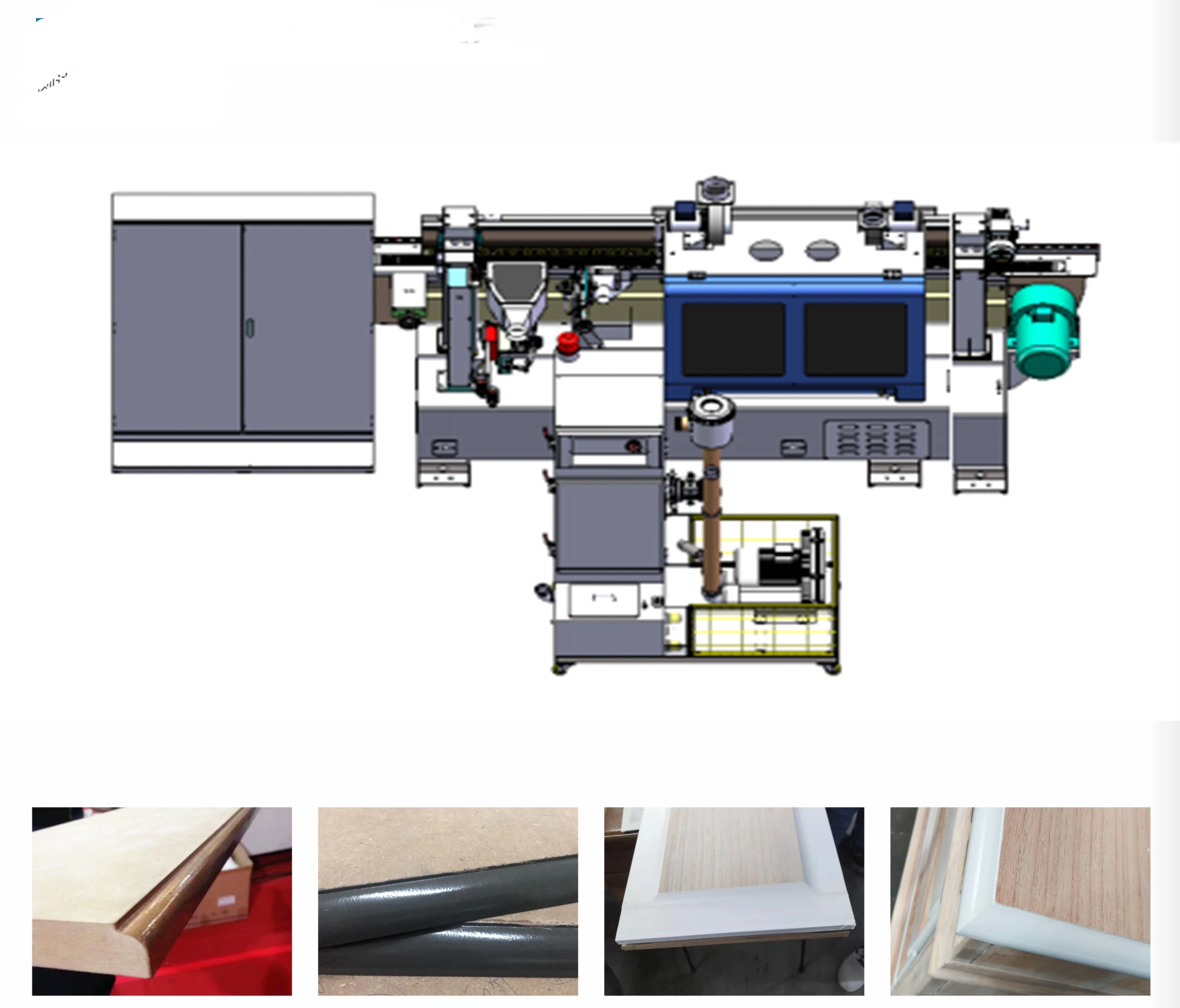

Wood edge side UV Machine Coating Machine
- Category: Other Woodworking Machinery >>>
- Supplier: Foshan Yowing Machinery Co. Ltd.
Share on (1600404402139):
Product Overview
Description
Product Description
Wood edge coating painting /end coating painting /curing vacuum coating system for cabinet, wardrobes, furnitirue

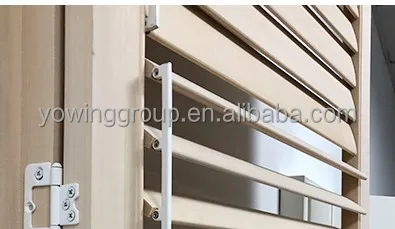

shutters, louvers,drawers,etc.
1. This machine is available to coat the edges three times with UV application.
2. This machine adopts three times coating, together with the UV dryer, to have the painting and drying and sanding simultaneously.
3. That can effectively raise the efficiency,save waiting time, combine sanding, coating, and drying at one time in one machine.
4. Good helper for doors, cabinets, furniture, drawers.
2. This machine adopts three times coating, together with the UV dryer, to have the painting and drying and sanding simultaneously.
3. That can effectively raise the efficiency,save waiting time, combine sanding, coating, and drying at one time in one machine.
4. Good helper for doors, cabinets, furniture, drawers.
Specification
Model | MMP-W4C2-T2G3 | MMP-W4C2-T2G4 | |
Working width | ≧60mm | ||
Working thickness | 100mm | ||
Working length | ≧35mm | ||
Dust cleaning motor | 0.37kw*2 | ||
Sanding spindle motor | 1.5kw*4 | 1.5kw*4 | |
Painting motor | 3kw*2 | 3kw*2 | |
Drying lights | 3KW*3 | 3KW*4 | |
Feeding speed | 0-24m/min | ||
Paint thickness/time | 15-80g/ m2 | ||
Feeding motor | 3kw | ||
Machine Details

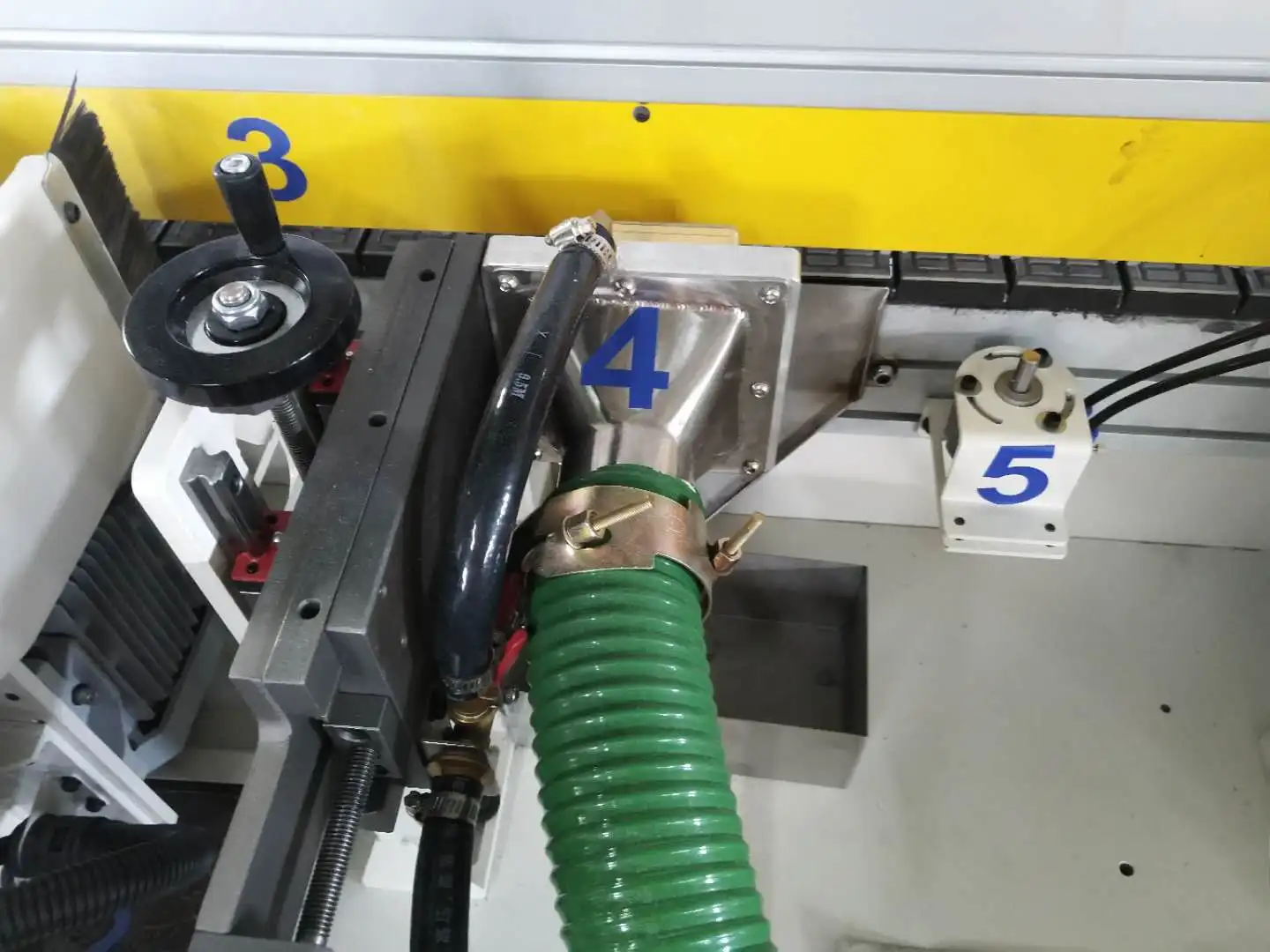

Vacuum painting coating head
Illustration：
1. Use special process and professional vacuum painting head, High efficient,saving-energy, friendly -environment,high speed

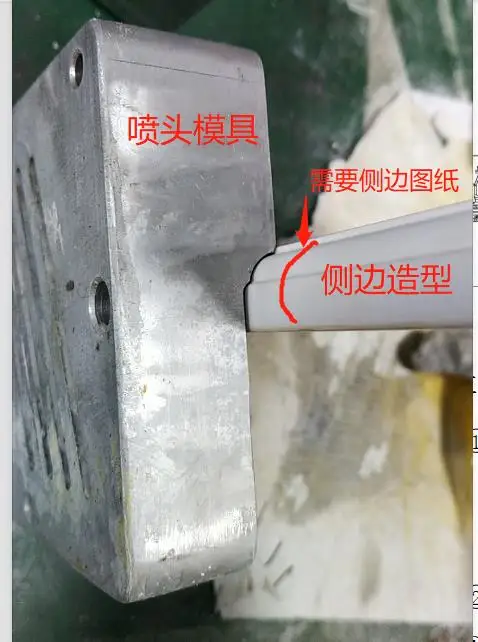

2. can coat straight and profile edges. According to different edges, will develop their painting module head.15-80g/ m2, wide
adjustment
adjustment
3. can get thick paint thickness.

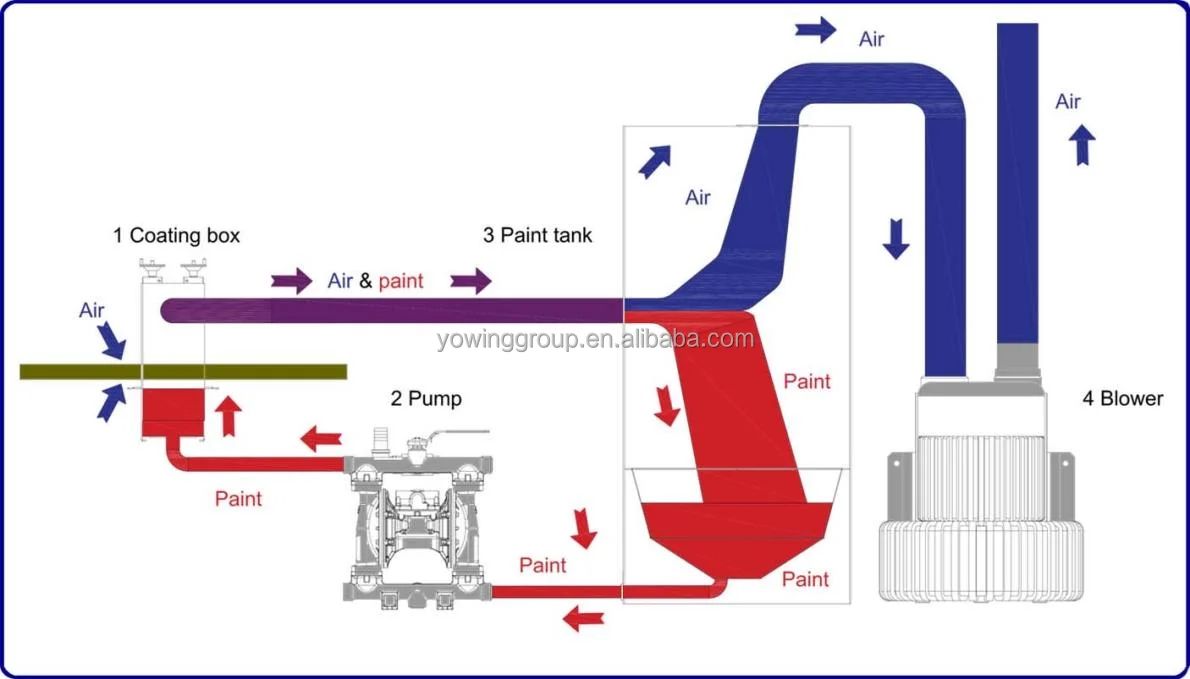

Air flow for painting system
1. A procedure without waste and over spray that ensures reduced unit costs.
2. A procedure without waste and over spray that ensures reduced unit costs.
.
.

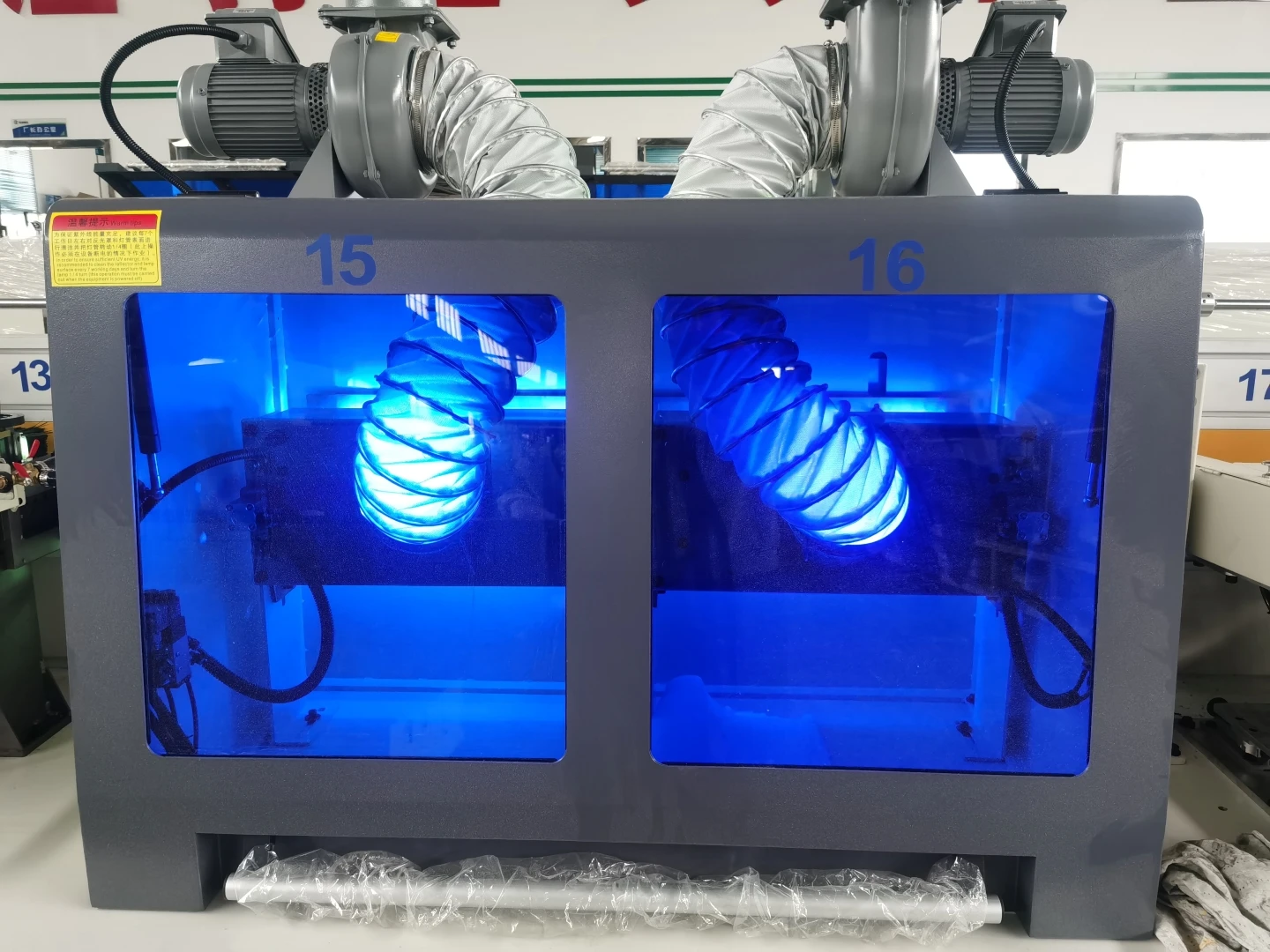

UV Curing system
①Gallium light：mostly for colors,like white, black,etc and fully dry.
②Mercury light：Mostly for transparent and half dry.
②Mercury light：Mostly for transparent and half dry.

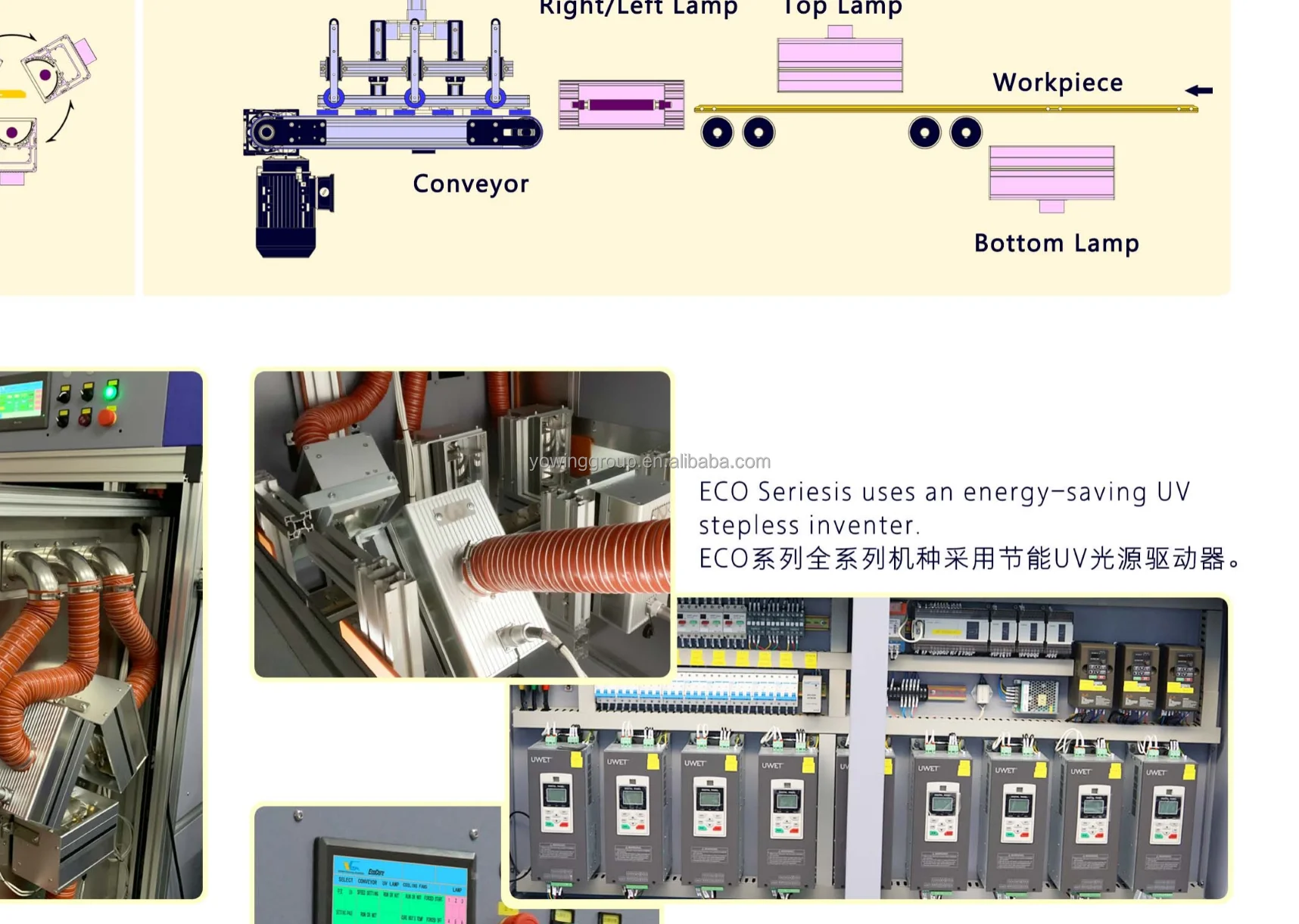

UV curing system UV light
① uses an energy-saving UV stepless inverter.
②UV intensity stepless adjustable, easy to obtain 15-100% of any UV energy value.
②UV intensity stepless adjustable, easy to obtain 15-100% of any UV energy value.
③The UV lamps have automatic standby function, automatically enter the working energy when the work pieces are coming, and automatically low energy standby energy saving when there is no work piece.
UV Curing system
①Gallium light：mostly for colors,like white, black,etc and fully dry.
②Mercury light：Mostly for transparent and half dry.
②Mercury light：Mostly for transparent and half dry.

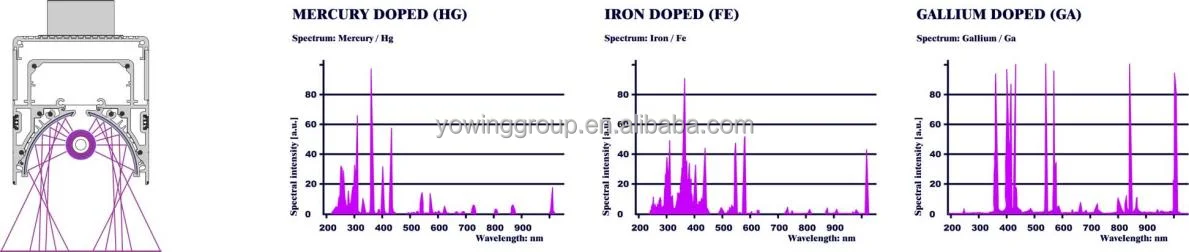

Spectral analysis
Spectral analysis

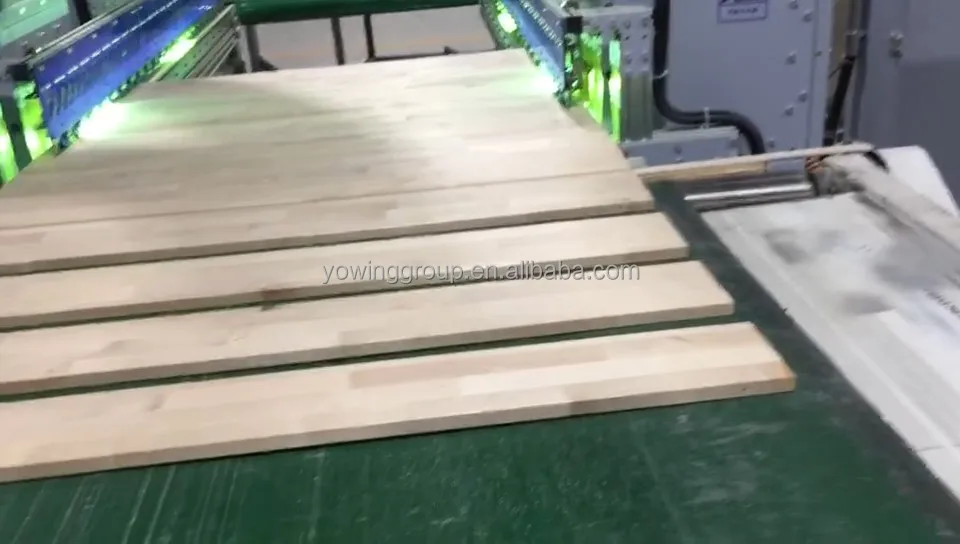

UV edge curing part for drying immediately
Spectral analysis
Sanding Heads can be:
Chinese profile sand.
It is used to make profile on it and sand profiles , can sand raw wood and primer wood.Made in China and economicl.
Imported profile sand.
It can be many type of profile wheel, it is durable and easy to make profile on it. Imported and worthy.
Taiwan Sponge wheel.
It is used to sand straight edges , can be working with different grit sanding belt and sand raw wood and primer.
Brush sand.
It is used to polish whole surface for second or final sand.
Octagonal papers
It is with many papers together and can touch grooves very well.
Triangle sand.
We can also help change to Triangle sand if necessary, It is used to roughly sand straight wood.

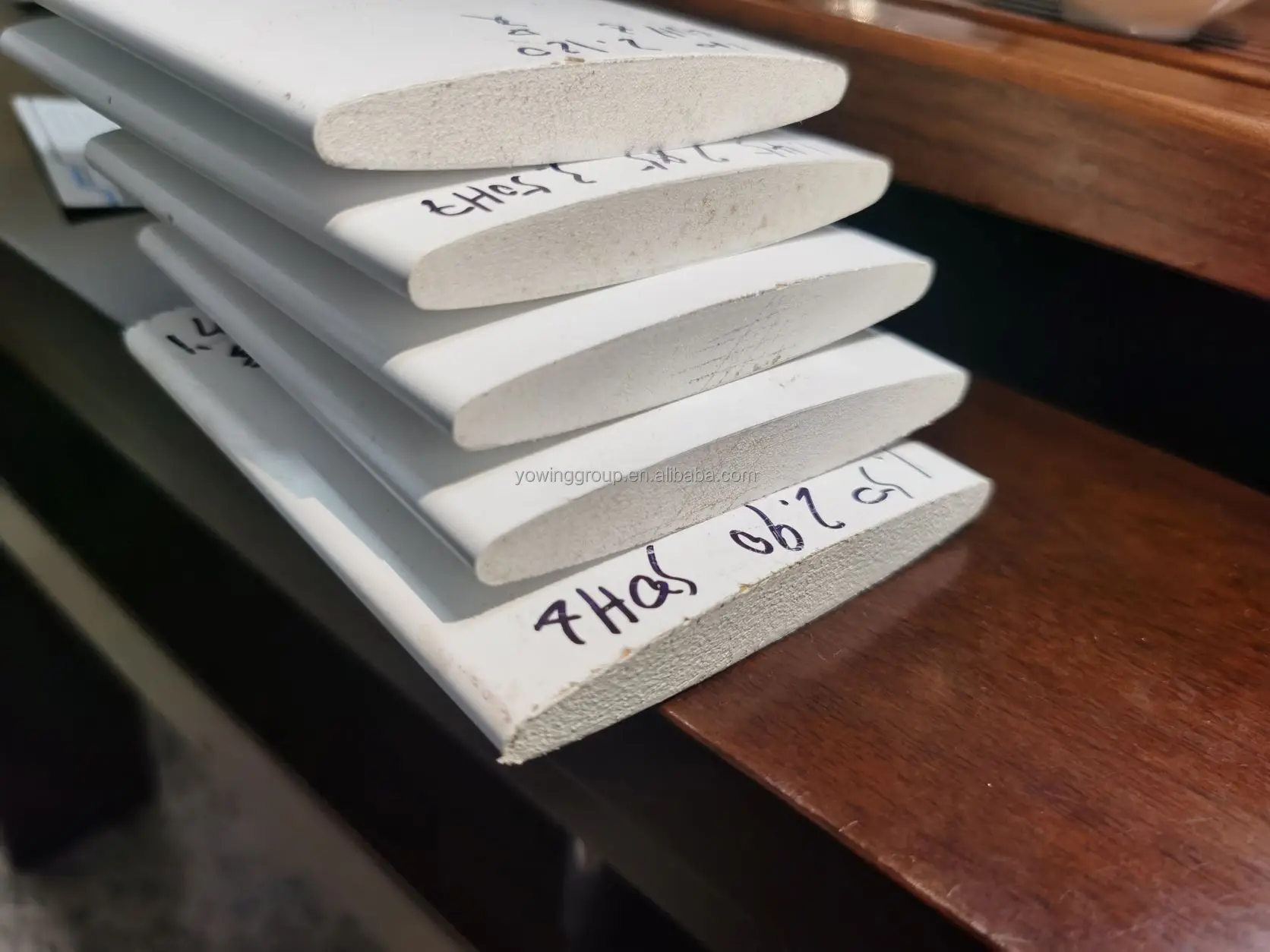

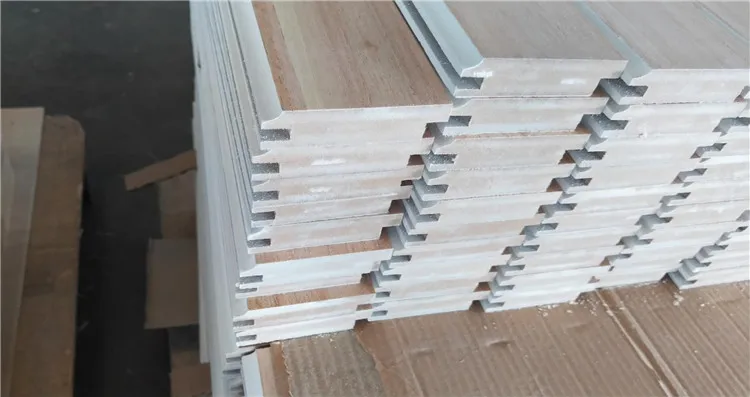

Application of Scope
Usages:

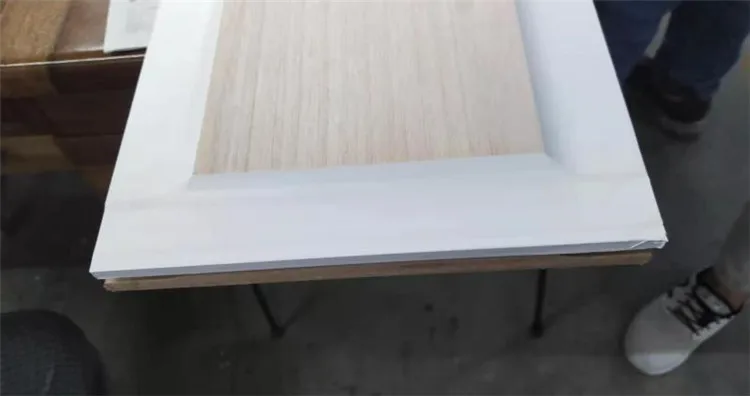

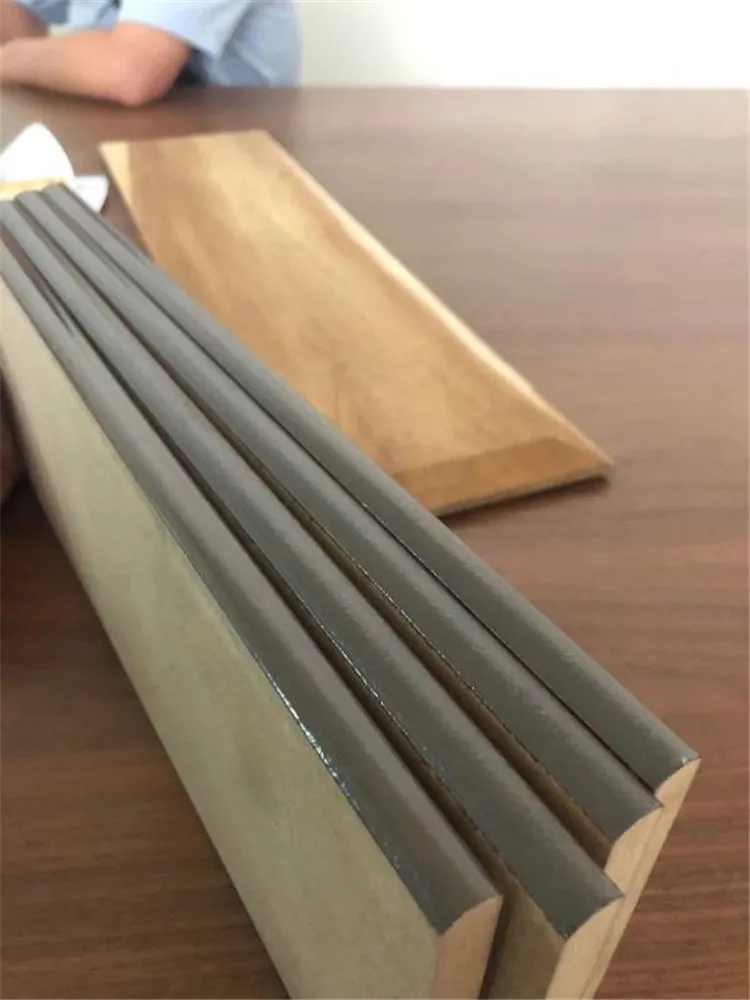

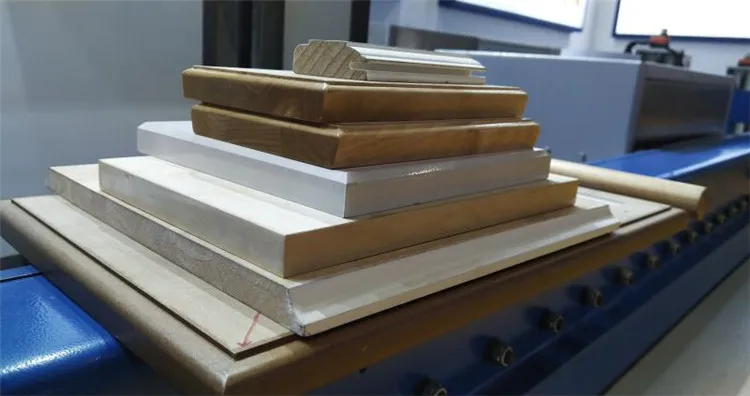

1.Sanding and coating together for door, cabinets edges

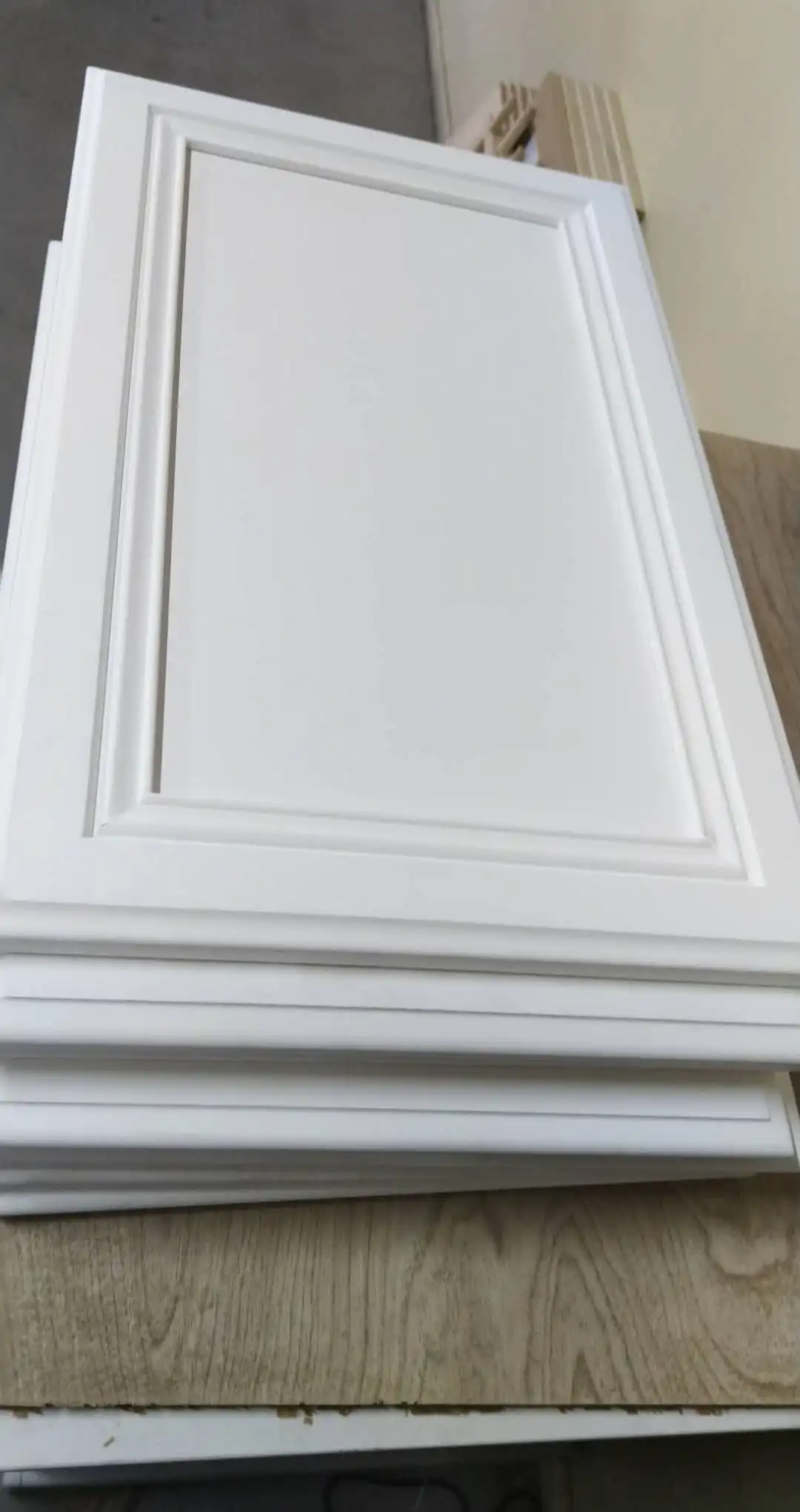

2.For more colors: transparent, white, coffee,etc.
3.From base coating to top coating at one time.

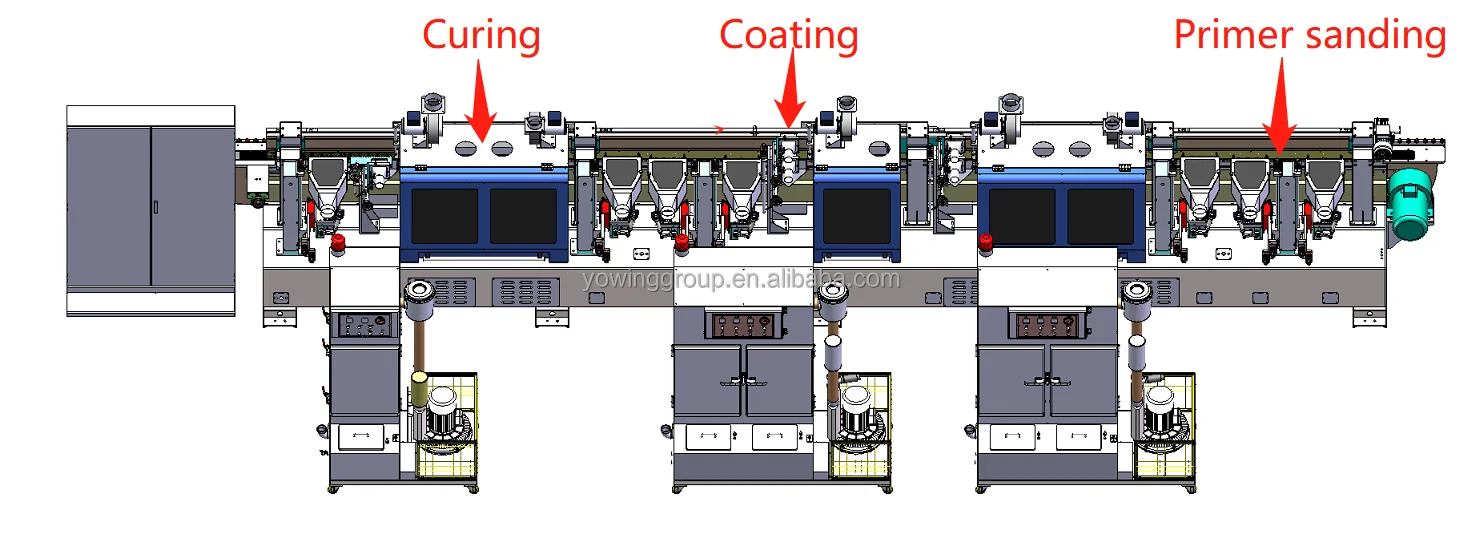

More Combination for Option

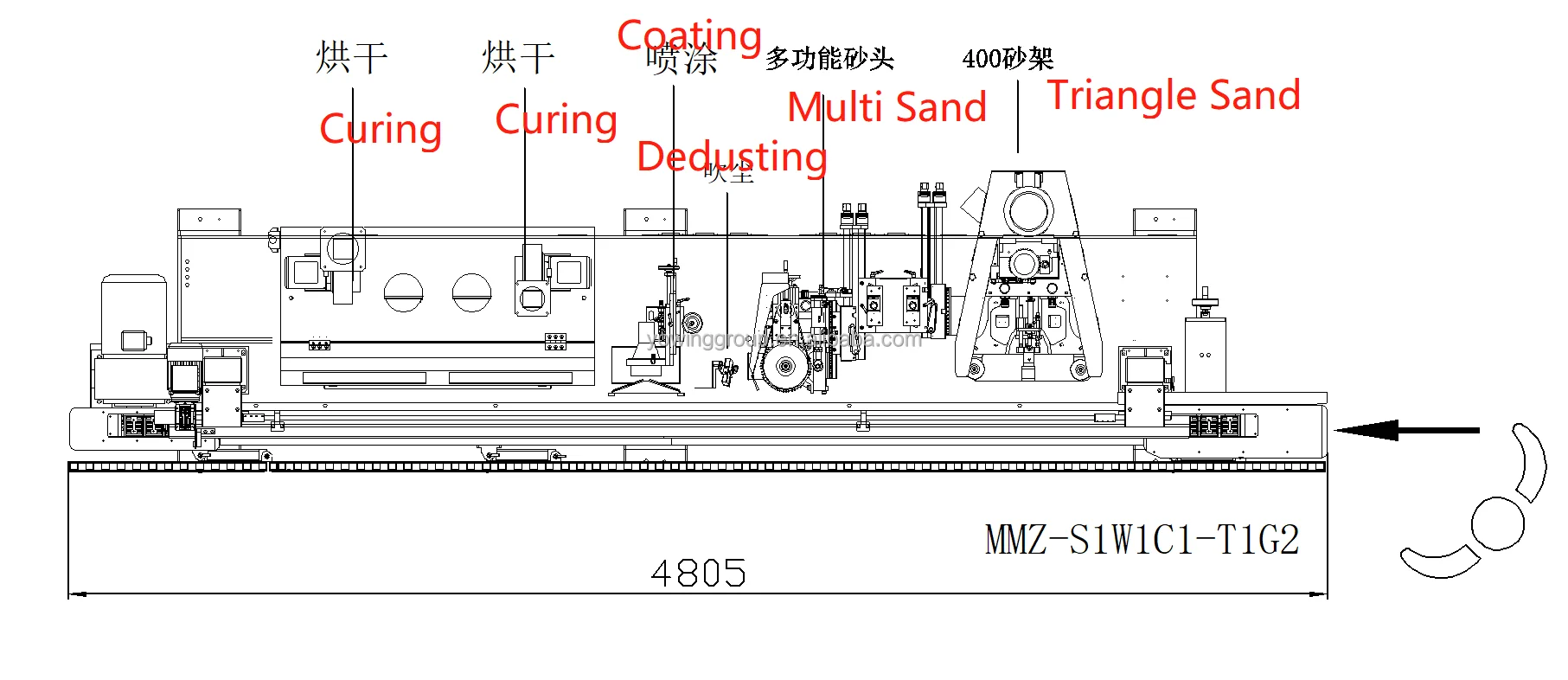

MMZ-S1W1C1-T1G2
Triangle sand----Sponge wheel sand---Painting---Drying---Drying--feeding out

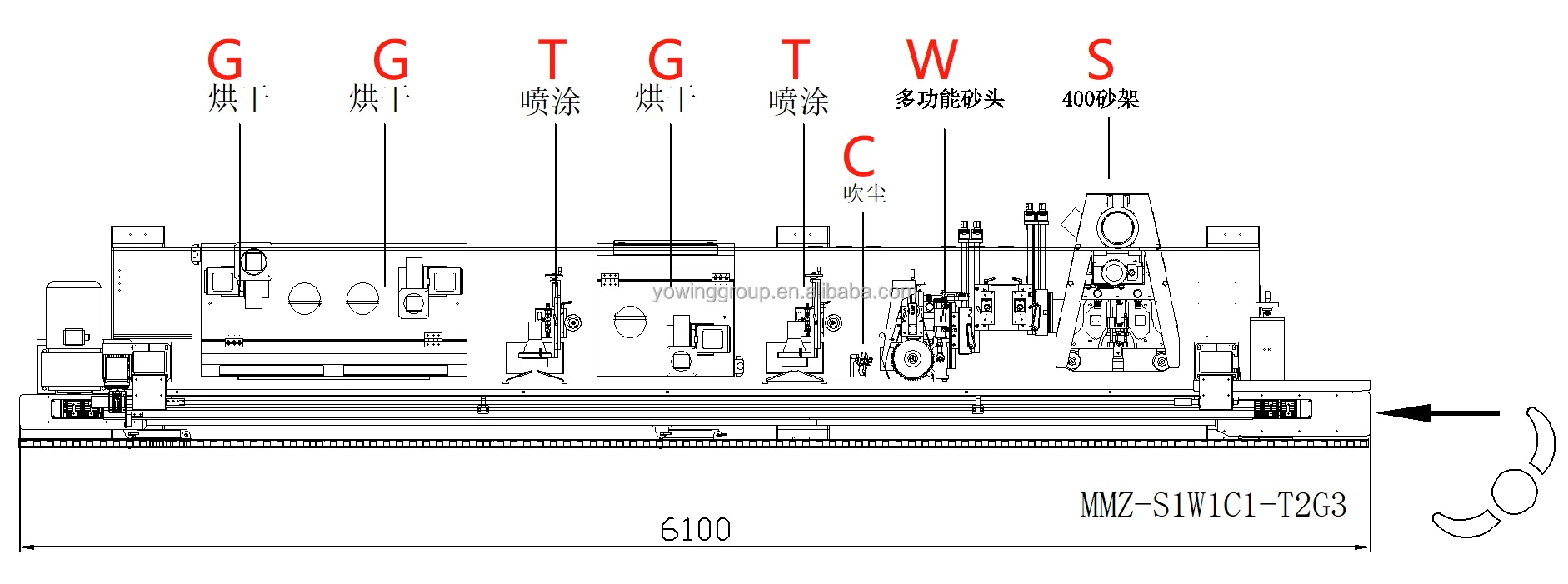

MMZ-S1W1C1-T2G3
Triangle sand----Sponge wheel sand---Painting---Drying---Painting---Drying---Drying--feeding out
MMZ-W7C2-T3G5
Polishing---Painting---Drying---Sanding---Painting---Drying---Painting----Drying--feeding out
