Double Satellite LED Operation Light Surgery Lamp Operation Theater Light Medical Surgery LED Shadowless Lamp
- Category: >>>
- Supplier: Shanghai Qinli Medical Equipment Sales Center(limited Partnership)
Share on (1600404424714):
Product Overview
Description

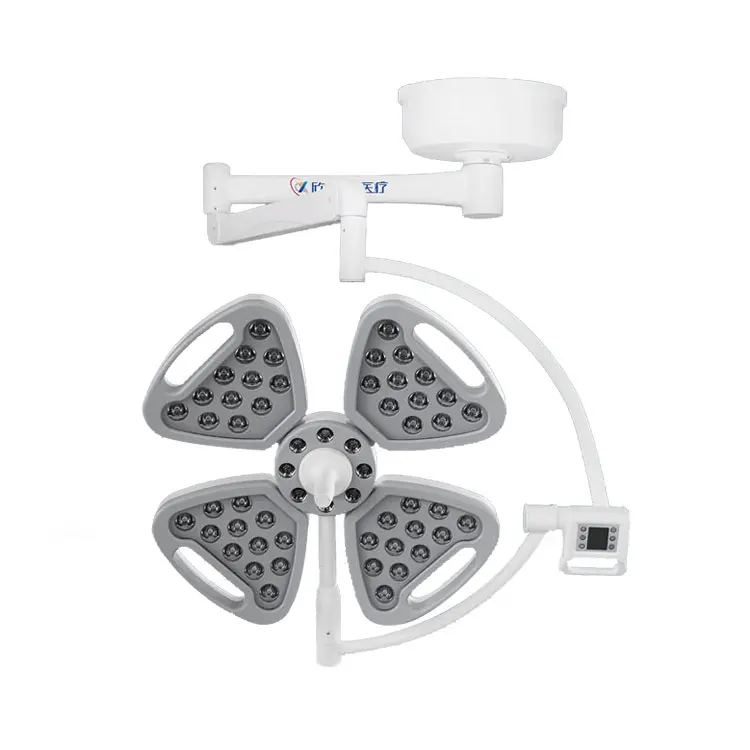

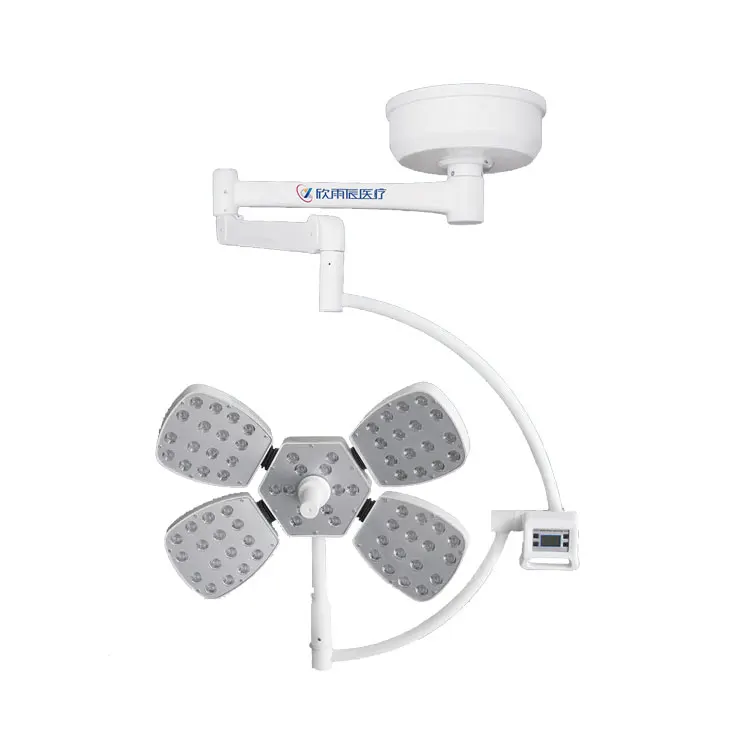

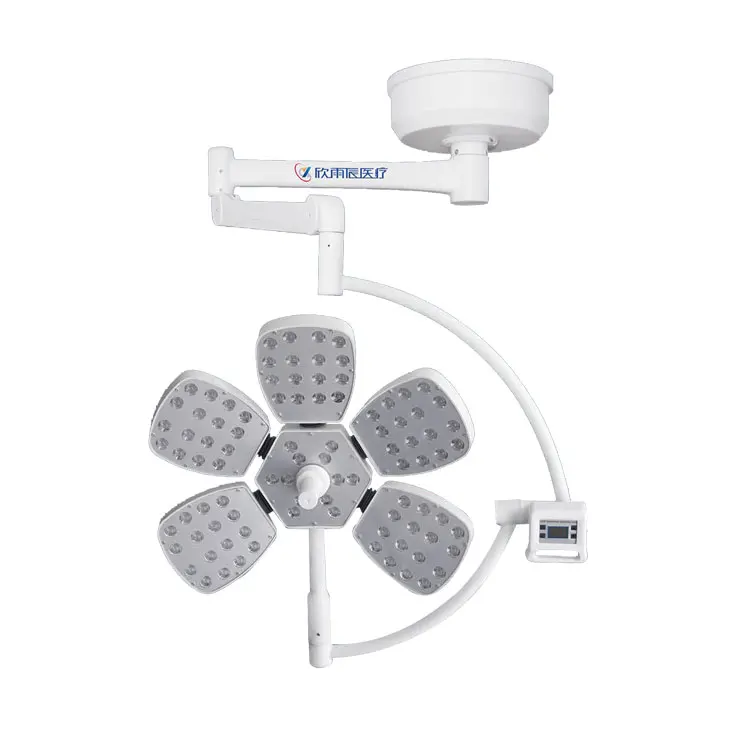

flower shape led surgical light operating lamp
Features:
1.The flat and streamlined design of the lamp cap greatly reduces the influence of the lamp panel on laminar flow with excellent low heat production, which is more in line with the requirements of the full laminar flow operating room.
2.The lamp beads are imported from Germany "OSRAM (OSRAM)" brand, using a special optical system, 360 ° uniformly illuminated on the observed object, no shadows, high definition, excellent color reproduction and standard natural white light, true reproduction of the organization Color, and achieve constant color temperature under any light intensity, impact resistance, not easy to break, no mercury pollution, and the emitted light does not contain infrared and ultraviolet radiation pollution.
3.The balancer adopts the German imported "ONDAL" brand, and its excellent control performance prevents the drift and instability of the lamp arm.
4.The coating is sprayed with world-leading Akzo Nobel powder coating and anti-glare treatment, which meets the demanding requirements of surgical lighting. The design of the lamp holder focuses on reducing the turbulence. The streamlined lampshade of the whole lamp arm is carefully designed according to the principle of aerodynamics, which fully meets the The standard of a modern new operating room.
5.Pure DC power supply eliminates stroboscopic conditions, does not cause eye fatigue, and does not cause harmonic interference to other equipment in the work area, which improves work efficiency.
2.The lamp beads are imported from Germany "OSRAM (OSRAM)" brand, using a special optical system, 360 ° uniformly illuminated on the observed object, no shadows, high definition, excellent color reproduction and standard natural white light, true reproduction of the organization Color, and achieve constant color temperature under any light intensity, impact resistance, not easy to break, no mercury pollution, and the emitted light does not contain infrared and ultraviolet radiation pollution.
3.The balancer adopts the German imported "ONDAL" brand, and its excellent control performance prevents the drift and instability of the lamp arm.
4.The coating is sprayed with world-leading Akzo Nobel powder coating and anti-glare treatment, which meets the demanding requirements of surgical lighting. The design of the lamp holder focuses on reducing the turbulence. The streamlined lampshade of the whole lamp arm is carefully designed according to the principle of aerodynamics, which fully meets the The standard of a modern new operating room.
5.Pure DC power supply eliminates stroboscopic conditions, does not cause eye fatigue, and does not cause harmonic interference to other equipment in the work area, which improves work efficiency.
Specifications: | ||
Lamp model: | HB-LED | |
Diameter Of Lamp Cap | 720mm | |
Illumination Intensity | 160,000 Lux | |
Color Temperature | 4300±500 K | |
Light Spot Diameter | 100-300 mm | |
Depth of Focus | ≥1200 mm | |
Brightness Adjustment (Stepless) | 1-100 | |
CRI | ≥97% | |
RA | ≥97% | |
Surgeon’s head temperature rise | ≤1℃ | |
Temperature rise of the operator's working range | ≤2℃ | |
Power Supply | 220V±22V 50HZ±1HZ | |
LED Services Life | ≥60,000 hours | |
Best Install Height | 2800-3000mm | |
Single style
HB-3HLED-S
HB-4HLED-S
HB-4XHLED-S
HB-5LED-S

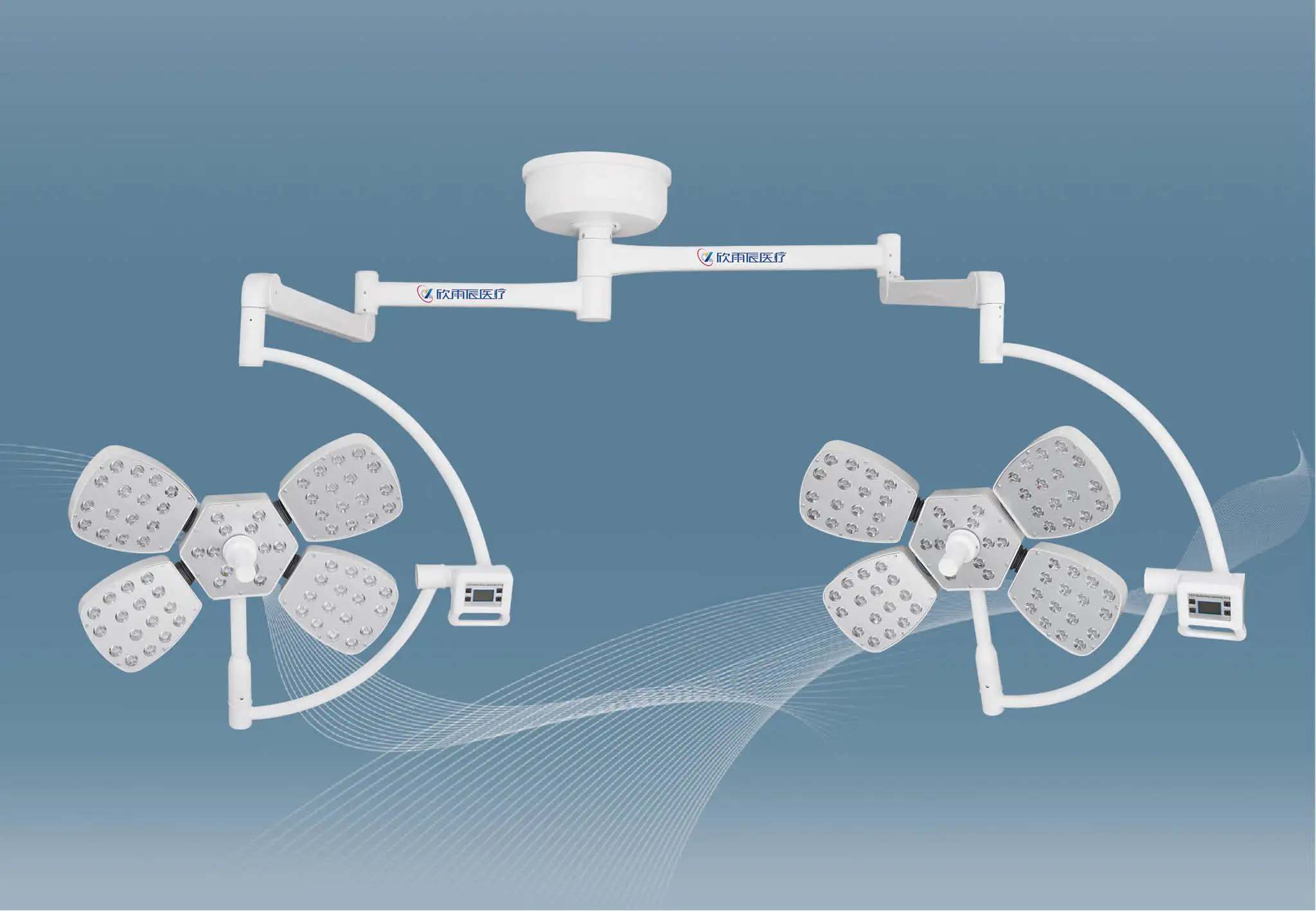

Double style
HB-3HLED-D
HB-4HLED-D
HB-4XHLED-D
HB-5HLED-D
With camera
HBSX-5HLED-D
HBSX-4XHLED-S
The Effect
About the factory
Xinyuchen Medical Group has nearly 400 employees, including R&D department, production department, sales department, foreign trade department, quality inspection department, after-sales department and other departments. The company has a group of R&D personnel with many years of professional technology and experience, as well as production and processing. It also has a set of superb, complete and skilled production processes in machining, stamping, welding, plastic spraying, assembly to inspection, and has relatively advanced processing and manufacturing capabilities in the country.
The company's main products include: surgical shadowless lamp series, electric operating table series, medical pendant bridge series, medical bed series, medical carts and stainless steel series, etc., more than 200 specifications.
All products of Shandong Xinyuchen Medical Equipment Group Co., Ltd. have passed the EU CE safety certification, ISO9001 quality assurance system, ISO13485 medical device quality management system, ISO14001 environmental management system, ISO18001 occupational health and safety management system certification and other honorary qualification certificates, and established The comprehensive, standard and standardized management system effectively guarantees the operation of the quality management system.
The company's main products include: surgical shadowless lamp series, electric operating table series, medical pendant bridge series, medical bed series, medical carts and stainless steel series, etc., more than 200 specifications.
All products of Shandong Xinyuchen Medical Equipment Group Co., Ltd. have passed the EU CE safety certification, ISO9001 quality assurance system, ISO13485 medical device quality management system, ISO14001 environmental management system, ISO18001 occupational health and safety management system certification and other honorary qualification certificates, and established The comprehensive, standard and standardized management system effectively guarantees the operation of the quality management system.
