Product Overview
Description

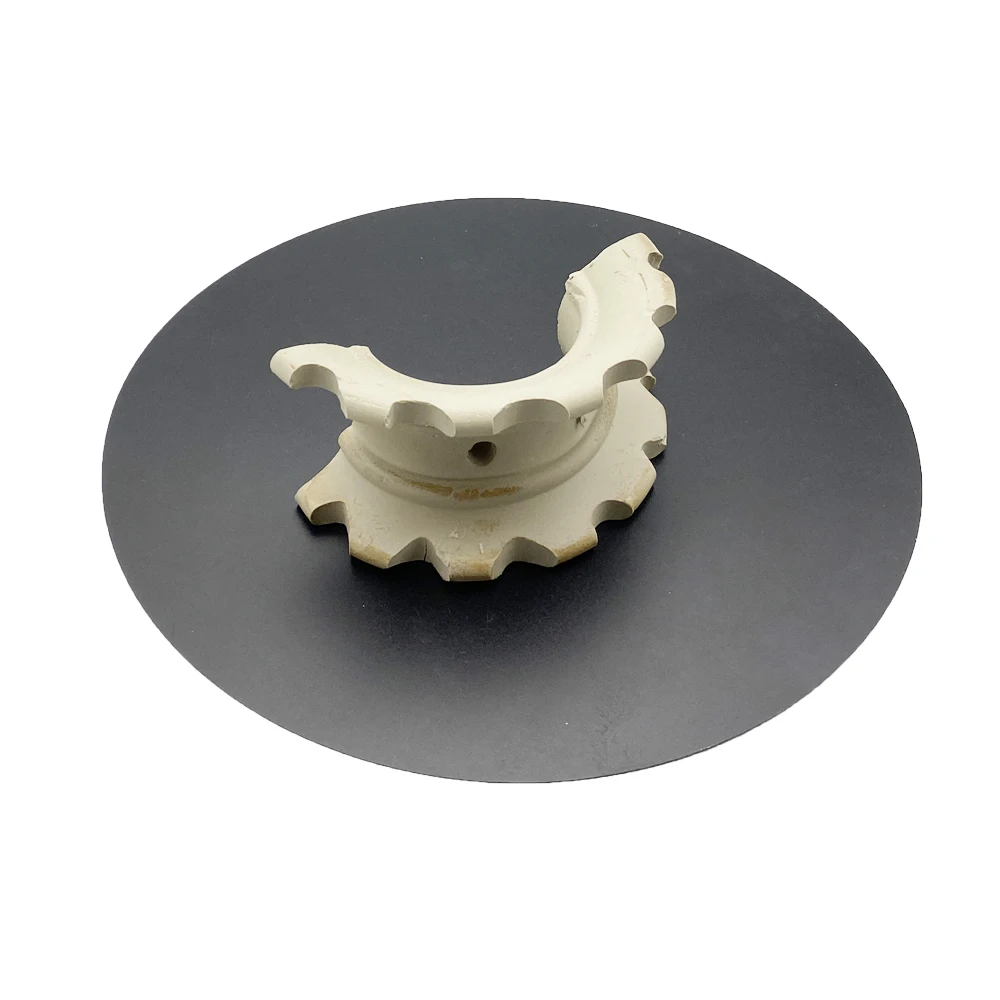

Ceramic Super intalox Saddles Tower Packing for cooling tower
Ceramic Super intalox Saddles Tower Packing for cooling tower
| Type | Ceramic supper saddle | ||||
| Shape | Saddle | ||||
| Chemical composition | SiO2 | Al2O3 | Fe2O3 | CaO | K2O+NA2O |
| >69% | 17-23% | <1% | 1-2% | 2-4% | |
| Physical properties | Specific gravity (g/cm3) | Water absorption (%)
| Firing temperature (Degree C) | Softening point (Degree C) | Density (kg/m3) |
| 2.25-2.4 | <0.2 | 1280-1320 | >1400 | 2330 | |
| Geometric properties | |||||||
Nominal Size | Approx. weight | Surface Area | VoidFraction (%) | Dry Packing factor (m-1) | |||
| inch | mm | lb/ft3 | kg/m3 | ft2/ft3 | m2/m3 | ||
| 1" | 25 | 40 | 645 | 79.5 | 260 | 77 | 570 |
| 1.5" | 38 | 37.5 | 600 | 64 | 210 | 78 | 430 |
| 2" | 50 | 35.6 | 570 | 42.8 | 140 | 79 | 277 |
| 3" | 76 | 36 | 580 | 32 | 105 | 77 | 206 |
| Typical Application | Ceramic super saddle has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. It can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc. | ||||||
| Package | Jumbo bag; Carton box; Wooden Case. | ||||||
