ICP vibration sensor equivalent to IMI 603C01
- Category: >>>
- Supplier: Anhui Ronds Science & Technology Incorporated Company
Share on (1600404440958):
Product Overview
Description
Product Description
Built-in IEPE circuit, isolation output, constant current power supply.
Laser seal welded
IP68 design, outdoor using available
Military connector, can be used in harsh industrial field
Unconditional lifetime warranty
Parameter | Index | Remarks | |||
Sensitivity | 100mV/g | ||||
Acceleration Rnage | 80g | ||||
Amplitude Linearity | 1% | ||||
Frequency Response (±10%) | 0.7~10000Hz | ||||
Frequency Response (±3 dB) | 0.4~15000Hz | ||||
Resonance Frequency | 26KHz | ||||
Transverse Sensitivity | ≤5% | ||||
Mount Screw Thread | 6mm | ||||
Bias Voltage | 10.5-13.5VDC, typical 12VDC | ||||
Constant Current | 2-20mA, Typical 4mA | ||||
Voltage Excitation | 18-30VDC, Typical 24VDC | ||||
Output Impedance | ＜100Ω | ||||
Casting Dielectric Resistance | ＞108Ω | ||||
Maximum Shock Level | 5000g | ||||
Weight | 61g | ||||
Dimensions | DXH, 18.5×47.7mm | ||||
Sealing Arrangement | Laser welding | ||||
Sensor composition | Plane shear | ||||
IP Grade | IP68 | ||||
Casting Material | 316L Stainless Steel | ||||
Output Mode | Top Output, 2pin Mil-C-5015 | ||||
Temperature Range | -55～+125℃ | ||||
Mount Torque | About 2.7～6.8N.m (M6) | ||||
Certificate | CE | ||||
Anti-explosion option | |||||
Explosion Proof Identification | ExiaIICT4 | RH103 EX, Used for Area 0,1,2 | |||
Temperature Measuring Option | |||||
Measuring Range | 0~120℃ | RH103T, Output: 3pin Mil-C-5015 | |||

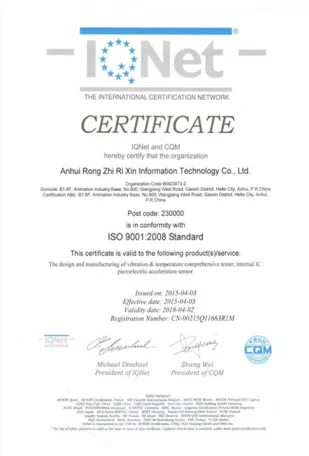

Certifications
Projects
RH102 in xx steel mill
RH1000 - RH103 in xx power plant
RH103 in Singapore xx water plant
RH1000-RH103 in xx wind farm
Our Company
30 Professional vibration analysists
Diagnosis experts with more than 20 years’ experience
CAT III vibration analysts
CAT II vibration analysts

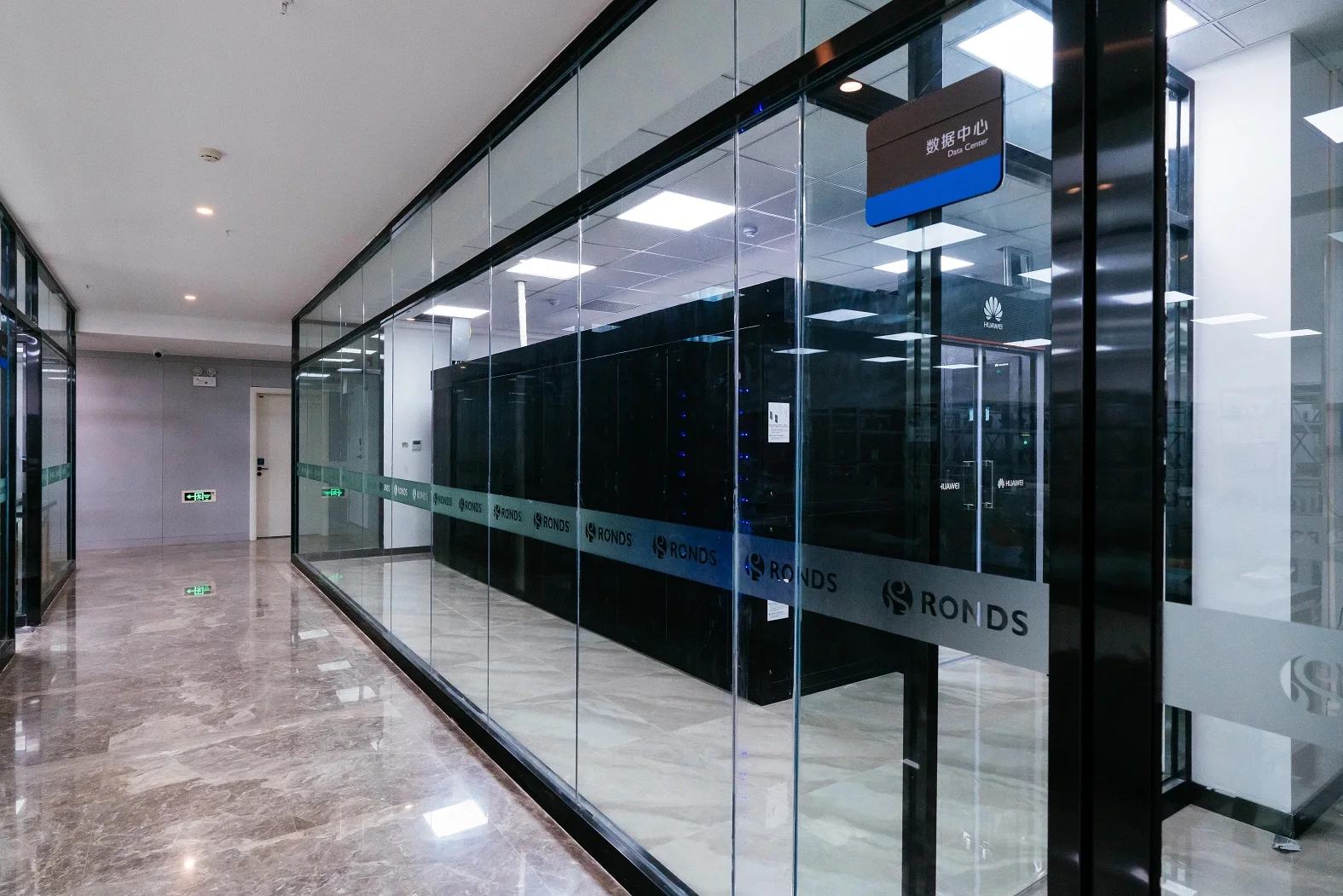

Intelligent Algorithm--big data team
Algorithm team with 11members, leading by famous doctoral tutor
Big data team with 13 members

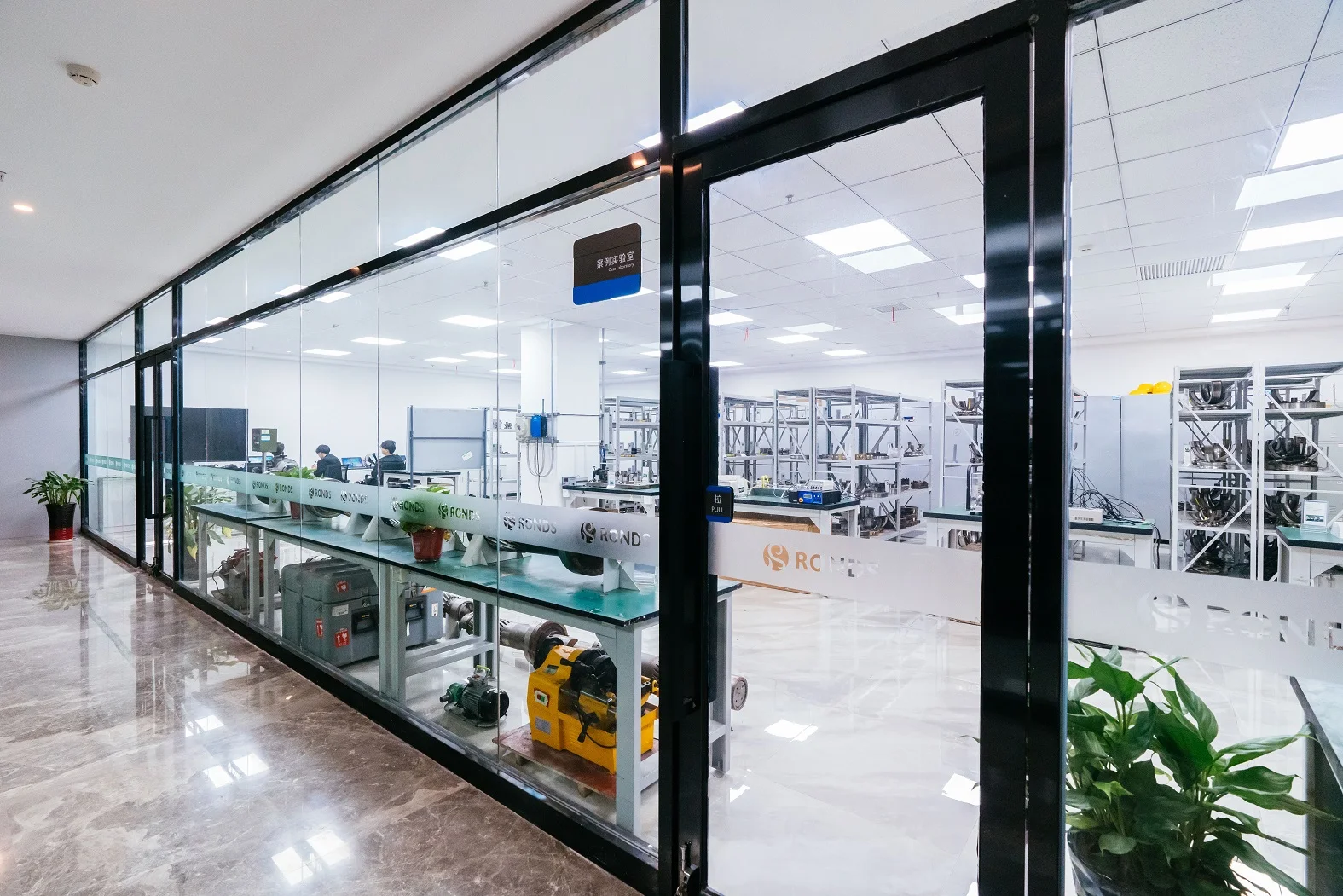

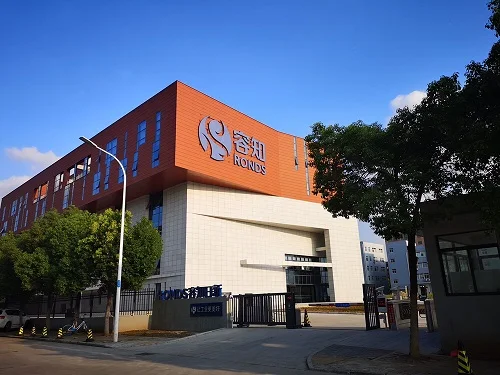

RONDS FACTORY
Assembly Workshop
Testing Device
Circuilt Testing
Logo Marking
Remote Diagnosis Center
Case Library
Our Service
Pre-Sales
* Technical plan support.
* Inquiry and consulting support.
After-Sales
* Remote training how to install and use the software and hardware
* Professional suggestions on data analysis.
