Cheap Price Electric Die Cutting Machine
- Category: Printing Machine >>>
- Supplier: Weifang Leaping Panther Robotization Technology Co. Ltd.
Share on (1600404457667):
Product Overview
Description
Product Overview

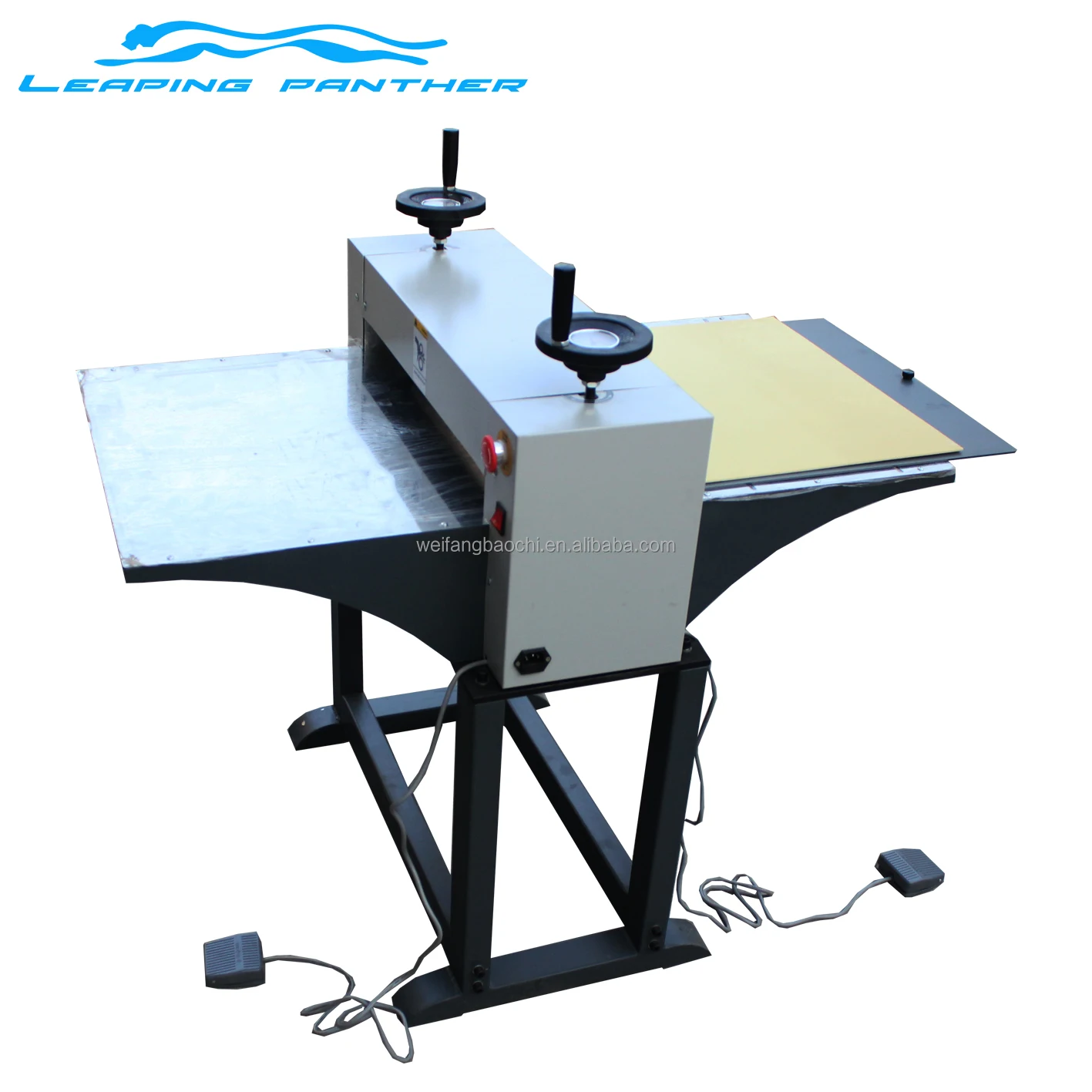

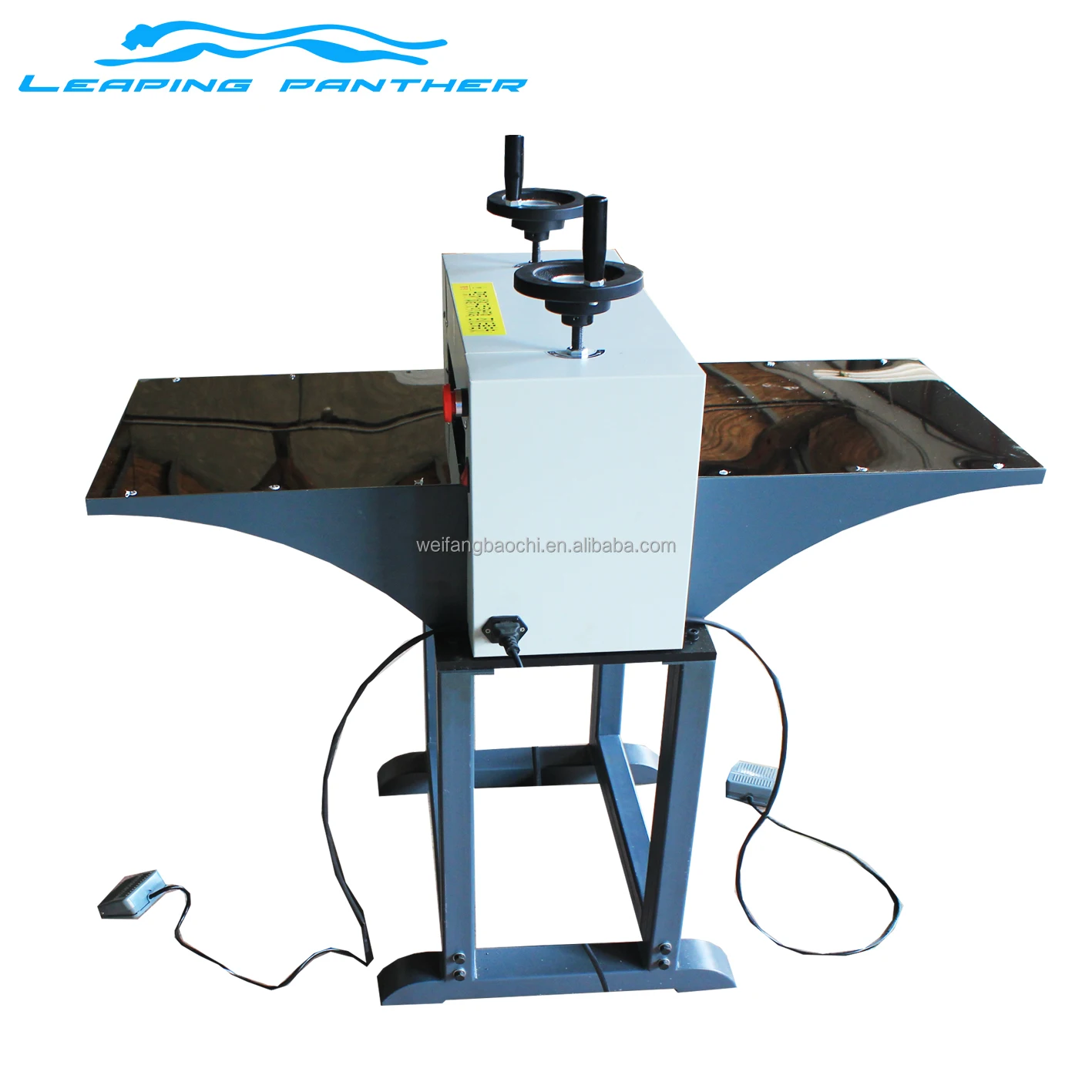

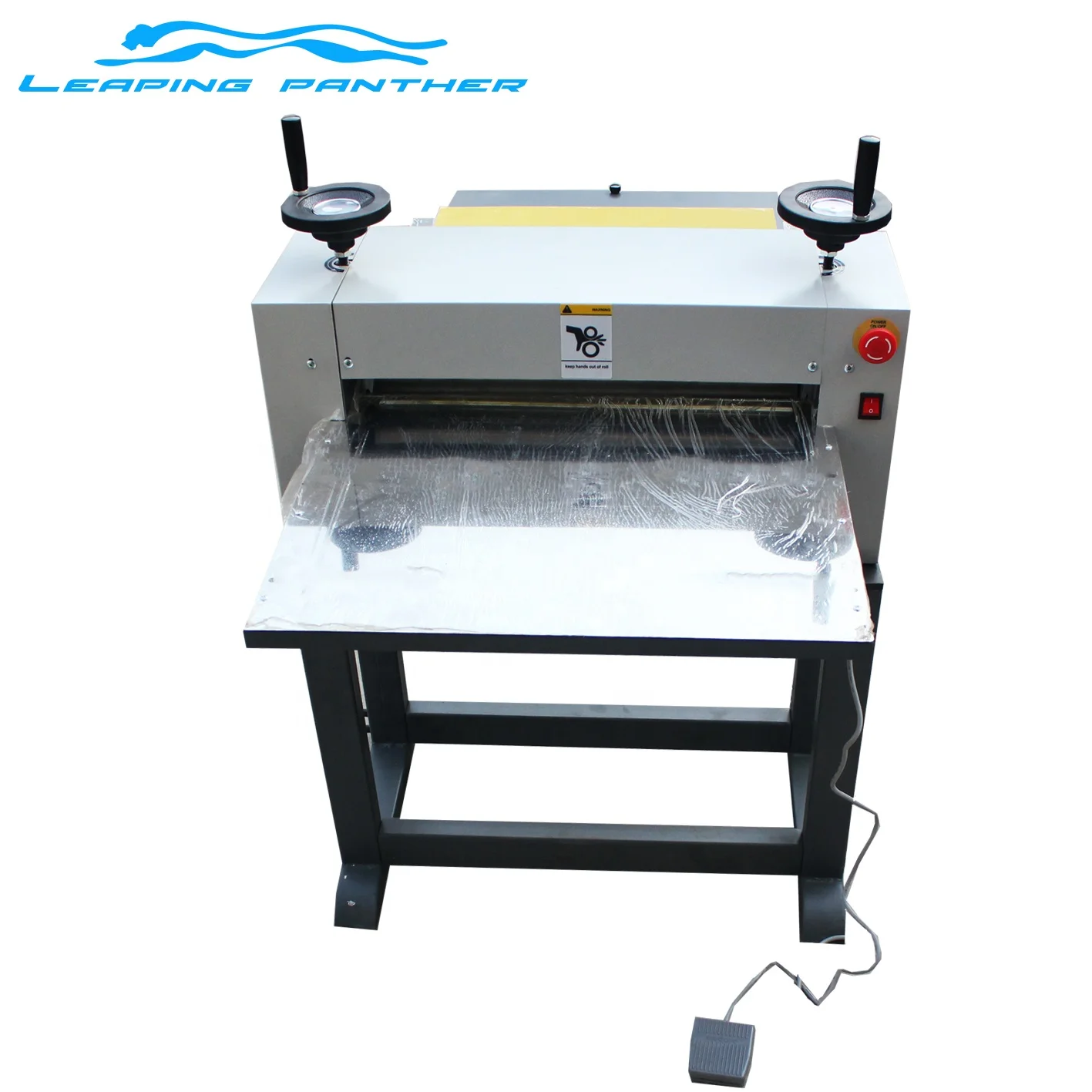

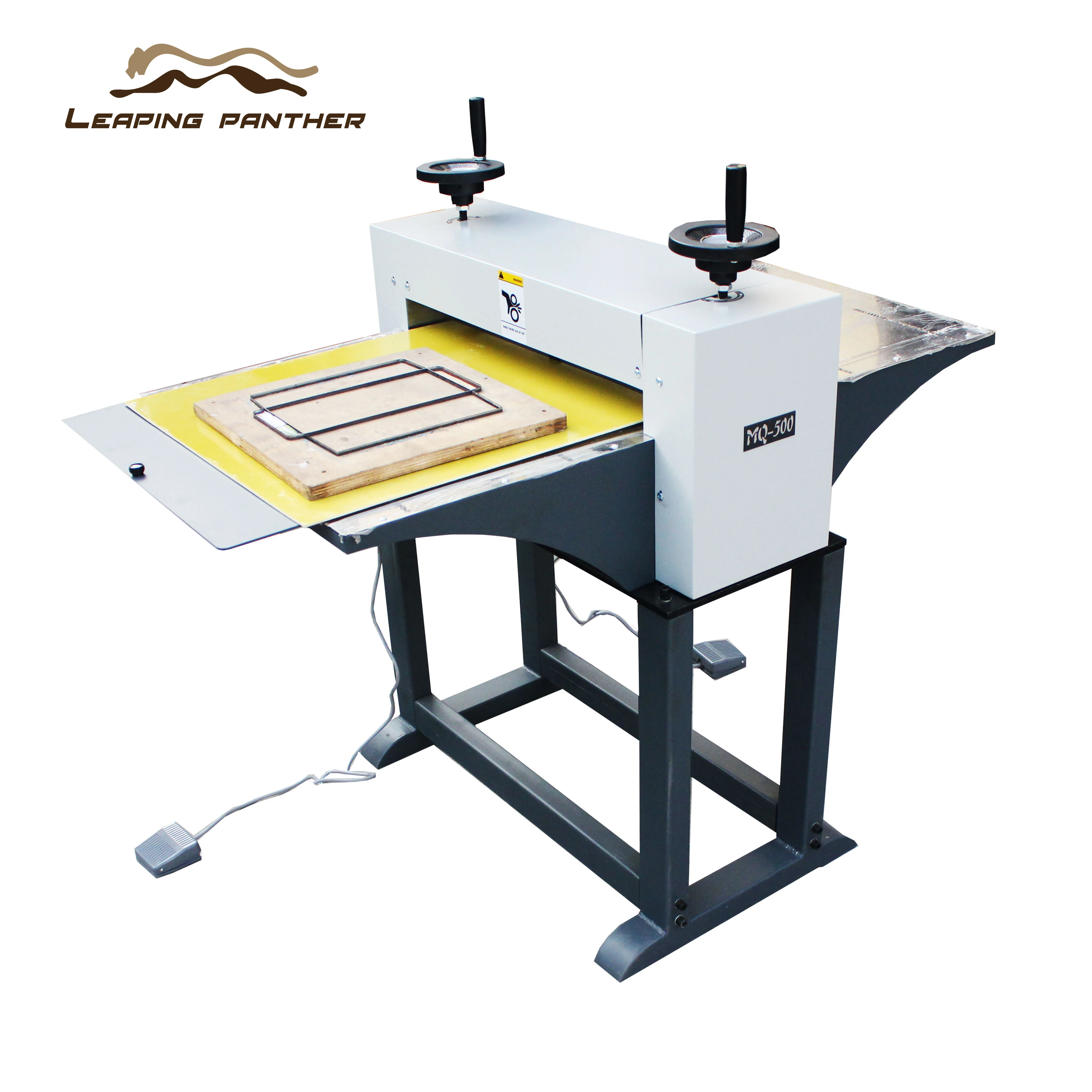

Multifunction Electric
Die-cutting machine MQ500
1. Combine creasing / kiss die cutting / cutting in one machine
2. High accuracy with high hardness alloy roller.
3. Pressure can be adjustable at the two ends.
4. Assembled with safe cover for security.
5. Controlled by foot switch, both unidirectional and bidirectional operation.
6. Creasing /kiss die cutting / cutting can be done by changing different creasing / die cutting templates.
7. Easily operation for the processing of entire form board of name cards, irregular cards, various punching, gifts box, book
covers, celebration cards, Jigsaw, album, leather, cloth & etc.
2. High accuracy with high hardness alloy roller.
3. Pressure can be adjustable at the two ends.
4. Assembled with safe cover for security.
5. Controlled by foot switch, both unidirectional and bidirectional operation.
6. Creasing /kiss die cutting / cutting can be done by changing different creasing / die cutting templates.
7. Easily operation for the processing of entire form board of name cards, irregular cards, various punching, gifts box, book
covers, celebration cards, Jigsaw, album, leather, cloth & etc.
FEATURES AT A GLANCE
Features
The material and die pass through these two rollers and come out on the right hand side in seconds, and the material is now cut.
The cut parts are stripped, and the cycle is repeated, now working from right to left.
This simple process can be learned by an unskilled operator in minutes.
1. The working principle of the Die-cutting machine is down press to the mould,and it to cut material by dies / moulds.
2.Used for die cutting foam,cleaning sponges,shoes,suitcases,cases,seat covers, facial mask,plastic,
soft toys, artificial flower, bags, cardboard, plywood,EPE,EVA,blister and abrasive tools and so on.
3.Applicable to all non-metallic materials, irregular shape of the cutting.
The material and die pass through these two rollers and come out on the right hand side in seconds, and the material is now cut.
The cut parts are stripped, and the cycle is repeated, now working from right to left.
This simple process can be learned by an unskilled operator in minutes.
1. The working principle of the Die-cutting machine is down press to the mould,and it to cut material by dies / moulds.
2.Used for die cutting foam,cleaning sponges,shoes,suitcases,cases,seat covers, facial mask,plastic,
soft toys, artificial flower, bags, cardboard, plywood,EPE,EVA,blister and abrasive tools and so on.
3.Applicable to all non-metallic materials, irregular shape of the cutting.
Model | MQ500 |
Max.width Size | 500mm/19 inch |
Area of Work table | 500mm(W)*400mm(L)/ 19*16 Inch |
Max.thickness cutting | 2mm |
Power | 220V/110V50Hz/60Hz 120W |
Speed | 25 meter/Minute |
Dimnesion | 600x800x1100mm |
Weight | 150kg |
Die-Cutting 2mm Gray cardboard
Die-Cutting thin Sponge
Die-cutting Greeting Card and Business Card
FAQ
1. Q: Are you a factory or trading company ?
A: We are factory at Weifang, Shandong. Welcome to visit us.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Weifang City, Shandong Province, China, around 1 hour train from Qingdao. Around 1 hour from
"Qingdao Airport "to our factory. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: How can i get some samples ?
A: We are honored to offer you sample to test it, around 4-5days arrived your hand after receive payment.
4. Q: What's the terms of payment ?
A: We can do T/T Paypal before shipping.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. Our factory always attaches great importance to quality controlling from the beginning to the end. Our
factory has gotten CE certificate.
A: We are factory at Weifang, Shandong. Welcome to visit us.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Weifang City, Shandong Province, China, around 1 hour train from Qingdao. Around 1 hour from
"Qingdao Airport "to our factory. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: How can i get some samples ?
A: We are honored to offer you sample to test it, around 4-5days arrived your hand after receive payment.
4. Q: What's the terms of payment ?
A: We can do T/T Paypal before shipping.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. Our factory always attaches great importance to quality controlling from the beginning to the end. Our
factory has gotten CE certificate.
