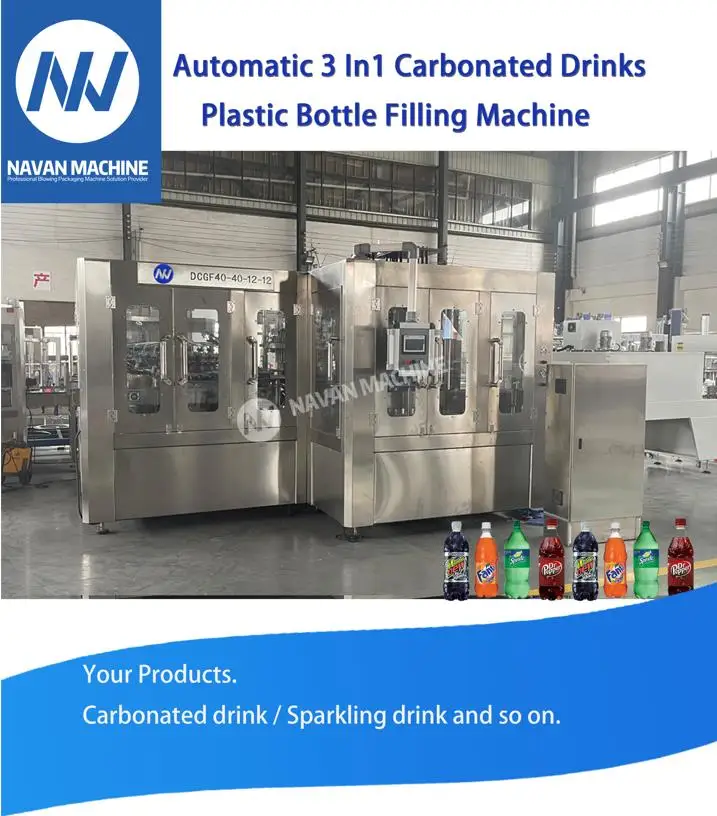

Navan Full Set High Quality Automatic Small Carbonated Drink Filling Machine
- Category: >>>
- Supplier: Zhangjiagang Navan Industrial Co. Ltd.
Share on (1600404528239):
Product Overview
Description
Product Paramenters
Model | CGFD8-8-8-3/4 | CGFD12-12-5/6 | CGFD18-18-6 | CGFD24-24-8 | CGFD32-32-10 | CGFD40-40-10/12 | CGFD50-50-12/15 | CGFD60-60-15 | ||||||||
Capacity(Bottle /Hour 500ml) | 800-1000 | 2000-2500 | 4000-5000 | 7000-8000 | 9000-10000 | 15000-16000 | 19000-20000 | 22000-24000 | ||||||||
Suitable bottle specification | Volume=100-2000ml Diameter φ=50-100mm Bottle height H=150 ~340mm | Volume=100-2000ml Diameter φ=50-105 Bottle height H=150 ~340mm | Volume=100-2500ml Diameter φ=50-115mm Bottle height H=150 ~350mm | Volume=100-2500ml Diameter φ=50-115 Bottle height H=150 ~350mm | ||||||||||||
Bottle type | Plastic bottle / PET Bottle | |||||||||||||||
Bottle neck/Cap Style | Plastic Screw Cap φ=20-50mm | |||||||||||||||
Machine material | Food stage SS304 OR SS316 | |||||||||||||||
Air source pressure | 0.5~0.6Mpa | |||||||||||||||
Control system | SIMENS PLC+ TOUCH SCREEN | |||||||||||||||
Features | No Bottle No Filling No Bottle No Capping | |||||||||||||||
Main Power | 1.9kw | 3.5kw | 4.0kw | 4.8kw | 5.5kw | 7.5kw | 11.0kw | 15.0kw | ||||||||
Power Supply | Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement | |||||||||||||||
Overall dimensions (mm) | 1900*1420* 2000 | 2050*1800* 2400 | 2580*2100* 2200 | 2780*2200* 2200 | 3800*2800* 2600 | 4600*2800* 2600 | 5450*3300* 2600 | 6500*4500* 2600 | ||||||||
Weight (kg) | 1500 | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 | 12800 | ||||||||
All machines could be customized , we could design design and produce machines according to your request. | ||||||||||||||||
Products Description

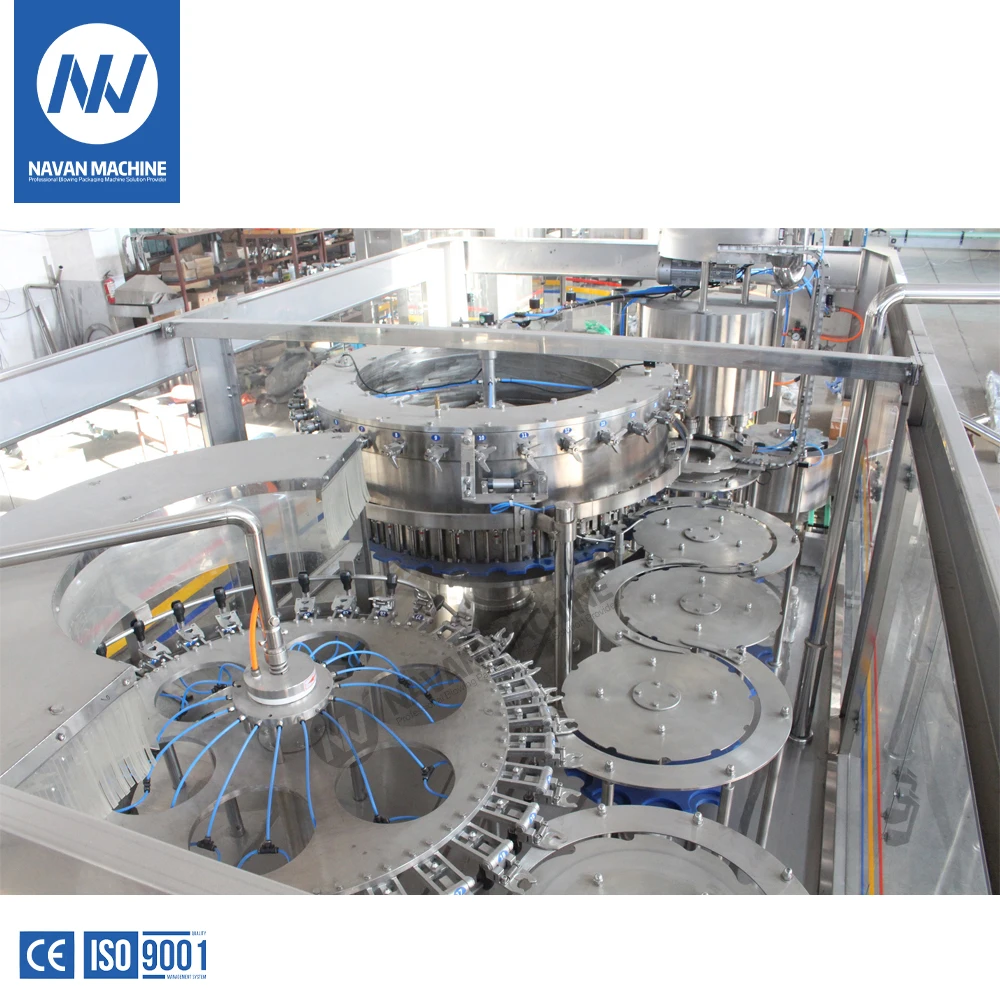

Bottle Rinser
-Rotary rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
-Rotary rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

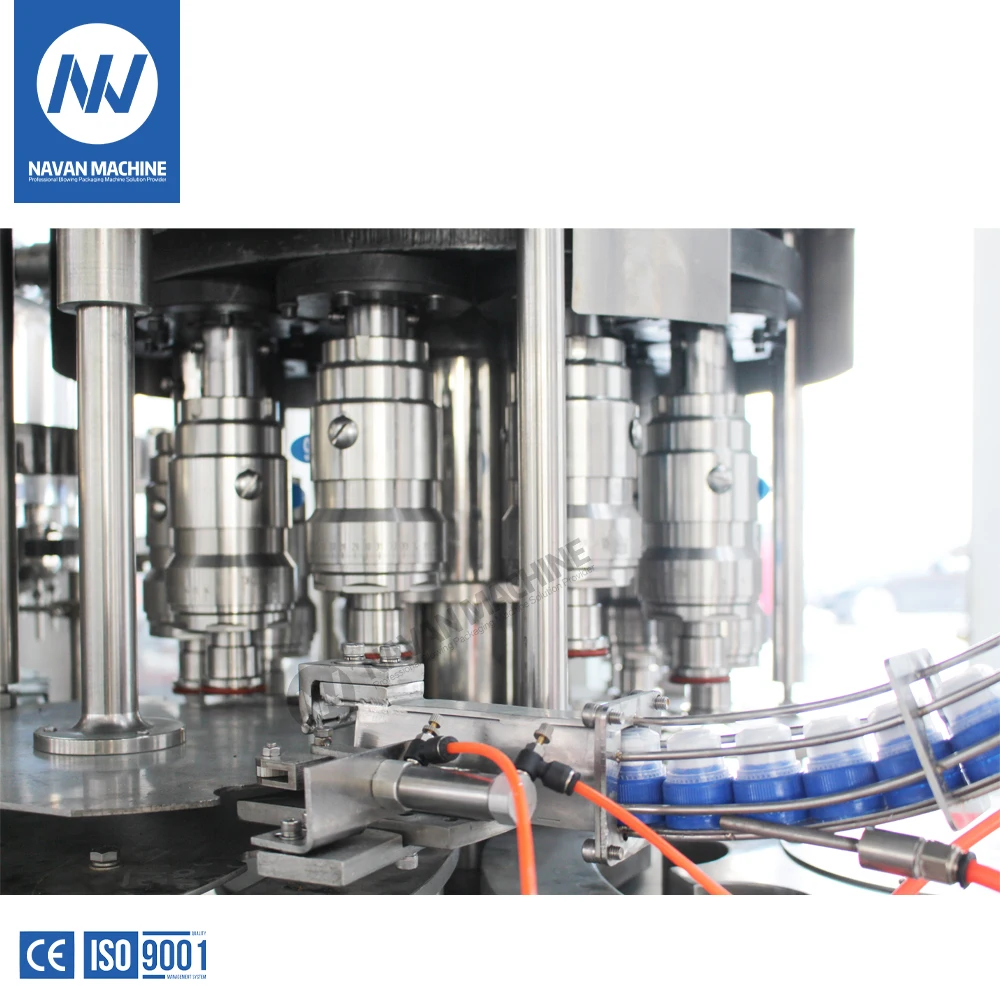

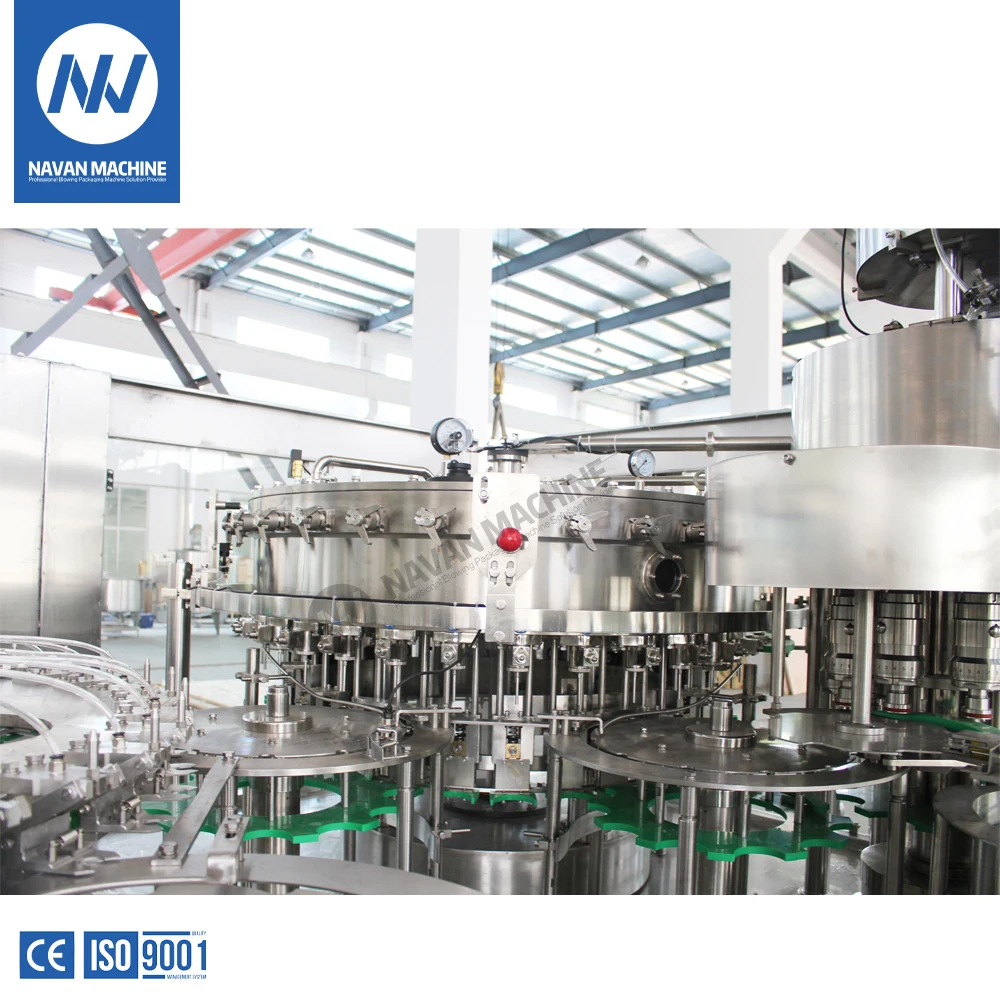

Bottle Filler
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
-The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.
Bottle Capper
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam
-Rotary capping turret, suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
-The heads are raised and lowered by the action of a follower that is riding on a shaped cam

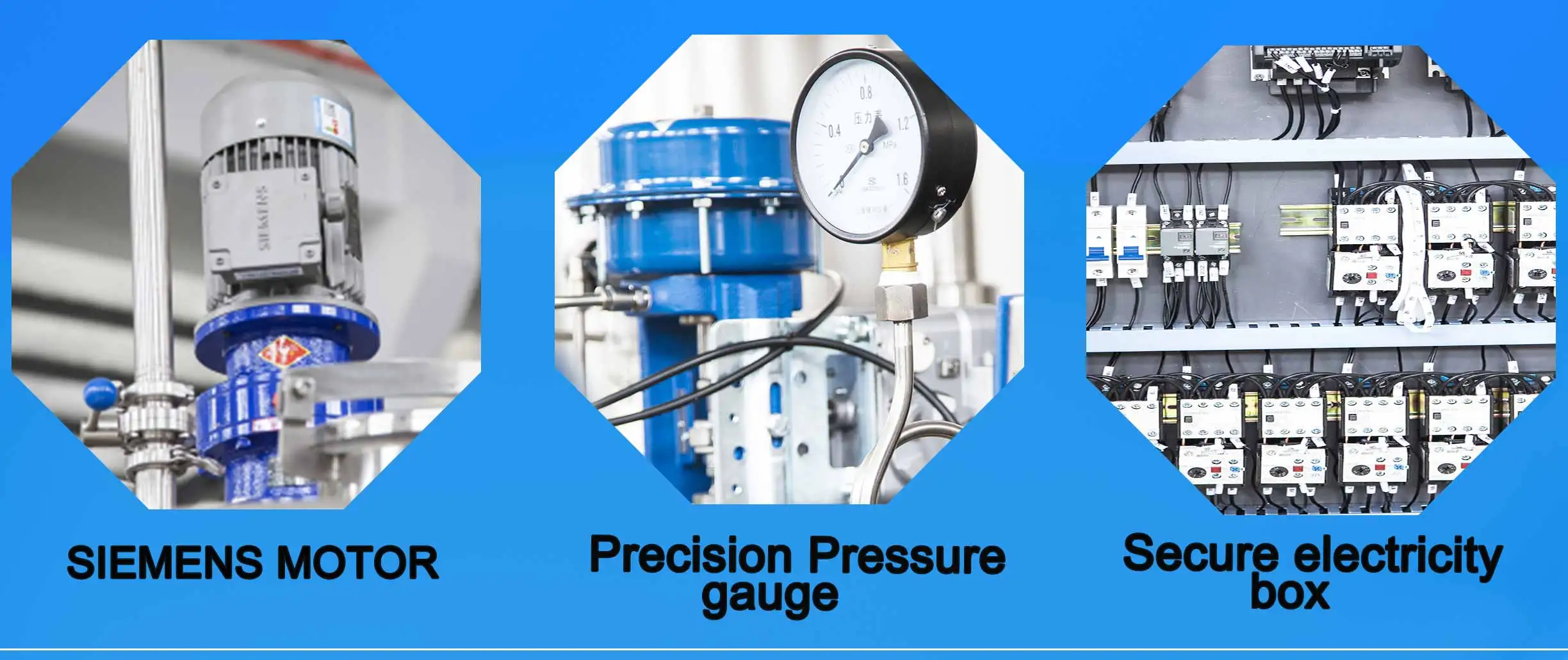

Core Devices Brands
Recommend Products
Bottle Blowing Machine
Water Treatment System
Water Filling Machine
Bottle Labeling Machine
Bottle Packing Machine
Beverage Solution
Why Choose Us
Certificates.
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS-COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark
registration,etc.
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark
registration,etc.
