High quality 360 degree blow off compressed air ring blade air knife for air knife drying system
- Category: Cleaning Equipment Parts >>>
- Supplier: Dongguan,Jieming,Electric,Tech,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
High quality 360 degree blow off compressed air ring blade air wipe for air knife drying system

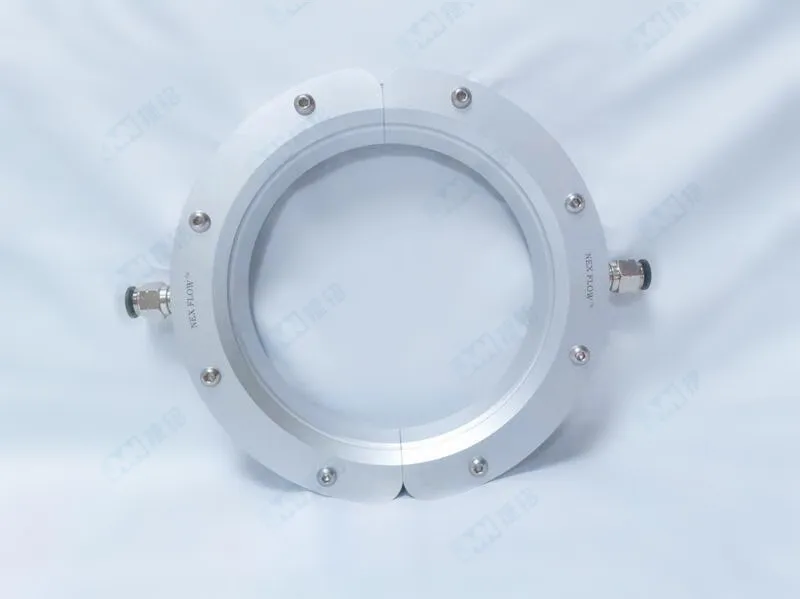

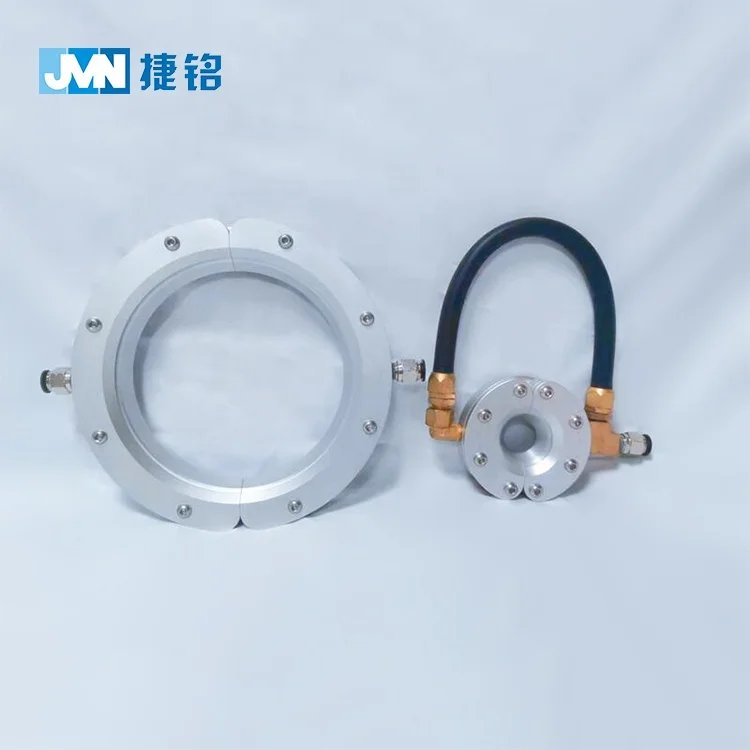

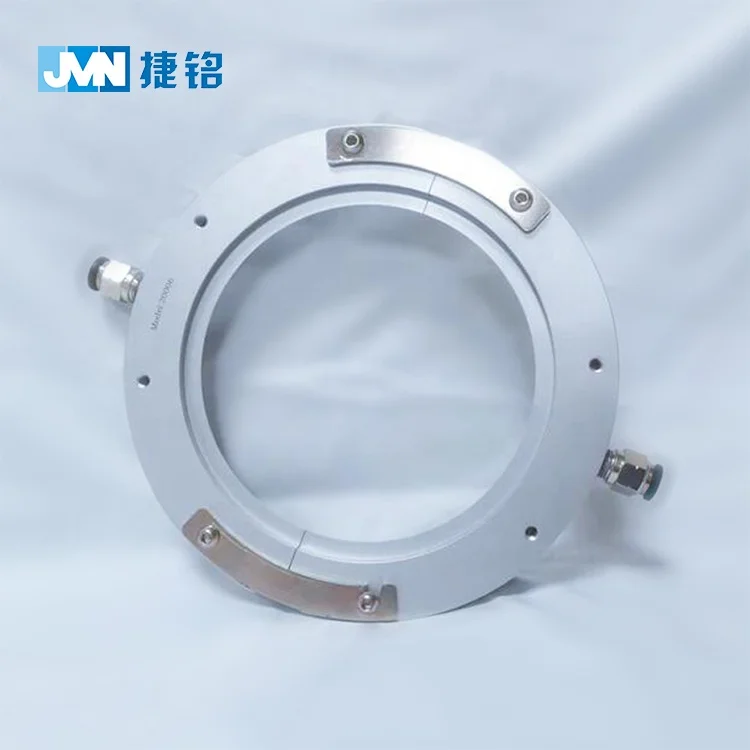

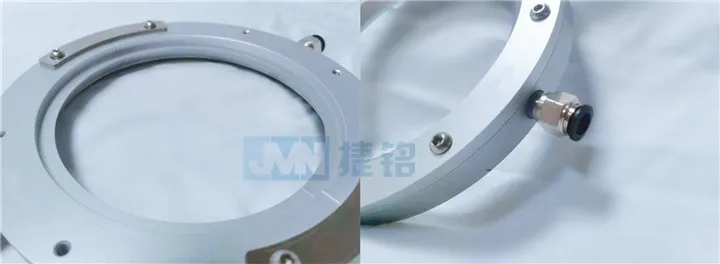

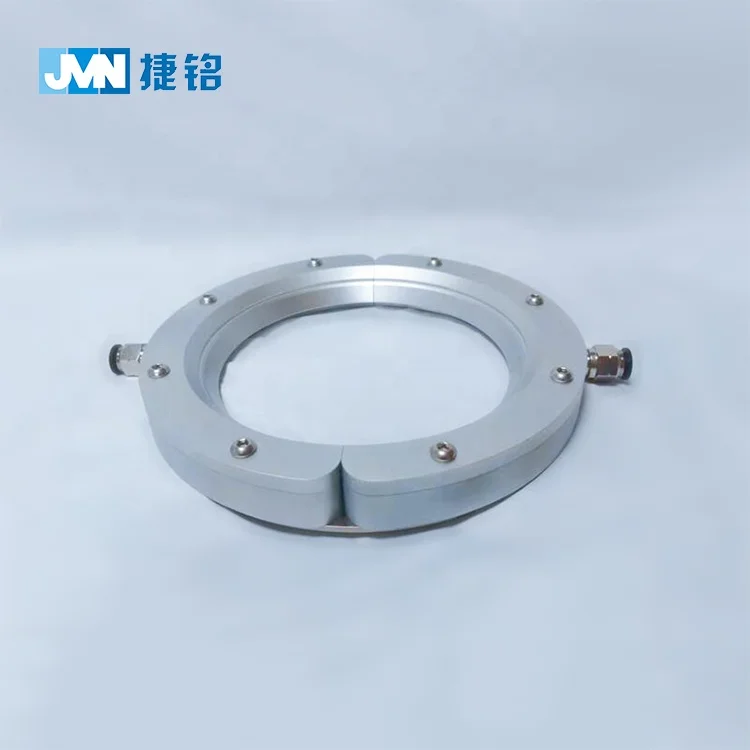

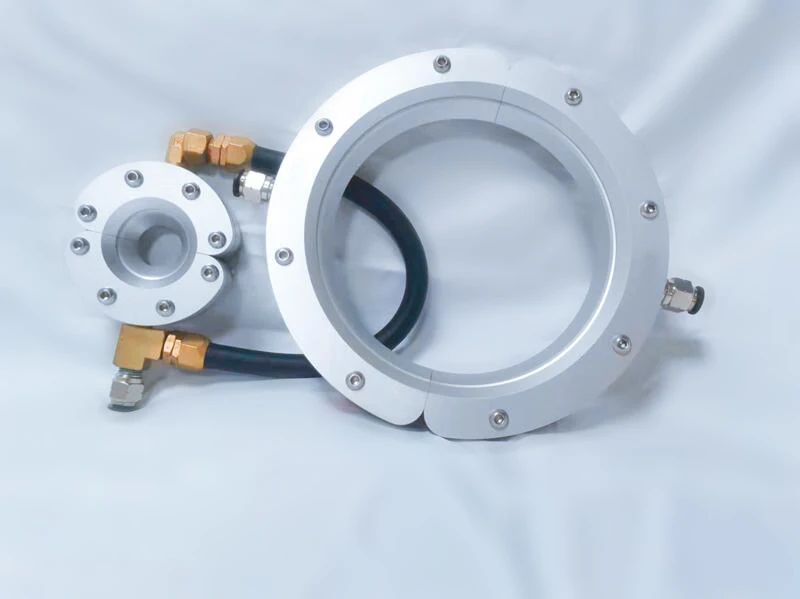

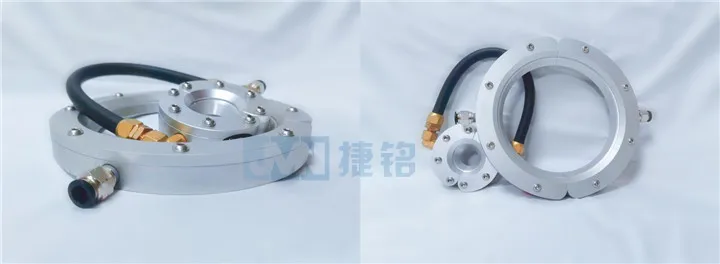

Ring air knife features
1.Air wipes are basically air knives arranged in an annular form, but split into two half circles and then joined together.
2.Light weight, small size ,compact, lower compressed air consumption and easy to install,
3.Low noise, in most cases less than 70 db.
4.piece of equipment that produces an even 360 degree blow off around the part.
5.Wind strength and flow volume are adjustable.High airflow amplification
6.Ring Blades are available from 13mm to 178mm. They are available in either a standard aluminium or stainless steel resists corrosion.The aluminum production time is shorter than stainless steel air knife.
7.The systems are essentially maintenance free with blow off output easily controlled with a regulator.
8.No need for electricity, no movable mechanical parts
9. Used as efficient blow-off system for all types of extrusions – wire, cable rope, window profiles, automotive trip, extruded pipe, and other applications.
Specification

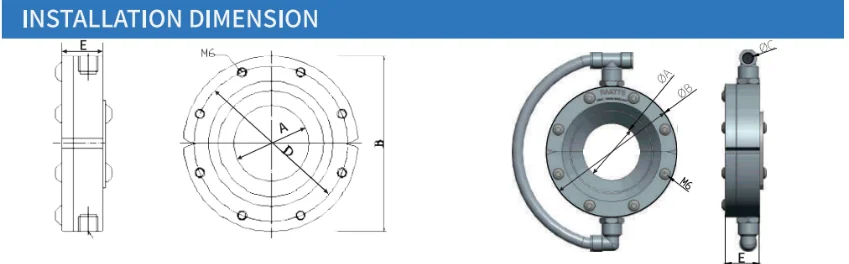

PRESSURE 0.55MPA | A | B | C | D | E | Air consumption | Noise | ||
Model | mm | mm | mm | mm | mm | L/min | Dba | ||
JMETSS-13 | 44013ss | 13 | 80 | 8-16 | 66 | 30 | 360 | 70 | |
JMETSS-25 | 44025ss | 25 | 90 | 8-16 | 78 | 30 | 500 | 72 | |
JMETSS-51 | 44051ss | 51 | 118 | 8-16 | 104 | 30 | 720 | 75 | |
JMETSS-76 | 44076ss | 76 | 143 | 8-16 | 129 | 30 | 850 | 75 | |
JMETSS-102 | 440102ss | 102 | 169 | 8-16 | 155 | 30 | 1040 | 76 | |
JMETSS-127 | 440127ss | 127 | 194 | 8-16 | 180 | 30 | 1380 | 76 | |
JMETSS-152 | 440152ss | 152 | 219 | 8-16 | 205 | 30 | 1670 | 80 | |
JMETSS-178 | 440178ss | 178 | 245 | 8-16 | 231 | 30 | 1980 | 80 | |
Instruction
1. Compressed air must be dry, oil-free gas, otherwise, it will affect the life and performance of the air wipes.
2. Five micro-level movable exhaust air filters should be selected, and 0.3 micro-level oil filters should be selected and should be installed as close as possible to the product.
3. Minimize the distance of the gas source, If it is far away, it should be connected by G1/2 pipe, and the distance of 30 meters or more should be connected by G1 air pipe.
4. Compressed air pressure should be 0.55-0.69 Mpa.
5. If the performance of the air knife is greatly reduced, please send it back to our company for testing.
6. When the flow rate of the air pressure and the blowing force are decreased, the common reasons are: the compressed air pipe diameter is too small, the gas path is installed with an airflow limit, and the filter is clogged, etc.
7. If the size is beyond those sizes in the chart, please call +86 137 9022 9580
2. Five micro-level movable exhaust air filters should be selected, and 0.3 micro-level oil filters should be selected and should be installed as close as possible to the product.
3. Minimize the distance of the gas source, If it is far away, it should be connected by G1/2 pipe, and the distance of 30 meters or more should be connected by G1 air pipe.
4. Compressed air pressure should be 0.55-0.69 Mpa.
5. If the performance of the air knife is greatly reduced, please send it back to our company for testing.
6. When the flow rate of the air pressure and the blowing force are decreased, the common reasons are: the compressed air pipe diameter is too small, the gas path is installed with an airflow limit, and the filter is clogged, etc.
7. If the size is beyond those sizes in the chart, please call +86 137 9022 9580
Working principle

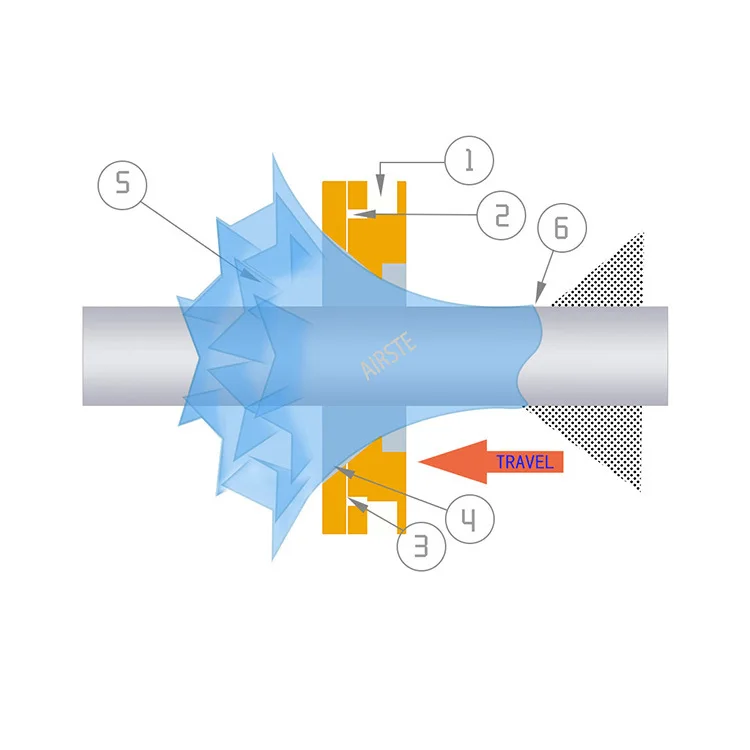

The access compressed air flows through the air ring through the inlet (1) into the ring cavity (2). The flow is then throttled
and passed through the annular nozzle (3) at a high speed.
The airflow began to flow out at a high speed along the side wall of Coanda (4), which was ejected at a diagonal angle along the side wall of the air ring.
In this way, in the central position of the air ring, there will be a low pressure area (5), which will force a large amount of
air around the air to flow to the other side of the air ring along with the air flow from the high pressure.
When the air flow leaves the air ring, a 360 conical ring flow is produced, which can continuously and steadily blow through the water, dirt and other impurities on the material (6) of the air ring.
and passed through the annular nozzle (3) at a high speed.
The airflow began to flow out at a high speed along the side wall of Coanda (4), which was ejected at a diagonal angle along the side wall of the air ring.
In this way, in the central position of the air ring, there will be a low pressure area (5), which will force a large amount of
air around the air to flow to the other side of the air ring along with the air flow from the high pressure.
When the air flow leaves the air ring, a 360 conical ring flow is produced, which can continuously and steadily blow through the water, dirt and other impurities on the material (6) of the air ring.

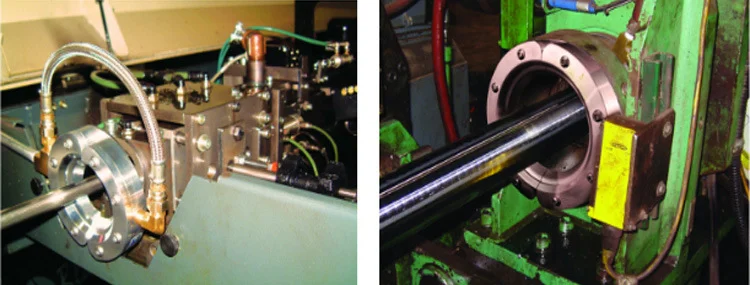

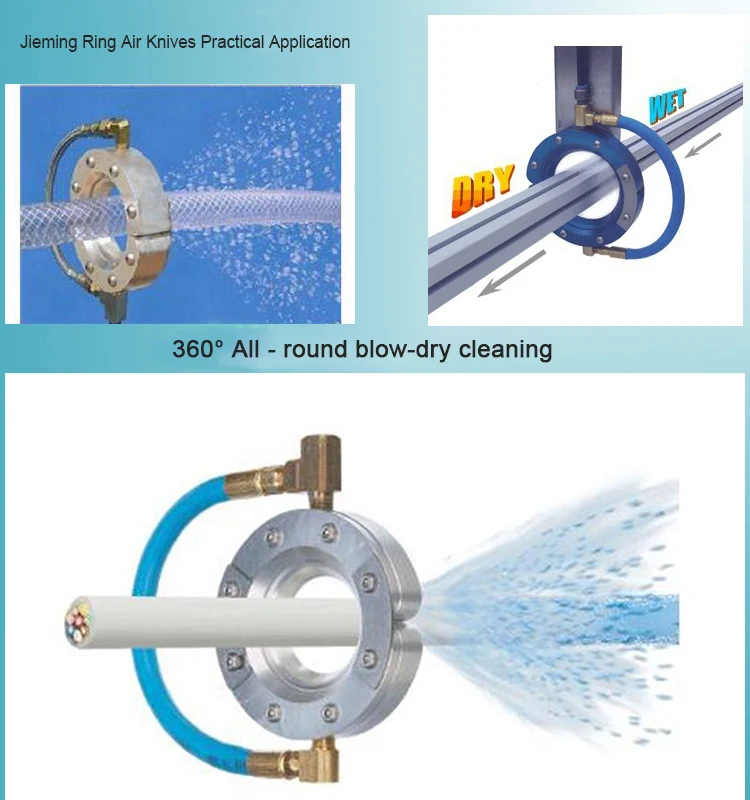

Application Display
Applications
♦Blow off oil,debis ,waste,water and dust.
♦Cooling of molds or castings
♦Cooling extruded material
♦Replace opened compressored air direct nozzle to clean parts after processing
♦Continuous cooling of longer parts(wires and pipes)
♦Drying treatment is required after cleaning,washing,coating or plating
♦Remove dirt from the material during radial transfer
♦Ideal drying solutions for pipes,cables,extruded materials,wires,scales and pipes
♦Cooling of molds or castings
♦Cooling extruded material
♦Replace opened compressored air direct nozzle to clean parts after processing
♦Continuous cooling of longer parts(wires and pipes)
♦Drying treatment is required after cleaning,washing,coating or plating
♦Remove dirt from the material during radial transfer
♦Ideal drying solutions for pipes,cables,extruded materials,wires,scales and pipes
