Product Overview
Description

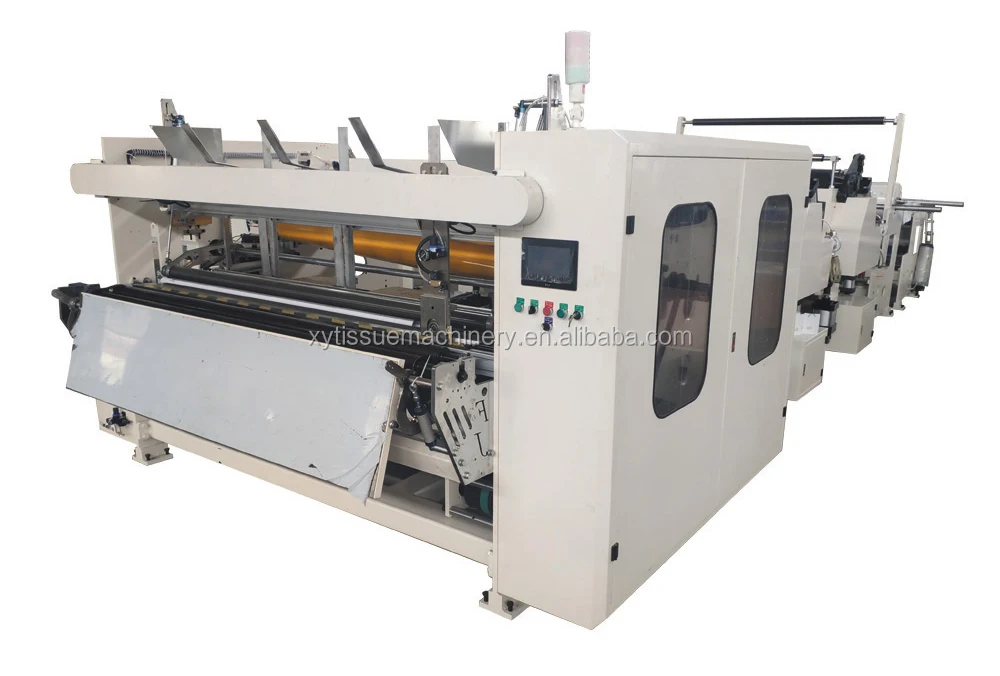

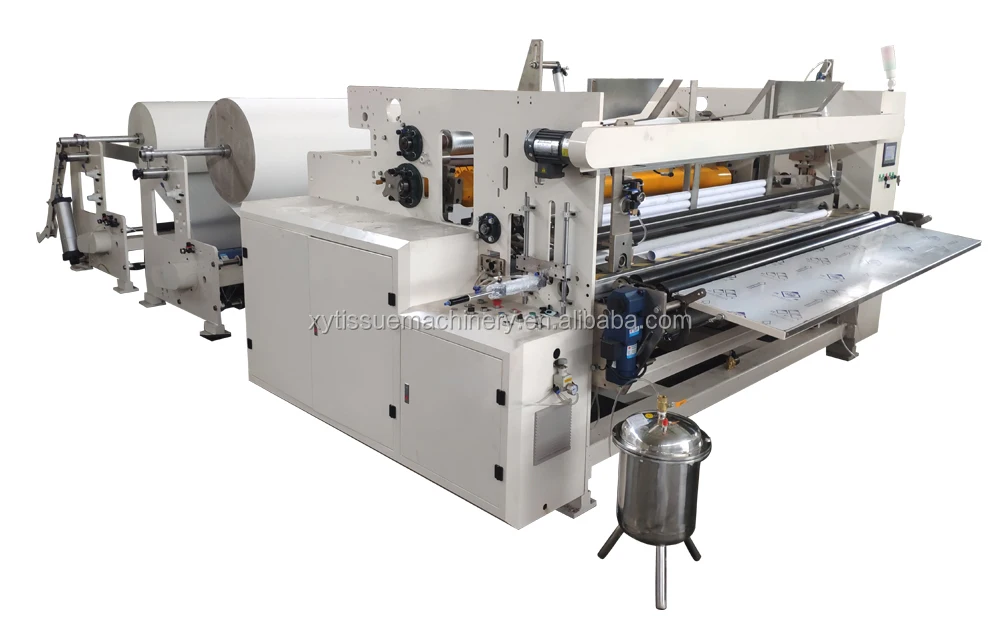

Full Automatic Wallboard Type Toilet Paper Making Machine
XY-TQ-B
Product Description
Automatic toilet paper rewinding machine is for toilet paper roll processing.Machine have core feeding unit,can do both with and without core.Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log.Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients’ requirements.

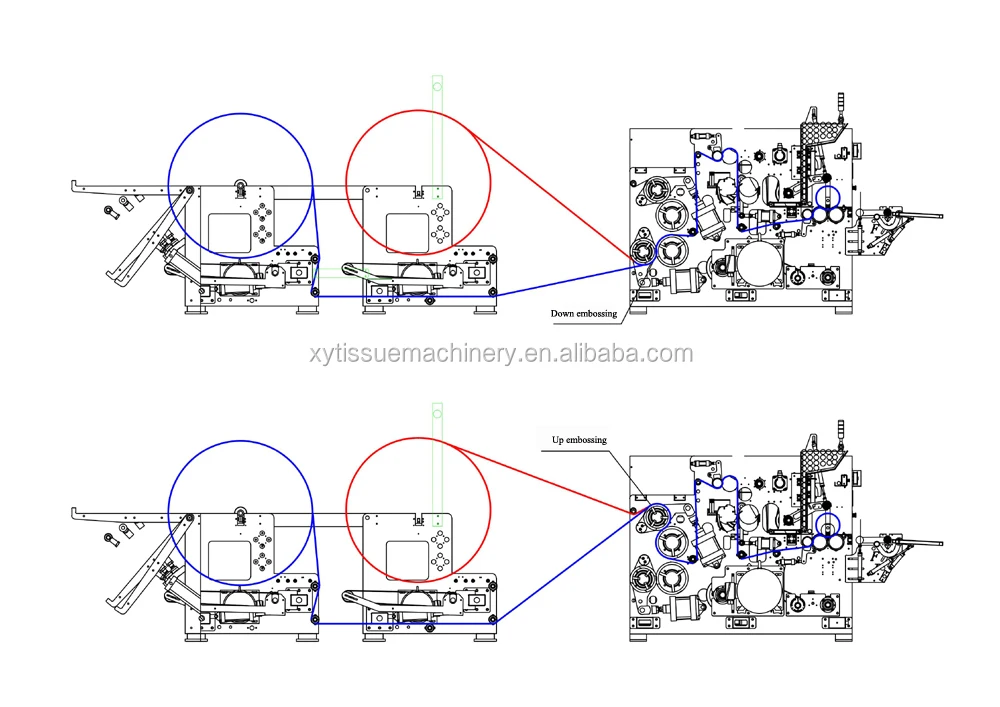

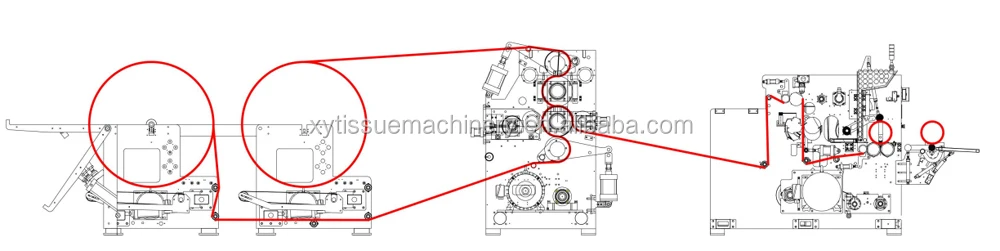

The production process is: Unreeling — Embossing — Perforating— Lamination— Rewinding— Tail-gluing— Edge trimming---Automatic core loading.
Jumbo roll max width | 1850mm (Other size can be specified) |
Jumbo roll diameter | Φ1200mm |
Jumbo roll inner core diameter | 3inches(76.2mm) |
Finish product diameter | Φ70-φ280mm |
Finish product Inner core diameter | φ38-φ76mm |
Perforation distance | 120-150mm |
Production speed | 180-230m/min |
Parameter set | HMI, Touch Screen |
Pneumatic system | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa（Provide by user） |
Unwinding transmission | Variable stepless speed regulation |
Rewinding Unit | With core or coreless |
Function and Features:

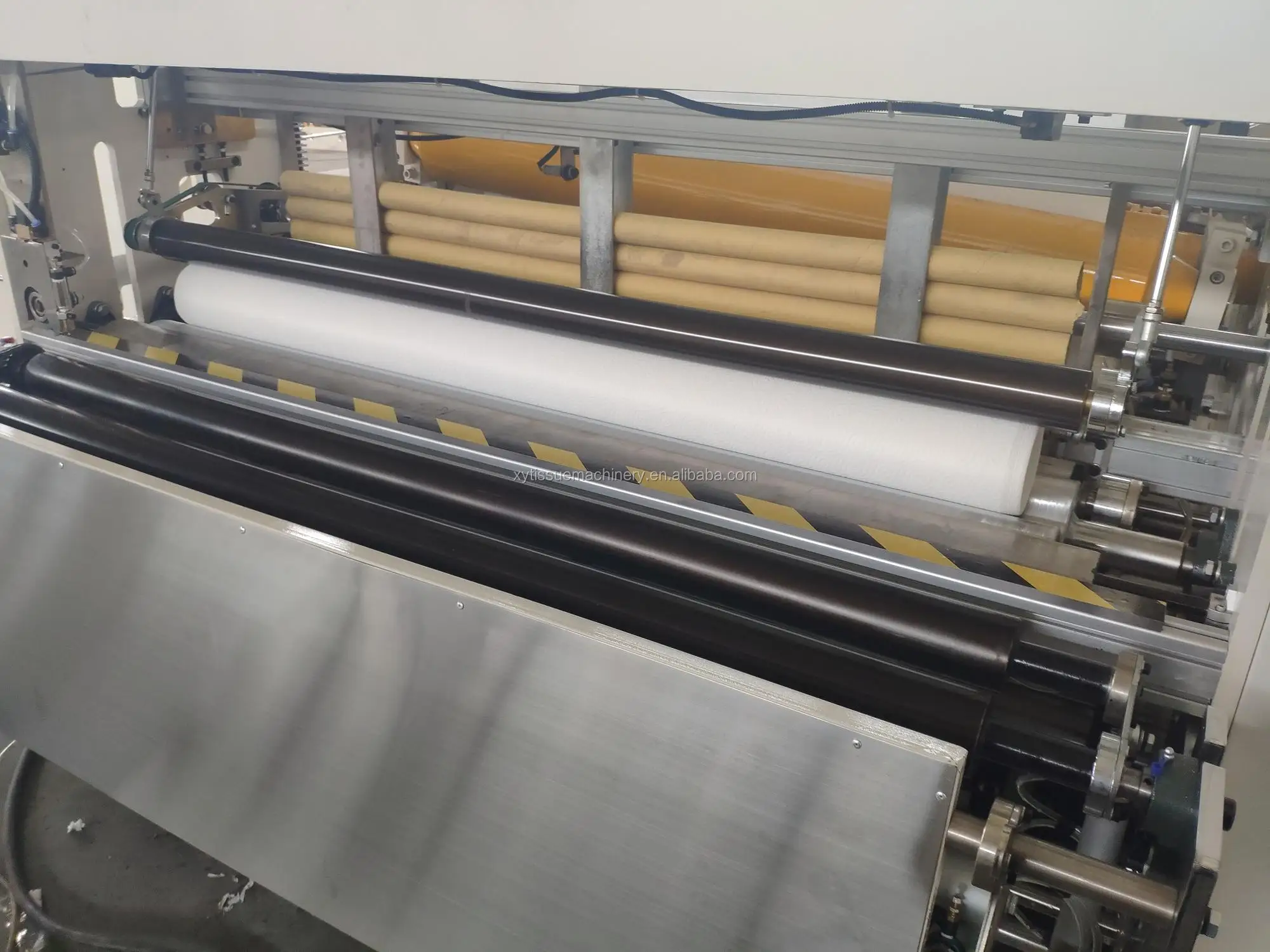

1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.

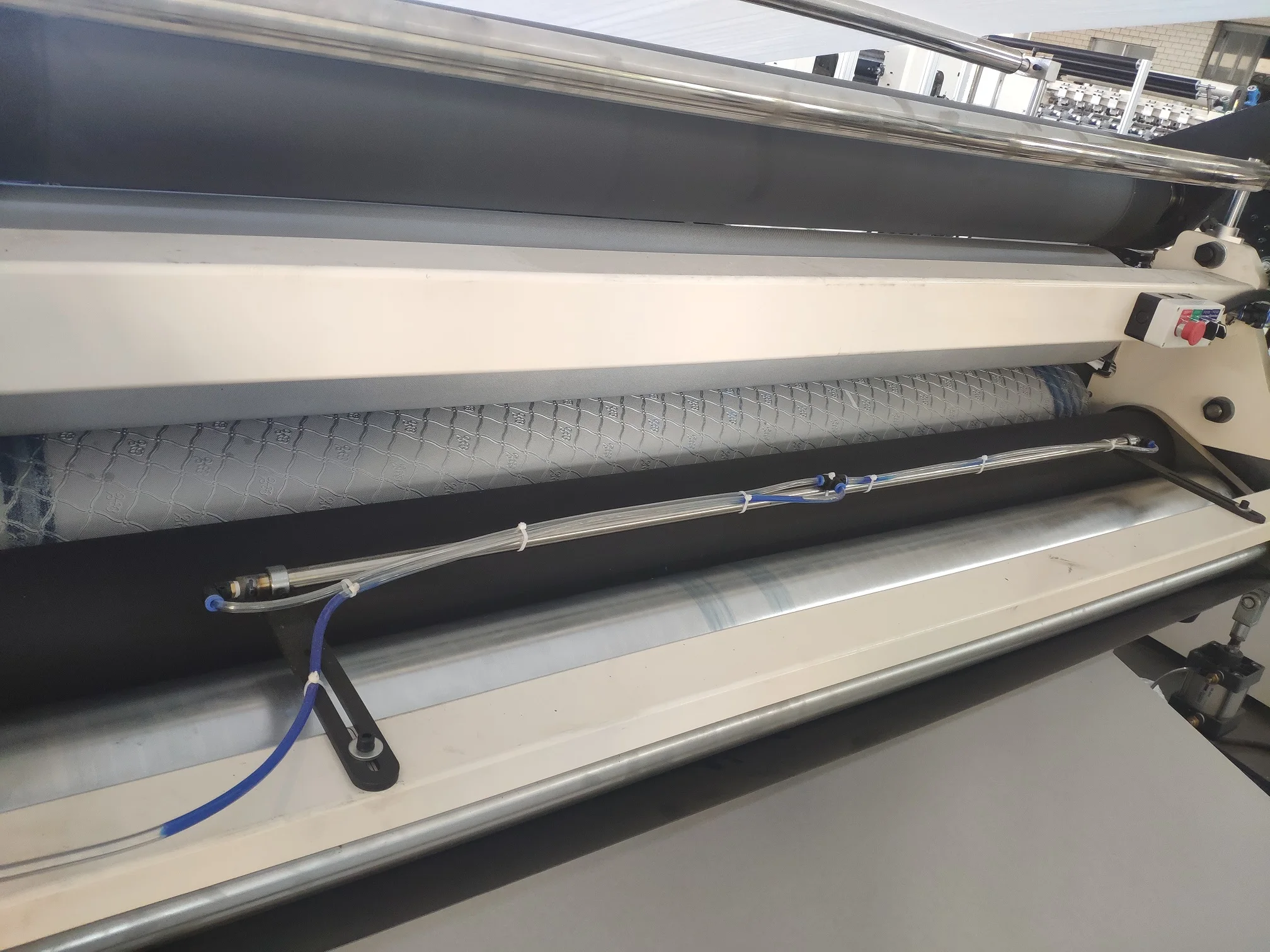

2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.

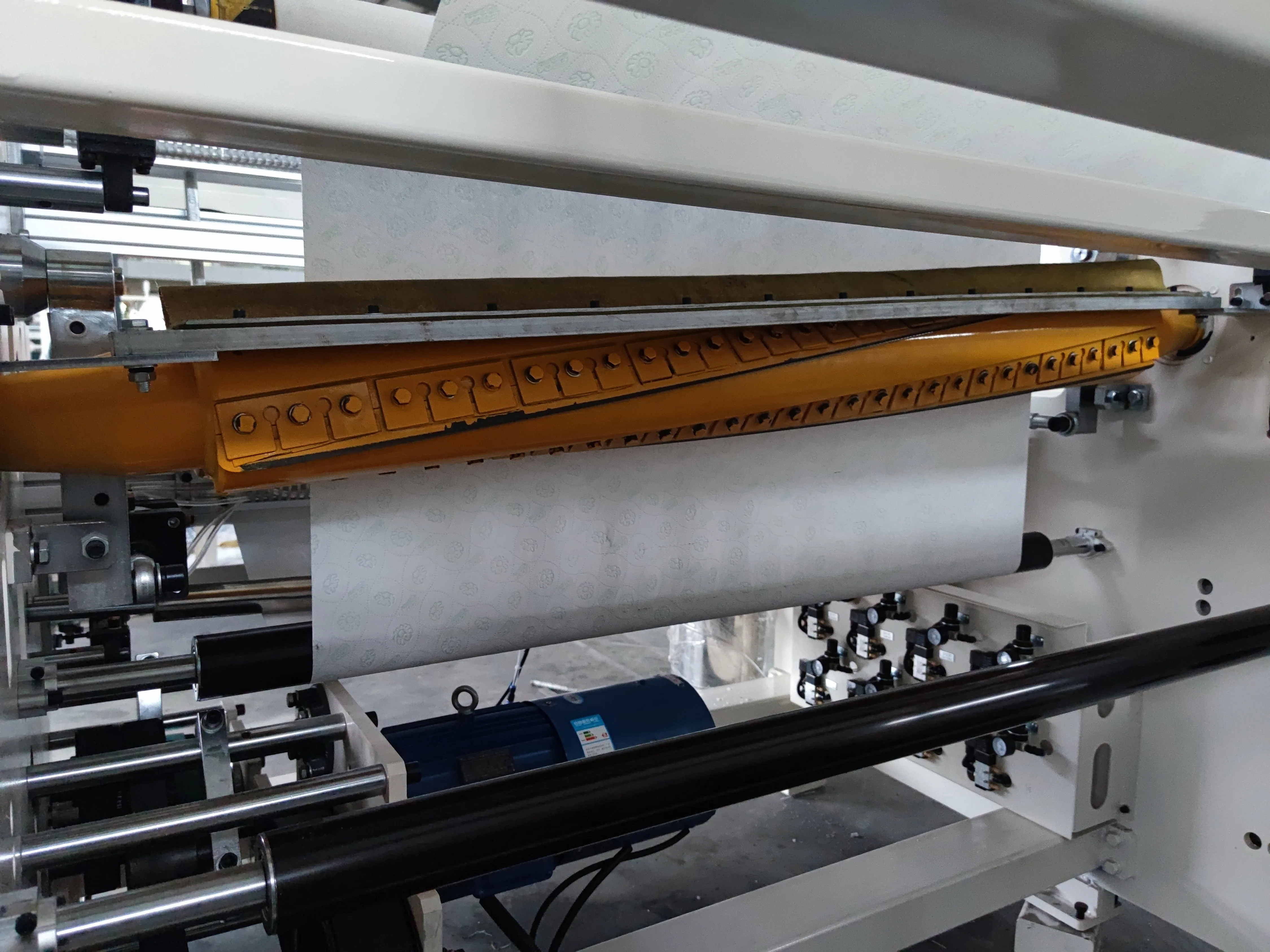

4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.

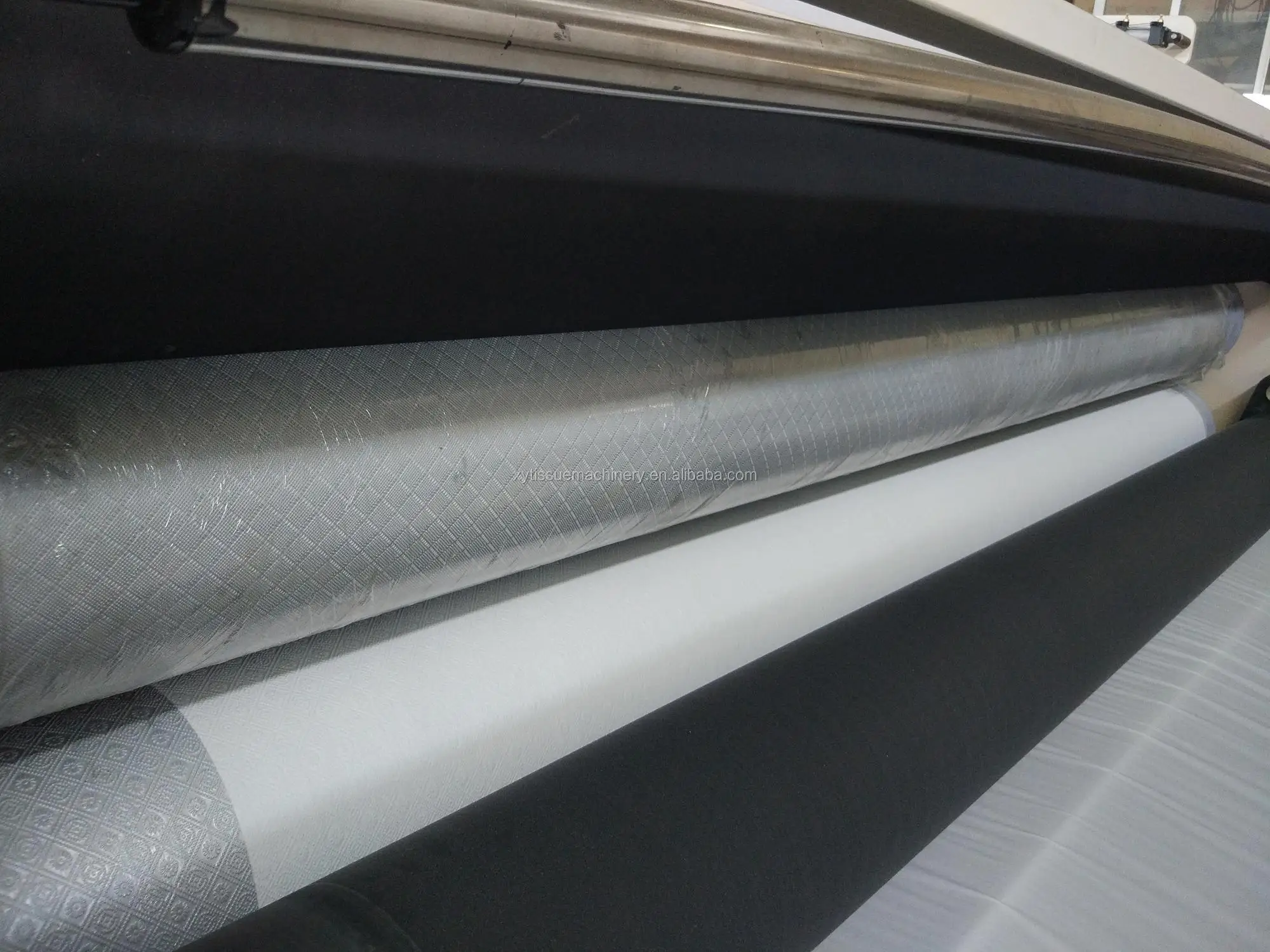

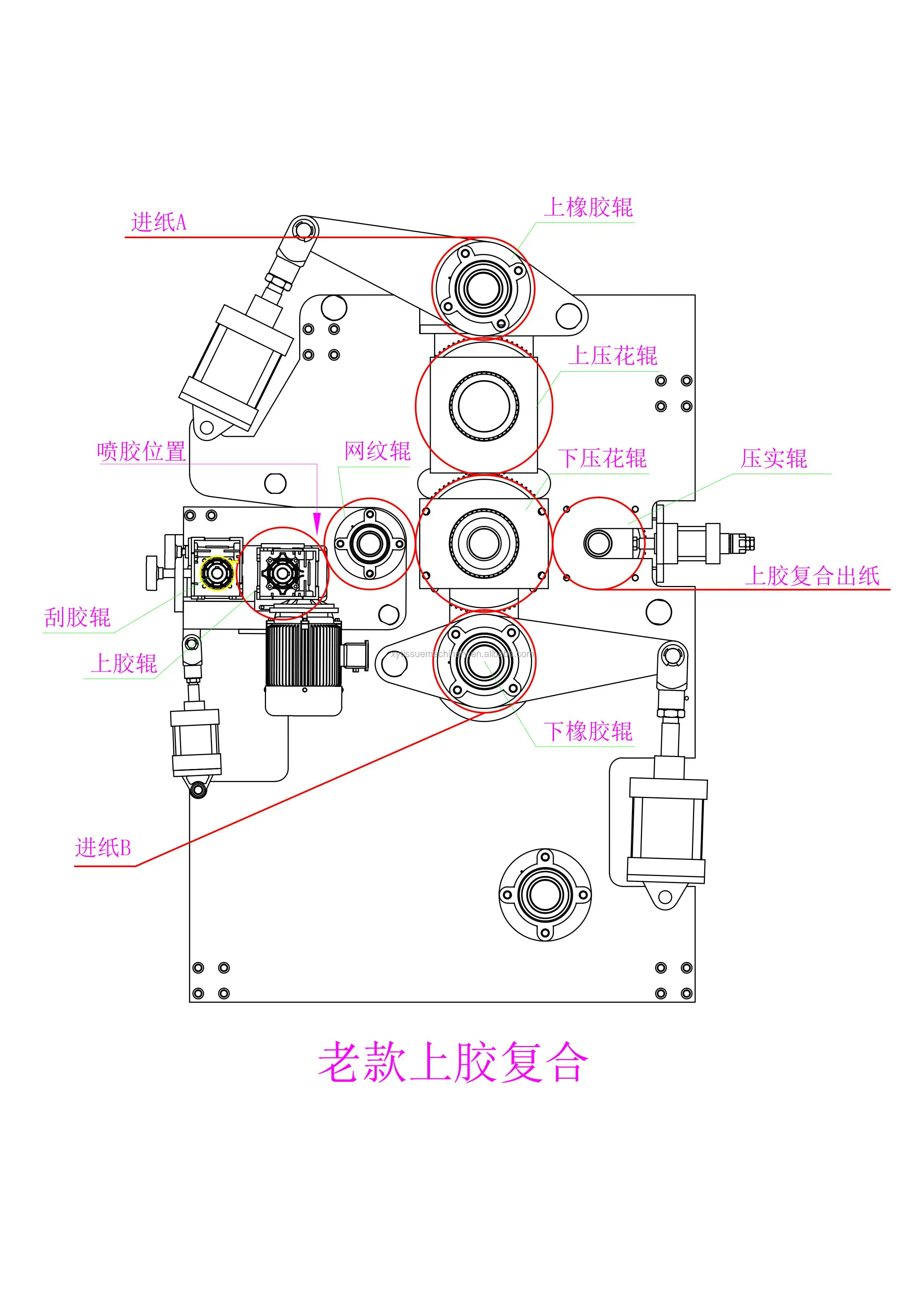

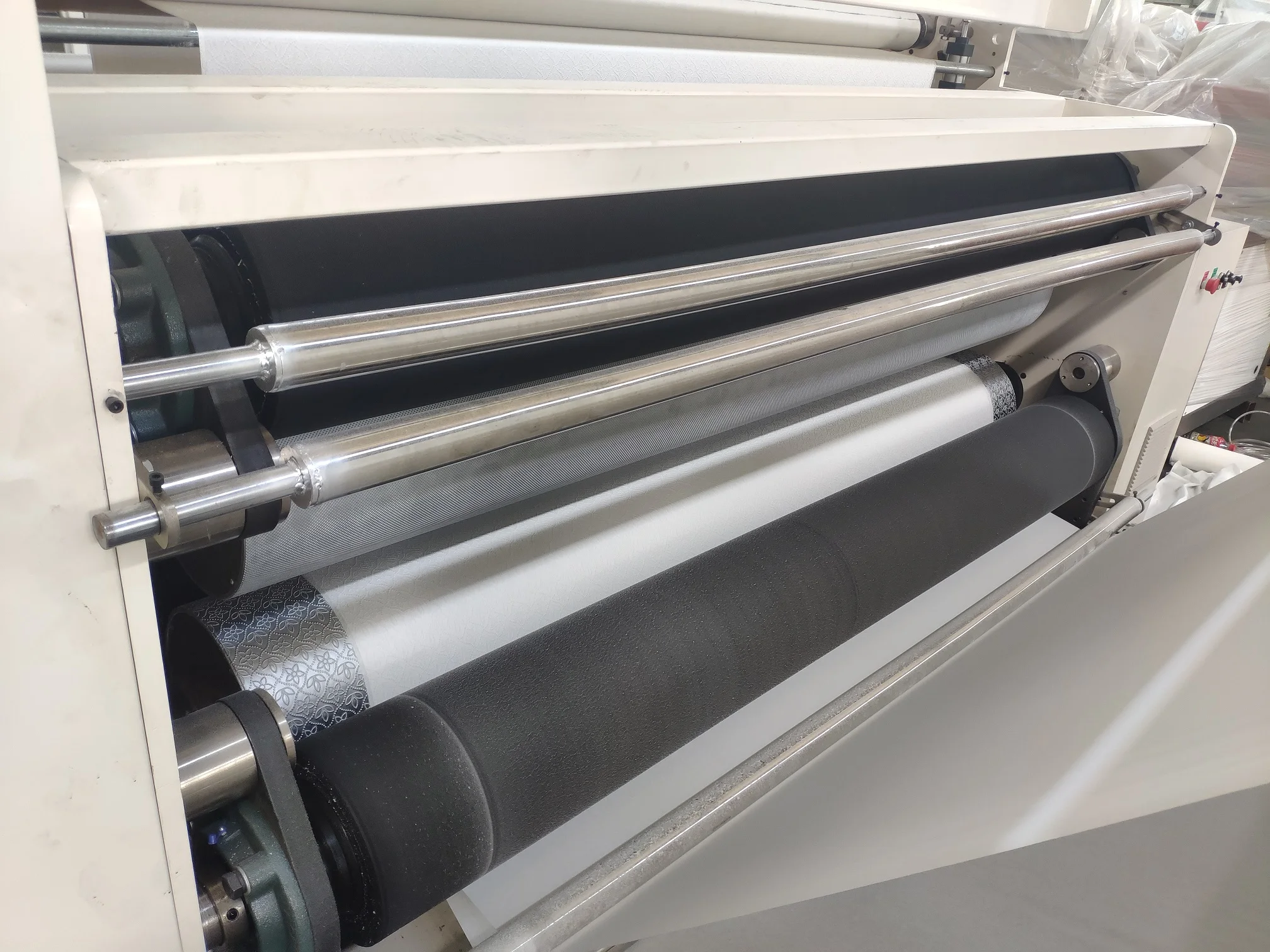

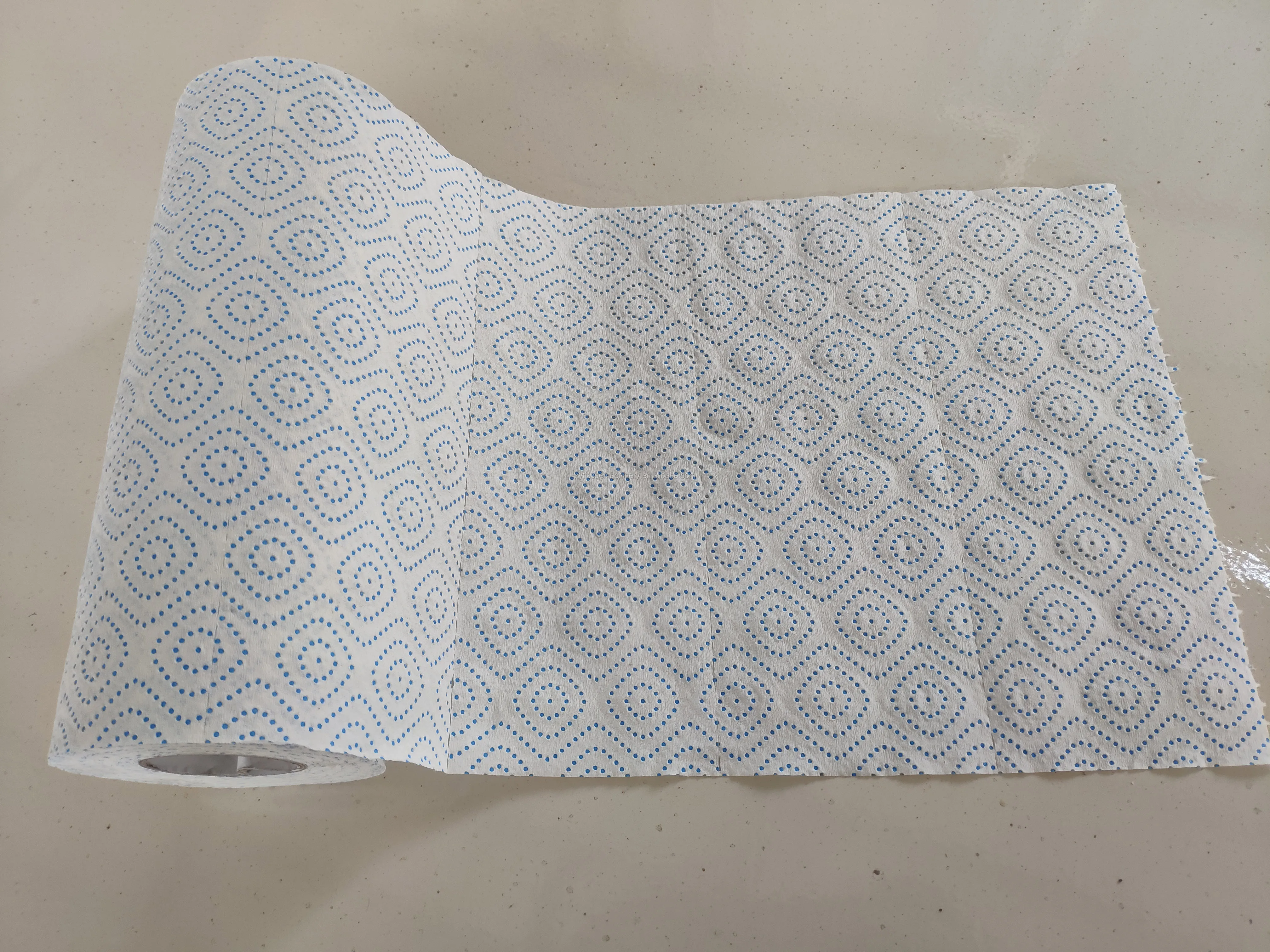

6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
Video Link: https://youtu.be/ytRj9VTSUeI
https://youtu.be/1y42GDIz7sA
https://youtu.be/k_FXgdVGg34

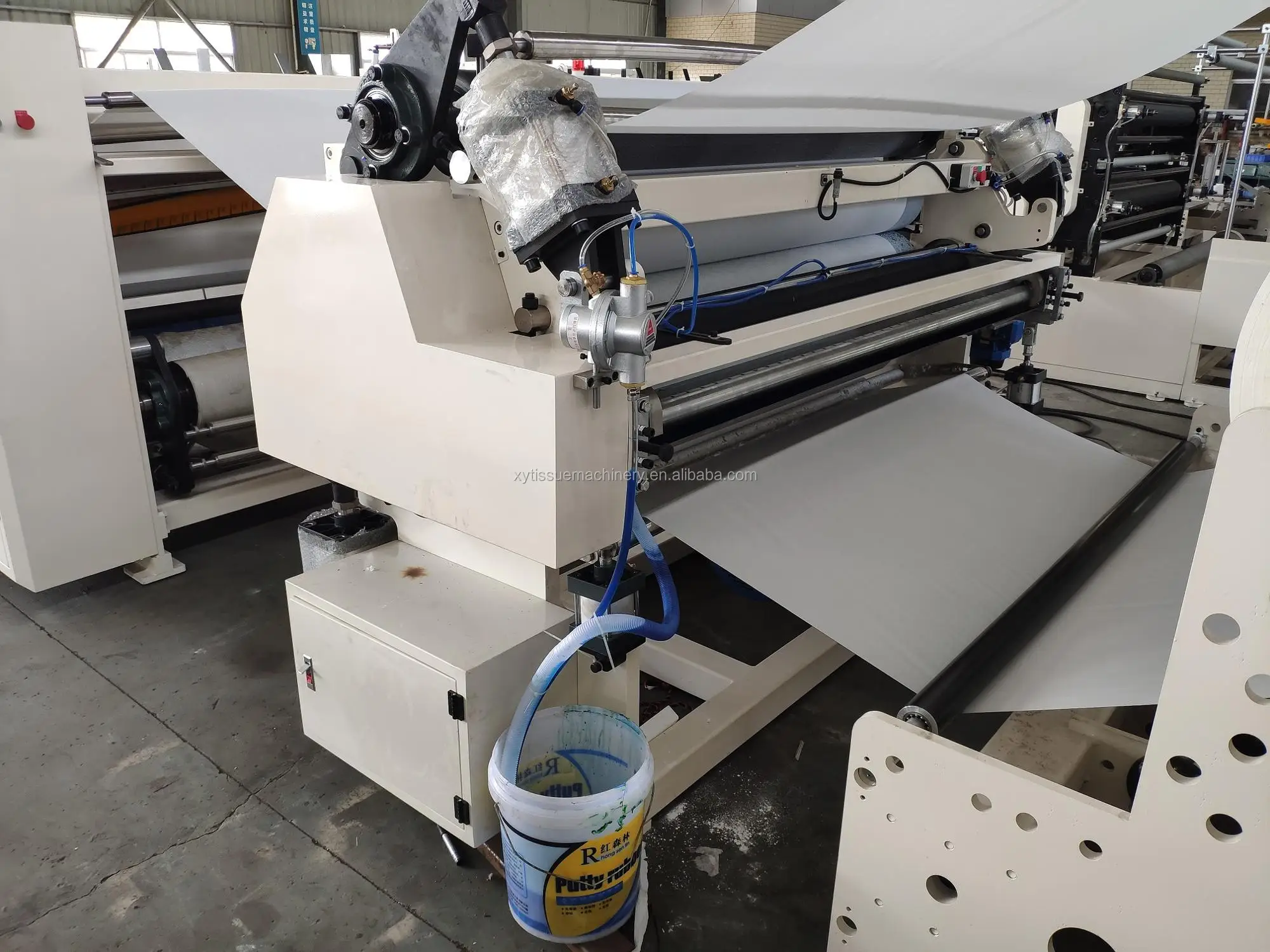

Detailed Images
Related Products

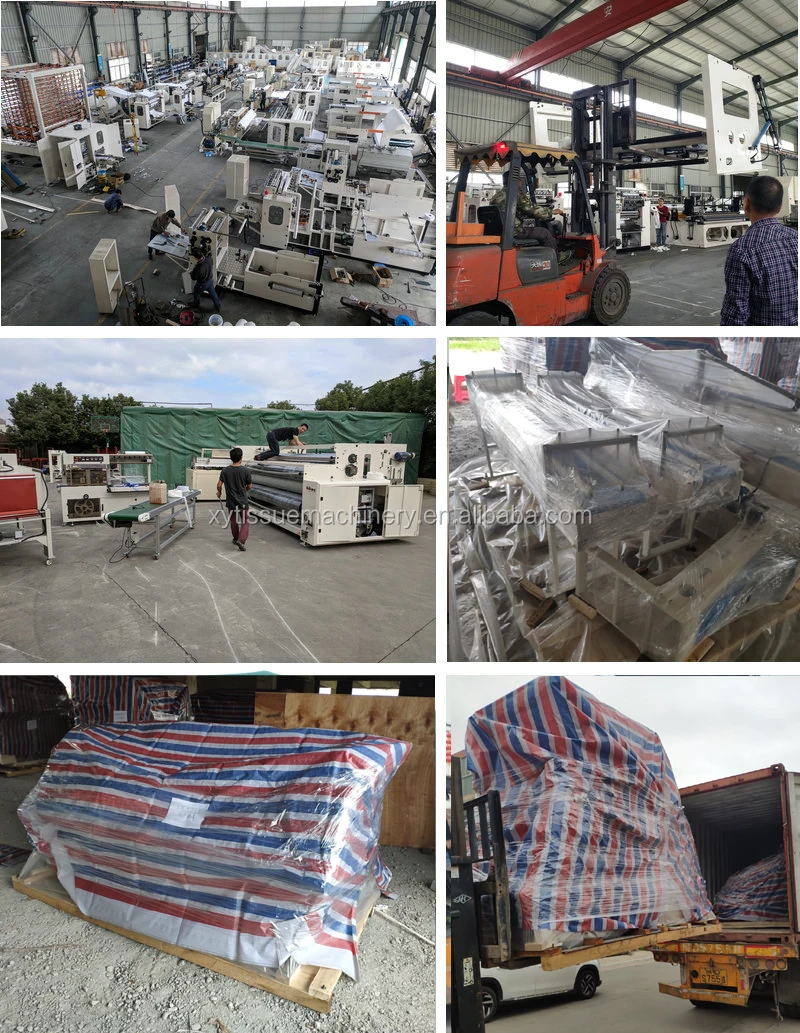

Packing&Shipping
After Sales Service
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hoursFor all the machines we sell, we will offer one-year guaranty for free and all life maintenance.
We deliver a USB disk of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hoursFor all the machines we sell, we will offer one-year guaranty for free and all life maintenance.
We deliver a USB disk of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.

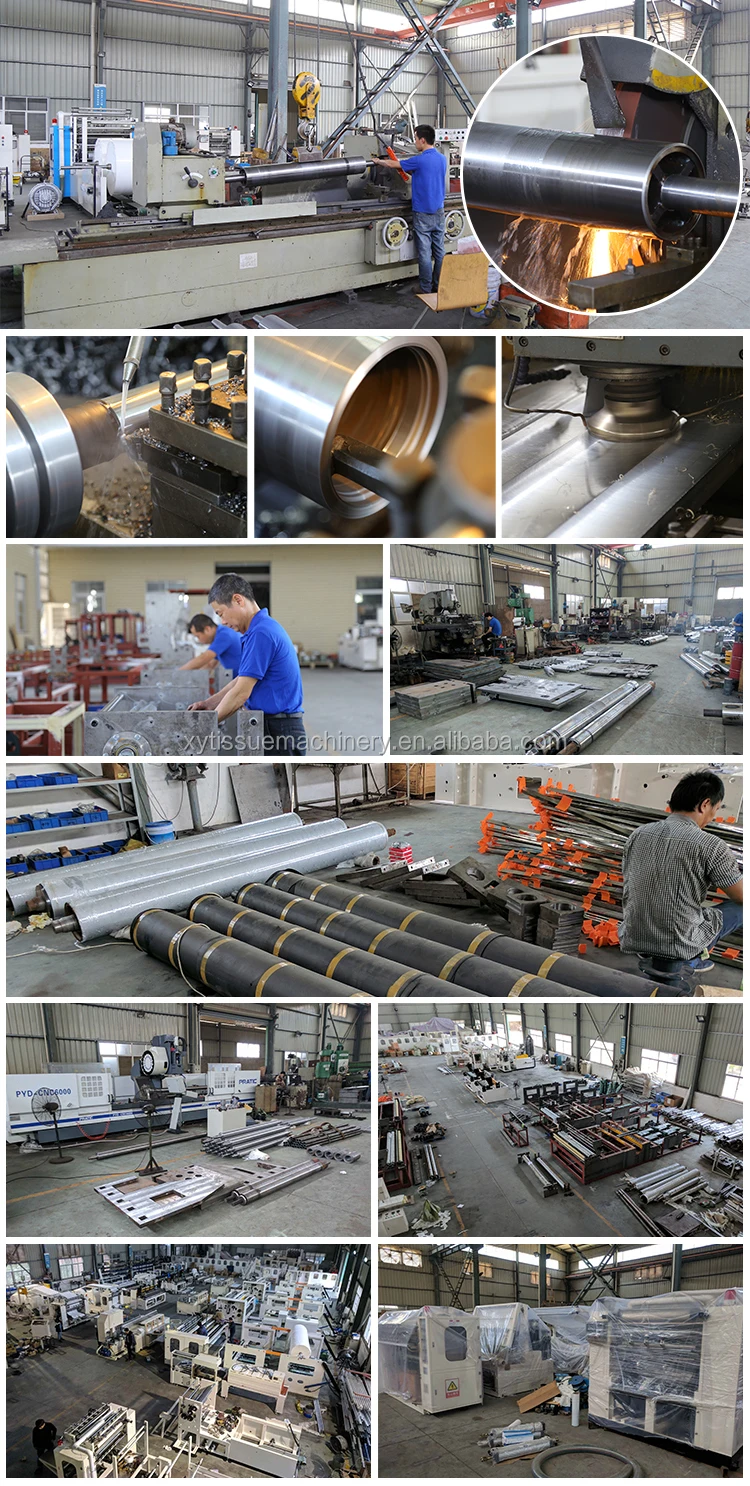

Workshop
