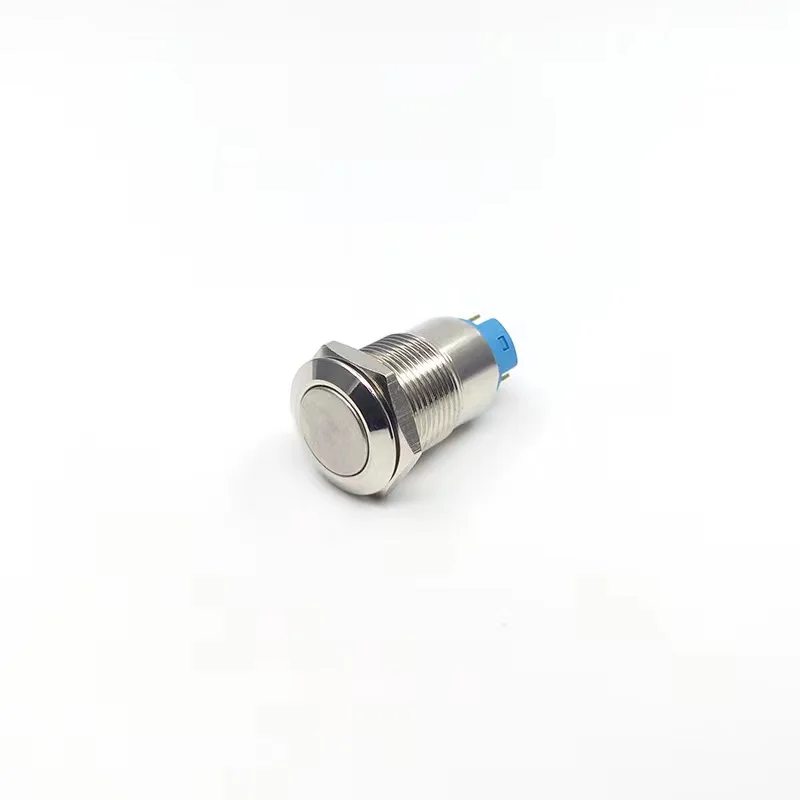

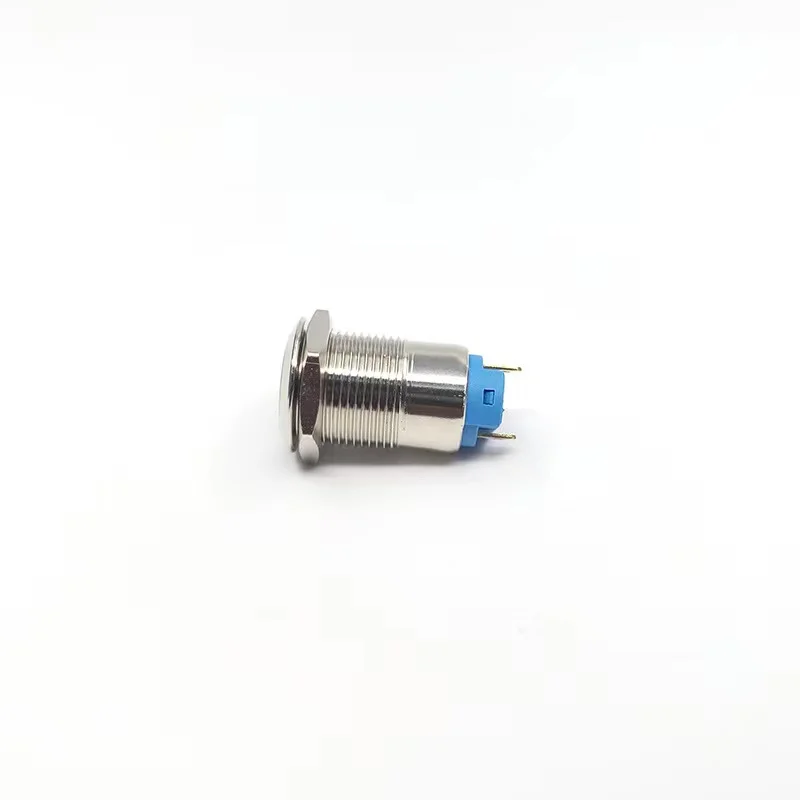

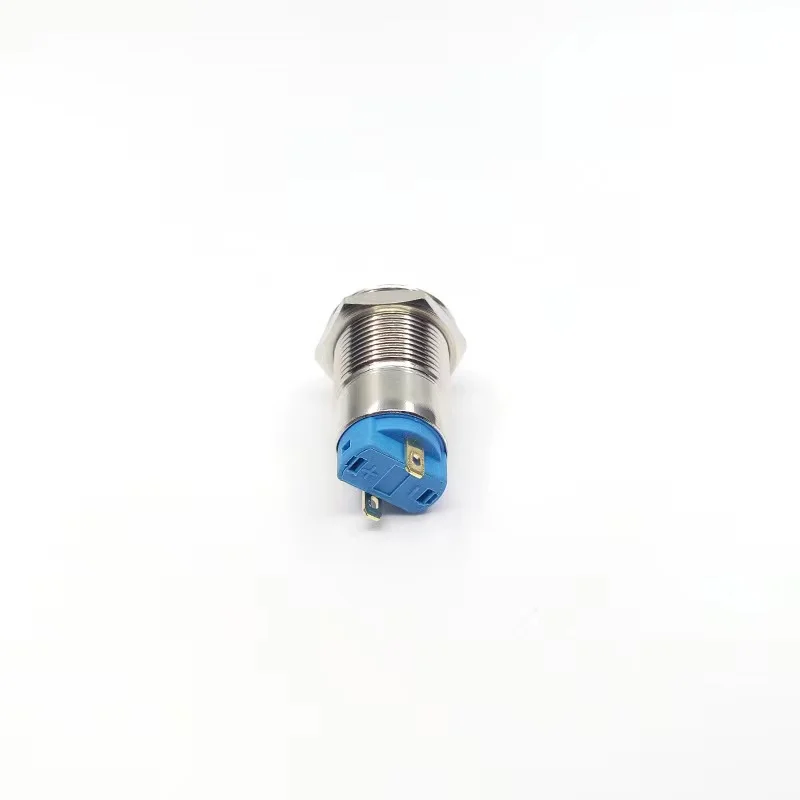

12mm on off Flat Metal Self locking Push Button illuminated switch

Specification:
Mounting Hole Size: 12mm / 0.47"
Switch: 2A/36VDC
Contact Configuration: 1NO
Operation Type: Latching
The Front Shape: Flat Round
The Crust Material: Nickel-plated Brass
Protection Degree: IP65, IK08
Terminal Type: Pin Terminal
Switch Type: Two terminal breakpoints slow moving contact
Contact Resistance: ≤50mΩ
Insulation Resistance: ≥1000mΩ
Dielectric Strength: 2000VAC
Operation Temperature: -20℃ to +55℃
Mechanical Life: > 1,000,000 times
Electrical Life: > 200,000 times
Operating Pressure: About 4N
Material: Metal
Contact: Alloy
Button: Stainless steel
Case: Stainless steel / nickel-plated brass
Base: PBT.

Yueqing Jixin Electronics Co., LTD was founded in 2018. It is located at Wenzhou Bridge Industry Zone,which is rated the national
production depot of Electronic Element.
Our company devotes in developing and the production of small switch and plug in componets. The main products are KCD Rocker Switch series, KW Micro Switch series, SN Toggle Switch series, AN Push Button Switch series,etc.
Yueqing Jixin Electronics Co., LTD have a strong tchnology power,complete production test equipment and test laboratory. The annual productive capacity is up to 50 millon set.
Our aim is quality first and customers first. And sincerely welcome merchants from domestic and abroad to corporate or invest for a common bright future.

1. who are we?
We are based in Zhejiang, China, start from 2018,sell to Southeast Asia(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Rocker Switch,AC Power Socket,Toggle Switch,Micro Switch

4. why should you buy from us not from other suppliers?
Yueqing Jixin Electronics Co., LTD have a strong technology power,complete production test equipment and test laboratory. The annual productive capacity is up to 50 millon set. And We have more than 10 years of production experience.

5. what services can we provide?
Accepted Delivery Terms: CFR,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Russian
