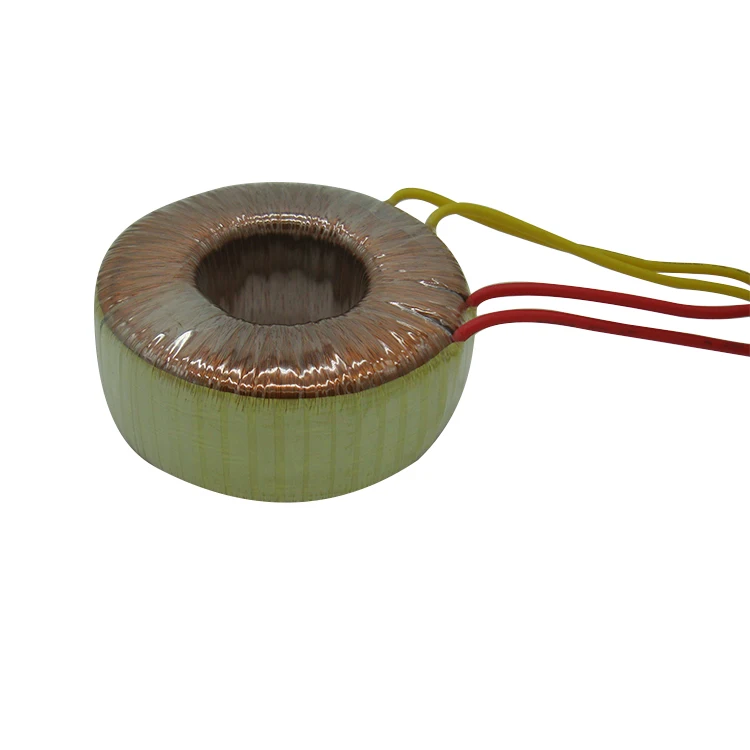

500w 1000w toroidal transformer 220v 240v 12v 35v step down toroidal transformer
- Category: Transformers >>>
- Supplier: Foshan,Winlong,Electric,Co.,Ltd.
Share on:
Product Overview
Description
Company Information
| Product name | TOROIDAL TRANSFORMER |
| Material | Copper Wire |
| Application | TOROIDAL Distribution System |
| Quality | Higher |
| Usage | Power |

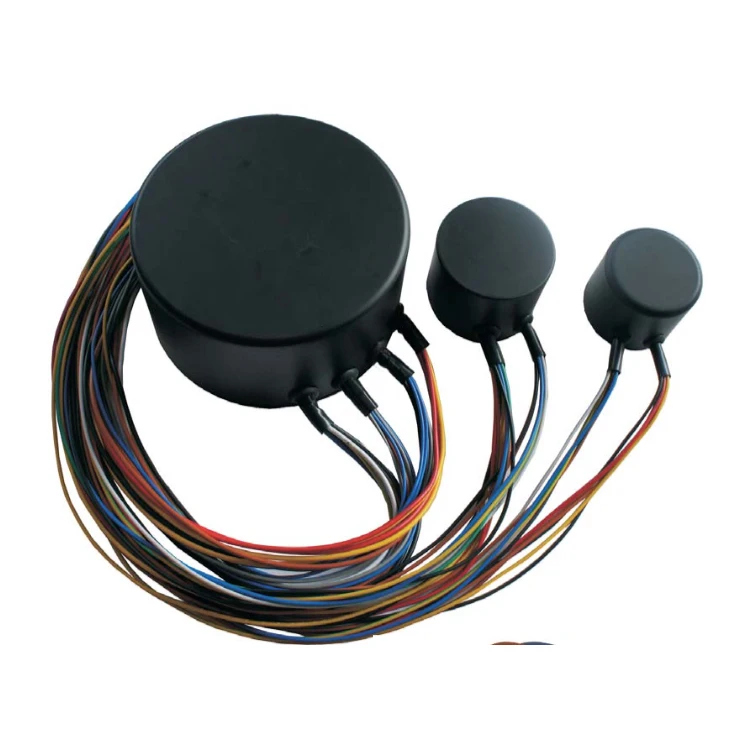

Single-phase toroidal transformers, power range from 20VA to 5000VA. Designed and tested according to EN61558. Suitable for installation in electronically equipment.
Designed as a safety isolating transformer with separate insulated windings and prepared for class II equipment.
Short circuit and overload protected with thermal fuse(or thermal switch) on primary side. Up to 50% less weight than a similar conventional transformer.
Lower magnetisation currents and no-load losses.
MAKE TRANSFORMERS
HOW TO MAKE GOOD TRANSFORMERS?

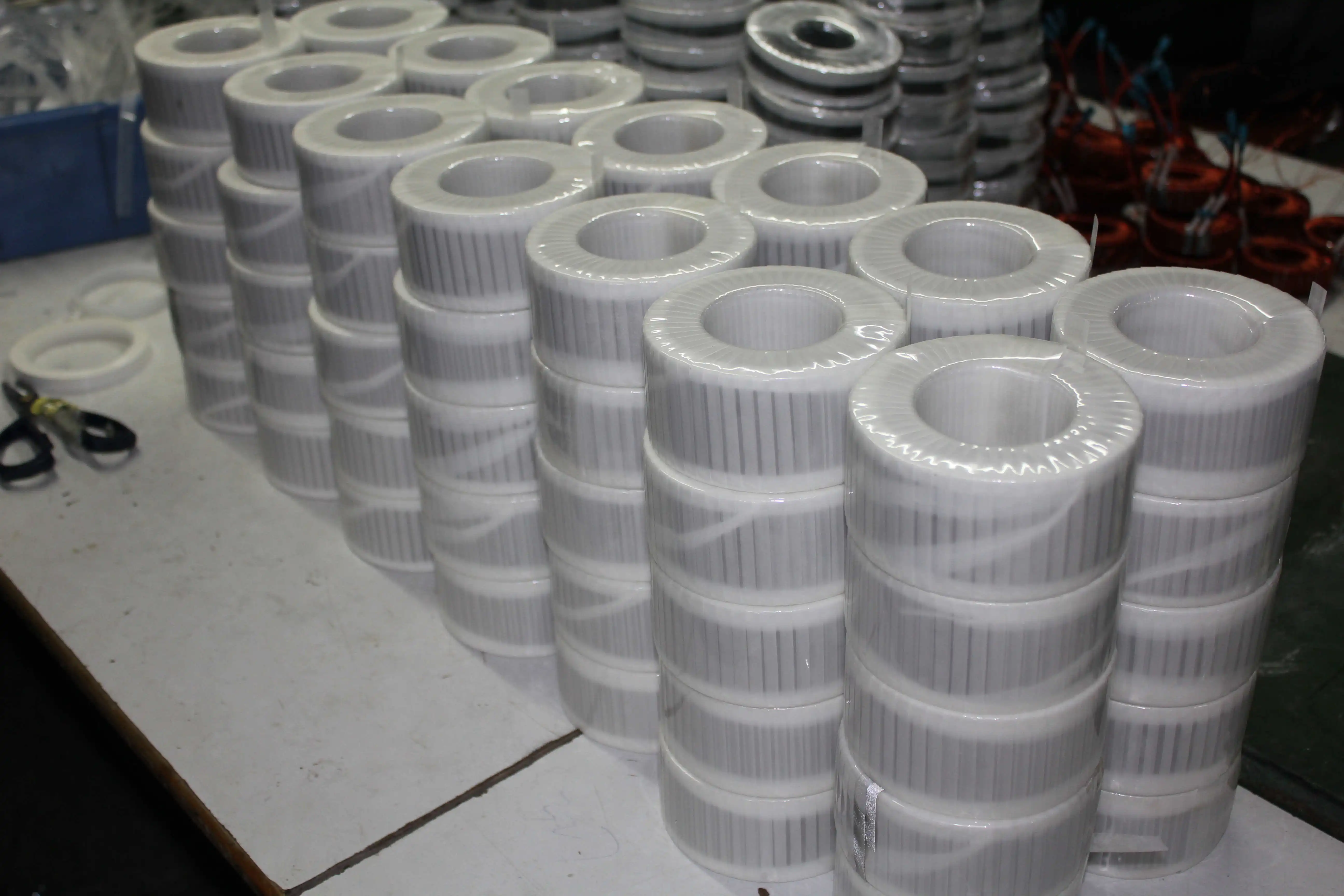

1.CRGO SILICON STEEL( IRON CORE)
HIGH MAGNETIC CONDUCTIVITY,STRONGER INNER CORE TO ENSURE BIGGER CAPACITY
2.DUPONT POLYESTER MYLAR EL,MAX 180ºC COVERING 4 LAYERS TWICE IN TOTAL.HIGH COMPRESSIVE STRENGTH
(INSULATION CORES)
3.HIGH PURITY ENAMEL COPPER WIRE, TEMPERATURE RESISTANCE 130ºC,FLAT AND ISOLATED WINDING
(WINDINGS)
4.AVOID VIRTUAL WELDING, STRONG TENSILE RESISTANCE
(SAFETY WIRES OUT)
5.UL APPROVAL POLYESTER FILM COATING BETWEEN EACH WINDING AND SURFACE,dielectric strength MIN. 4KV FOR 60 SECONDS
(FINISHED PRODUCTS)

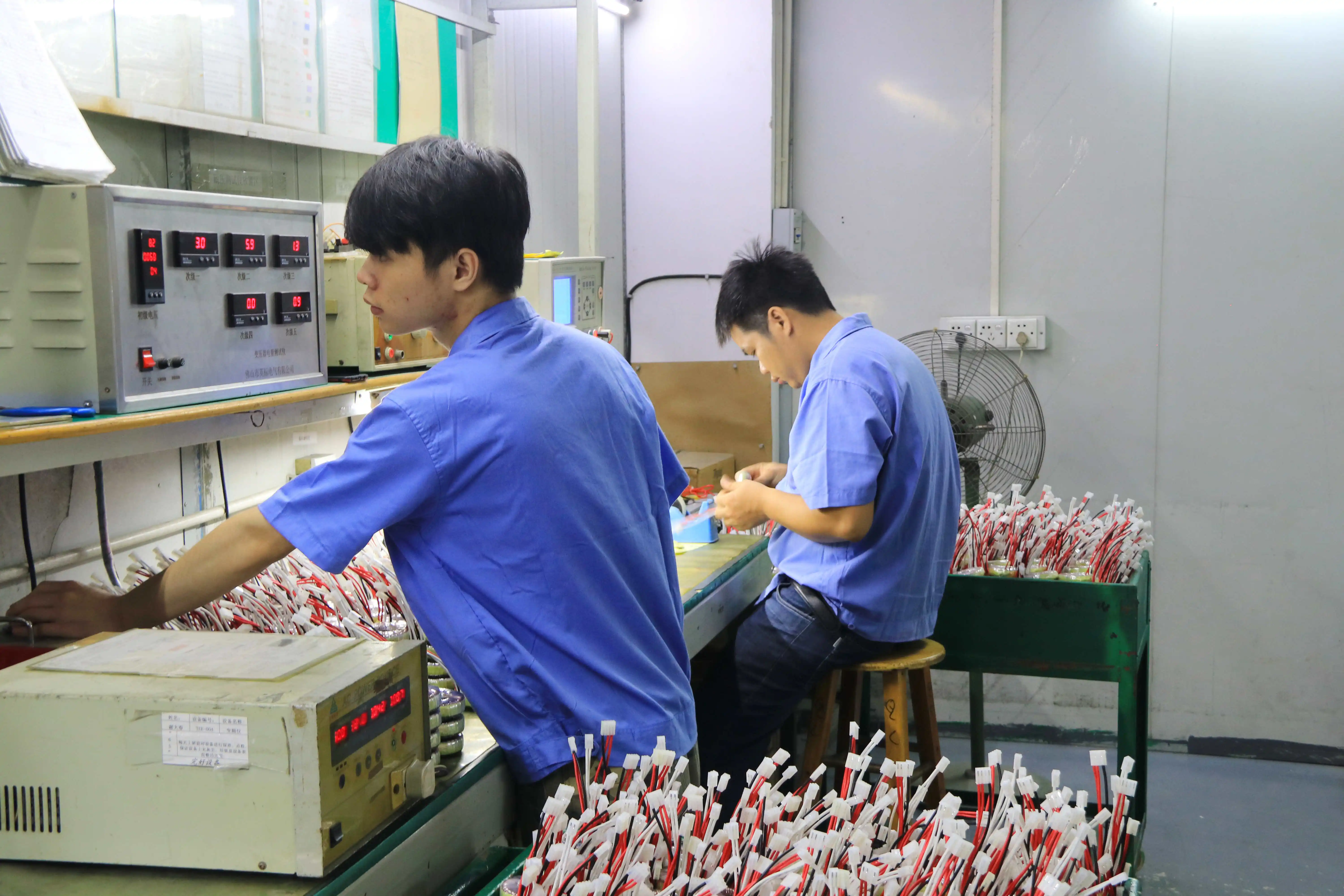

6.100% TESTED BETWEEN PROCESSING STEPS,100% TESTED FOR FINAL QC
(TESTING)
