High pressure PU Polyurethane insulation foam mixing spray making machine for sale

Power source

220V/380V

220V/110V

380V

Heating power

12KW

7.5KW

11KW

Driven mode

pneumatic

pneumatic

pneumatic

Air source

0.5~0.8 MPa ≥0.9m³/min

0.5~0.8 MPa ≥0.9m³/min

0.5~0.8 MPa ≥0.9m³/min

Raw output

2~12 kg/min

2~12 kg/min

2~12 kg/min

Maximum output pressure

11Mpa

11Mpa

11Mpa

AB material output ratio

1:01

1:01

1:01

Spray gun

1 Set

1 Set

1 Set

Feeding pump

2 sets

2 sets

2 sets

Heating hose

15meters

15meters

15meters

Gun connection pipe

2pieces

2pieces

2pieces

Feed delivery pipe

2pieces

2pieces

2pieces

pneumatic pipe

5meters

5meters

5meters

Spare parts

1set

1set

1set

Features:
1. Stable cylinder supercharged unit, easily providing adequate working pressure;
2. Small volume, light weight, low failure rate, simple operation, easy mobility;
3. Adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;
4. Minimizing spraying congestion with 4-layers-feedstock device;
5. Multi-leakage protection system to protect the safety of the operator;
6. Equipped with emergency switch system, help operator deal with emergencies rapidly;
7. Digital counting system can understand original consumption timely FOR DEPP-700;
8. Reliable & powerful heating system enables rapid warming of raw materials to the best state, making sure it works great in cold condition;

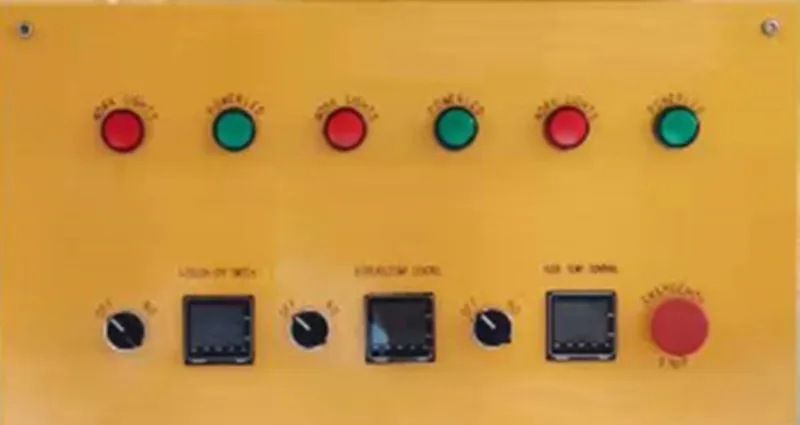

9. Humanized design with equipment operation panel, super easy to get the hang of it;
10.Feeding pump adopts big change ratio method, it can easily feed raw materials high viscosity even in winter.
11.The latest spraying gun has great features like small volume, light weight, low failure rate, etc.
