Product Overview
Description

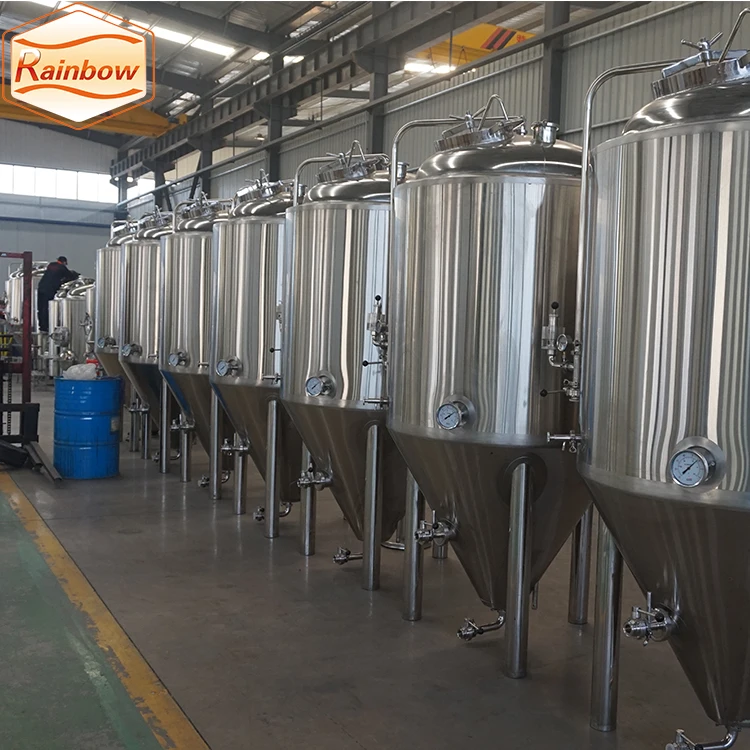

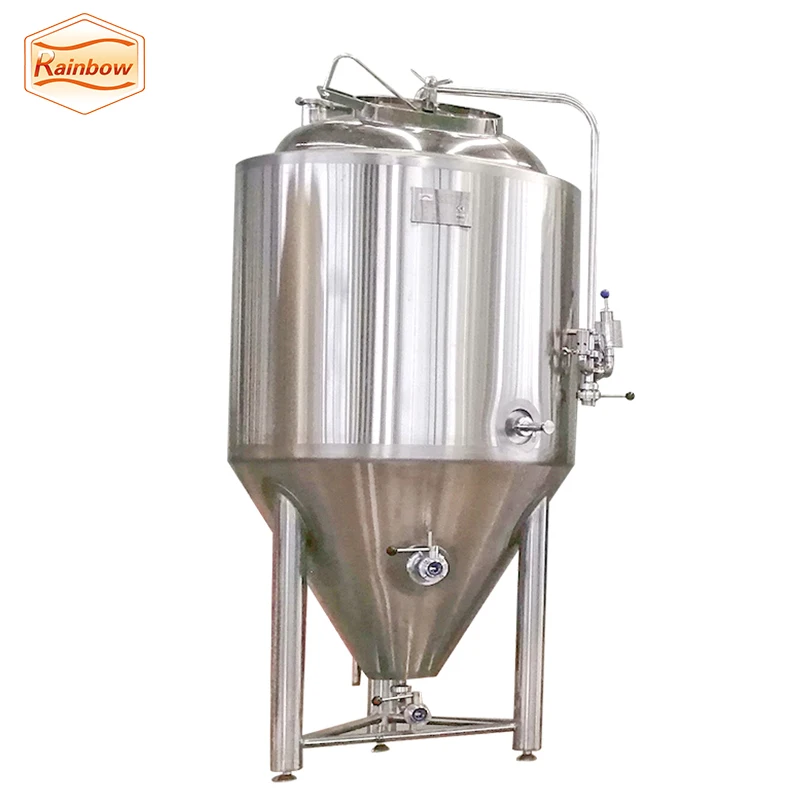

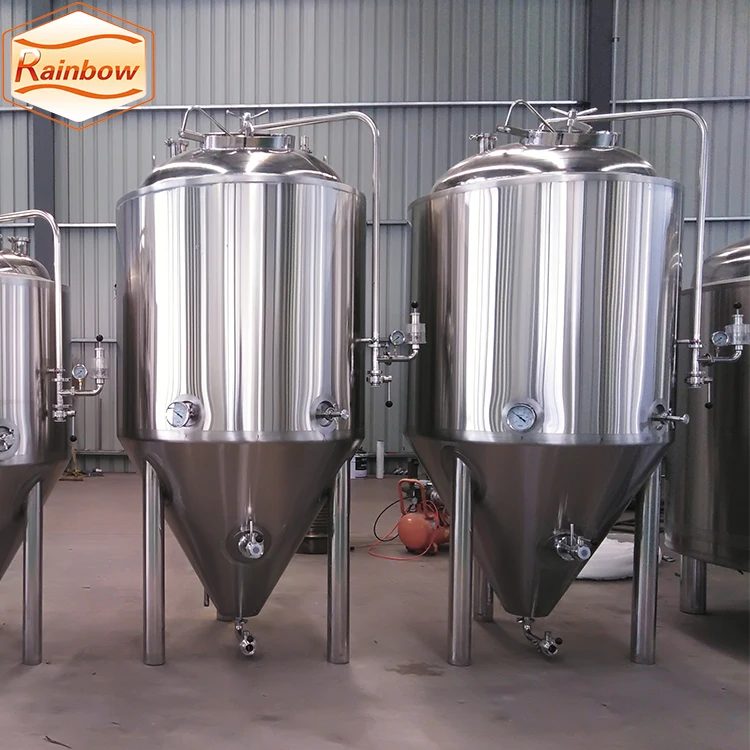

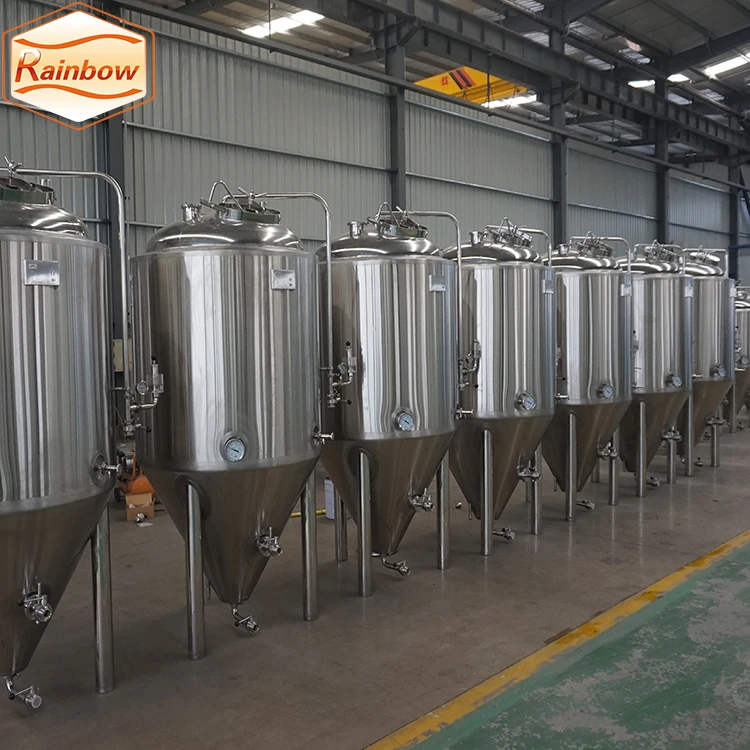

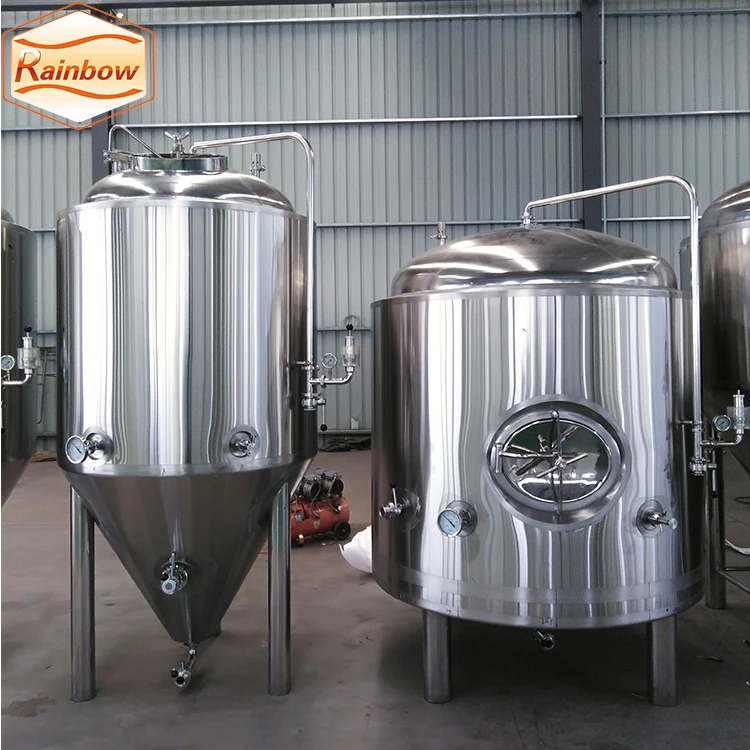

stainless steel sanitary beer beverage equipment 5bbl conical fermentation bucket cooling jacket unitanks
Beer Fermenter Tank | ||||||
1 | Cylinder Conical Tank | |||||
2 | Total Volume: 25% head space | |||||
NO | Name | Specifications | ||||
1 | Head | SUS 304 T3mm | ||||
2 | Inner Wall | SUS 304 T3mm | ||||
3 | Layer | SUS 304 T2mm | ||||
4 | Insulation | PU 100mm | ||||
5 | Jackets | SUS 304 on cylinder and conical parts | ||||
No.: | Size | Name | Connection | |||
1 | 430*330mm | Manhole | Welding | |||
2 | ø38mm | Safety/Vacuum Valve | TC | |||
3 | ø102mm | Dry Hop Port | TC | |||
4 | ø32mm | CIP ball | TC | |||
5 | ø16mm | Thermometer | TC | |||
6 | ø32mm | Sample Valve | TC/DIN | |||
7 | ø32mm | Rotation Rack Arm | TC/DIN | |||
8 | ø38mm | Drainage Port | TC/DIN | |||
9 | ø32mm | CIP Arm | TC/DIN | |||
10 | ø32mm | Bung Apparatus | TC | |||
11 | ø25mm | Cooling Inlets and Outlets | Threads | |||
12 | ø10mm | PT-100 | Welding | |||
Optional | ||||||
1 | Carbonation Stone | |||||
2 | Level Tube | |||||
3 | Side Manhole | |||||
