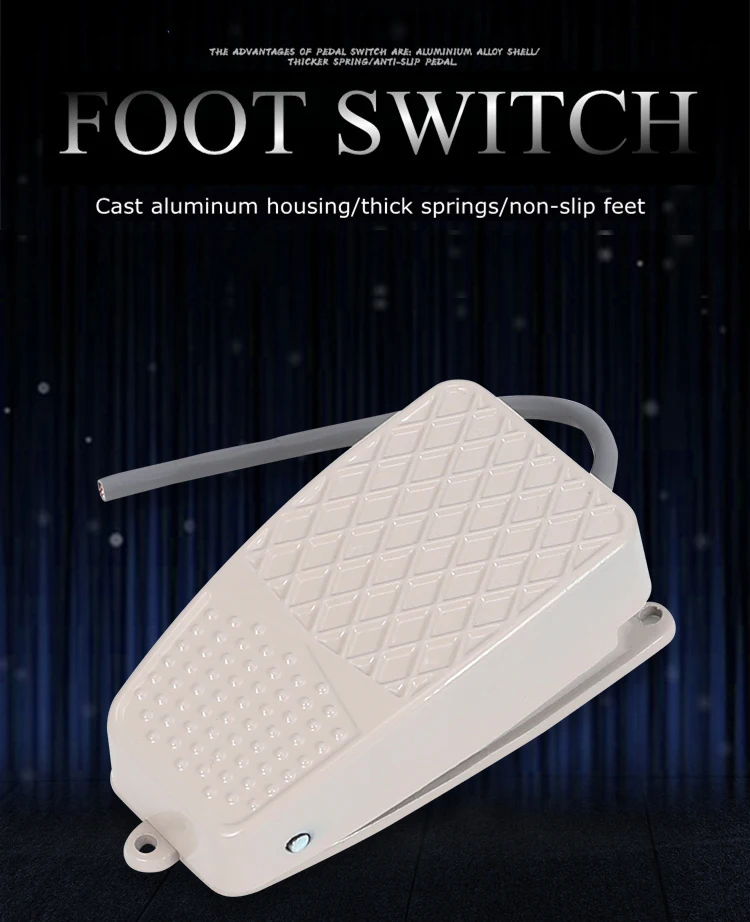

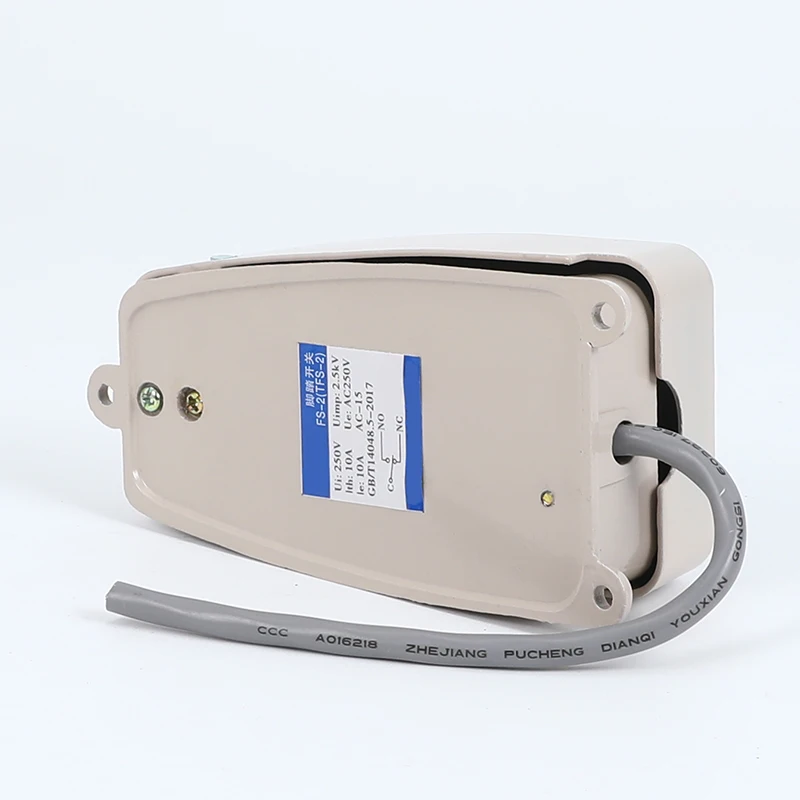

GWIEC factory price Aluminum casting footswitch/machine Pedal foot switch

Product Overview

Description

Product introduction:

Foot switch is a circuit by foot or foot to control the switch used in the hands can not touch the control circuit to replace the hands to achieve the purpose of operation.
Foot switch is widely used in medical equipment, stamping equipment, welding equipment, textile equipment, printing machinery.
In the application of electronic industry, such as small king Kong, terminal machine configuration, automatic and inch, inch is the application of foot switch. Step on a step.

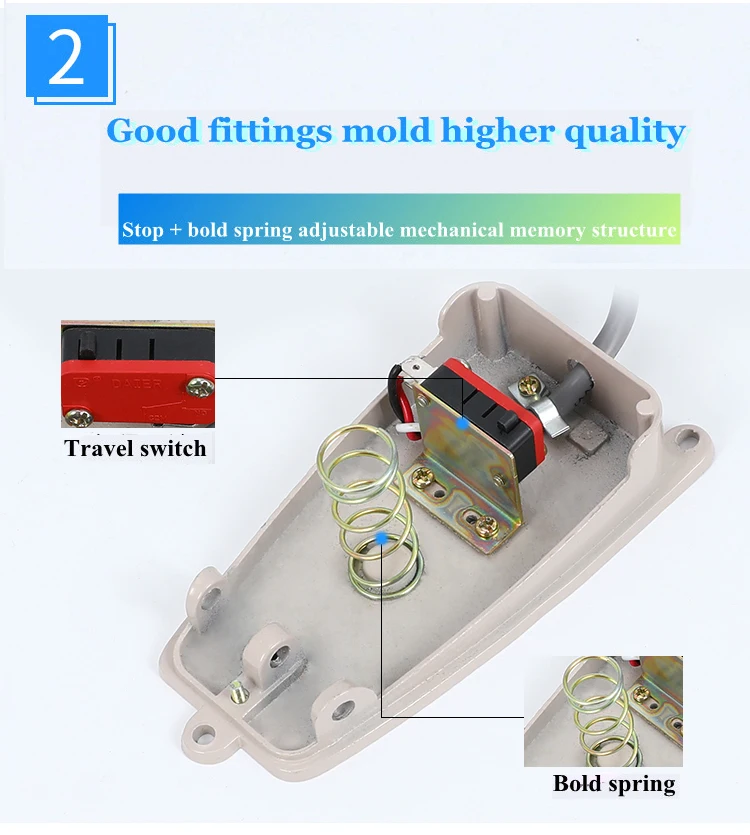

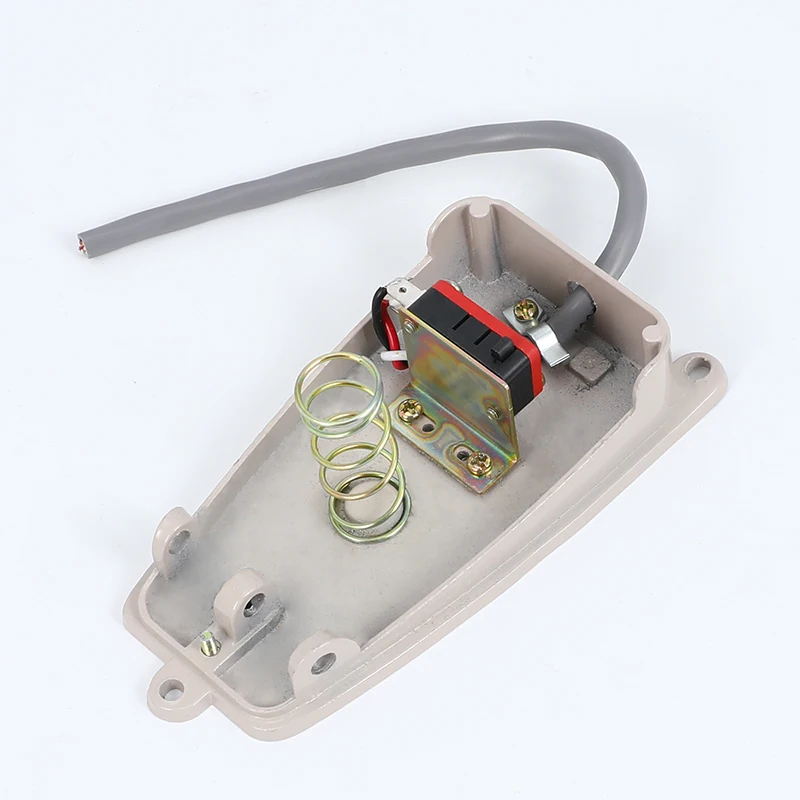

Simple pedal switch is actually a built-in travel switch, when the pedal gives a signal, the switch is executed. But now the welding field foot switch function also plays the role of controlling the output current size. This type of foot switch can also be divided into two categories: one, mechanical foot switch; Two, induction foot switch. Mechanical foot switch is the traditional rack and pinion rotation, induction is through electromagnetic induction and other principles.

Features:

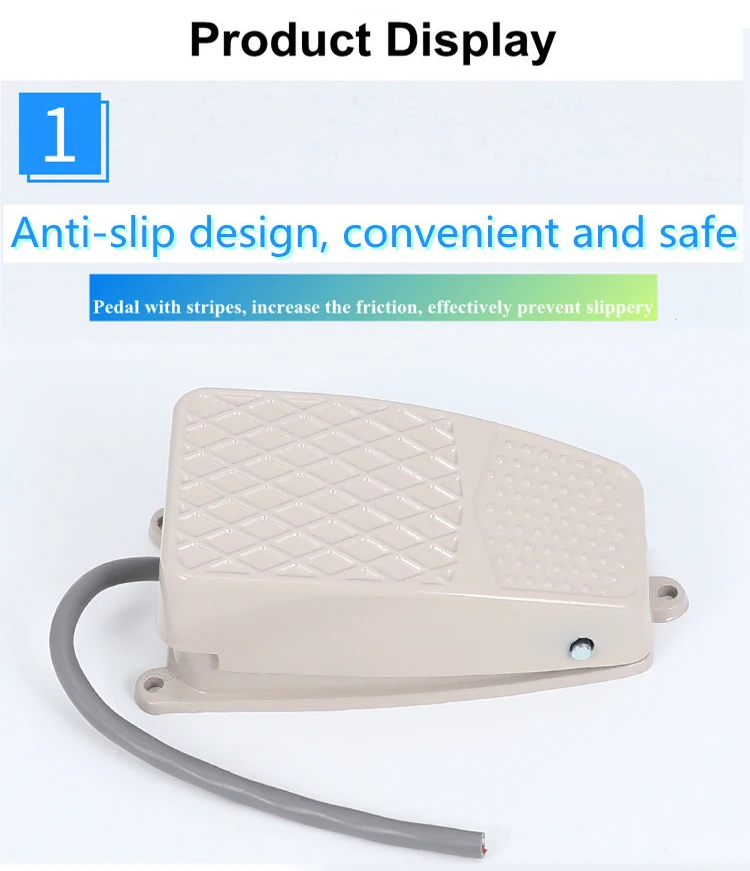

High strength, reliable, and safe universal pedal switch

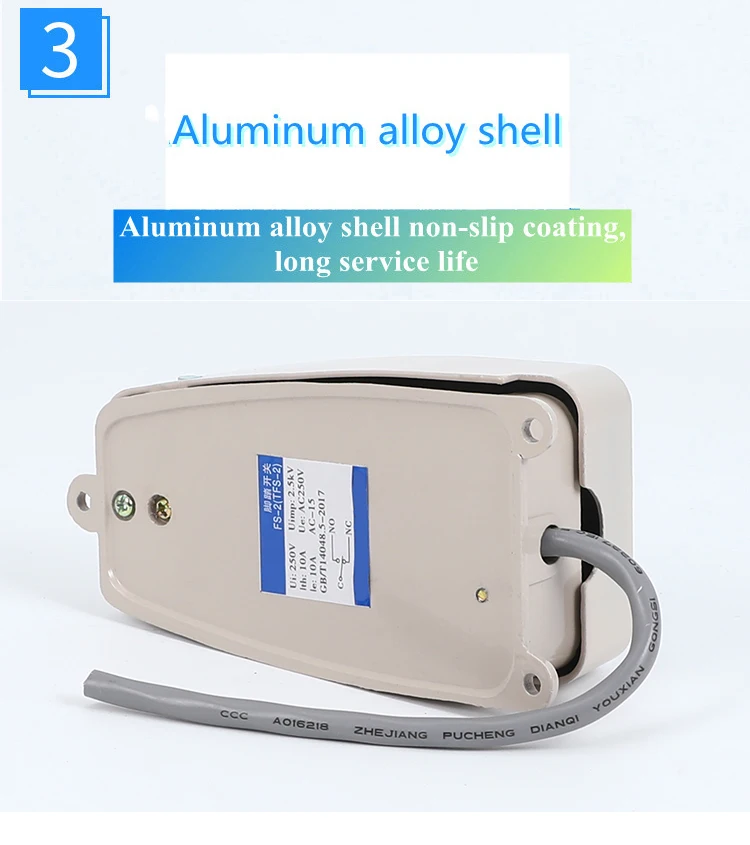

Metal series shell, such as engineering plastic, steel panel, aluminium alloy etc.

Plastic series shell,can OEM/ODM

Widely used for industrial automation equipment, transport, pressing, medical treatment, test and etc.

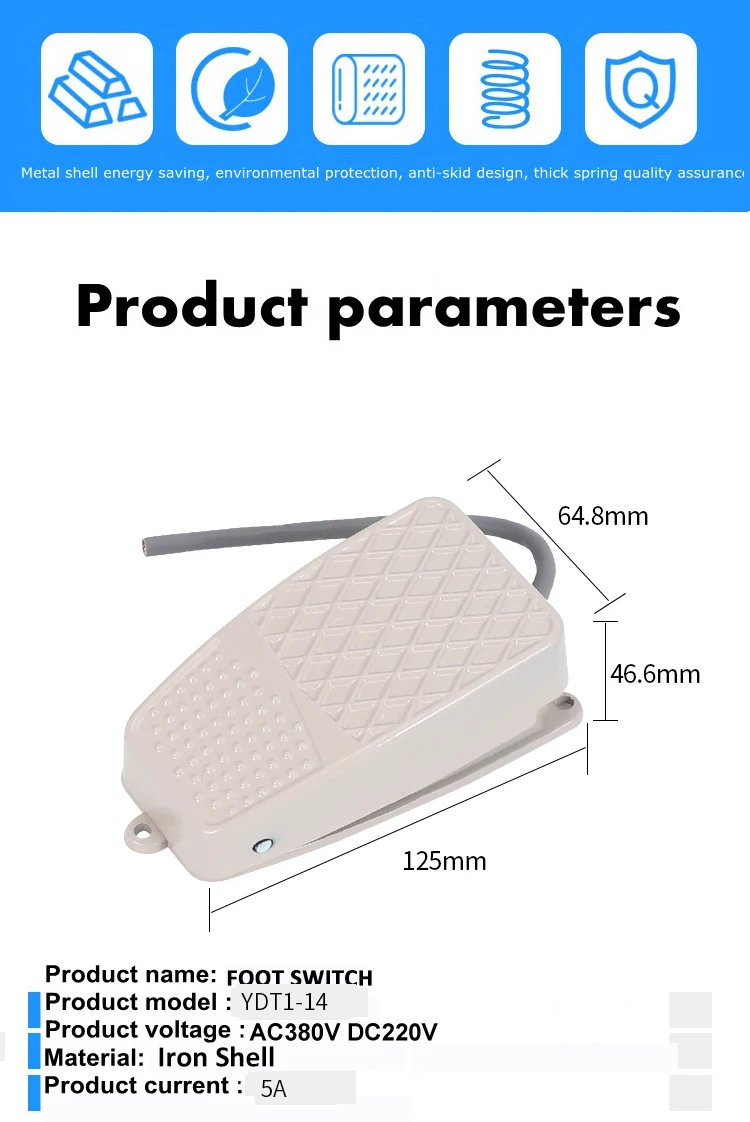

Product characteristics

Types	Model	Rating	Internal switch	Contact	Action force	Material
Standard type Reset type	FS-101	10A 250VAC	V type micro switch	1A1B	1.2kg	Plastic
	FS-102	15A 250VAC	TM-1704	1A1B	1.1kg
	FS-3	15A 250VAC	V type micro switch	2A2B	1.2 kg	Aluminum cast
	FS-3S	15A 250VAC	TM1704	2A2B	1.1kg
Standard type Alternate action	FS-105	6A 250VAC	Imported alternative switch	PUSH ON PUSH OFF	2kg	Plastic
	FS-106	6A 250VAC	Imported micro switch	PUSH 1A PUSH  1B	1.5 kg
Small type  Fixed type	FS-201	10A 250VAC	V type micro switch	1A1B	0.7 kg	Plastic
	FS-01	10A 250VAC		1A1B	0.7 kg
	FS-1	10A 250VAC		1A1B	0.9 kg	Iron
Protective cover type	FS-302	15A 250VAC	TM1704	1A1B	3.2 kg	Aluminum cast
	FS-305	6A 250VAC	Imported alternative switch	PUSH ON PUSH OFF	3.1 kg
	FS-306	6A 250VAC	Imported micro switch	PUSH 1A PUSH 1B	3.5 kg
	FS-502	15A 250VAC	TM-1704	1A1B	3.2 kg
	FS-602	15A 250VAC	Button spring switch	2*1A1B	2.8 kg
	FS-702	15A 250VAC	TM1704	2*1A1B	3.2 kg
Large type	FS-402	15A 250VAC	TM1704	1A1B	3.2 kg
	FS-802	15A 250VAC	TM1704	2*1A1B	3.2 kg







Wiring Diagram:
