PP PS PC HDPE PA GF Vibration friction plastic welding machine for Car air filter weld polypropylene
- Category: >>>
- Supplier: DONGGUAN BLUETOOL IEM CO. LTD
Share on (1600405285144):
Product Overview
Description
Products Description

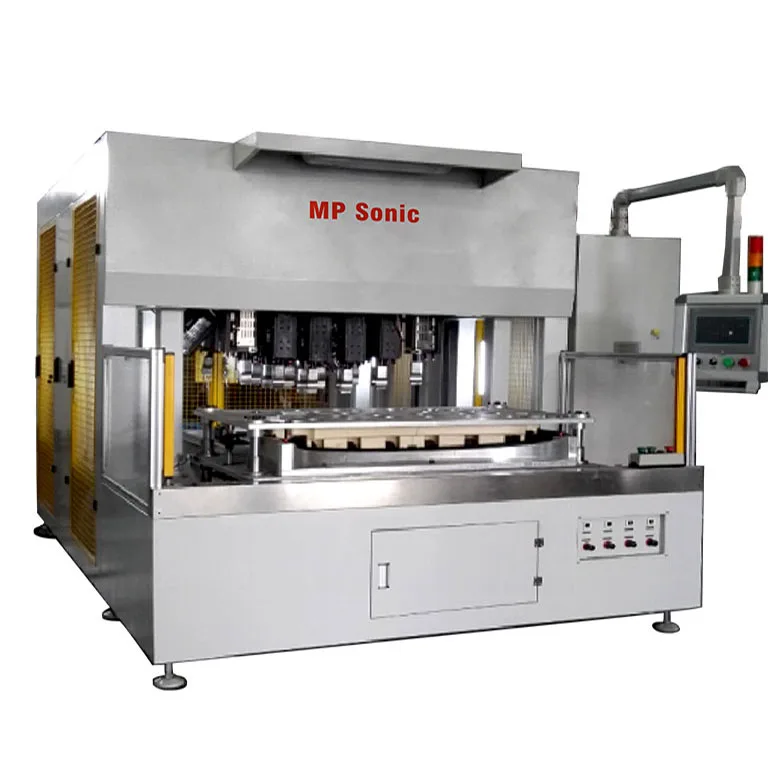

The Vibration welding Machine
1. Model: 55KG Vibration welder MSV-650LS
2. Applicable materials:
Applicable Acrylic, plastic, PVC, signal light of car, nylon connector, pipe nozzle, etc.
2. Applicable materials:
Applicable Acrylic, plastic, PVC, signal light of car, nylon connector, pipe nozzle, etc.
3. Applicable industry:
They are widely applied to welding plastic welding out of ultrasonic welding ability, or for the welding of such thermoplatic material which is out of hot palte welding ability.
They are widely applied to welding plastic welding out of ultrasonic welding ability, or for the welding of such thermoplatic material which is out of hot palte welding ability.
Product Paramenters
NO | ITEM | DATA |
1 | Model | MSV-715LS |
2 | Weight upper tool | 55Kg |
3 | Welding area(approx. / for PP) | 160 cm2 |
4 | Amplitude(peak to peak) | 0.8∼1.8 mm/1.0-1.2mm |
5 | Frequency | 210∼280 Hz |
6 | Spring Quantity | 4 |
7 | Magnetic Quantity | 1 |
8 | Table stroke/Max | 500 mm |
9 | Max. distance between lift table | |
10 | VibratIon head | |
11 | Table speed | 250 mm/s |
12 | Clamp force | 15.5 KN |
13 | Weight | 3,800 kg |
14 | Sound pressure level | ≤80db |
15 | Power consumption | 23 KVA |
16 | Maximum Power/Out Put | 15 Kw |
17 | Machine Size | 2650*1286*2290mm(W*D*H) |
18 | Front Door Opening | 1400*745mm(W*H) |
19 | Drive Platen/upper | 870*440mm(W*D) |
20 | Lift Table Size | 1300*600mm(W*D) |

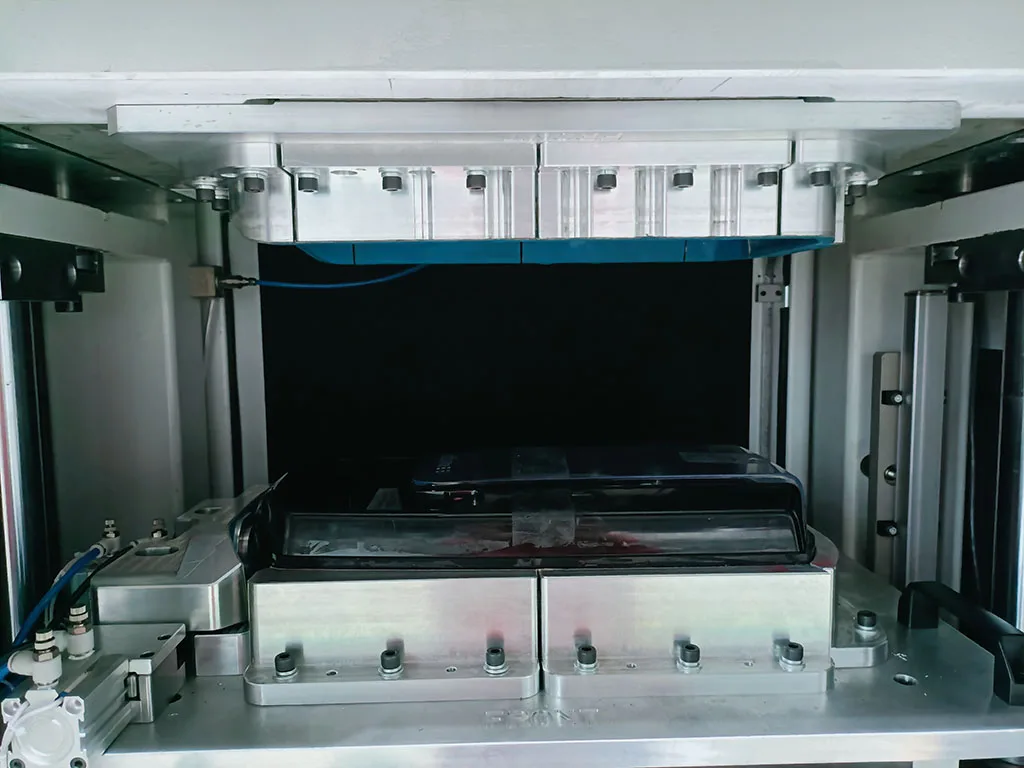

Details Images

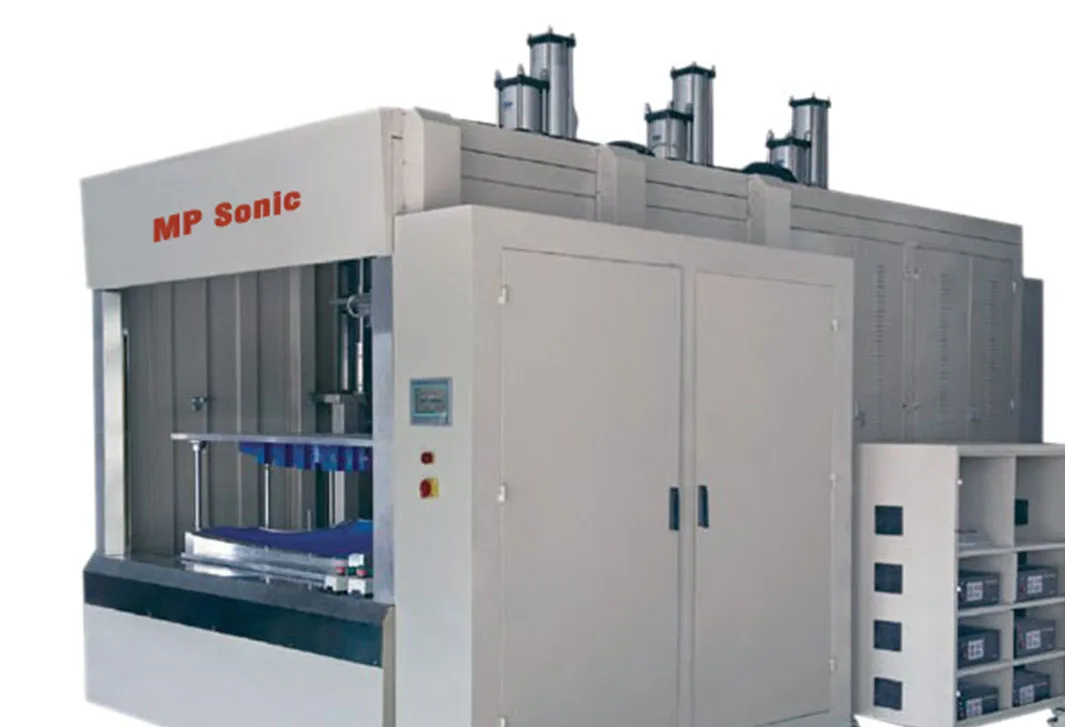

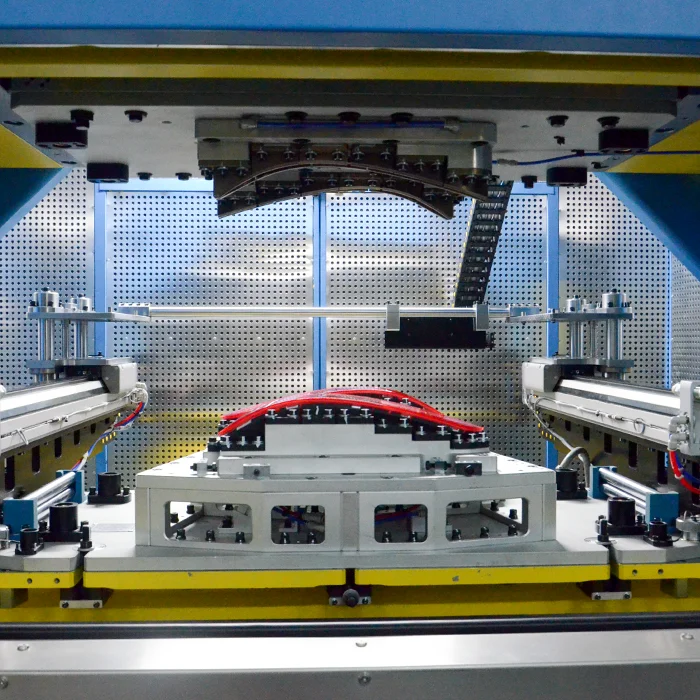

The Vibration welding Machine is jointly developed by Bluetool Laser and MP Sonic,it is a high weight Vibration welding Machine,Mainly used in the welding of auto parts(such as: automotive lights, water tanks, scrubbers, glove boxes, fuel filters, carbon canister,ect.);Commodities (such as:iron, plastic trush box, etc.);Electronic appliances (such as: washing machine gimbal, washing machine out of the hydrant, batteries,etc.)
Main Features.
1. Auto frequency tuning after loading vibration welding tooling;
2. Welding process 8 steps control in precision for perfect plastic welding;
3. Welding control in time and depth mode;
4. 80 sets of welding parameter storage;
5. Welding result analysis help quality management.
2. Welding process 8 steps control in precision for perfect plastic welding;
3. Welding control in time and depth mode;
4. 80 sets of welding parameter storage;
5. Welding result analysis help quality management.
we provide free plastic jointing design guide and analysis.
Application
Plastic wheels, toy wheels
Round frisbee, plastic disc
Plastic circular shaft

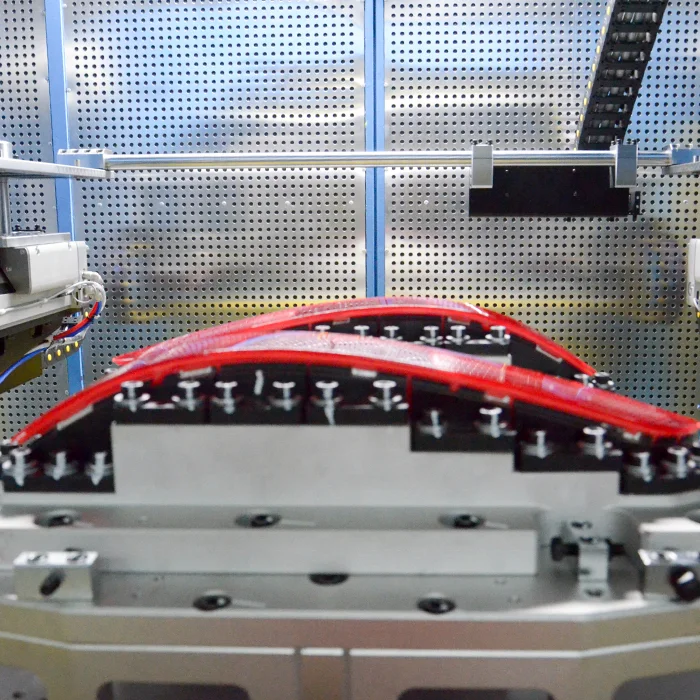

automobile lamp
Why Choose Us

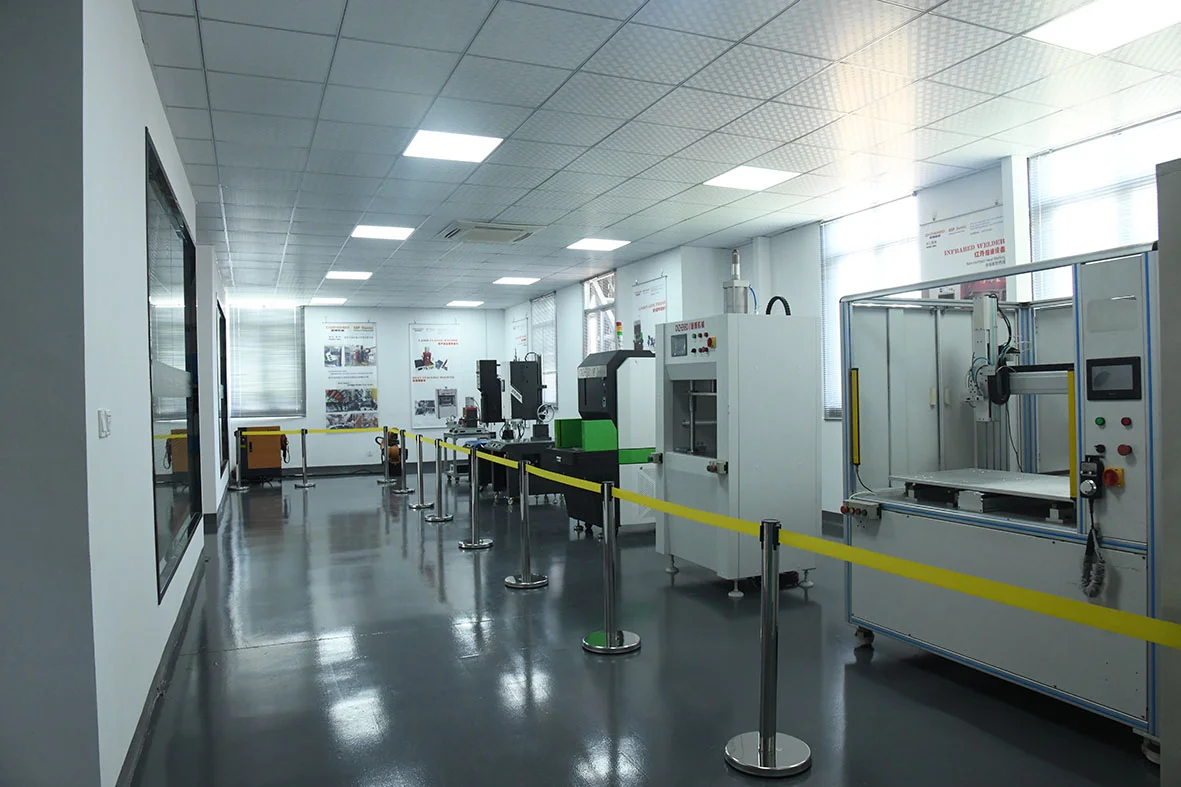

Our Company.
Dongguan bluetool industrial equipment manufacturing co., LTD.It was founded in 2012.In 2019, the company officially changed its name to Bluetool with a registered capital of RMB 1 million. The company has 10 years of working experience and accumulation in the field of laser machine,In 2019, the company partnered with MP Sonic to develop vibration friction welding equipment, We are committed to becoming a professional equipment solution provider for our customers
Product packaging
Recommend Products
FAQ
1.Are we factories or traders
We are the factory, the quality is guaranteed
2.Is the quality guaranteed after placing an order
We test each product for more than 72 hours to ensure that the quality of the machine is stable and reliable, and the user is applicable without worry
3.This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
4. If the machine has problem in my place, how could I do?
We have been working on laser machines in other countries for more than 10 years.Our company has customers and agents in Sri Lanka/India/Singapore/Mexico etc. We go many, many times to other countries to install machines and train
5.How’s the effect of the laser marking
If you want to know the effect, you can send the sample or drawing to us, we will do the free sample for you and show you on video how to operate it.
We test each product for more than 72 hours to ensure that the quality of the machine is stable and reliable, and the user is applicable without worry
3.This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
4. If the machine has problem in my place, how could I do?
We have been working on laser machines in other countries for more than 10 years.Our company has customers and agents in Sri Lanka/India/Singapore/Mexico etc. We go many, many times to other countries to install machines and train
5.How’s the effect of the laser marking
If you want to know the effect, you can send the sample or drawing to us, we will do the free sample for you and show you on video how to operate it.
