Manufacturer Supplier Lithium Battery Lifepo4 Bms Spf f 48 50 16s 48v50a Bms
- Category: >>>
- Supplier: MAXWELL CO. LTD.
Share on (1600405350819):
Product Overview
Description
Products Description
SPF-F-48-50
16S 48V/50A BMS for LiFePO4 battery
16S 48V/50A BMS for LiFePO4 battery
1.With USB tool kit to PC//LCM, to gain battery information, helpful for engineering services. ( Option)
2.Monitor battery SoC & SoH, such as Amperes, capacity; temperature, protection status and cell balance ( Option)
3.LED display to show battery capacity, based on Coulomb Counter and, to show protection occurrences.
2.Monitor battery SoC & SoH, such as Amperes, capacity; temperature, protection status and cell balance ( Option)
3.LED display to show battery capacity, based on Coulomb Counter and, to show protection occurrences.
Key specification:
ITEM | Unit | Min | Typical | Max | ||
CC/CV | Standard Charging Voltage ((38.4~ 57.6V) | V | 57.6 | |||
Max Charge Current | A | 50 | ||||
OVP Detect Voltage (cell) | V | 3.65 | ||||
OVP Release Voltage ( cell) | V | 3.45 | ||||
OVP Detect Delay Time | Sec | 2 | ||||
Over Charge Current Protection (COCP) | A | 51 | ||||
COCP Release as Avg. current=0 | S | 60 | 120 | |||
UVP Detect Volt ( cell) | V | 2.40 | ||||
UVP Detect Delay Time | Sec | 2 | ||||
UVP Release Voltage( cell) | V | 2.80 | ||||
UVP Current Consumption | uA | 500 | ||||
Max Continuous Discharge Current ＝ | A | 50 | ||||
Discharge Over Current Protection(DOCP) | A | 51 | 85 | |||
DOCP Detect Delay Time | S | 20 | ||||
Second DOCP | A | 85 | 300 | |||
Second ODCP Detect Delay Time | mS | 31 | ||||
Short Circuit Protection(SCP)＞＝ | A | 301 | ||||
Short Circuit Protection(SCP.) Delay Time | uS | 550 | ||||
SCP Release as Avg current=0 | S | 60 | 120 | |||
Balance Start Volts@ Delta V.＞20m V or | V | 3.43 | ||||
Balance Capability | mA | 150 | ||||
Charge OTP when Temperature out of | ℃ | 0 | 55 | |||
Charge OTP Release as temp. returns in | ℃ | 5 | 45 | |||
Dischg OTP when temperature out of | ℃ | -20 | 70 | |||
Dischg OTP Release as temp. returns in | ℃ | -10 | 60 | |||
Temperature | Ambient Temp. | ℃ | - 20 | 25 | 45 | |
Additional Circuit | Back electromotive force | YES | ||||
Dimension | 207*83*1.6 mm | |||||

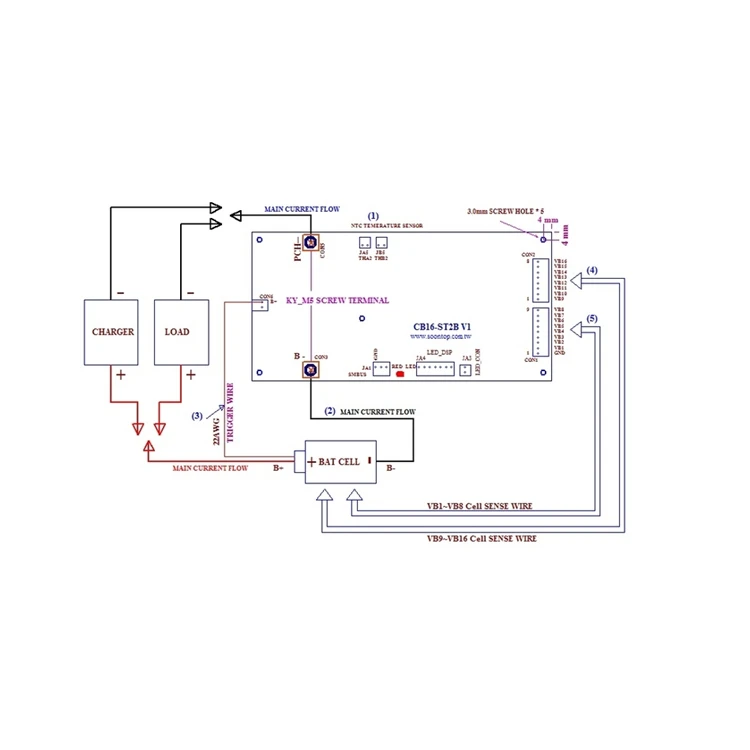

Details Images
Company Profile
Advantage
Certificate

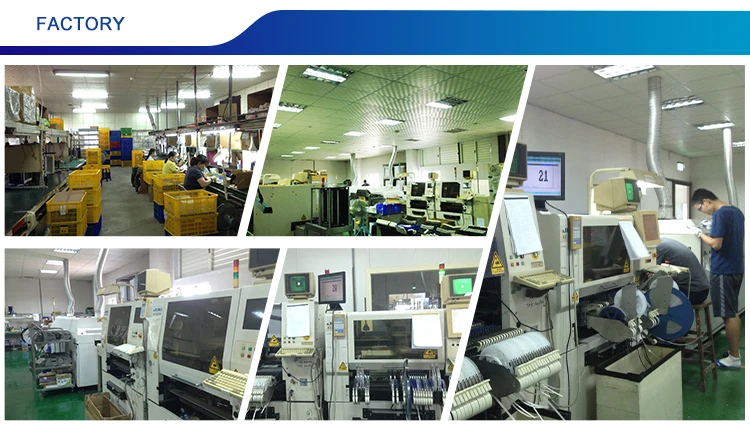

Factory
