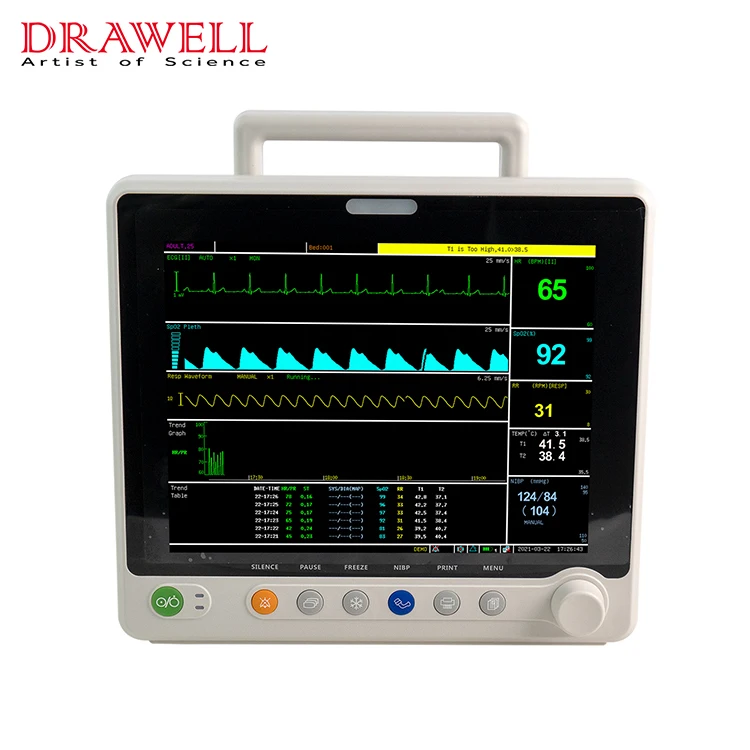

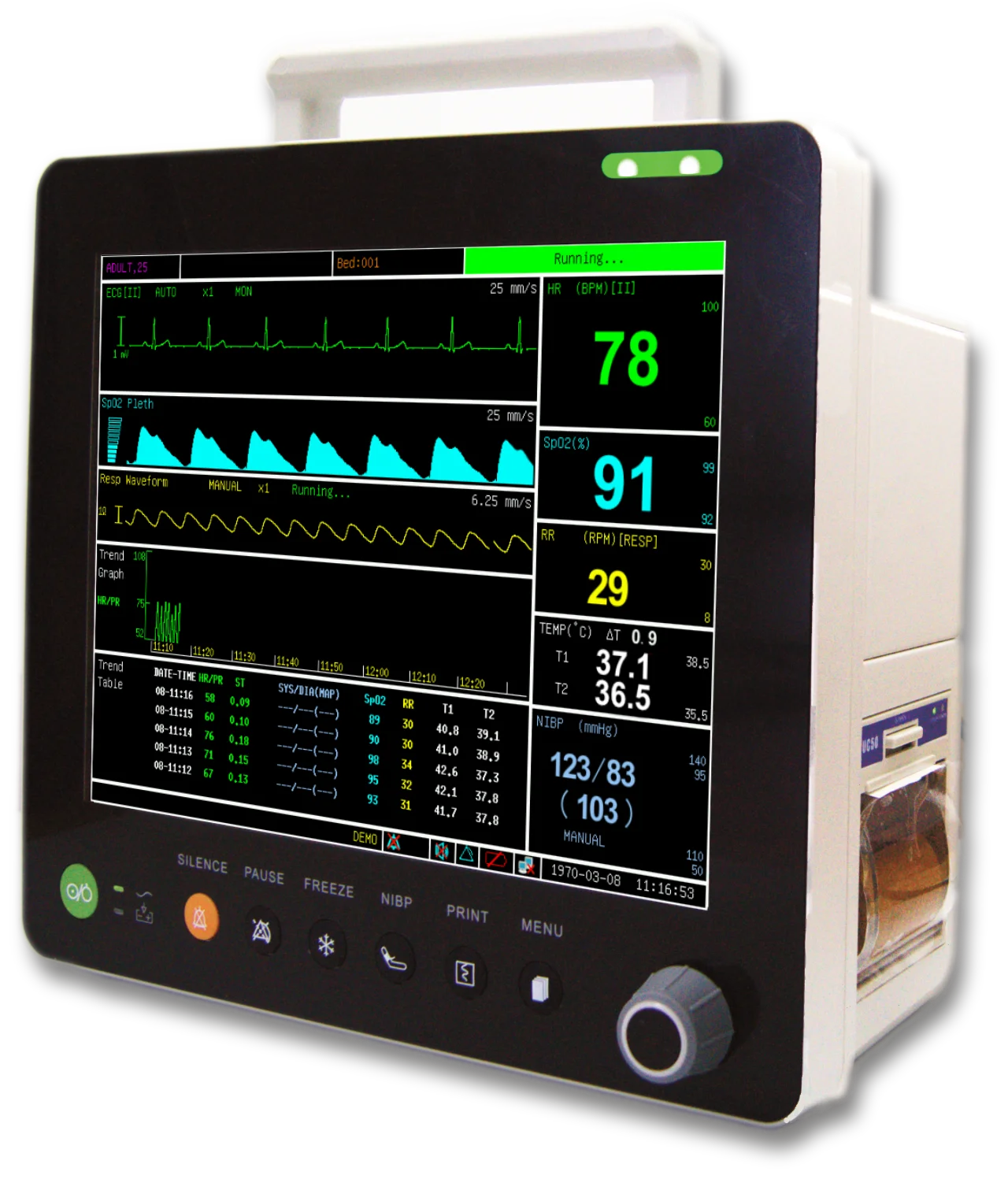

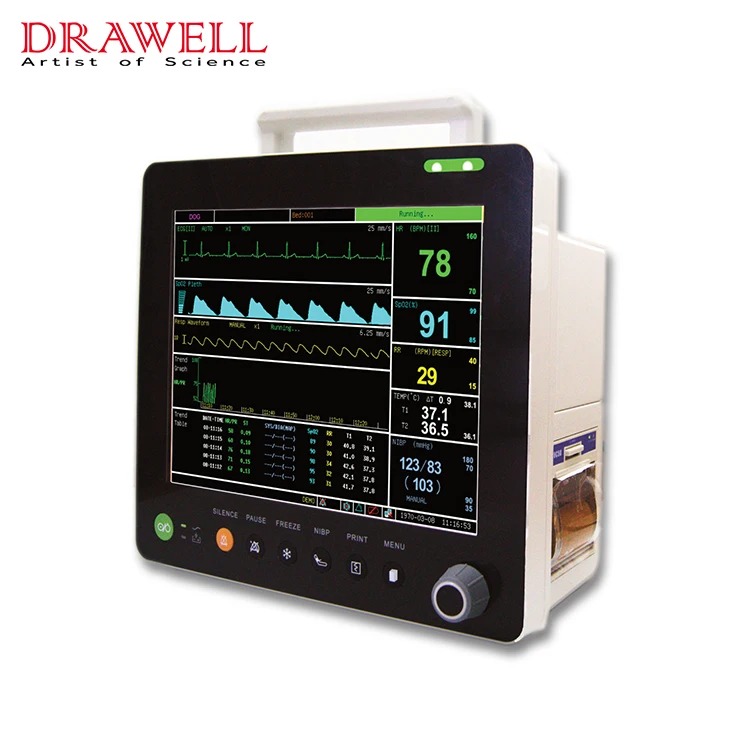

PM6000 New Arrival Monitor Signs Vitals Parameters Medical Monitor
- Category: >>>
- Supplier: Chongqing Youxibeile Biotechnology Co. Ltd.
Share on (1600405375901):
Product Overview
Description
Products Description

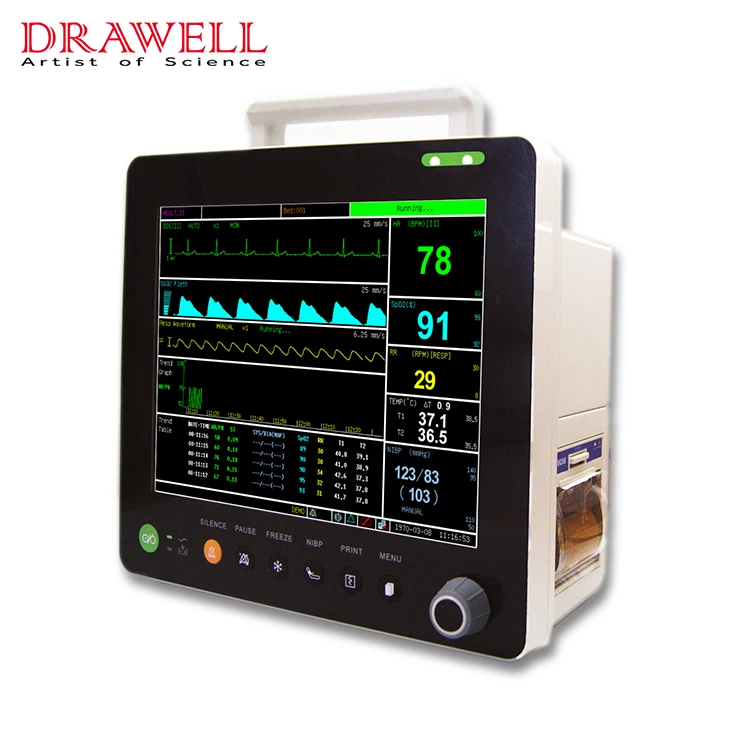

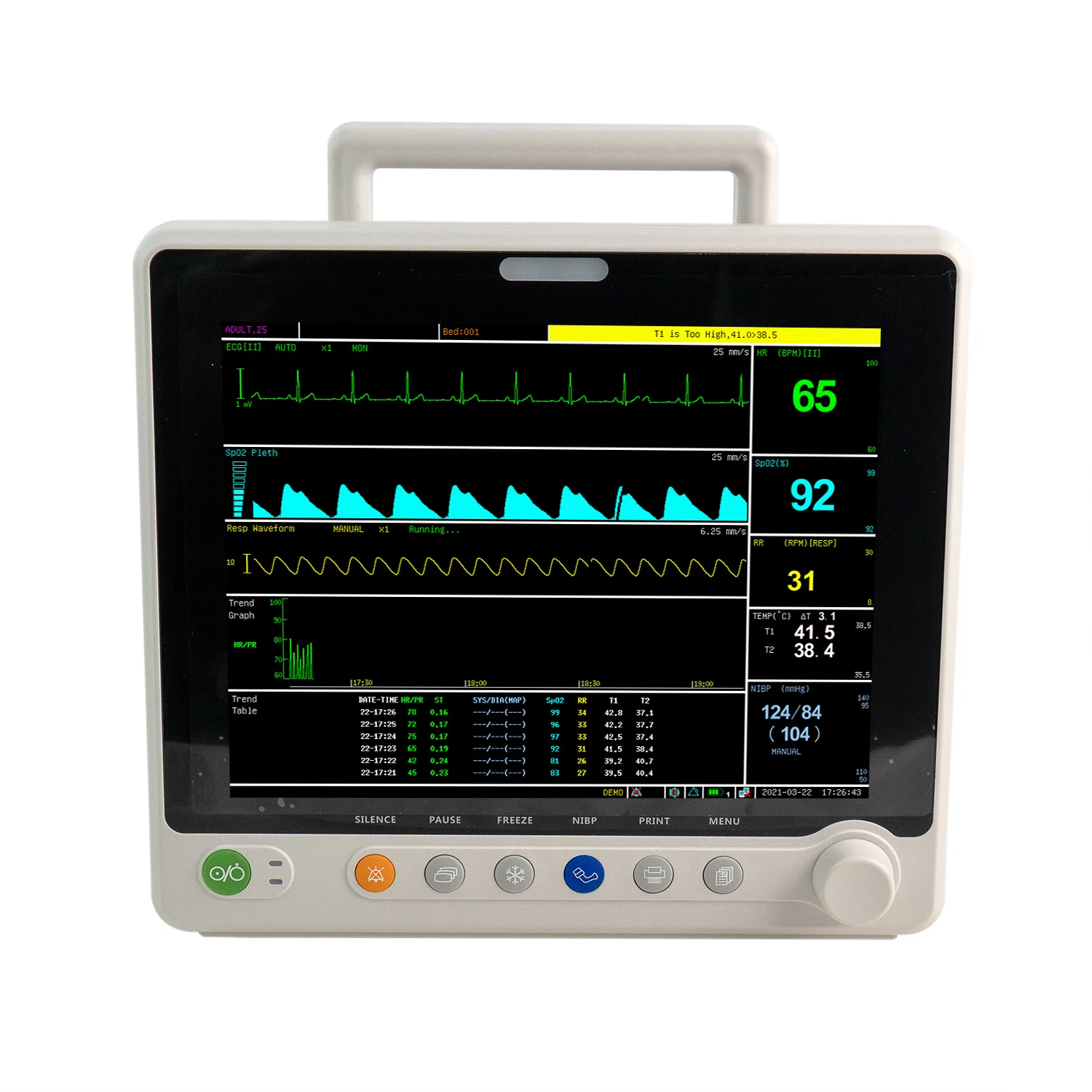

The PM6000 is a cost-effective, multi-parameter patient monitor, providing a reliable measurement on patient's SpO2, pulse rate, non-invasive blood pressure, temperature, 5-lead/3-lead electrocardiography (ECG) and respiration rate. Integ-rated sidestream technology ensures that the monitor can be used with intubated and non-intubated patients. 12.1 inches display assures easy viewing of waveforms, numeric values and on-screen trending data for demanding facilities.

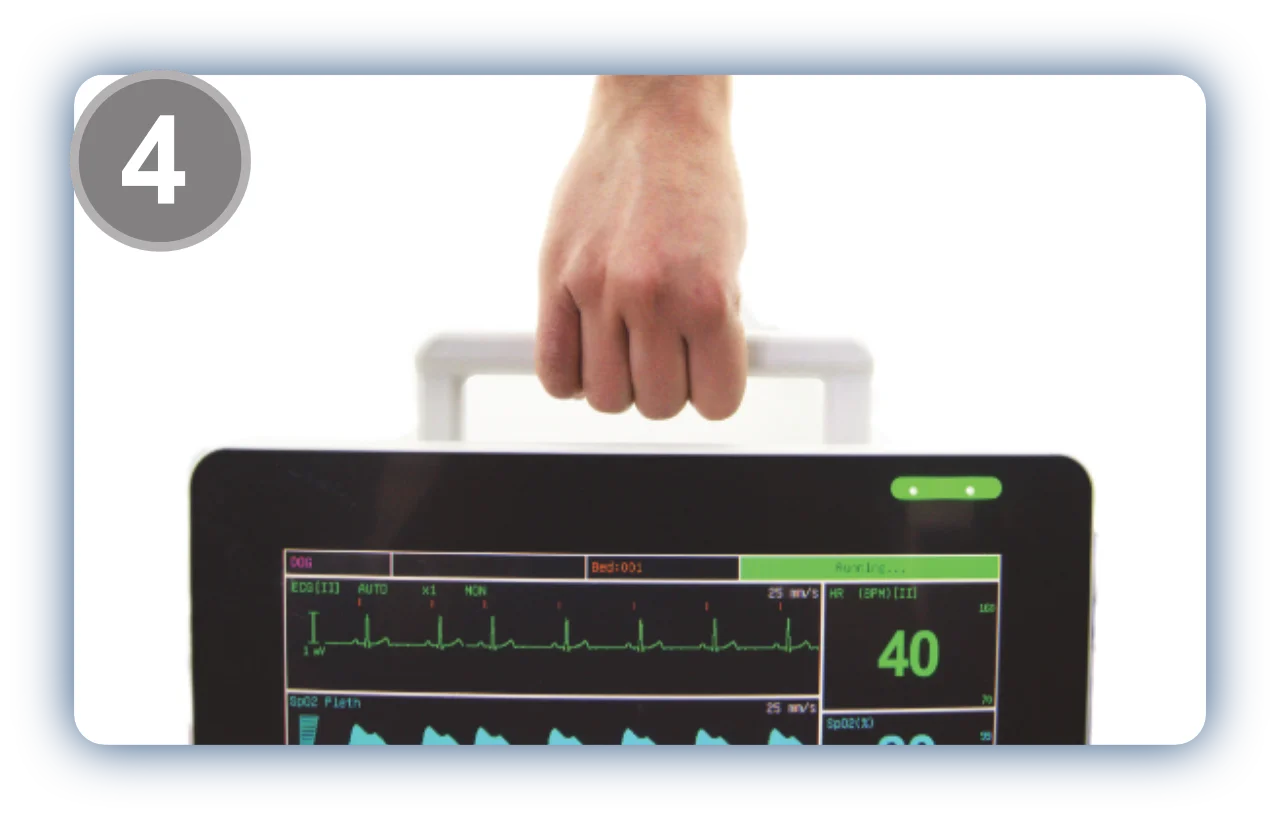

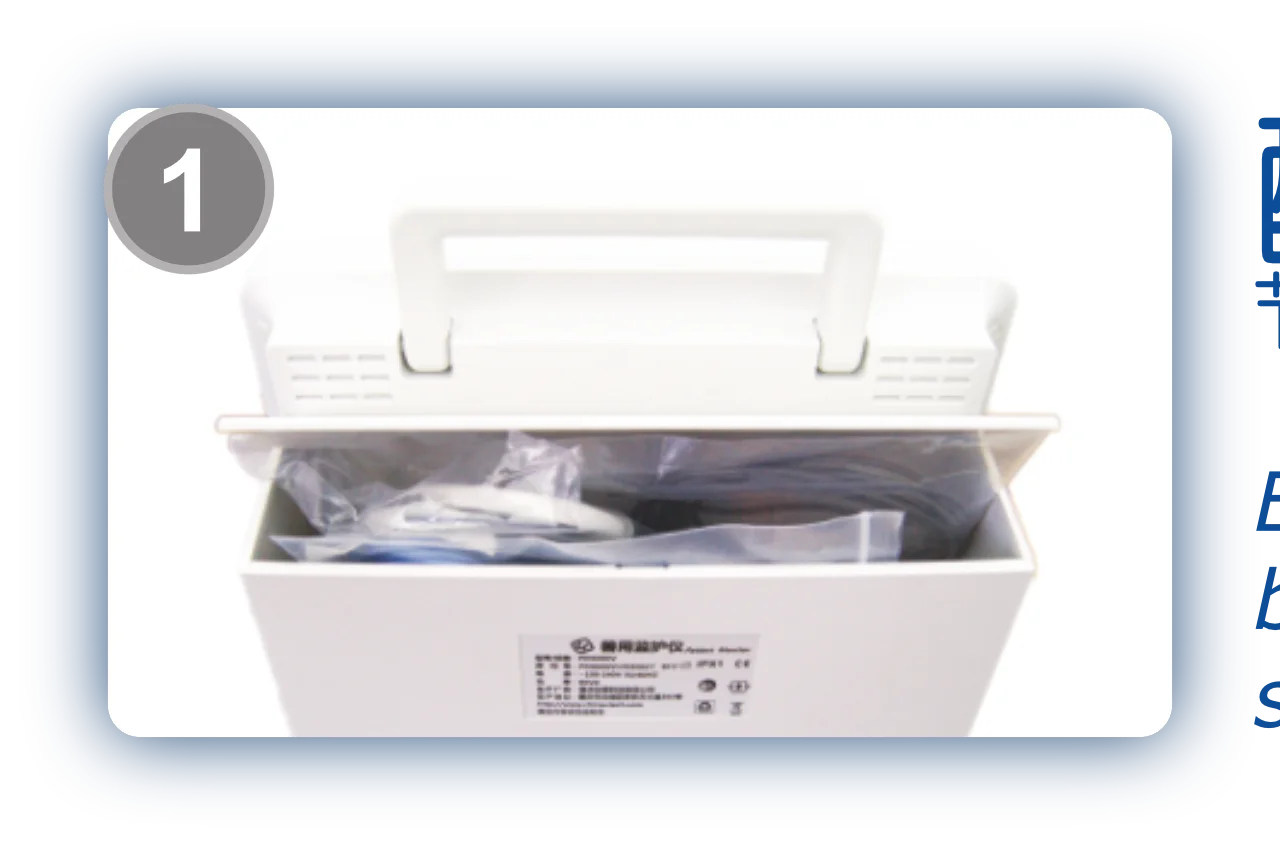

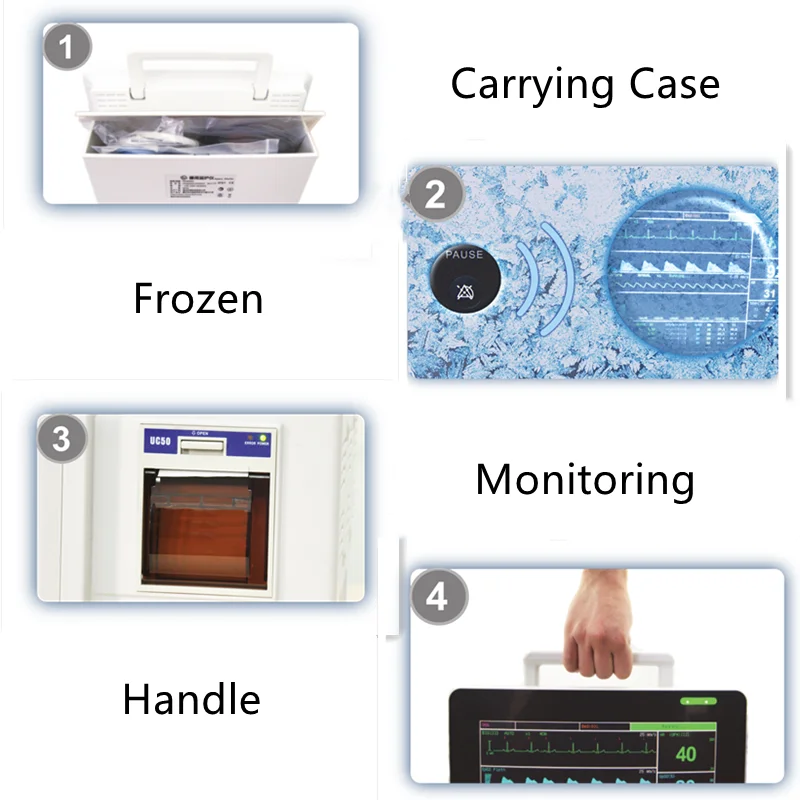

Details Images
Product Paramenters
ECG
Aturation range | 25bpm to250bpm |
Accuracy | ±2bpm/±2% take maximum |
Resolution | 1bpm |
Leads | Ⅰ,Ⅱ,III,V,aVR,aVL or aVL |
Display gain | X1/4,X1/2,X1,X2,X4 |
Display sweep speed | 6.25, 12.5, 25, 50mm/sec |
NIBP
Method | Oscillometric |
Aturation Range | 0-300mmHg |
Accuracy | Based on ANSI/AAMI SP10:1992 and 2002 Standards |
Measurement Time | 3O-5Os typical, 180s maximum |
AUTO Interval Times | 2, 3, 5, 10, 30 min, or 1, 2h |
SpO2
Aturation range | 1% to 100% |
Accuracy | 70-100% ±2%), <70% undefined |
Resolution | 1% |
Display sweep speed | 10.00 mm/sec |
Pulse Rate
PR range | 25bpm to 250bpm |
Accuracy | ±2bpm/±2% take maximum |
Resolution | 1bpm |
Environmental
Transport and Storage | Operating Conditions | ||
Temperature | -40°C to 75°C (-40°F to 167°F) | 0°C to 50°C (32°F to 122°F) | |
Altitude | -500 to 5,000m (-1,640 to 16,404ft.) | ||
Relative humidity | 15% to 95% noncondensing | ||
Configuration
Standard | SpO2+ECG+NIBP+RESP+TEMP |

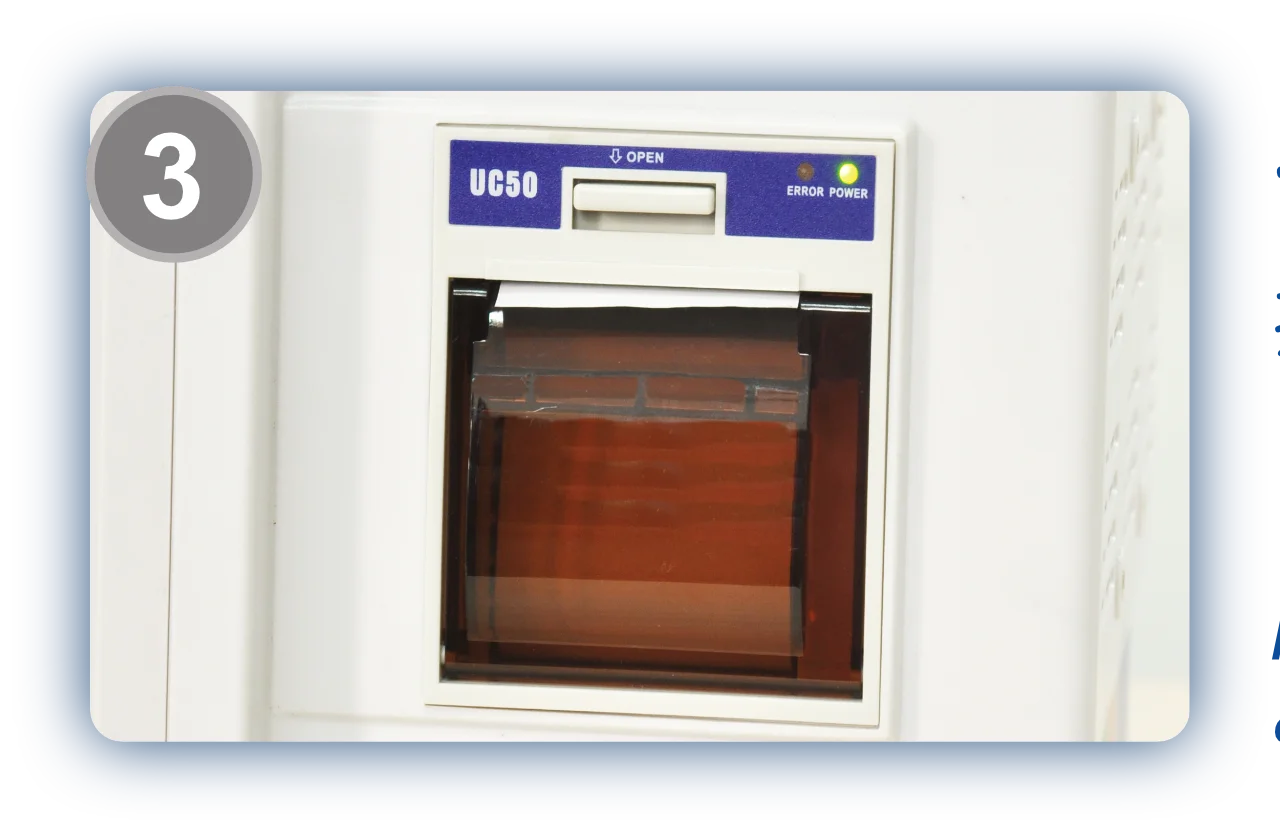

Optional | Sidestream / Mainstream ETCO2 Module, Trolley, Recoder, Brace, IPMS8600 Central monitoring system |
