17am series temperature cutout switch manual reset thermal protector switch
- Category: >>>
- Supplier: Jiangsu Yitong Control Systems Co. Ltd.
Share on (1600405428259):
Product Overview
Description
Products Description
Introduction：

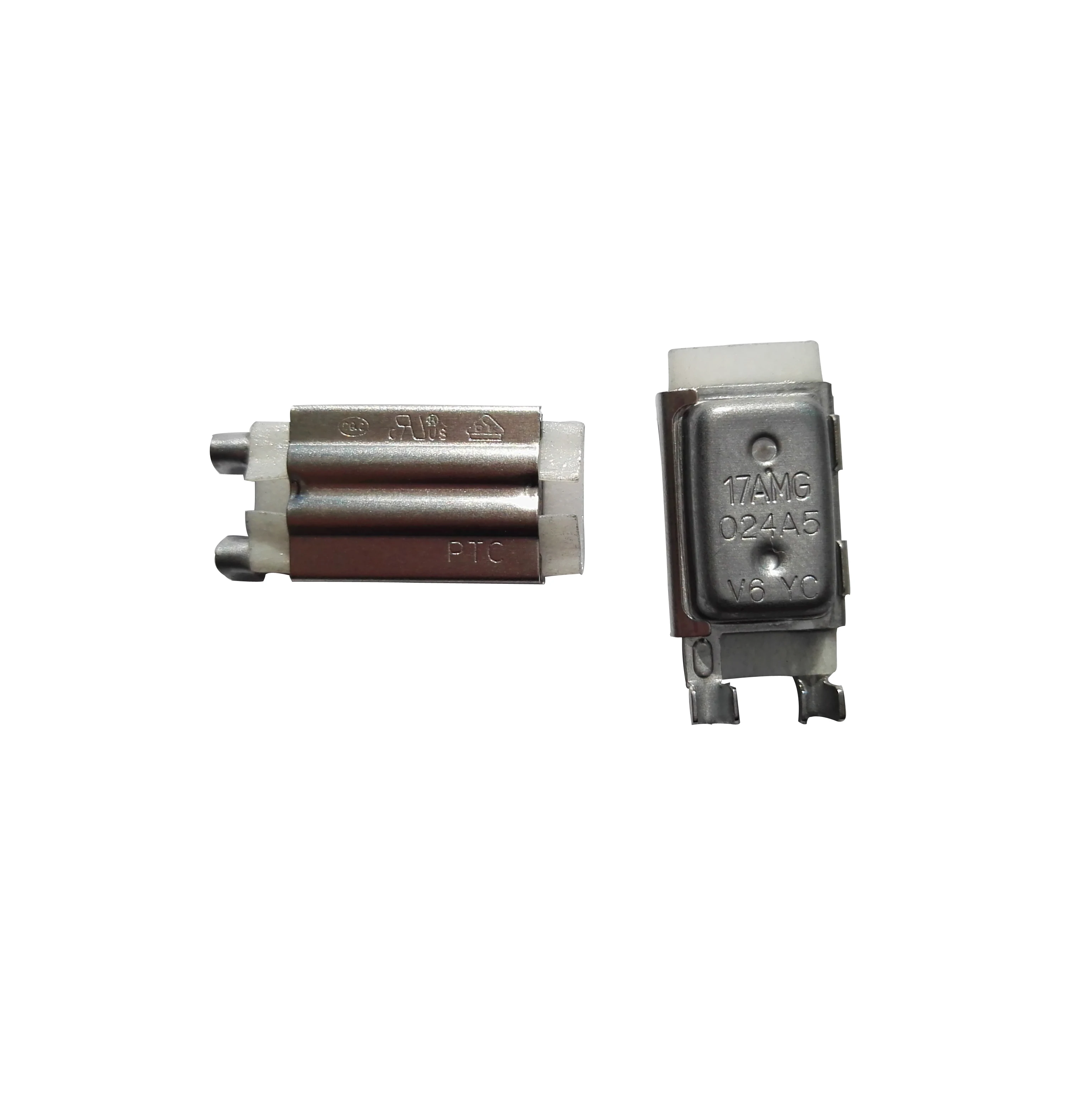

17AM series products are thermal protector using bimetal metal as the temperature sensing element, which has the double protection function of temperature and the over current. 17AM can be applied for transformers; battery; lighting electrics; cleaning machine; water pump; electric tools; electric heating pad; and the household appliances.
Work Principle：
Features：
1. The dual protection by temperature and current;
2. The special combination of double metal piece and the resistance heating fuse can keep the very precise tripping time to prevent the motor over high temperature;
3. The sleeve wire resistance of the double metal piece can be used to each application premium current and time characteristics;
4. Solve the problems of the motor blocking in experiment, the protector can’t be break for long time and the motor is damaged;
5. Convenient installation, it can be installed outside the coil of the motor;
6. It can be used as the current protection device, wired to the PCB circuit;
Voltage:
Blocking current: 4-60A
Parameter:
Tripping temperature range： 50℃～180℃
Temperature tolerance： ±5℃; ±8℃
Tripping time: 2s – 12s (customized)
Dimension：
Tripping temperature range: | 50℃～180℃ |
Temperature tolerance: | ±5℃; ±8℃ |
The trip range of controlled over load current: | 4-60A |
Trip time: | 2s – 12s (customized) |
Hot Sale
Application
About Us
Jiangsu Yitong Control System Co., Ltd is specialized in producing all kinds of thermal protector, current protector, which are applied for motors, warmer, light, transformer, rectifier, electrical tools, electric heater. We have more one hundred staffs, and the factory is landing more than 21 062 square meters, fixed assets is more than 28 million. The production capacity is 60 million pcs of all kinds protectors, such as 17AMG, KW and etc.
Why Choose Us
Packaging & Shipping
FAQ
1 . How can we get the price ? |
Please supply the specification of the product , such as the size ,material , quantity , drawing and etc . |
2 . Can you help with the design ? |
yes, we have the professional engineers to help with the design ,and inspection . |
3 . What ' s the payment term ? |
Accept T / T , LC and etc . |
4 . What is the lead time ? |
Depends on your quantity . |
5 . What shipping method can I choose ? And how about the shipping time? |
You can use express , air shipping or ocean shipping . It takes 4-7days by express or by air , but it spends 10 to 30 days by sea. |
6 . Can we get the samples ? Any charges ? |
We supply the free samples , but you need to pay for the freight . |
