treuil electr machine boat Winch Recovery for 4x4 offroad Truck Trailer 12000lbs 13500lbs 5T winches 12 v electric winch
- Category: >>>
- Supplier: Zhejiang Jinhua Hongyi Industrial Technology Co. Ltd.
Share on (1600405428722):
Product Overview
Description
Products Description
Rated Line Pull | 12000 lbs~13500lbs (5443kgs~6123kgs) Single-line |
Motor | 6.6hp, Series-Wound(12V or 24V options) |
Carbon Brush Ass’y | Permanent Pressure Carbon Brush Structure |
Control | intelligent control-showing load Remote switch, 12’ (3.7m) lead |
Gear Train and Reduction Ratio | 3 stage planetary 246.8:1 |
Clutch | 100% Automatic Clutch System |
Braking | Machine brake in gear box |
Drum Size | Diameter φ2.5”(φ63.5mm) Length 8.82”(224mm) |
Rope/Cable | Diameter φ3/8”(φ9.5mm) Length 92’(28m) |
Fairlead : | rope(Aluminium hawse ) ,cable (4-way roller ) |
Recommended Battery : | 650CCA minimum for winching |
Battery Leads | Diameter 12V-φ25mm2 24V-φ15mm2 Length 72”(1.83mm) |
Control Box | ISM control box +wireless |
Finish | customized |
Weight: | 75lbs (34kgs) |
Overall Dimensions: | (L×W×H)547×162×205mm |
Mounting Bolt Pattern: | 4-M10 10±0.015IN×4.5±0.01IN(254±0.4 mm×114.3±0.2mm) |
why choose us
We have designed and manufactured with many years of experience in the winching and lifting industry.
Tough & Durable –Sealed to water and mud ingress Honyeer winches perform reliably in the toughest outback conditions.
Braking Design - Honyeer winches are compatible with all types of synthetic rope as the brake is designed into the gearbox.
Quality gearboxes - Honyeer specify and demand the highest quality components for every step of the winch build meaning we can deliver stronger winches which last.
Powerful- Honyeer winches come with massive series wound motors featuring higher amounts of copper in the winding's than others .
Simplicity – Honyeer winches are supplied with the parts and materials making installation easy for the home mechanic.

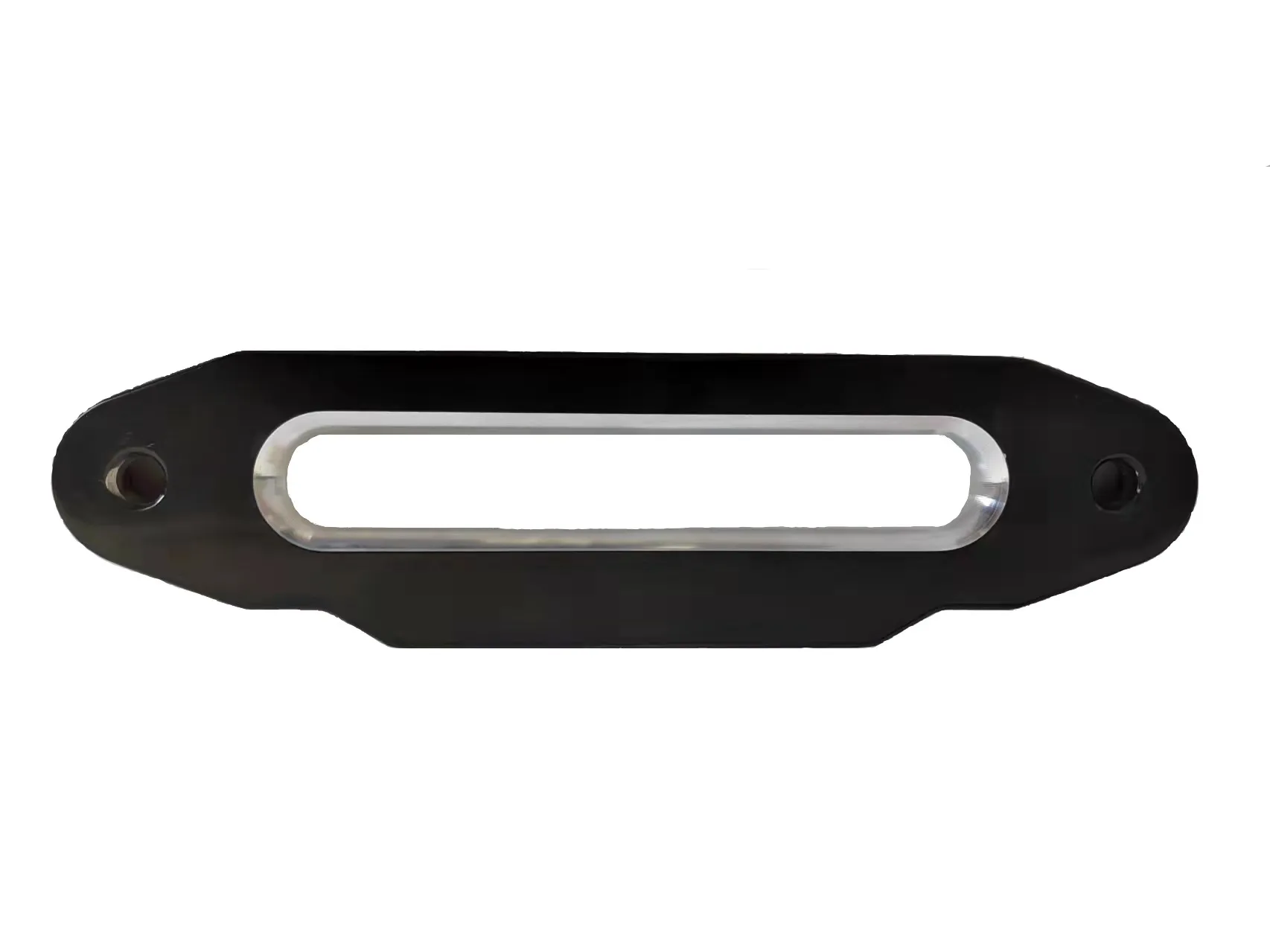

Fair leads & Hawse - Depending on if you're after the synthetic rope or the steel cable a 4-way roller fairlead or aluminum hawse will be supplied. An offset aluminum hawse can also be supplied on request.
Warranty and Parts – we offers a 1 Year warranty . An economical range of spares can be supplied to get you out of trouble if ever required.
Tough & Durable –Sealed to water and mud ingress Honyeer winches perform reliably in the toughest outback conditions.
Braking Design - Honyeer winches are compatible with all types of synthetic rope as the brake is designed into the gearbox.
Quality gearboxes - Honyeer specify and demand the highest quality components for every step of the winch build meaning we can deliver stronger winches which last.
Powerful- Honyeer winches come with massive series wound motors featuring higher amounts of copper in the winding's than others .
Simplicity – Honyeer winches are supplied with the parts and materials making installation easy for the home mechanic.
Fair leads & Hawse - Depending on if you're after the synthetic rope or the steel cable a 4-way roller fairlead or aluminum hawse will be supplied. An offset aluminum hawse can also be supplied on request.
Warranty and Parts – we offers a 1 Year warranty . An economical range of spares can be supplied to get you out of trouble if ever required.

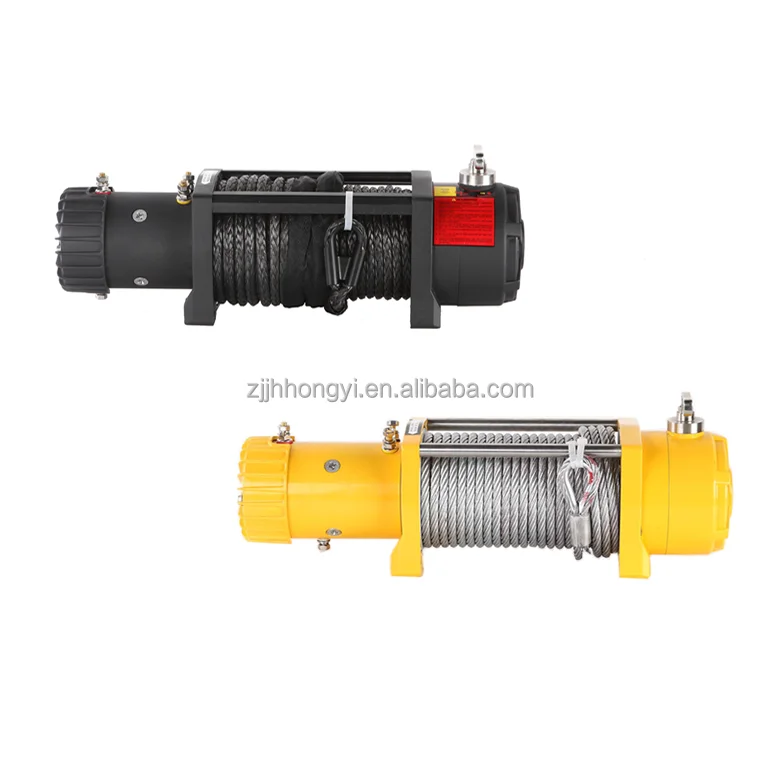

synthetic rope models
steel cable models.
Included

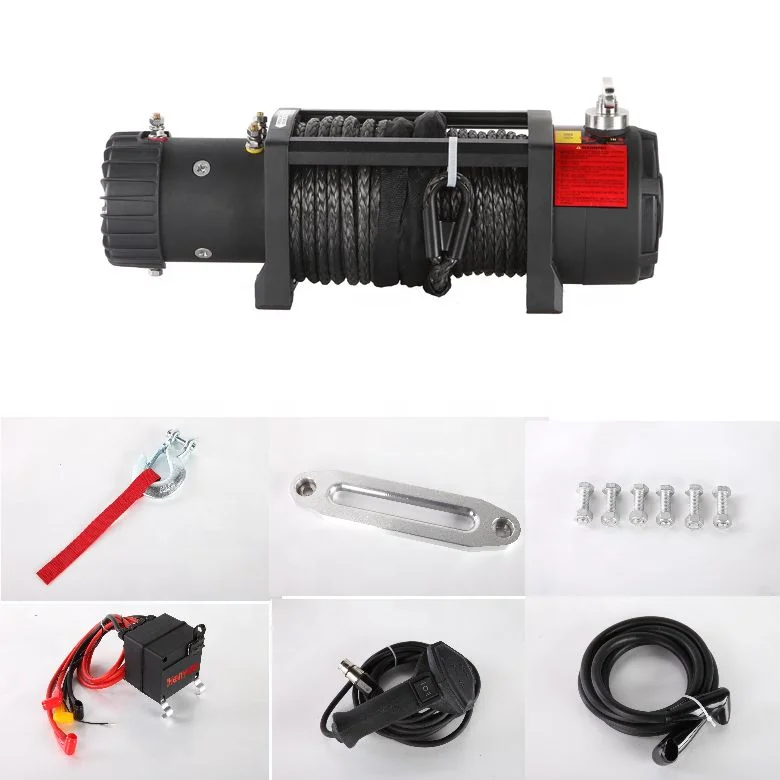

Honyeer winches are supplied the items required for a standard winch installation. See the images here showing the parts included for synthetic rope and steel cable models.
Included:
-Winch (fitted with either synthetic rope or steel cable as per your choice)
-Aluminium hawse or roller fairlead (synthetic rope winches will have an aluminium hawse, steel cable winches will come with a
roller fairlead)
-Control box with Albright solenoid or
-Wired hand remote (wireless remotes are an optional extra)
-All cabling (4 cables are already incorporated into the control box, a separate earth cable is provided)
-Winch hook with red ribbon
-Winch and control box mounting bolts
-Winch (fitted with either synthetic rope or steel cable as per your choice)
-Aluminium hawse or roller fairlead (synthetic rope winches will have an aluminium hawse, steel cable winches will come with a
roller fairlead)
-Control box with Albright solenoid or
-Wired hand remote (wireless remotes are an optional extra)
-All cabling (4 cables are already incorporated into the control box, a separate earth cable is provided)
-Winch hook with red ribbon
-Winch and control box mounting bolts
Company Profile
Zhejiang Jinhua Hongyi Industrial Technology Co.,Ltd. is a specialized manufacture of variou winches from 2,000LBS to 25,000LBS.
Our winches have been used widely for pulling of ATV,UTV,off road vehicles in recreation, commercial and military applications.
We have an advanced enterprise management philosophy and a strict quality control system. We have rich experience engineers and excellent skill team. Equipped with advanced inspection and testing facilities in the manufacturing process, we aim to provide high quality products for our global partners.
If you are looking for winches which it is with high performance, excellent customer service and competitive prices , we will be your best choice.
Our winches have been used widely for pulling of ATV,UTV,off road vehicles in recreation, commercial and military applications.
We have an advanced enterprise management philosophy and a strict quality control system. We have rich experience engineers and excellent skill team. Equipped with advanced inspection and testing facilities in the manufacturing process, we aim to provide high quality products for our global partners.
If you are looking for winches which it is with high performance, excellent customer service and competitive prices , we will be your best choice.
FAQ
1. Could I have prices of your products?
Welcome. Please feel free to send us an email here. You will get our reply in 24 hours
2.How much the Courier freight will be for the samples?
Courier freight depends on the quantity,weight and carton size and your area.
3.How about the package?
Net weight: as the customers’ requirement
4. How does your factory do regarding quality control?
My company always attaches great importance to quality controlling from the very beginning to the very end.
5. How about your delivery time?
Generally, it will take 7 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Welcome. Please feel free to send us an email here. You will get our reply in 24 hours
2.How much the Courier freight will be for the samples?
Courier freight depends on the quantity,weight and carton size and your area.
3.How about the package?
Net weight: as the customers’ requirement
4. How does your factory do regarding quality control?
My company always attaches great importance to quality controlling from the very beginning to the very end.
5. How about your delivery time?
Generally, it will take 7 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
