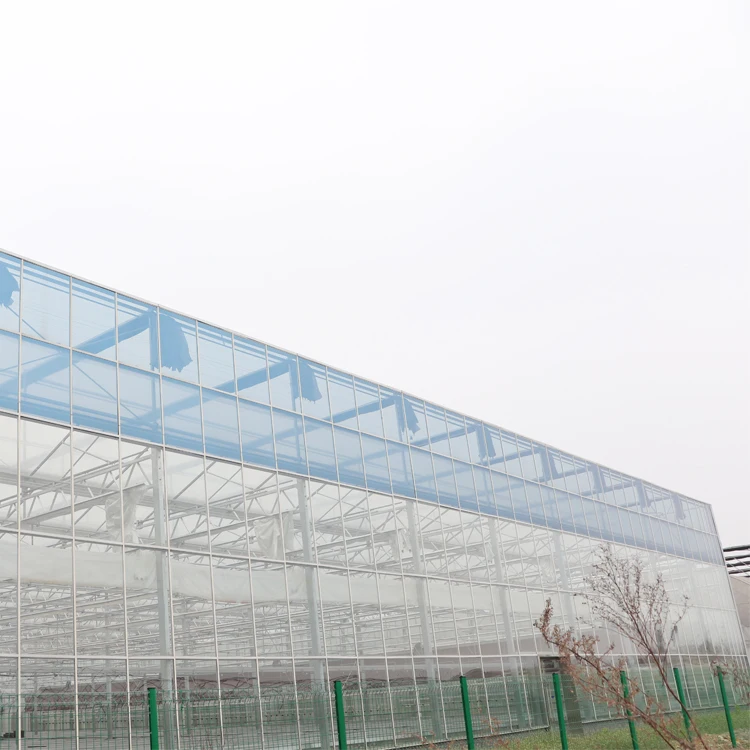

MYXL Large Venlo Multi span Agricultural Glass Greenhouse
- Category: >>>
- Supplier: Myxl Greenhouse Tech And Dev Co. Ltd.
Share on (1600405525137):
Product Overview
Description
Products Description
Our Glass Greenhouse's frame is made by the materials of galvanized steel, connected by screws, bolts or suitable connectors. Door, gutters, etc. And the Glass greenhouse is generally the top of a single layer of tempered glass, surrounded by double-layer hollow float glass.
Low-maintenance glass greenhouse, designed for high load and optimal production. The greenhouse also provides a series of natural ventilation options, you can choose according to the specific location, crop and climate of the greenhouse project.
Advantage of Glass greenhouse
High quality hot-dip galvanization, stable structure, high intensity;
Over 40% better thermal insulation properties than other materials, high thermal insulation;
Good ventilation and effective use land space;
Good ventilation and effective use land space;
Lightweight structure, shatterproof, great resistance to shock;
High light transmission, UV resistance;anti-condensation, good daylighting,
Inner large room, convenient operation, easy to construct and accessible to remove;
High fire performance rating;
Accessories rust-resisting, strong ability to resist the snow and wind as the whole, long service life;
Tape | Glass Greenhouses |
Width | 6m-12m,,customized |
Height | 3m-7m,,customized |
Length | 20m-100m,customized |
Frame | Hot-dip galvanized skeleton |
Cover | ouble Hollow Float Glass/Tempered Glass |
SnowLoad | 0.5KN/M2 |
Wind Load | 0.5KN/M2 |
Rainfall load | 140mm/h |
Light transmission | >90% |
Warranty | 10-15 year |
Details Images

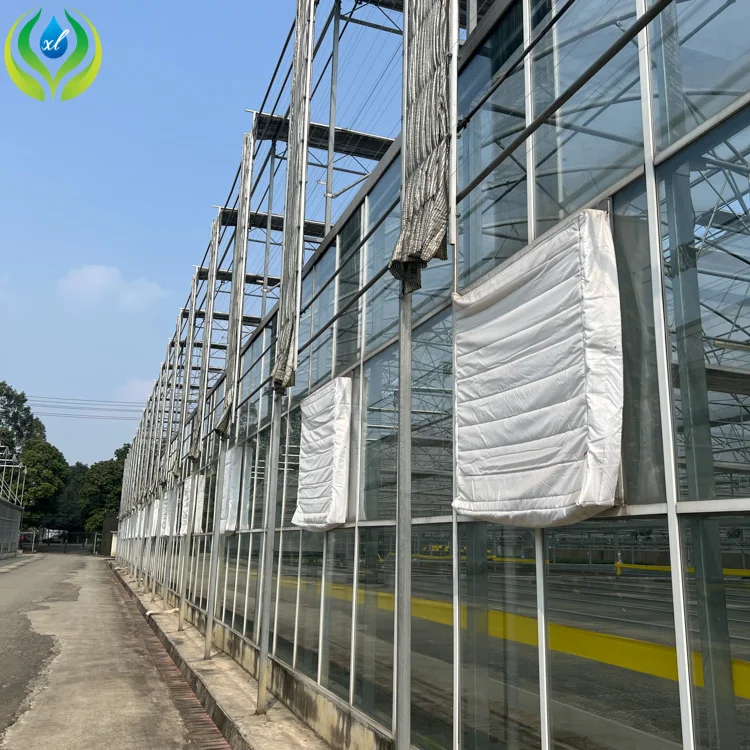

Side Ventilation system
1. Side open window roll ventilation and insect net.
2. Manual or electrical control.
3. The ventilation is realized by the film rolling up and down .

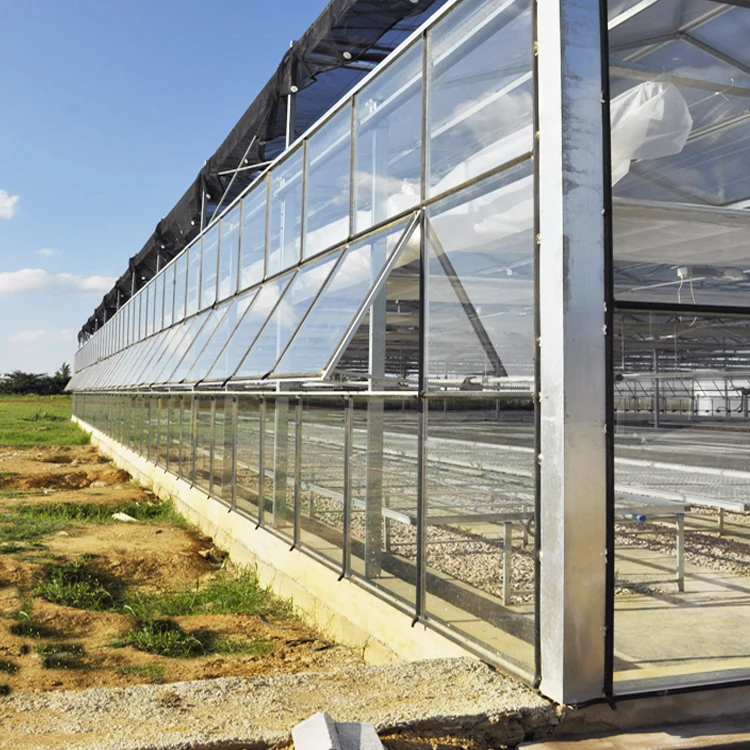

Roof ventilation system
Roof ventilation system include gear motor, rack and pinion device and aluminum alloy frames, most common for glass and PC sheet greenhouse.windows with anti-insect net to prevent insect invading.
Cover Material-Glass
Good light transmittance and low thermal conductivity.Double Hollow Float Glass/Tempered Glass
Complentary System

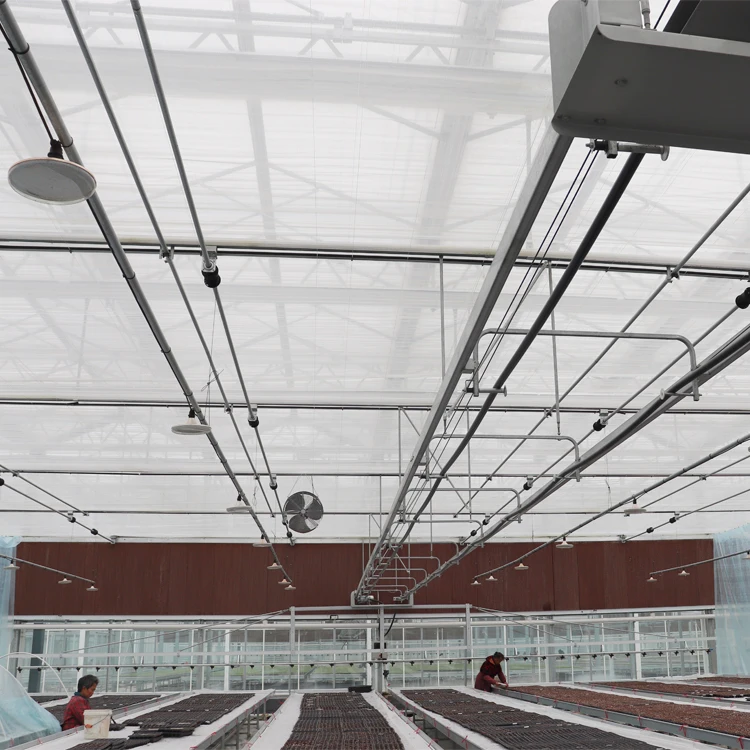

Completed environment-controlled greenhouse is available based on the different regions and its climates, which includes shading,natural ventilation, cooling or heating, fertigation, Irrigation, cultivation, hydroponic and auto-control systems etc.

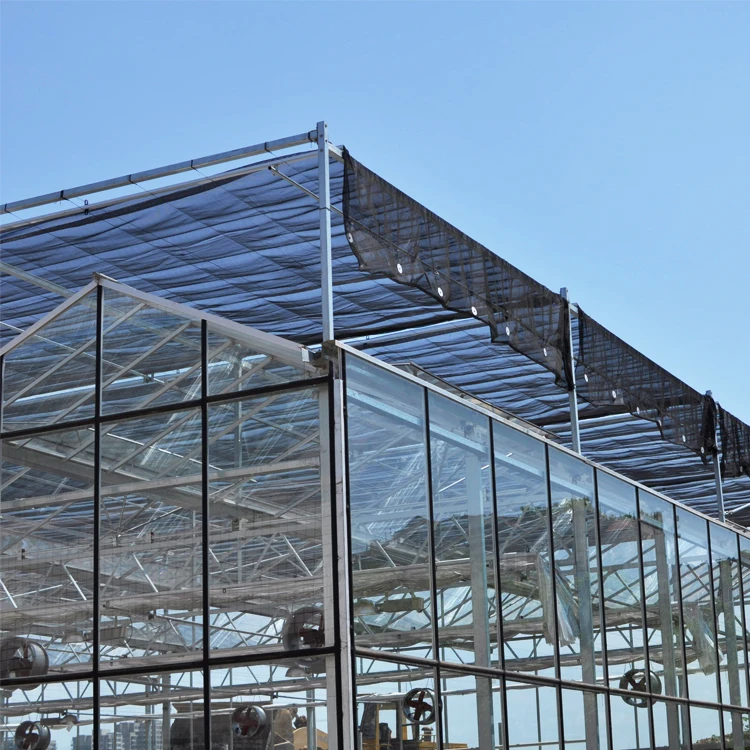

Shading system
shade net/shading net/sunshade net
color:black,white,green
1. Using high-density HDPE raw materials, anti-ultraviolet, anti-radiation, shading rate up to 95%.
2. The mesh surface is flat, no broken wires, no voids, and encrypted edges.
3. Sunshade and sun protection, wind and wind resistance, heat preservation and moisturizing.
3. Sunshade and sun protection, wind and wind resistance, heat preservation and moisturizing.
Bench and Grow Lights
1.Bench/Seedbed:fixed bench,rotary bench and ebb&flow bench system.High space effiency,convenient for planting and high productive for crops.
2.LED Grow lights:Full-spectrum light output.DLC/ ETL Listed.High efficiency (2.7umol s -1 per watt).High output for high intensity.Ambient temperatures from 0°C（32°F) to 35°C (95°F)
Cooling system

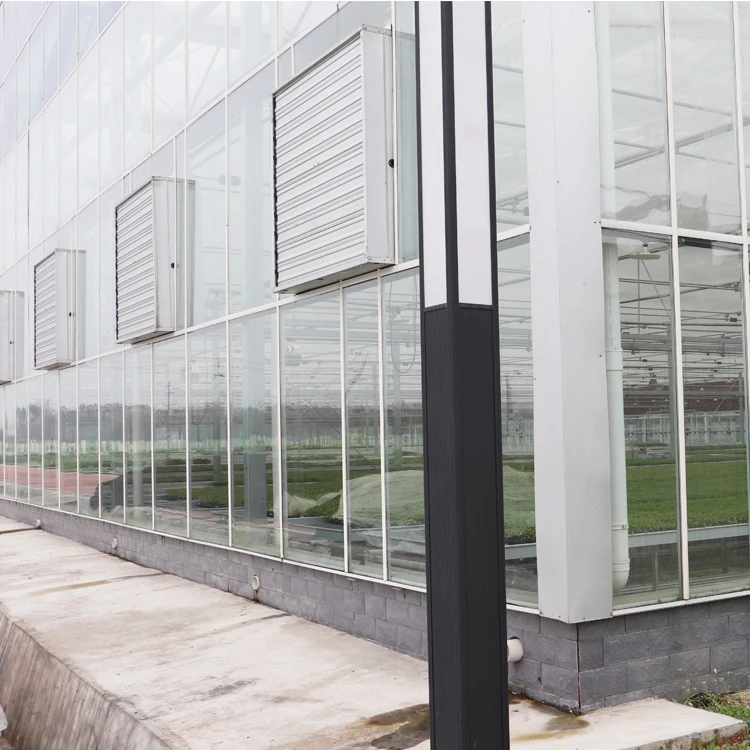

cooling pad and cooling fan
When cooling pad and fan are used simultaneously,fan discharge the heat air which have smell, dust and dirty air to the outside, Fresh cold air through the cooling pad into the greenhouse and replace the hot air, achieve the purpose of the ventilation, cooling, humidification, romove dust, get rid of the stink, and adding lots of oxygen content.
Irrigation System
Sprinkler Irrigation Systems and Drip Irrigation Pipes/Drip Tapes
1.Drip,impulse sprinkler, micro sprinkler and fog spray irrigation system.
2.Water saving and smart.
2.Water saving and smart.
Heating system:
1.Coal-fired heating system, fuel oil heating system, gas heating system, electrical heating system, hot water
heating and etc.2.Energy saving.
1.Coal-fired heating system, fuel oil heating system, gas heating system, electrical heating system, hot water
heating and etc.2.Energy saving.
Packaging & Delivery
Step 1: Design greenhouse drawings and plans
Step 2: Pack the greenhouse covering materials in woven bags
Step 3: Provide an introduction to the greenhouse in English
Step 4: Check the waterproof index for suitable and practical packaging
Step 5: Communicate with logistics to check appropriate details
Step 6: Control the delivery of each line.
According to customer requirements.
Company Profile
Certifications
FAQ
1.The land area is large. Should we use single-span or multi-span?
It is related to the plants and project budget. The multi-span shed is more expensive and saves space, while the single span one is simpler to install and more economical.
2.How to determine the size of the greenhouse?
2.How to determine the size of the greenhouse?
If there is fan and water pad the cooling system, it is better not to exceed 60 m.
If there are shading and blackout systems, should pay attention to the reasonable allocation of bays.
As for the span width, generally 6 m to 12 m. It is highly necessary to consider the climatic conditions and the growth requirements of the plants.
3.Should you choose a round arch or a pointed roof?
The round arch one is better against wind. The spire one is better against snow. And the round arch is cheaper;
4.How to install the greenhouse?
We can send engineers to site for building large scale greenhouse project. As for single greenhouse, it is recommended to install according to our installation guidance, and we can make detailed instructions for our customers;
If there are shading and blackout systems, should pay attention to the reasonable allocation of bays.
As for the span width, generally 6 m to 12 m. It is highly necessary to consider the climatic conditions and the growth requirements of the plants.
3.Should you choose a round arch or a pointed roof?
The round arch one is better against wind. The spire one is better against snow. And the round arch is cheaper;
4.How to install the greenhouse?
We can send engineers to site for building large scale greenhouse project. As for single greenhouse, it is recommended to install according to our installation guidance, and we can make detailed instructions for our customers;
5.How many 300-square-meter greenhouses can be installed in a cabinet?
It depends on the steel frame sizes. Generally, one 20' container can fit in 10-15 sets of single span greenhouse. And 40' can fit in about 20-24 sets of that;
6.Thickness of zinc layer of hot-dip galvanizing/thickness of zinc layer of galvanized zinc
220-275g, 20μ/150g, 15 -18μ;
7.How do we guarantee quality?
First we always uses high quality raw material. Second, we always make a pre-production sample before mass production to ensure that the finished products meet the needs of customers all the time; Third, there is always a final inspection before shipment;
8. What can you buy from us?
Various types of greenhouses, such as glass greenhouse, polycarbonate greenhouse, and film greenhouse. Meanwhile, there is also hydroponic greenhouse, garden greenhouse, commercial greenhouse.
9.Why choose us?
We are greenhouse manufacturer, ex-factory price, good quality with moderate price. Overall solution for greenhouse engineering. With rich experience, professional design, good after-sales service, installation supervision.
