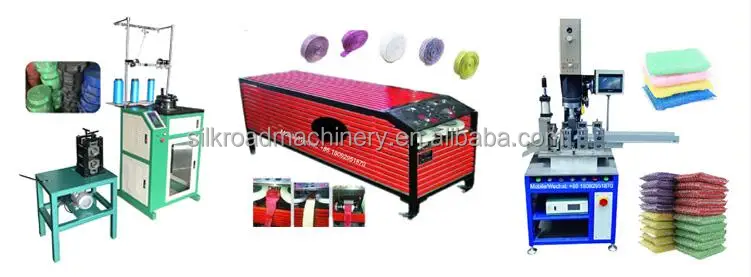

Knitting Machine Sponge filling machine Welding and Cutting Machine

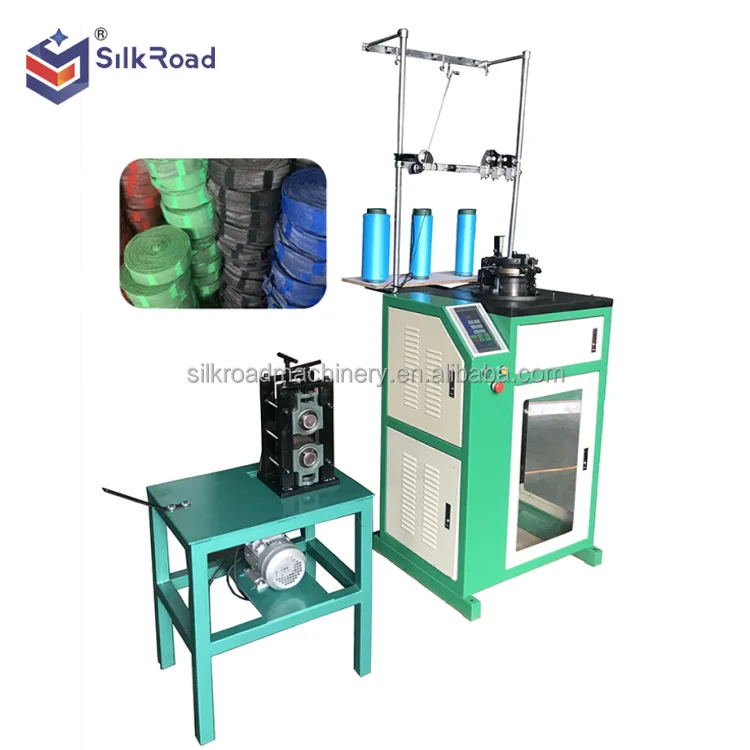

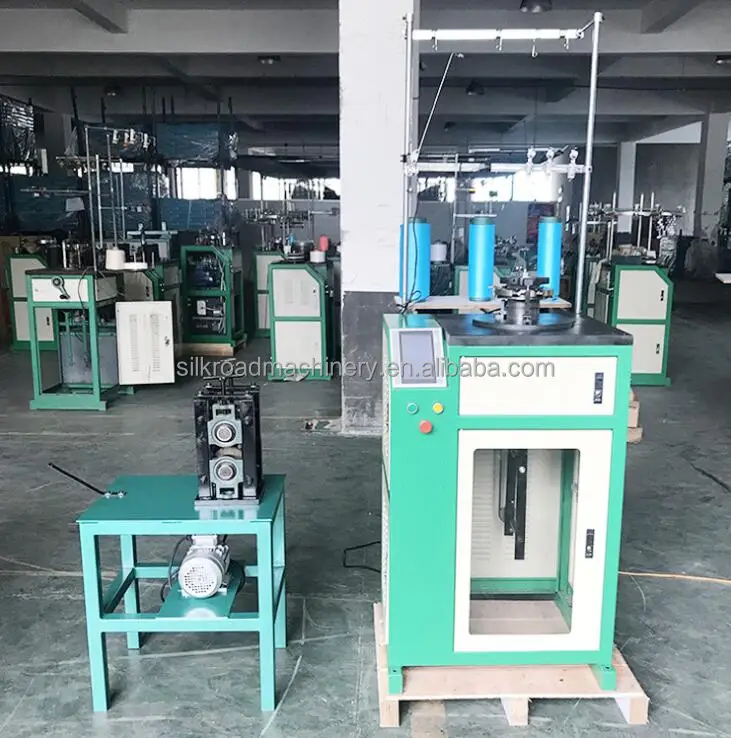

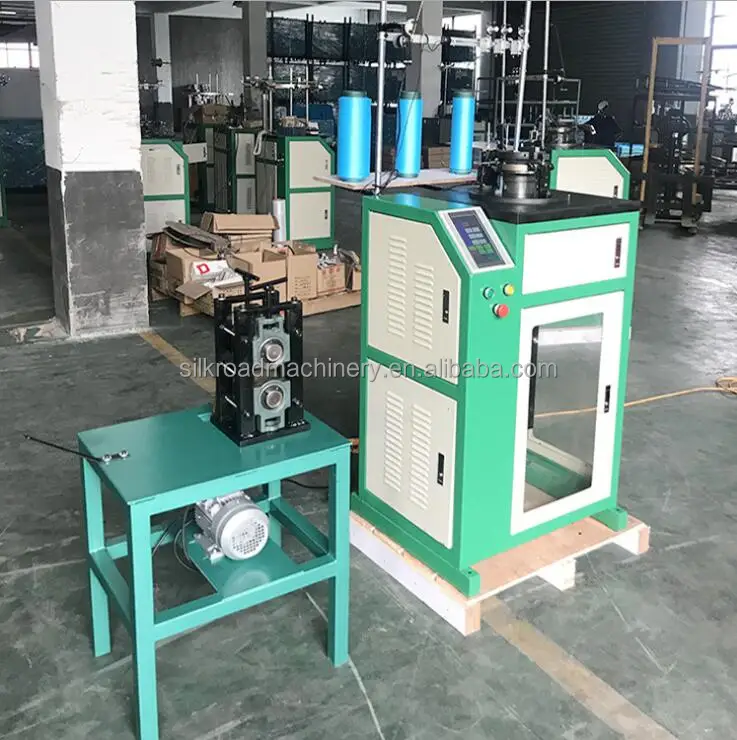

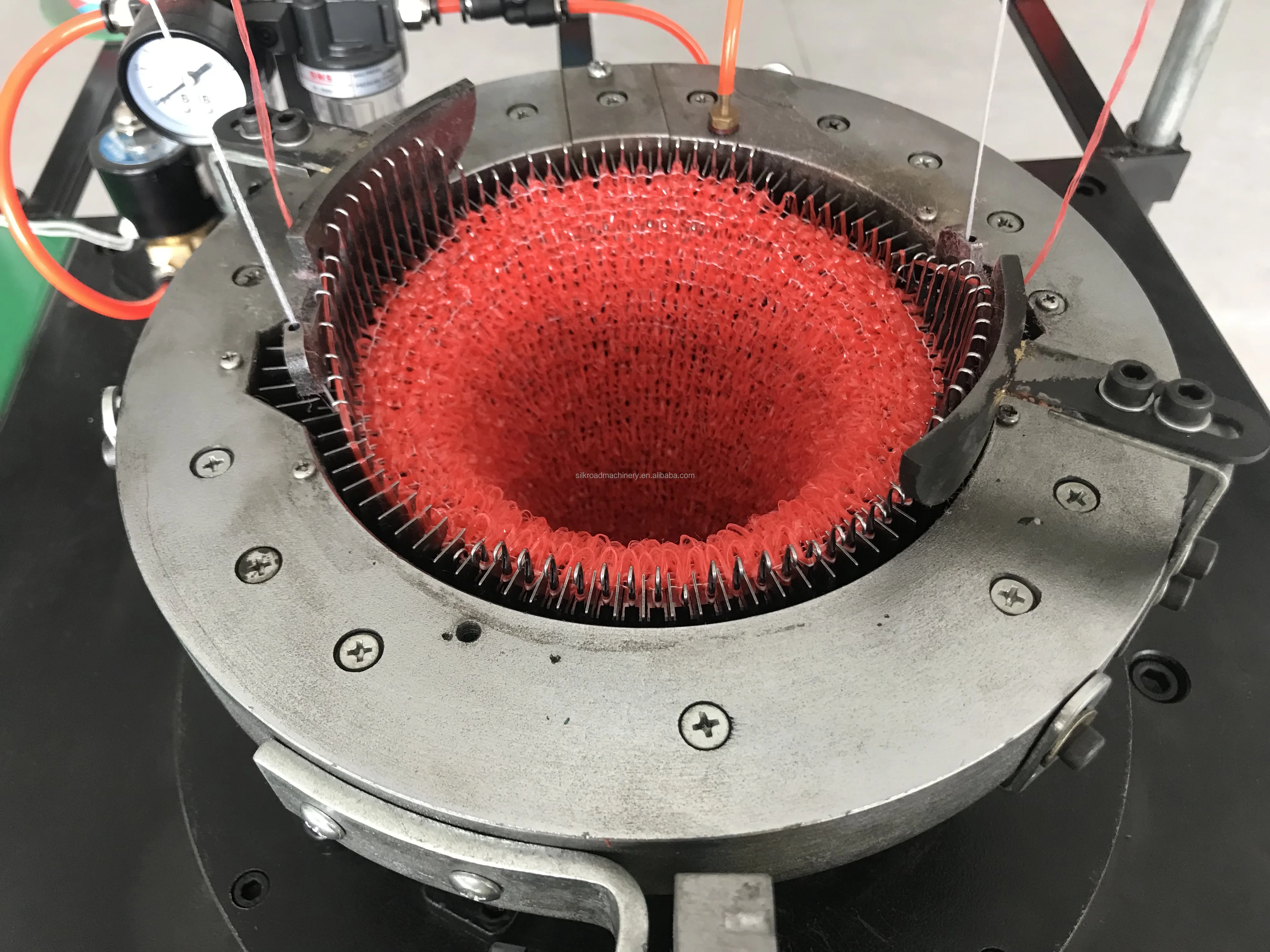

1.Sponge Scourer Knitting Machine:

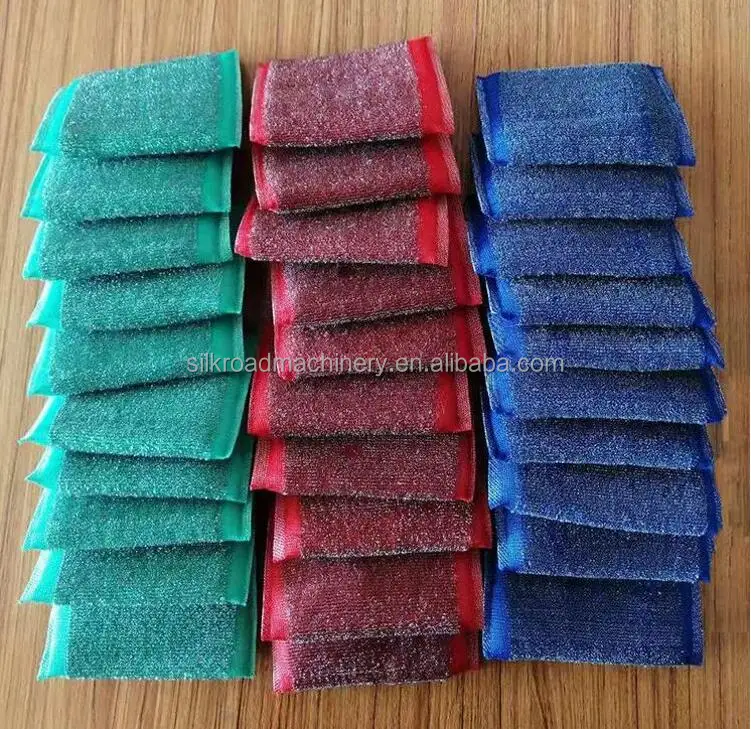

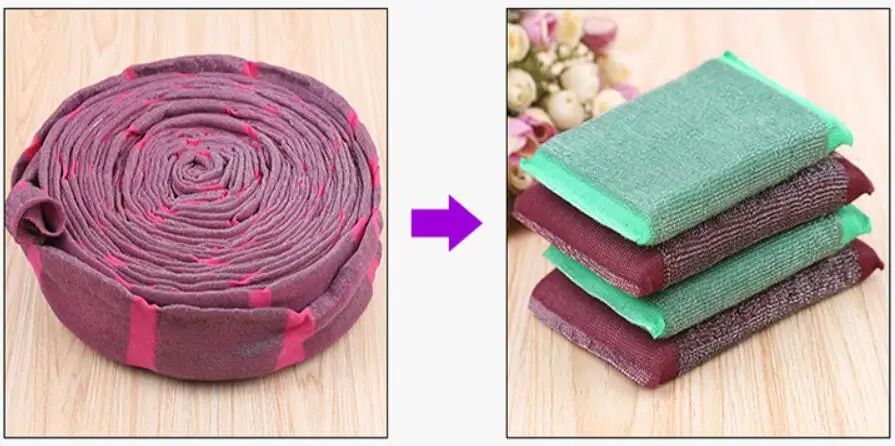

This machine applies stainless steel wire woven into polyester to produce scourer sponge, with more force of friction. Regular size is L13*W8.5*H1.5cm.

Main Features:
1. Adopts computer system to control machine operations
2. LCD screen switching between English and Chinse.
3. Computer control buttons is changing over time.
4. It is equipped with cloth roll stands and made in rolls.
5. It is equipped with yarn stop motion, it will stop automatically when yarn broken.
6. It is equipped with needles sensor, it will stop automatically when needles broken or
7. The auto oil filer is equipped to instead of adding oil by hand, that will save much time.
Parameter :
Cylinder Dia | 95mm |
Cylinders | 1 |
Power | 0.55kw |
Output | 8-10m/h |
Net Weight | 200kg |
Gross Weight | 250kg |
Packing Size | 630*790*1620mm |

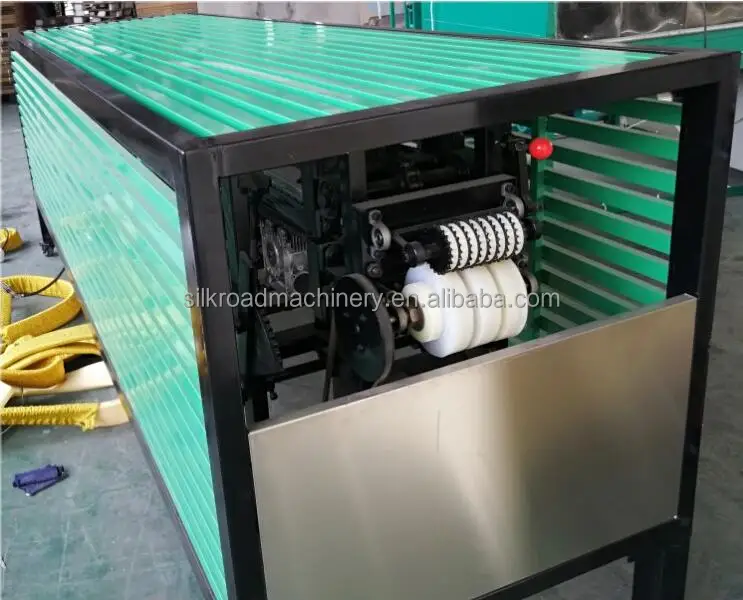

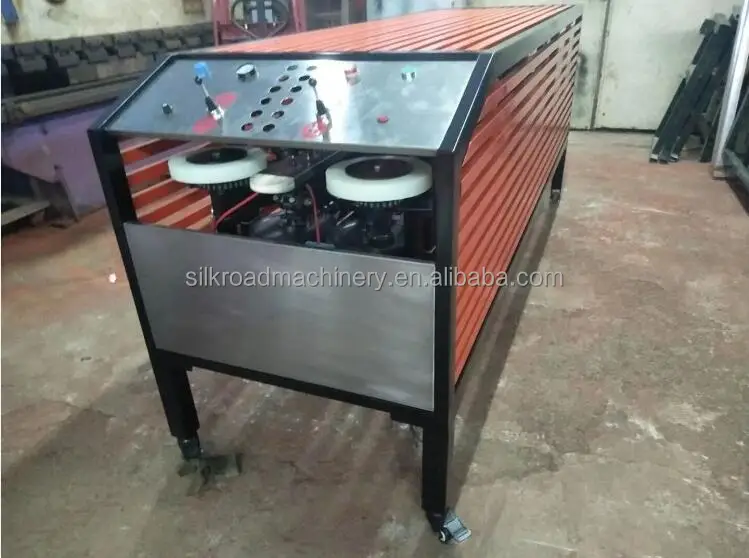

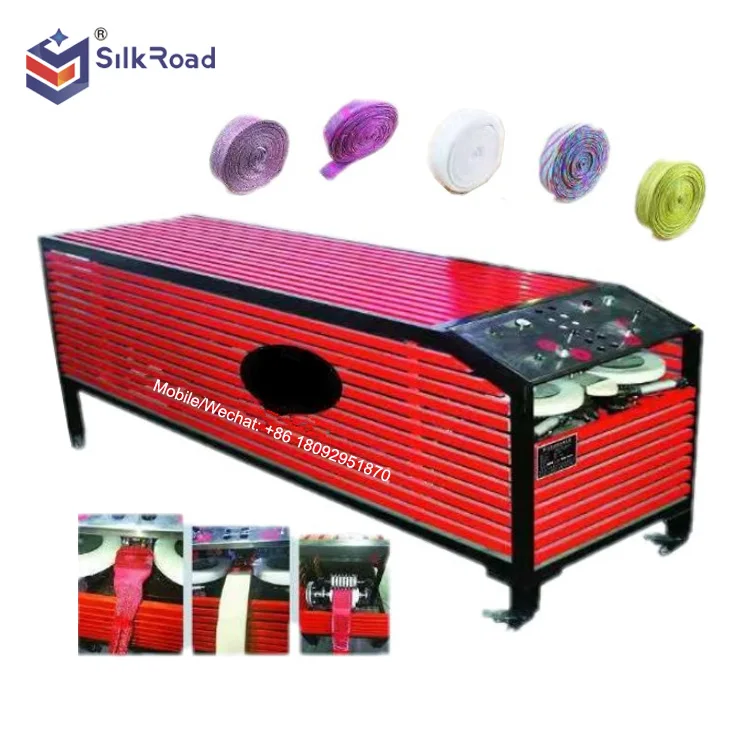

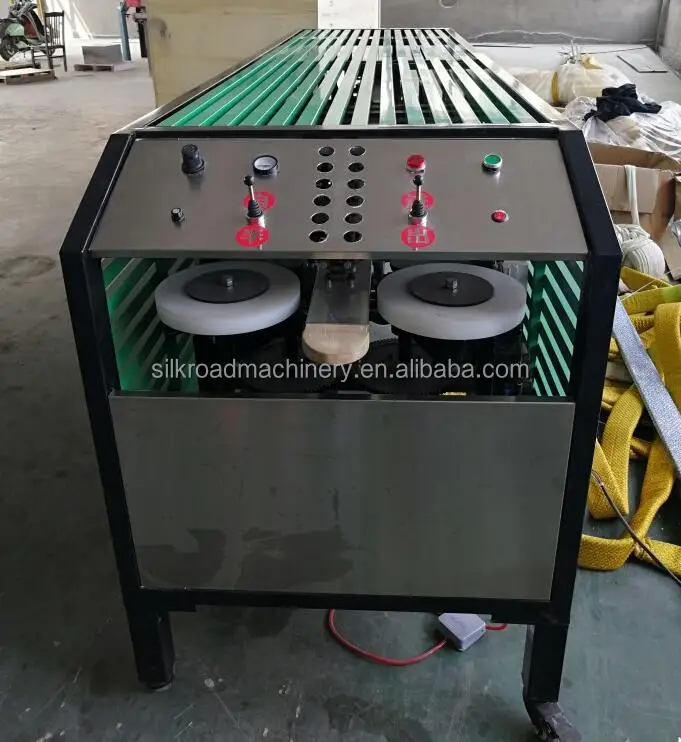

2.Sponge filling machine
This machine is simple to operate, one person can operate one machine, can replace five workers, reduce the production cost, is the necessary machine for production of sponge cleaner.

Parameter :
Model :SR-104
Weight:N.W/GW:550kgs/600kgs
Packing Size (L×W×H):3500x1140x1100mm
Packing Volume: 4.4 CBM
Output speed:3000m/h

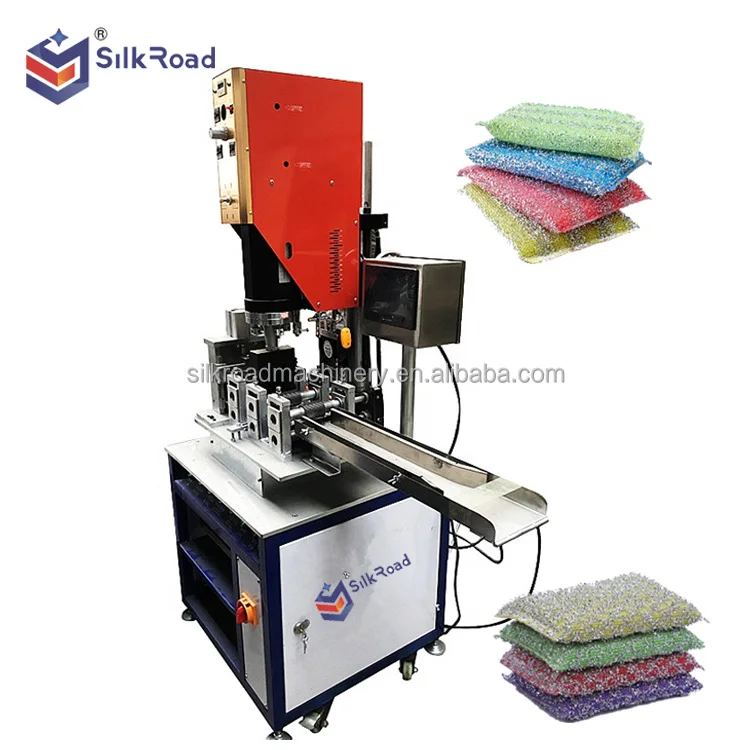

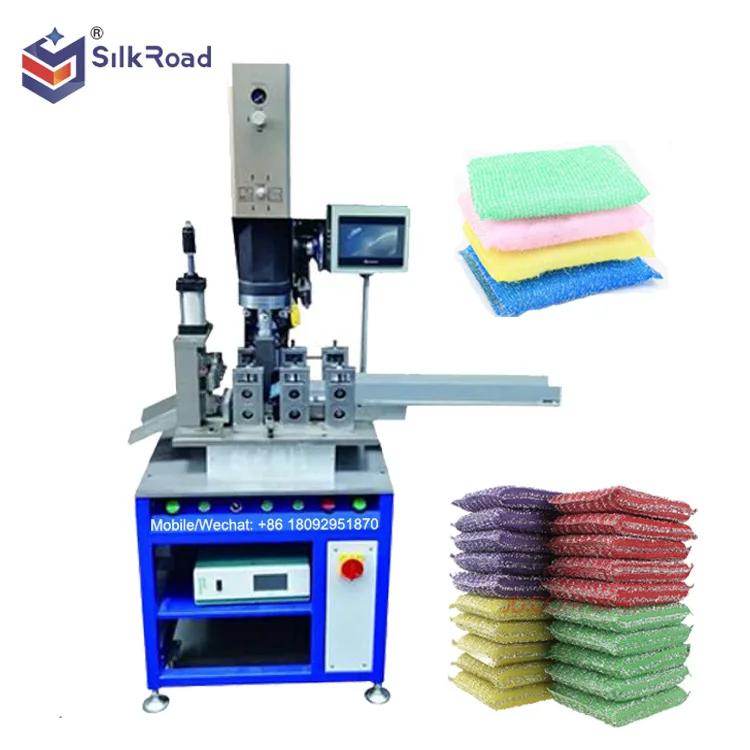

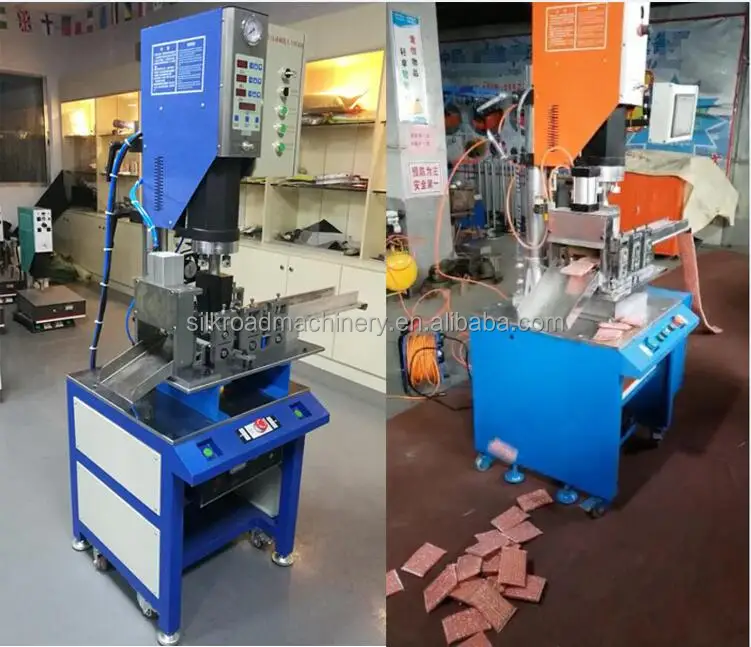

3.Sponge Scourer Welding and Cutting Machine:
This machine is through ultrasonic principle, combined with the production of welding needs, through the control of ultrasonic welding machine segmentation, the realization of automatic continuous ultrasonic welding, suitable for large quantities of products welding and cutting manufacturers, is conducive to improve work efficiency.

Feature:
1. The machine is equipped with a heavy-weight stable machine and a thickened bottom die of the rotary table, which is stable in operation and high in accuracy.
2. The machine is equipped with PLC programmable time control system, which is very convenient to use;
3. The machine adopts the pneumatic system, which can accurately control the rotation of the turntable and achieve good welding effect;
4. The machine adopts automatic control technology to make the welding operation easy and simple, and the digital welding parameter setting is intuitive and accurate.

Parameter :
Power | 3200 W |
Welding Area | Diameter 250 mm |
Production efficiency | 3000-4000 pcs per hour |
Scouring Pad length | 80mm-150mm |
Scouring Pad Width | 60mm-110mm |
Scouring Pad thickness | 10mm-50mm |
Weld time | 0.01-9.99 S |
Packing dimension | L*W*H 1500*800*1900 mm=2.28 CBM |
Gross weight | 350 kg |
