2022 Food Packaging Pouch Three Side Seal Doypack Zipper Pouch Coffee Bag Snacks Stand Up Pouch Bag Making Machine For Sale
- Category: >>>
- Supplier: Dongguan Sams Technology Co. Ltd.
Share on (1600405706191):
Product Overview
Description
Product Overview

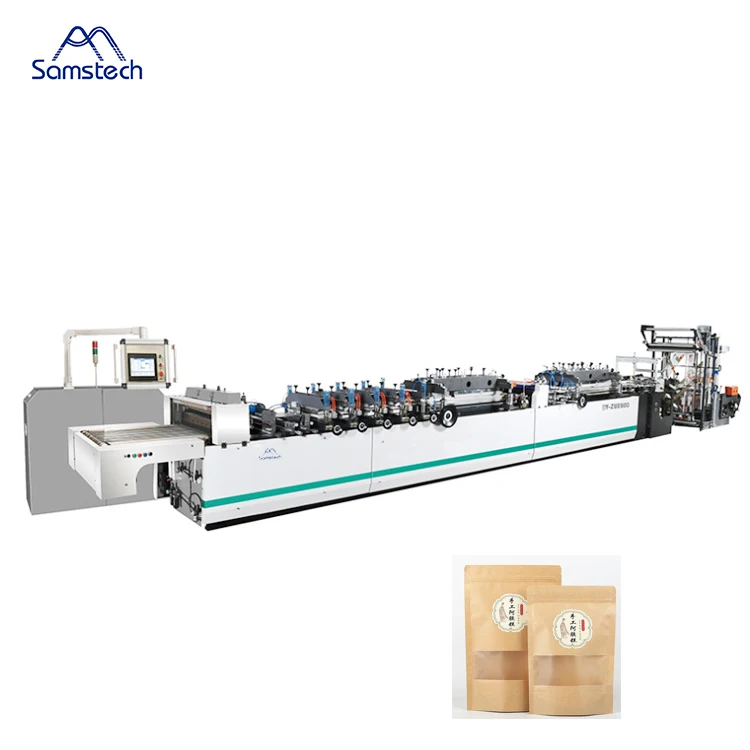

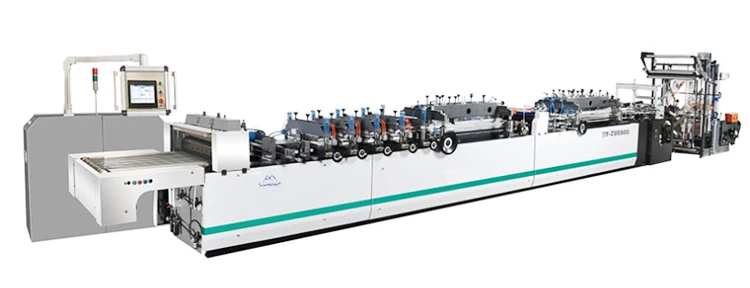

This series multi-function plastic bag making machine is mainly designed for zipper bag, self-stand bag,three side sealing bag etc. It is adopts world latest technology and working reliable, we can special made devices for the bag forming machine, please feel free to contact us for more details.
FEATURES AT A GLANCE
* Function: Three-side sealing & Double zipper Standing & Standing Bag
* Main Electric Device: Three Servo Motor, Panasonic PLC, AC motor masterdrive, Panasonic frequency converter, Temperature control 24 Road, Tension control unwinding.
* Base material: two-layer or multi-layer three-side sealing laminated film pouches with zipper sealing and doy-pack making function which take BOPP, PET, CPP, PE, nylon, aluminum foil and paper as base material.
* Max working speed: 180 times/min
* Max unwinding line speed: ≤45 meter/min (subject to base material)
* Making bag size: length (500mm), It adopts times to send when the length is more than 500mm. (Max times to send is nine)
* Max width of bag: 80-600mm
* Bag paste width:6-60mm
* Max size of roll material: φ600×1250mm（Diameter×Width）
* Location precise: ≤±0.5mm
* Heating sealing knife quantity: 2 set Longitudinal Knife, warming and cooling up and down.
* 5 set Longitudinal Knife, warming and cooling up and down.
* Transverse Knife: 3 set warming up and down. 2 set cooling up and down.
* Transverse sealing adopts ultrasonic welding zipper head.
* Temperature electric heating quantity: 22 piece.
* Temperature range: 0~300℃
* Total Power: 60Kw (Starting power is about 45kw, in condition of keeping warm, power is about 35kw)
* Overall dimension: 12500×2400×1950mm（L×W×H）
* Net weight: About 7000 kg
* Machine steel plate thickness: 10mm (Made in Shanghai, Baosteel)
* Control system Model: Japan Panasonic PLC Laminating Film High speed bag making machine control system
* Main Electric Device: Three Servo Motor, Panasonic PLC, AC motor masterdrive, Panasonic frequency converter, Temperature control 24 Road, Tension control unwinding.
* Base material: two-layer or multi-layer three-side sealing laminated film pouches with zipper sealing and doy-pack making function which take BOPP, PET, CPP, PE, nylon, aluminum foil and paper as base material.
* Max working speed: 180 times/min
* Max unwinding line speed: ≤45 meter/min (subject to base material)
* Making bag size: length (500mm), It adopts times to send when the length is more than 500mm. (Max times to send is nine)
* Max width of bag: 80-600mm
* Bag paste width:6-60mm
* Max size of roll material: φ600×1250mm（Diameter×Width）
* Location precise: ≤±0.5mm
* Heating sealing knife quantity: 2 set Longitudinal Knife, warming and cooling up and down.
* 5 set Longitudinal Knife, warming and cooling up and down.
* Transverse Knife: 3 set warming up and down. 2 set cooling up and down.
* Transverse sealing adopts ultrasonic welding zipper head.
* Temperature electric heating quantity: 22 piece.
* Temperature range: 0~300℃
* Total Power: 60Kw (Starting power is about 45kw, in condition of keeping warm, power is about 35kw)
* Overall dimension: 12500×2400×1950mm（L×W×H）
* Net weight: About 7000 kg
* Machine steel plate thickness: 10mm (Made in Shanghai, Baosteel)
* Control system Model: Japan Panasonic PLC Laminating Film High speed bag making machine control system

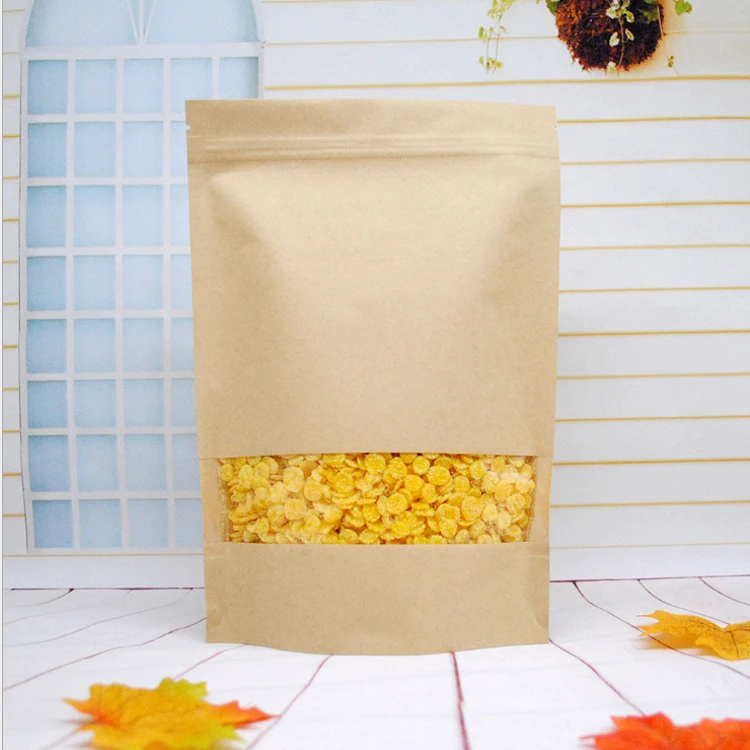

Product Sample 1

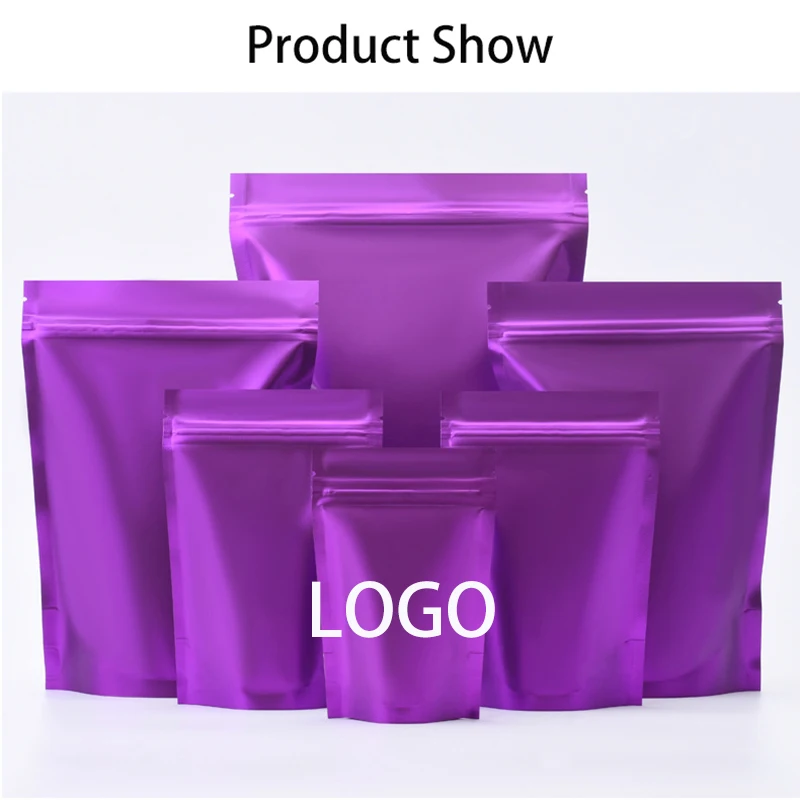

Product Sample 2

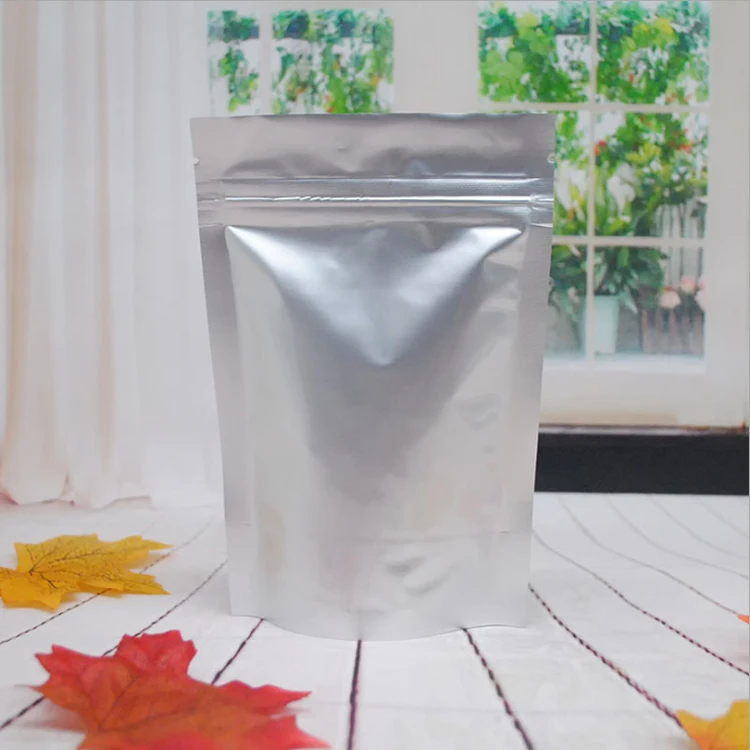

Product Sample 3

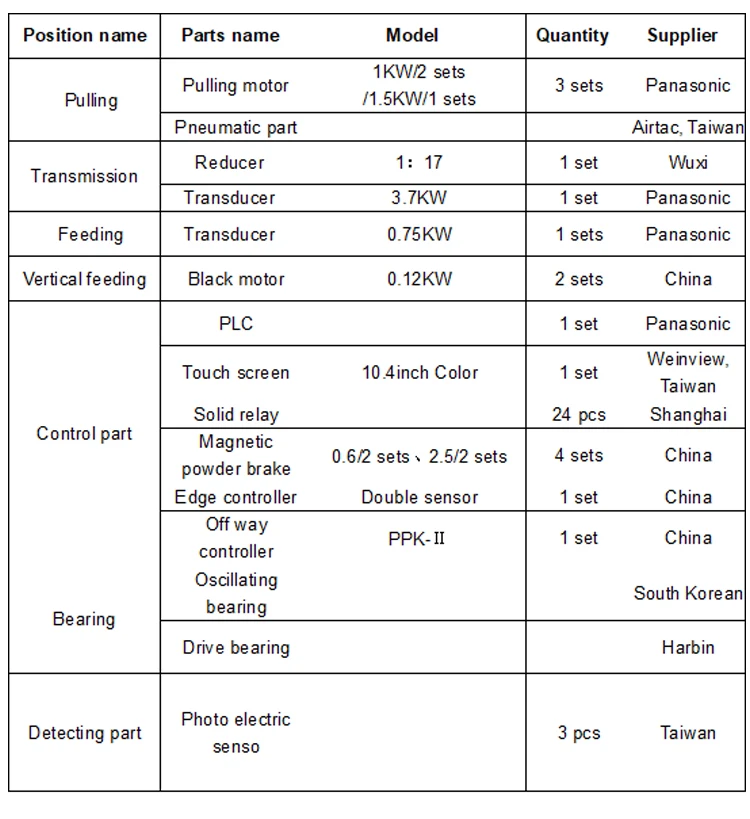

PRODUCT SPECIFICATIONS

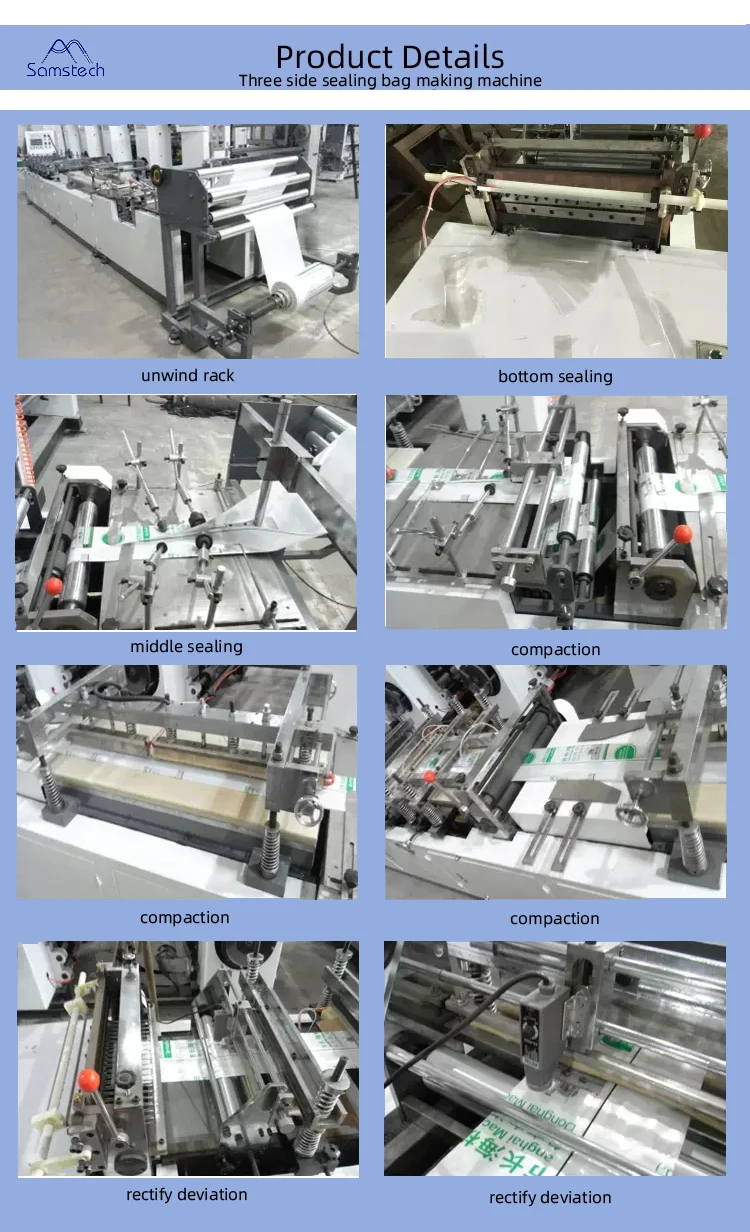

PRODUCT CONFIGURATION
feeding
Foaming
Finishing
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: What is the price of shipping?
A3: Depending upon the port of delivery, prices varies.
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: What is the price of shipping?
A3: Depending upon the port of delivery, prices varies.
A4: How many days will you finish installing ?
Q4: We will finish installation and training within 15 days.
A5: How long is your machine's warranty period?
Q5: All our machine have one year guarantee, starting from finished installation.
A6: How could we do if the parts broken within warranty?
Q6: Free replacement parts will be sent during the warranty date.
Q4: We will finish installation and training within 15 days.
A5: How long is your machine's warranty period?
Q5: All our machine have one year guarantee, starting from finished installation.
A6: How could we do if the parts broken within warranty?
Q6: Free replacement parts will be sent during the warranty date.
