TK15 Battery Tester

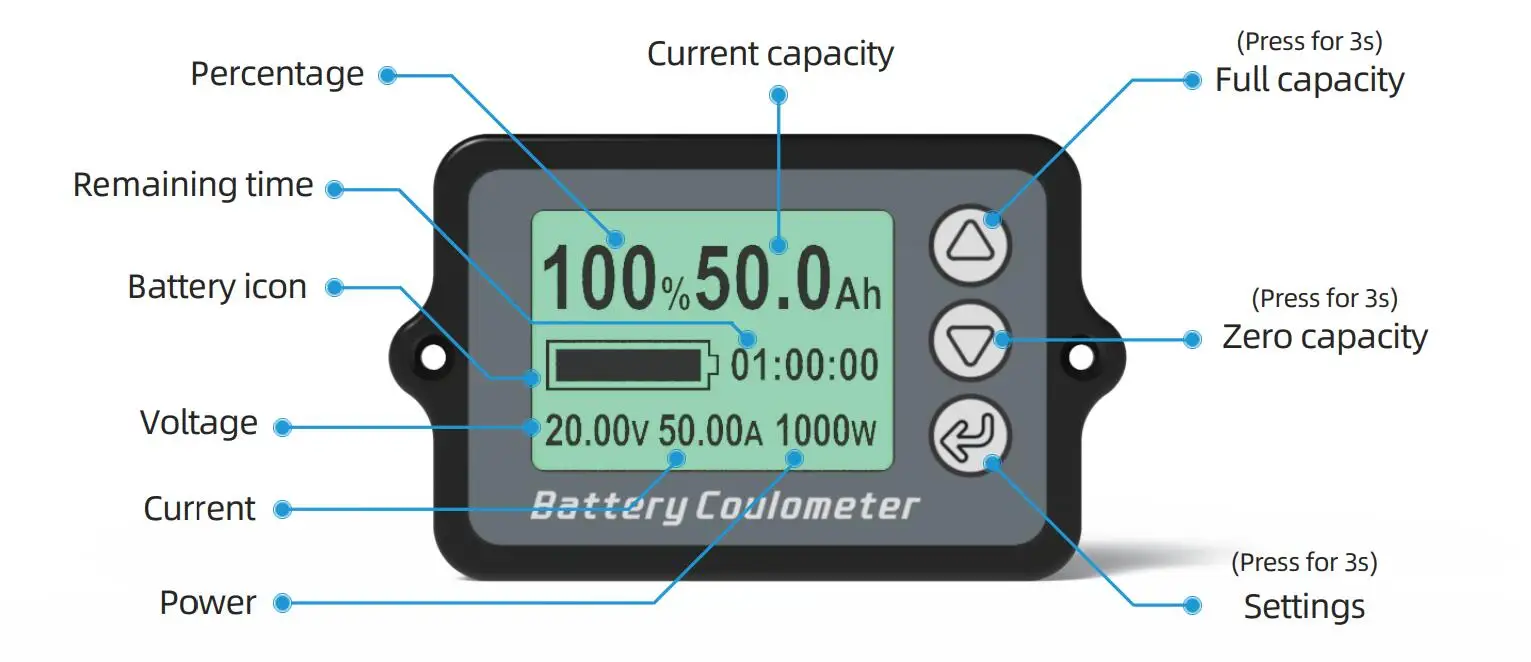

TK15 is a kind of high accuracy current type battery tester, TK15 can test the voltage, current and capacity of Lead-acid battery/Lithium-ion battery, and display them with intuitive battery symbol and percentage. Users can know the state of battery in time. TK15 has function of memory.This battery tester is suitable for mobile and portable equipments、electric vehicles、ebike、 battery cars、balance cars、cleaning machines、ups and so on.
TK15 is a current type tester different with voltage type tester, TK15 has high accuracy and high reliability.So it is expensive than voltage type battery tester like LY4,LY6......
Application：
TK15 battery tester is suitable for lithium battery, lithium iron phosphate battery, lead-acid battery and nickel-metal hydride battery which voltage is from 8.0V to 120.0V.
Basic parameters：
Parameter | Min | Type | Max | Unit | ||
Working voltage | 8.0 | 120.0 | V | |||
Working dissipation | 10.0 | 12.0 | mA | |||
Standby dissipation | 5 | 8 | mA | |||
Sleep dissipation | 50.0 | 60.0 | uA | |||
Capacity accuracy | ±2.0 | ％ | ||||
Voltage accuracy | ±2.0 | ％ | ||||
Current accuracy | ±2.0 | % | ||||
Backlight on current | 40.0 | 50.0 | mA | |||
Backlight off current | 30.0 | 40.0 | mA | |||
Preset capacity value | 0.1 | 9999.0 | Ah | |||
Current of 50A Sampler | 50.0 | 75.0 | A | |||
Temperature range | -10 | 20 | 60 | ℃ | ||
Weight | 270.0 | g | ||||

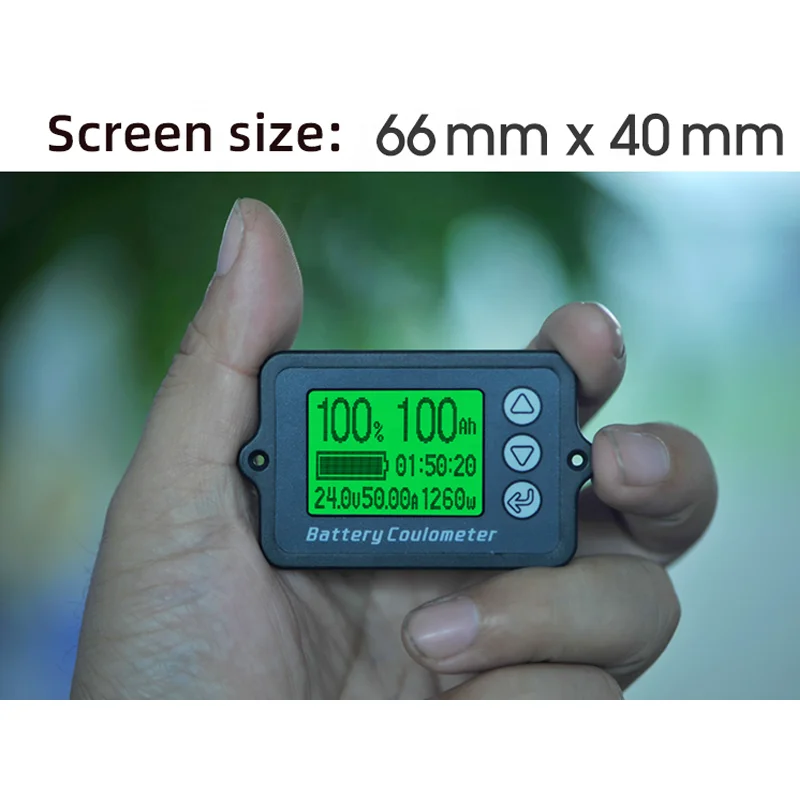

Size | 52×36×16 | mm | ||||

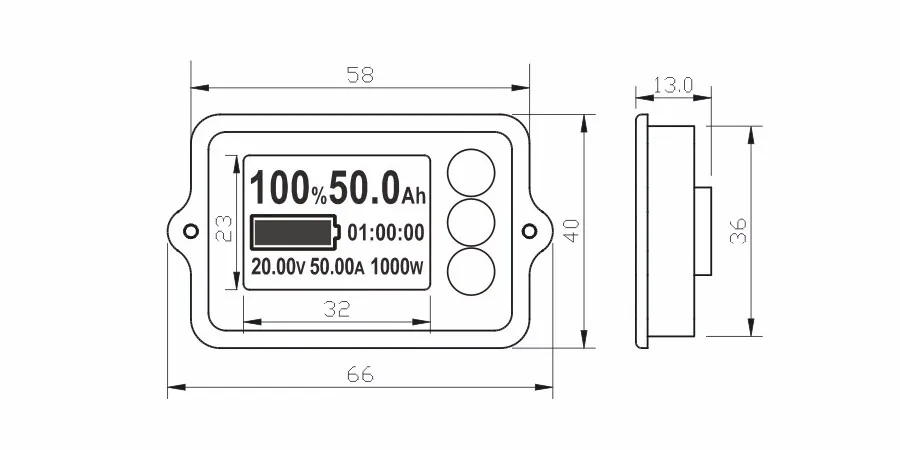

Install:
1.Open one rectangular orifice and two screw holes on the panel of the equipment;
2.Then install the battery tester from the front of the panel, and put the shell of tester into the rectangular orifice;
3.Finally, fix the battery tester with tapping screws from the front of the panel. As shown below:

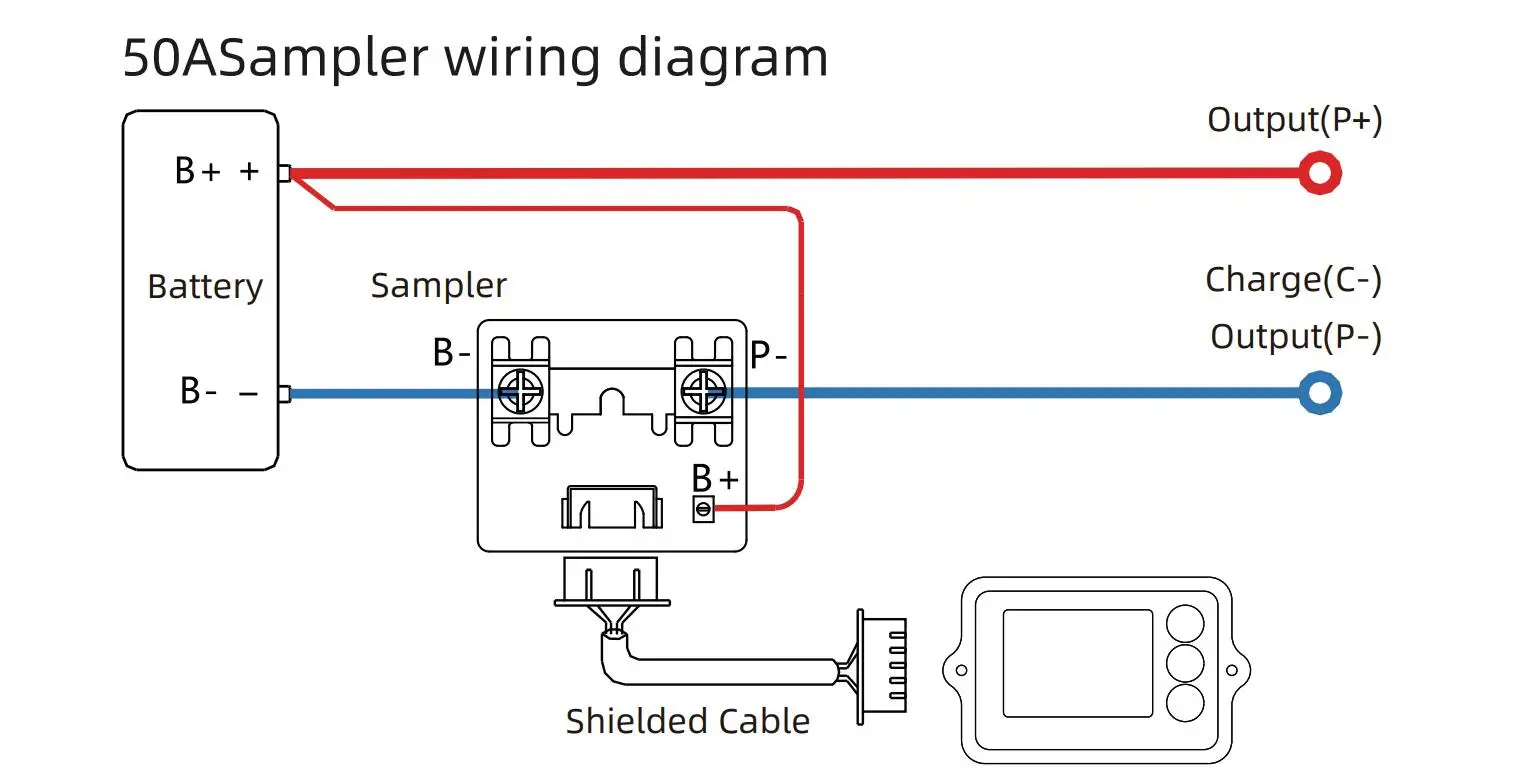

Connect:
1. Prepare a shielded wire and a ordinary wire (0.3-0.75 mm²);
2. One end of the ordinary wire connects to B+ of battery;
3. Another end connects to B+ of sampler (any one is ok);
4. The B- of sampler connects to B- of battery;
5. P- of sampler connect to P- of output;
6. Finally connect sampler to battery tester by the shielded wire.
Attention: Please connect as shown strictly. The sampler must be connected to the negativecircuit, it is forbidden to connect to the positive circuit. If you want to extend the shielded wire,you must use 4 lines of same specification.
The defaut length of shielded wire is 0.5m. 1m, 2m, 3m, 4m, 5m, 8m, 10m can select,Please contact us in advance. The price is according to the length.
